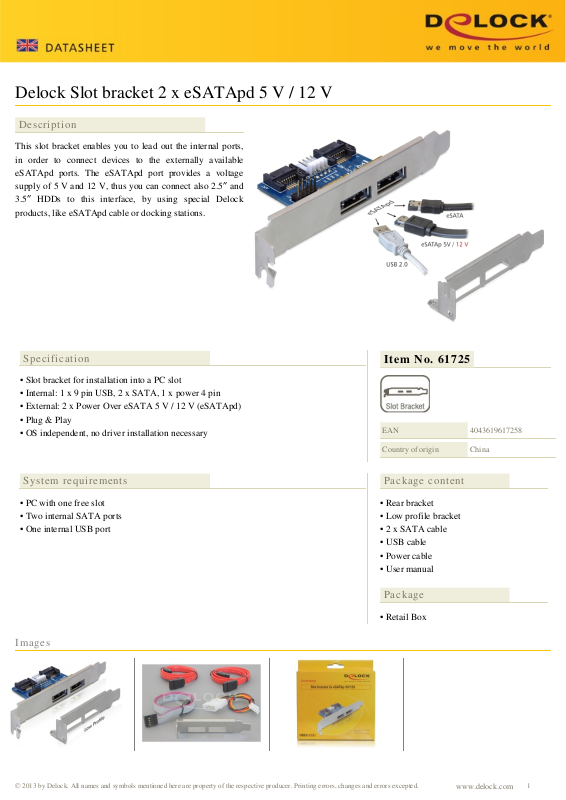

DeLOCK 61725 User Manual

Delock Slot bracket 2 x eSATApd 5 V / 12 V

Description

This slot bracket enables you to lead out the internal ports,
in order to connect devices to the externally available
eSATApd ports. The eSATApd port provides a voltage
supply of 5 V and 12 V, thus you can connect also 2.5″ and

3.5″ HDDs to this interface, by using special Delock
products, like eSATApd cable or docking stations.

Specification

• Slot bracket for installation into a PC slot

• Internal: 1 x 9 pin USB, 2 x SATA, 1 x power 4 pin

• External: 2 x Power Over eSATA 5 V / 12 V (eSATApd)

• Plug & Play

• OS independent, no driver installation necessary

Item No. 61725

EAN

Country of origin

4043619617258

China

System requirements

• PC with one free slot

• Two internal SATA ports

• One internal USB port

Images

Package content

• Rear bracket

• Low profile bracket

• 2 x SATA cable

• USB cable

• Power cable

• User manual

Package

• Retail Box
