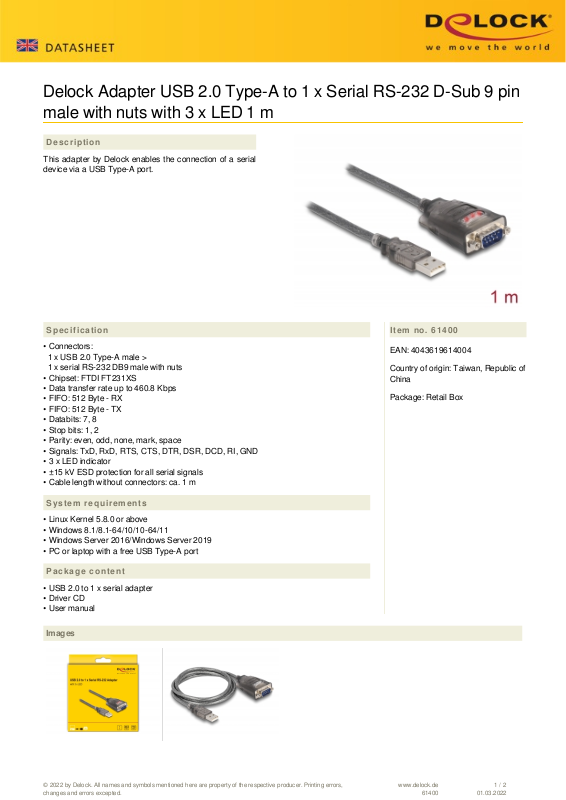

Page 1

Delock Adapter USB 2.0 Type-A to 1 x Serial RS-232 D-Sub 9 pin male with nuts with 3 x LED 1 m

Description

This adapter by Delock enables the connection of a serial device via a USB Type-A port.

Specification

• Connectors: 1 x USB 2.0 Type-A male > 1 x serial RS-232 DB9 male with nuts

• Chipset: FTDI FT231XS

• Data transfer rate up to 460.8 Kbps

• FIFO: 512 Byte - RX

• FIFO: 512 Byte - TX

• Databits: 7, 8

• Stop bits: 1, 2

• Parity: even, odd, none, mark, space

• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND

• 3 x LED indicator

• ±15 kV ESD protection for all serial signals

• Cable length without connectors: ca. 1 m

Item no. 61400

EAN: 4043619614004

Country of origin: Taiwan, Republic of China

Package: Retail Box

System requirements

• Linux Kernel 5.8.0 or above

• Windows 8.1/8.1-64/10/10-64/11

• Windows Server 2016/Windows Server 2019

• PC or laptop with a free USB Type-A port

Package content

• USB 2.0 to 1 x serial adapter

• Driver CD

• User manual

Images

www.delock.de

61400

1 / 2

01.03.2022

Page 2

General

Function: Plug & Play Specification: RS-232 (EIA / TIA)

USB 1.1 USB 2.0

Supported operating system: Linux Kernel 2.6 or above

Windows 10 32-bit Windows 10 64-bit Windows 7 32-bit Windows 7 64-bit Windows 8.1 32-bit Windows 8.1 64-bit Windows Server 2016 Windows Server 2019

Windows 11 LED indicator: 3 x PWR / RXD / TXD

Interface

Connector 1: 1 x USB 2.0 Type-A male Connector 2: 1 x Serial RS-232 DB9 male

Technical characteristics

Chipset: FTDI FT231XS Data transfer rate: up to 921.6 Kbps FIFO: 384 Byte RX

128 Byte TX Operating temperature: 0 °C ~ 60 °C Signal transmission: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND Data transmission: asynchronous

full duplex Current consumption: max. 40 mA

Physical characteristics

Housing colour: transparent Cable colour: transparent Cable length incl. connector: 1.1 m Screw type: #4-40 UNC Shielding: double Colour: black

www.delock.de

61400

2 / 2

01.03.2022
