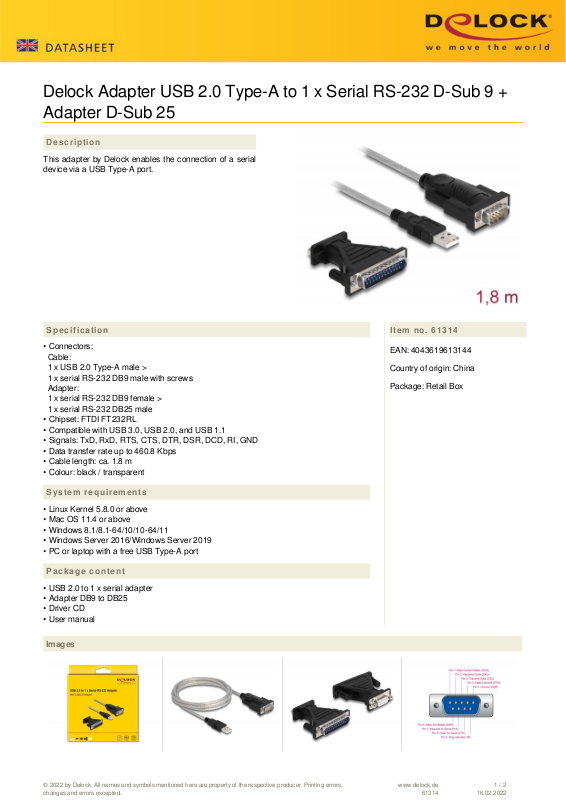

DELOCK 61314 Datasheet

Page 1

Delock Adapter USB 2.0 Type-A to 1 x Serial RS-232 D-Sub 9 + Adapter D-Sub 25

Description

This adapter by Delock enables the connection of a serial device via a USB Type-A port.

Specification

• Connectors: Cable: 1 x USB 2.0 Type-A male > 1 x serial RS-232 DB9 male with screws Adapter: 1 x serial RS-232 DB9 female > 1 x serial RS-232 DB25 male

• Chipset: FTDI FT232RL

• Compatible with USB 3.0, USB 2.0, and USB 1.1

• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND

• Data transfer rate up to 460.8 Kbps

• Cable length: ca. 1.8 m

• Colour: black / transparent

Item no. 61314

EAN: 4043619613144

Country of origin: China

Package: Retail Box

System requirements

• Linux Kernel 5.8.0 or above

• Mac OS 11.4 or above

• Windows 8.1/8.1-64/10/10-64/11

• Windows Server 2016/Windows Server 2019

• PC or laptop with a free USB Type-A port

Package content

• USB 2.0 to 1 x serial adapter

• Adapter DB9 to DB25

• Driver CD

• User manual

Images

www.delock.de

61314

1 / 2

16.02.2022

Page 2

General

Function: Plug & Play Specification: RS-232 (EIA / TIA)

USB 1.1 USB 2.0

Supported operating system: Linux Kernel 2.6 or above

Mac OS 10.9 or above Windows 10 32-bit Windows 10 64-bit Windows 7 32-bit Windows 7 64-bit Windows 8.1 32-bit Windows 8.1 64-bit Windows Server 2008 R2 Windows Server 2012 R2 Windows Server 2012 Windows Server 2016

Windows 11

Interface

Connector 1: 1 x USB 2.0 Type-A male Connector 2: 1 x Serial RS-232 DB9 male

Technical characteristics

Chipset: FTDI FT232RL Data transfer rate: up to 921.6 Kbps FIFO: 128 byte

256 Byte Signal transmission: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND Data transmission: asynchronous

full duplex Current consumption: 20 mA UART: USB to serial UART

Physical characteristics

Cable colour: transparent Cable length incl. connector: 1.8 m Pin finishing: gold-plated Screw type: #4-40 UNC Shielding: double Colour: black
