Page 1

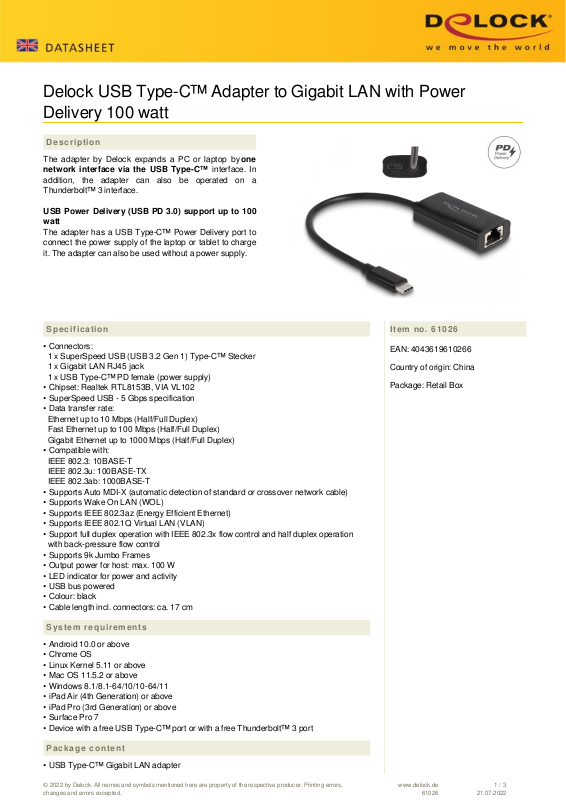

Delock USB Type-C™ Adapter to Gigabit LAN with Power
Delivery 100 watt
Description
The adapter by Delock expands a PC or laptop by one
network interface via the USB Type-C™ interface. In
addition, the adapter can also be operated on a
Thunderbolt™ 3 interface.
USB Power Delivery (USB PD 3.0) support up to 100
watt
The adapter has a USB Type-C™ Power Delivery port to
connect the power supply of the laptop or tablet to charge
it. The adapter can also be used without a power supply.
Specification
• Connectors:
1 x SuperSpeed USB (USB 3.2 Gen 1) Type-C™ Stecker
1 x Gigabit LAN RJ45 jack
1 x USB Type-C™ PD female (power supply)
• Chipset: Realtek RTL8153B, VIA VL102
• SuperSpeed USB - 5 Gbps specification
• Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
• Compatible with:
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
IEEE 802.3ab: 1000BASE-T
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports Wake On LAN (WOL)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Support full duplex operation with IEEE 802.3x flow control and half duplex operation
with back-pressure flow control
• Supports 9k Jumbo Frames
• Output power for host: max. 100 W
• LED indicator for power and activity
• USB bus powered
• Colour: black
• Cable length incl. connectors: ca. 17 cm
Item no. 61026
EAN: 4043619610266
Country of origin: China
Package: Retail Box
System requirements
• Android 10.0 or above
• Chrome OS
• Linux Kernel 5.11 or above
• Mac OS 11.5.2 or above
• Windows 8.1/8.1-64/10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port
Package content
• USB Type-C™ Gigabit LAN adapter
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
61026
1 / 3
21.07.2022
Page 2
• User manual

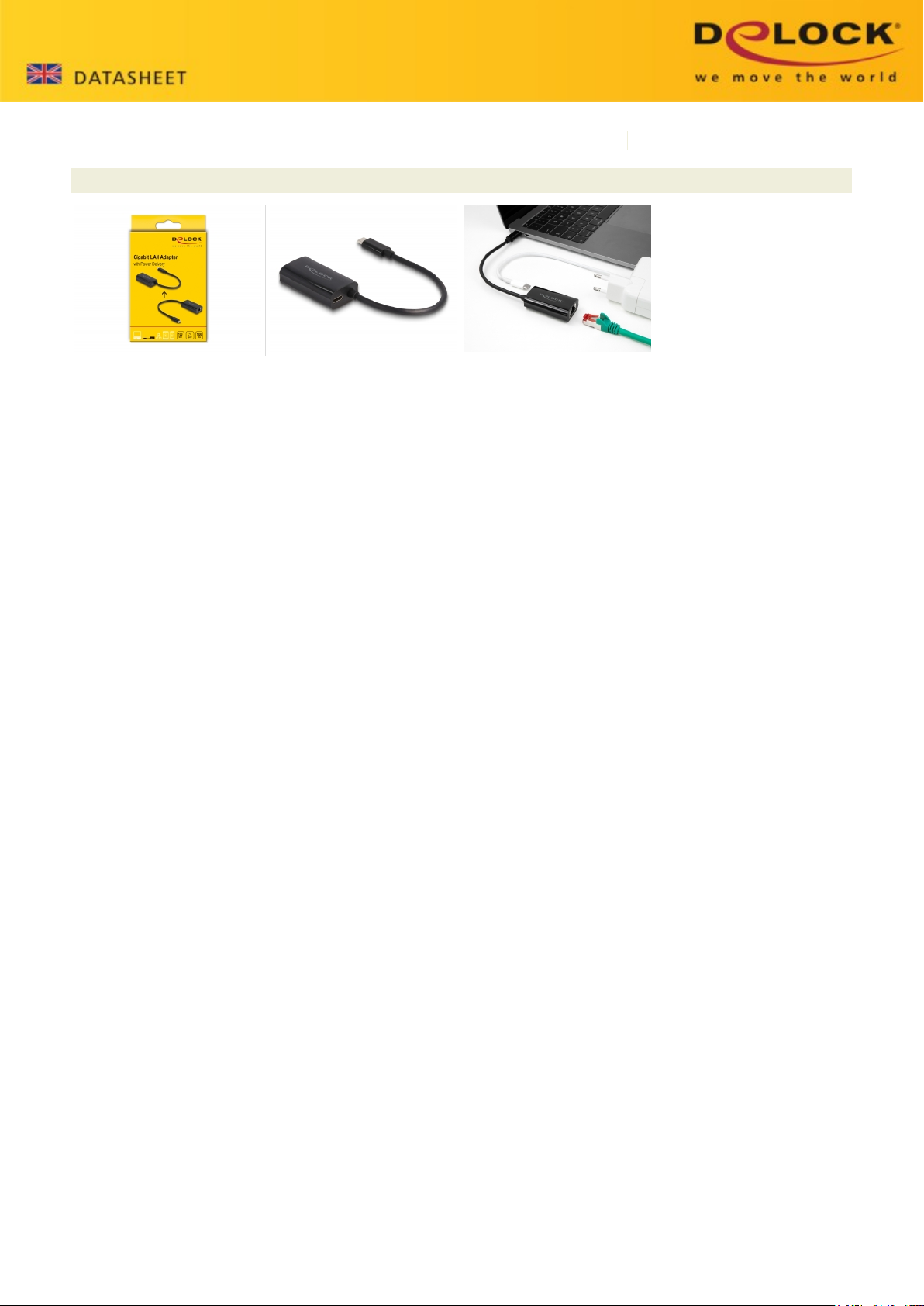

Images
© 2022 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
61026
2 / 3
21.07.2022
Page 3
General
Supported operating system: Chrome OS
Windows 10 32-bit
Windows 10 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Android 10.0 or above
iPad Pro (3rd Generation) or above
iPad Air (4th Generation) or above
Windows 11
Linux Kernel 5.11 or above
Mac OS 11.5.2 or above
LED indicator: 2 x
Interface
Connector 1: 1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ male
Connector 2: 1 x Gigabit LAN RJ45 female
connector 3: 1 x USB Type-C™ Power Delivery female
Technical characteristics
Chipset: Realtek RTL8153B
VIA VL102
Data transfer rate: Gigabit Ethernet up to 100 Gbps
Gigabit Ethernet up to 10 Gbps
Gigabit Ethernet up to 1000 Mbps
Physical characteristics
Colour: black
