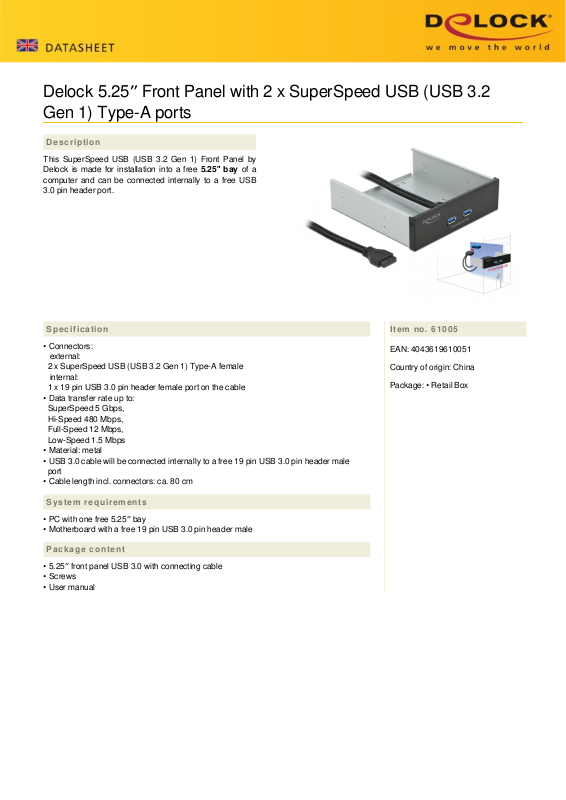

Page 1
Delock 5.25″ Front Panel with 2 x SuperSpeed USB (USB 3.2
Gen 1) Type-A ports
Description
This SuperSpeed USB (USB 3.2 Gen 1) Front Panel by
Delock is made for installation into a free 5.25″ bay of a
computer and can be connected internally to a free USB
3.0 pin header port.
Specification
• Connectors:
external:
2 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
internal:
1 x 19 pin USB 3.0 pin header female port on the cable
• Data transfer rate up to:
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Material: metal
• USB 3.0 cable will be connected internally to a free 19 pin USB 3.0 pin header male
port
• Cable length incl. connectors: ca. 80 cm
Item no. 61005
EAN: 4043619610051
Country of origin: China
Package: • Retail Box
System requirements
• PC with one free 5.25″ bay
• Motherboard with a free 19 pin USB 3.0 pin header male
Package content
• 5.25″ front panel USB 3.0 with connecting cable
• Screws
• User manual

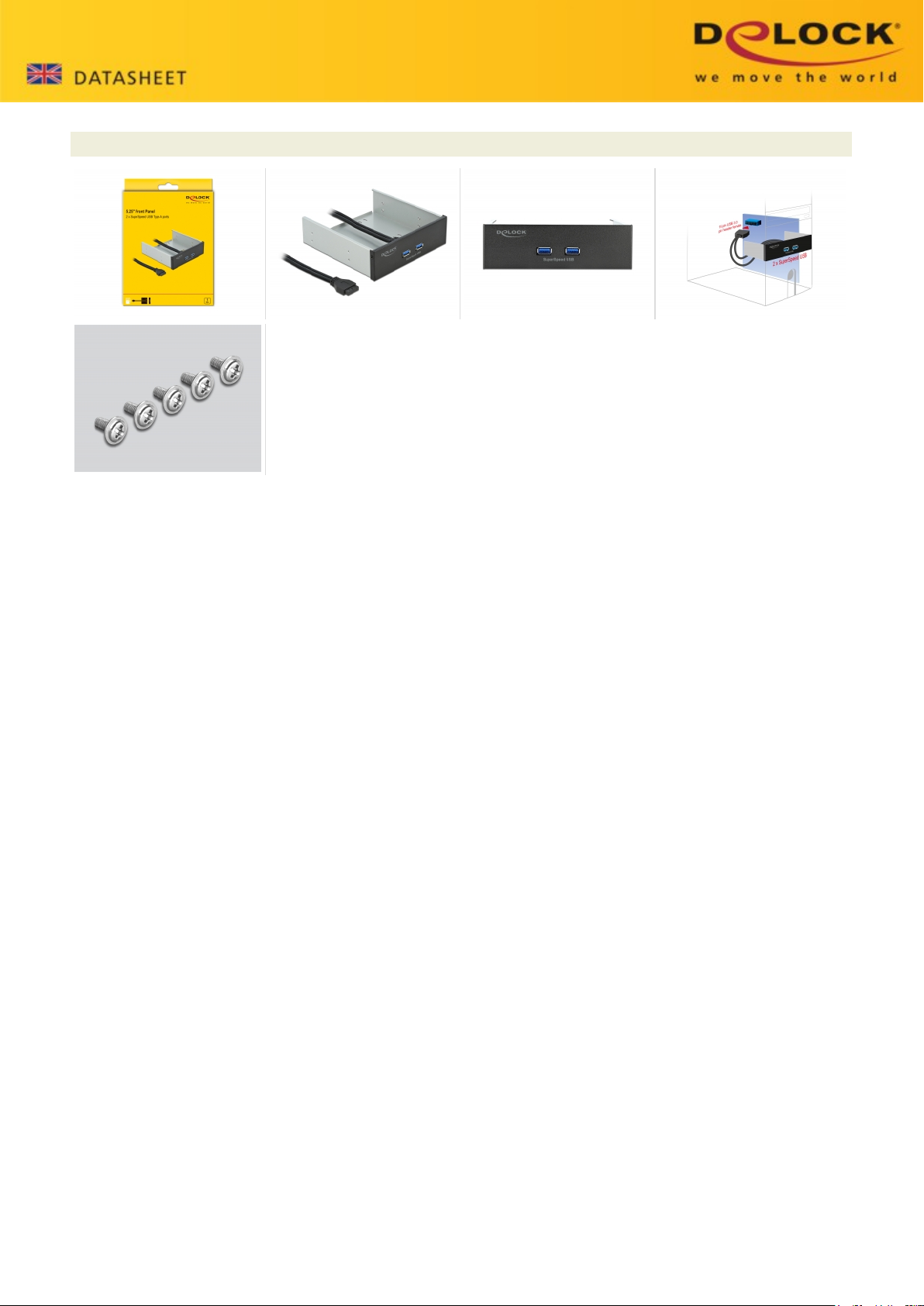

Page 2
Images
Page 3
General
Form factor: 5.25"
Interface
Connector 1: 1 x 19 pin USB 3.0 pin header female port on the cable
Connector 2: 2 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
Physical characteristics
Cable length incl. connector: 80 cm
Material: metal
Colour: black
