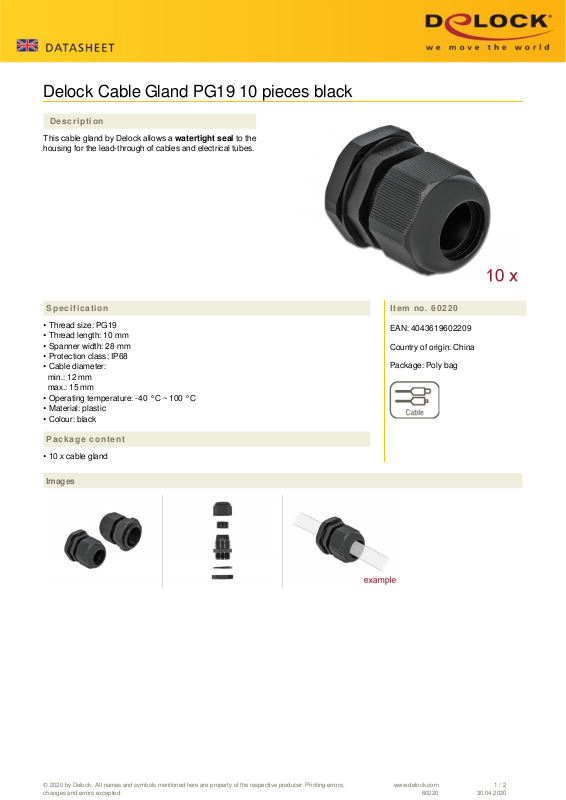

Page 1
Delock Cable Gland PG19 10 pieces black
Description
This cable gland by Delock allows a watertight seal to the
housing for the lead-through of cables and electrical tubes.
Specification
• Thread size: PG19
• Thread length: 10 mm
• Spanner width: 28 mm
• Protection class: IP68
• Cable diameter:
min.: 12 mm
max.: 15 mm
• Operating temperature: -40 °C ~ 100 °C
• Material: plastic
• Colour: black
Item no. 60220
EAN: 4043619602209
Country of origin: China
Package: Poly bag
Package content
• 10 x cable gland
Images
© 2020 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
60220
1 / 2
30.04.2020
Page 2
Technical characteristics
Operating temperature: -40 °C ~ 100 °C
Protection class: IP68
Physical characteristics
Thread length: 10 mm
Material: plastic
Colour: black
Thread type: PG19
Spanner width: 28 mm
Cable diameter: min.: 12 mm
max.: 15 mm
