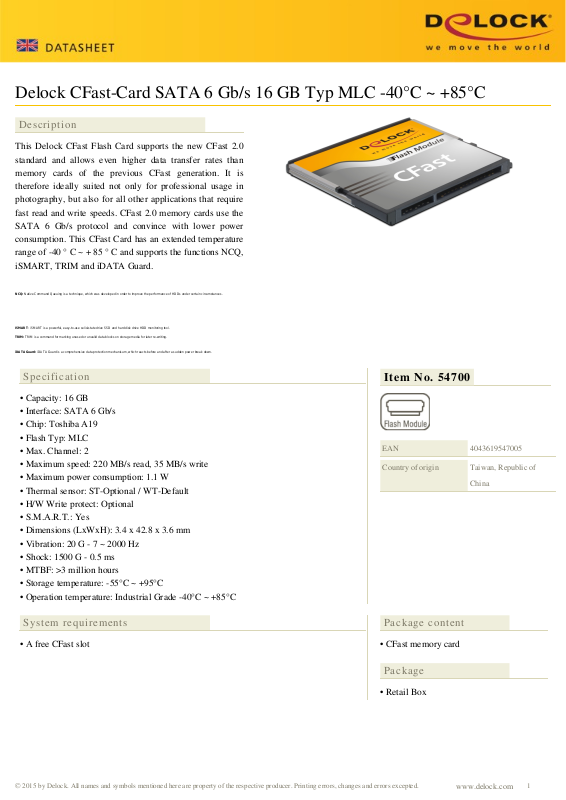

DELOCK 54700 Datasheet

Delock CFast-Card SATA 6 Gb/s 16 GB Typ MLC -40°C ~ +85°C

Description

This Delock CFast Flash Card supports the new CFast 2.0
standard and allows even higher data transfer rates than
memory cards of the previous CFast generation. It is
therefore ideally suited not only for professional usage in
photography, but also for all other applications that require
fast read and write speeds. CFast 2.0 memory cards use the
SATA 6 Gb/s protocol and convince with lower power
consumption. This CFast Card has an extended temperature
range of -40 ° C ~ + 85 ° C and supports the functions NCQ,
iSMART, TRIM and iDATA Guard.

NCQ: Native Command Queuing is a technique, which was developed in order to improve the performance of HDDs under certain circumstances.

ISMART: iSMART is a powerful, easy-to-use solid-state drive SSD and hard disk drive HDD monitoring tool.

TRIM: TRIM is a command for marking unused or unvalid data blocks on storage media for later re-writing.

iDATA Guard: iDATA Guard is a comprehensive data protection mechanisum, which reacts before and after a sudden power break down.

Specification

• Capacity: 16 GB

• Interface: SATA 6 Gb/s

• Chip: Toshiba A19

• Flash Typ: MLC

• Max. Channel: 2

• Maximum speed: 220 MB/s read, 35 MB/s write

• Maximum power consumption: 1.1 W

• Thermal sensor: ST-Optional / WT-Default

• H/W Write protect: Optional

• S.M.A.R.T.: Yes

• Dimensions (LxWxH): 3.4 x 42.8 x 3.6 mm

• Vibration: 20 G - 7 ~ 2000 Hz

• Shock: 1500 G - 0.5 ms

• MTBF: >3 million hours

• Storage temperature: -55°C ~ +95°C

• Operation temperature: Industrial Grade -40°C ~ +85°C

Item No. 54700

EAN

Country of origin

4043619547005

Taiwan, Republic of
China

System requirements

• A free CFast slot

Package content

• CFast memory card

Package

• Retail Box
