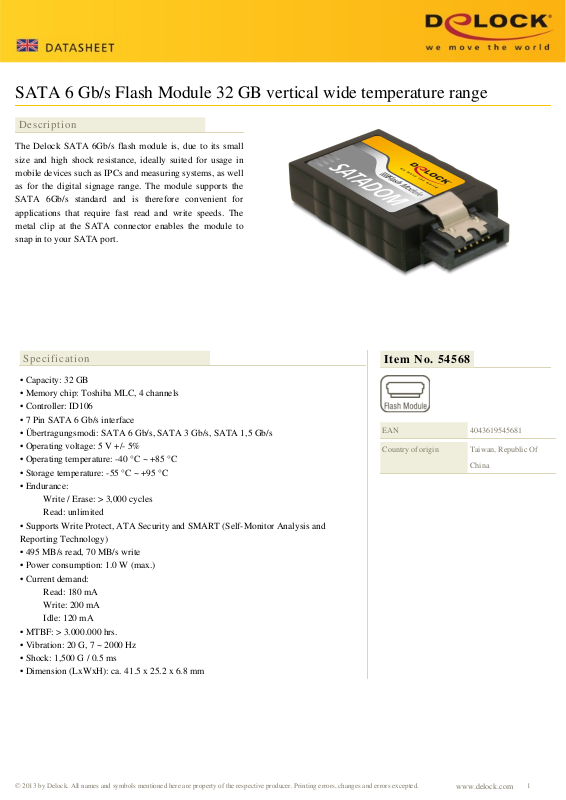

DeLOCK 54568 User Manual

SATA 6 Gb/s Flash Module 32 GB vertical wide temperature range

Description

The Delock SATA 6Gb/s flash module is, due to its small size and high shock resistance, ideally suited for usage in mobile devices such as IPCs and measuring systems, as well as for the digital signage range. The module supports the SATA 6Gb/s standard and is therefore convenient for applications that require fast read and write speeds. The metal clip at the SATA connector enables the module to snap in to your SATA port.

Specification

• Capacity: 32 GB

• Memory chip: Toshiba MLC, 4 channels

• Controller: ID106

• 7 Pin SATA 6 Gb/s interface

• Übertragungsmodi: SATA 6 Gb/s, SATA 3 Gb/s, SATA 1,5 Gb/s

• Operating voltage: 5 V +/- 5%

• Operating temperature: -40 °C ~ +85 °C

• Storage temperature: -55 °C ~ +95 °C

• Endurance: Write / Erase: > 3,000 cycles Read: unlimited

• Supports Write Protect, ATA Security and SMART (Self-Monitor Analysis and Reporting Technology)

• 495 MB/s read, 70 MB/s write

• Power consumption: 1.0 W (max.)

• Current demand: Read: 180 mA Write: 200 mA Idle: 120 mA

• MTBF: > 3.000.000 hrs.

• Vibration: 20 G, 7 ~ 2000 Hz

• Shock: 1,500 G / 0.5 ms

• Dimension (LxWxH): ca. 41.5 x 25.2 x 6.8 mm

Item No. 54568

EAN

Country of origin

4043619545681

Taiwan, Republic Of China

www.delock.com

System requirements

Package content

• A free SATA 7 pin port

• Power supply with a free Molex power connector

• SATA Flash module

• Power cable

Package

• Antistatic cover
