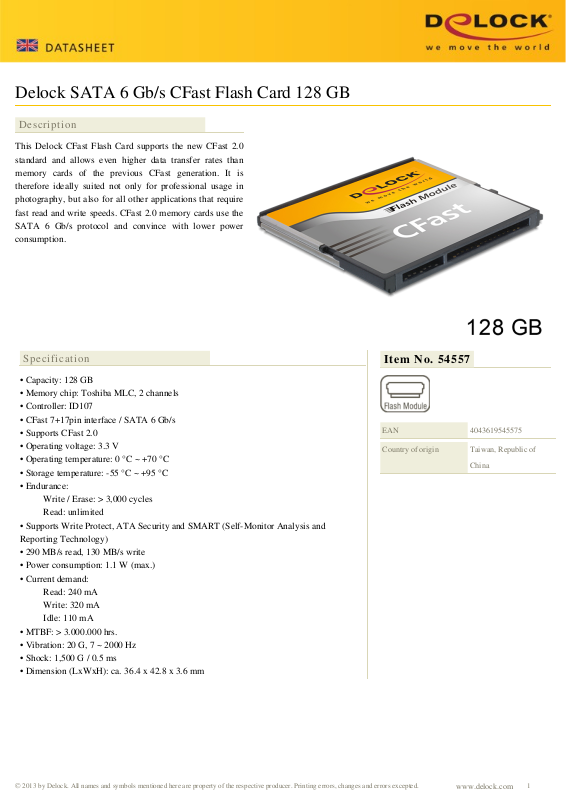

DeLOCK 54557 User Manual
Delock SATA 6 Gb/s CFast Flash Card 128 GB
Description
This Delock CFast Flash Card supports the new CFast 2.0
standard and allows even higher data transfer rates than
memory cards of the previous CFast generation. It is
therefore ideally suited not only for professional usage in
photography, but also for all other applications that require
fast read and write speeds. CFast 2.0 memory cards use the
SATA 6 Gb/s protocol and convince with lower power
consumption.
Specification
• Capacity: 128 GB
• Memory chip: Toshiba MLC, 2 channels
• Controller: ID107
• CFast 7+17pin interface / SATA 6 Gb/s
• Supports CFast 2.0
• Operating voltage: 3.3 V
• Operating temperature: 0 °C ~ +70 °C
• Storage temperature: -55 °C ~ +95 °C
• Endurance:
Write / Erase: > 3,000 cycles
Read: unlimited
• Supports Write Protect, ATA Security and SMART (Self-Monitor Analysis and
Reporting Technology)
• 290 MB/s read, 130 MB/s write
• Power consumption: 1.1 W (max.)
• Current demand:
Read: 240 mA
Write: 320 mA
Idle: 110 mA
• MTBF: > 3.000.000 hrs.
• Vibration: 20 G, 7 ~ 2000 Hz
• Shock: 1,500 G / 0.5 ms
• Dimension (LxWxH): ca. 36.4 x 42.8 x 3.6 mm
Item No. 54557
EAN
Country of origin
4043619545575
Taiwan, Republic of
China
© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
www.delock.com
1
System requirements
Package content
• CFast slot
• CFast memory card
Package
• Retail Box
