DeLOCK 54554 User Manual

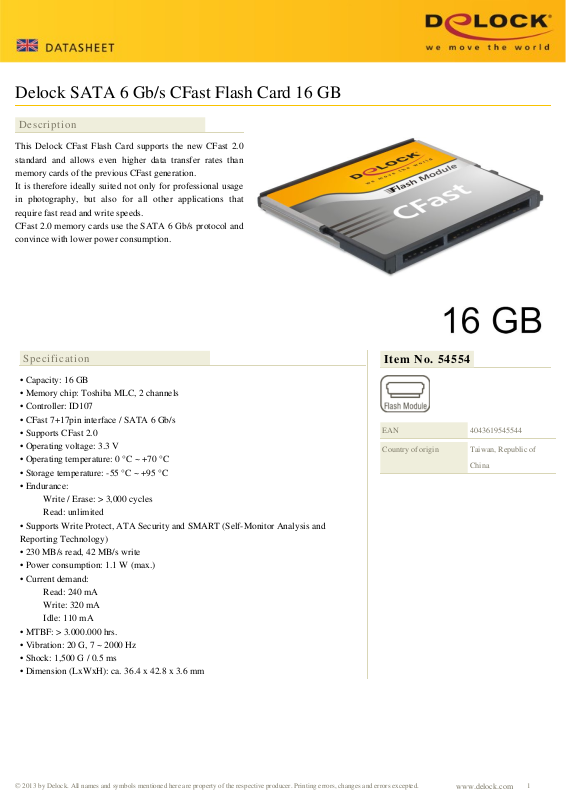

Delock SATA 6 Gb/s CFast Flash Card 16 GB
Description
This Delock CFast Flash Card supports the new CFast 2.0
standard and allows even higher data transfer rates than
memory cards of the previous CFast generation.
It is therefore ideally suited not only for professional usage
in photography, but also for all other applications that
require fast read and write speeds.
CFast 2.0 memory cards use the SATA 6 Gb/s protocol and
convince with lower power consumption.
Specification
• Capacity: 16 GB
• Memory chip: Toshiba MLC, 2 channels
• Controller: ID107
• CFast 7+17pin interface / SATA 6 Gb/s
• Supports CFast 2.0
• Operating voltage: 3.3 V
• Operating temperature: 0 °C ~ +70 °C
• Storage temperature: -55 °C ~ +95 °C
• Endurance:
Write / Erase: > 3,000 cycles
Read: unlimited
• Supports Write Protect, ATA Security and SMART (Self-Monitor Analysis and
Reporting Technology)
• 230 MB/s read, 42 MB/s write
• Power consumption: 1.1 W (max.)
• Current demand:
Read: 240 mA
Write: 320 mA
Idle: 110 mA
• MTBF: > 3.000.000 hrs.
• Vibration: 20 G, 7 ~ 2000 Hz
• Shock: 1,500 G / 0.5 ms
• Dimension (LxWxH): ca. 36.4 x 42.8 x 3.6 mm
Item No. 54554
EAN
Country of origin
4043619545544
Taiwan, Republic of
China
© 2013 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
www.delock.com
1
System requirements
Package content
• CFast slot
• CFast memory card
Package
• Box
