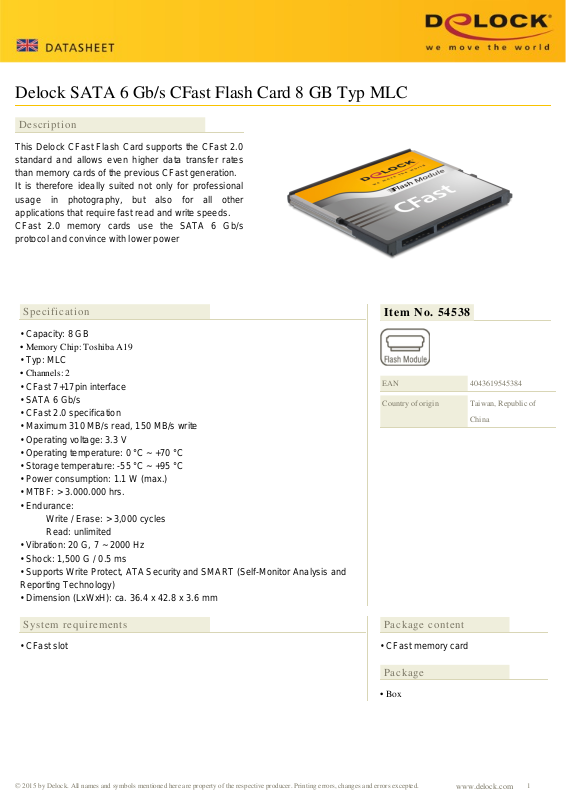

DELOCK 54538 Datasheet

Delock SATA 6 Gb/s CFast Flash Card 8 GB Typ MLC

Description

This Delock CFast Flash Card supports the CFast 2.0
standard and allows even higher data transfer rates
than memory cards of the previous CFast generation.
It is therefore ideally suited not only for professional
usage in photography, but also for all other
applications that require fast read and write speeds.
CFast 2.0 memory cards use the SATA 6 Gb/s
protocol and convince with lower power

Specification

• Capacity: 8 GB

• Memory Chip: Toshiba A19

• Typ: MLC

• Channels: 2

• CFast 7+17pin interface

• SATA 6 Gb/s

• CFast 2.0 specification

• Maximum 310 MB/s read, 150 MB/s write

• Operating voltage: 3.3 V

• Operating temperature: 0 °C ~ +70 °C

• Storage temperature: -55 °C ~ +95 °C

• Power consumption: 1.1 W (max.)

• MTBF: > 3.000.000 hrs.

• Endurance:
Write / Erase: > 3,000 cycles
Read: unlimited

• Vibration: 20 G, 7 ~ 2000 Hz

• Shock: 1,500 G / 0.5 ms

• Supports Write Protect, ATA Security and SMART (Self-Monitor Analysis and
Reporting Technology)

• Dimension (LxWxH): ca. 36.4 x 42.8 x 3.6 mm

Item No. 54538

EAN

Country of origin

4043619545384

Taiwan, Republic of
China

System requirements

• CFast slot

Package content

• CFast memory card

Package

• Box
