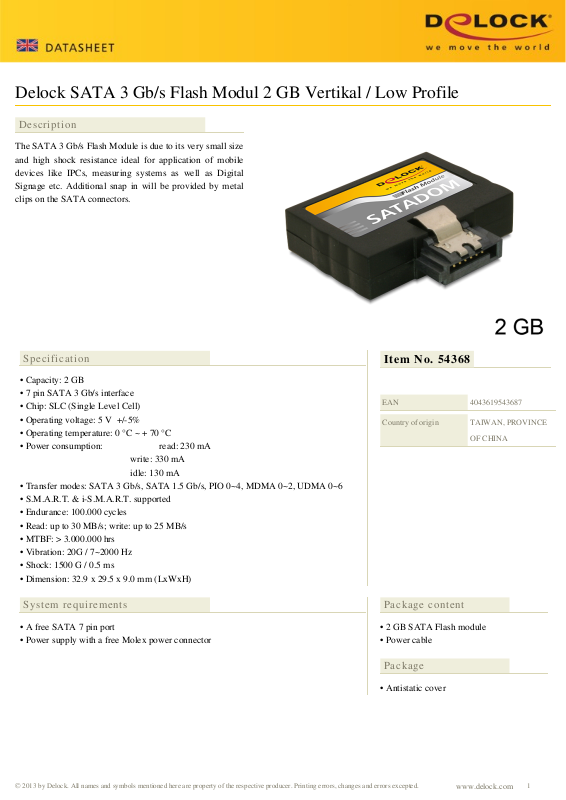

DeLOCK 54368 User Manual

Delock SATA 3 Gb/s Flash Modul 2 GB Vertikal / Low Profile

Description

The SATA 3 Gb/s Flash Module is due to its very small size and high shock resistance ideal for application of mobile devices like IPCs, measuring systems as well as Digital Signage etc. Additional snap in will be provided by metal clips on the SATA connectors.

Specification

• Capacity: 2 GB

• 7 pin SATA 3 Gb/s interface

• Chip: SLC (Single Level Cell)

• Operating voltage: 5 V +/-5%

• Operating temperature: 0 °C ~ + 70 °C

• Power consumption: read: 230 mA write: 330 mA idle: 130 mA

• Transfer modes: SATA 3 Gb/s, SATA 1.5 Gb/s, PIO 0~4, MDMA 0~2, UDMA 0~6

• S.M.A.R.T. & i-S.M.A.R.T. supported

• Endurance: 100.000 cycles

• Read: up to 30 MB/s; write: up to 25 MB/s

• MTBF: > 3.000.000 hrs

• Vibration: 20G / 7~2000 Hz

• Shock: 1500 G / 0.5 ms

• Dimension: 32.9 x 29.5 x 9.0 mm (LxWxH)

Item No. 54368

EAN

Country of origin

4043619543687

TAIWAN, PROVINCE OF CHINA

System requirements

• A free SATA 7 pin port

• Power supply with a free Molex power connector

Package content

• 2 GB SATA Flash module

• Power cable

Package

• Antistatic cover
