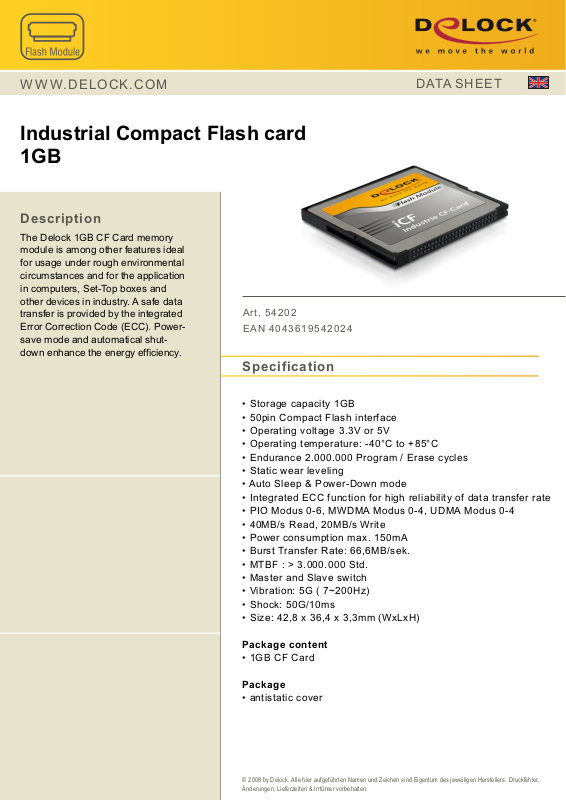

DeLOCK 54202 User Manual

W W W.DELO CK.C OM

Industrial Compact Flash card 1GB

Description

The Delock 1GB CF Card memory module is among other features ideal for usage under rough environmental circumstances and for the application in computers, Set-Top boxes and other devices in industry. A safe data transfer is provided by the integrated Error Correction Code (ECC). Powersave mode and automatical shutdown enhance the energy efficiency.

Art. 5 4 2 0 2

EAN 4 0 4 3 6 1 9 5 4 2 0 2 4

Specification

DATA SH E ET

• Storage capacity 1GB

• 50pin Compact Flash interface

• Operating voltage 3.3V or 5V

• Operating temperature: -40°C to +85°C

• Endurance 2.000.000 Program / Erase cycles

• Static wear leveling

• Auto Sleep & Power-Down mode

• Integrated ECC function for high reliability of data transfer rate

• PIO Modus 0-6, MWDMA Modus 0-4, UDMA Modus 0-4

• 40MB/s Read, 20MB/s Write

• Power consumption max. 150mA

• Burst Transfer Rate: 66,6MB/sek.

• MTBF : > 3.000.000 Std.

• Master and Slave switch

• Vibration: 5G ( 7~200Hz)

• Shock: 50G/10ms

• Size: 42,8 x 36,4 x 3,3mm (WxLxH)

Package content

• 1GB CF Card

Package

• antistatic cover
