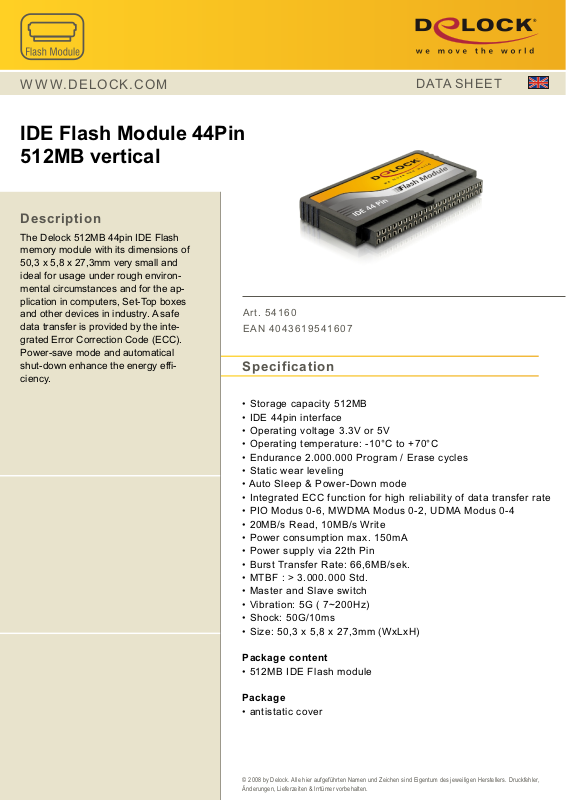

DeLOCK 54160 User Manual
W W W.DELO CK.C OM
IDE Flash Module 44Pin
512MB vertical
Description
The Delock 512MB 44pin IDE Flash
memory module with its dimensions of
50,3 x 5,8 x 27,3mm very small and
ideal for usage under rough environmental circumstances and for the application in computers, Set-Top boxes
and other devices in industry. A safe
data transfer is provided by the integrated Error Correction Code (ECC).
Power-save mode and automatical
shut-down enhance the energy efficiency.
Art. 5 4 1 6 0
EAN 4 0 4 3 6 1 9 5 4 1 6 0 7
Specification
DATA SH E ET
• Storage capacity 512MB
•
IDE 44pin interface
•
Operating voltage 3.3V or 5V
•
Operating temperature: -10°C to +70°C
•
Endurance 2.000.000 Program / Erase cycles
•
Static wear leveling
•
Auto Sleep & Power-Down mode
•
Integrated ECC function for high reliability of data transfer rate
•
PIO Modus 0-6, MWDMA Modus 0-2, UDMA Modus 0-4
•
20MB/s Read, 10MB/s Write
•
Power consumption max. 150mA
•
Power supply via 22th Pin
•
Burst Transfer Rate: 66,6MB/sek.
•
MTBF : > 3.000.000 Std.
•
Master and Slave switch
•
Vibration: 5G ( 7~200Hz)
•
Shock: 50G/10ms
•
Size: 50,3 x 5,8 x 27,3mm (WxLxH)
Package content
• 512MB IDE Flash module
Package
• antistatic cover
