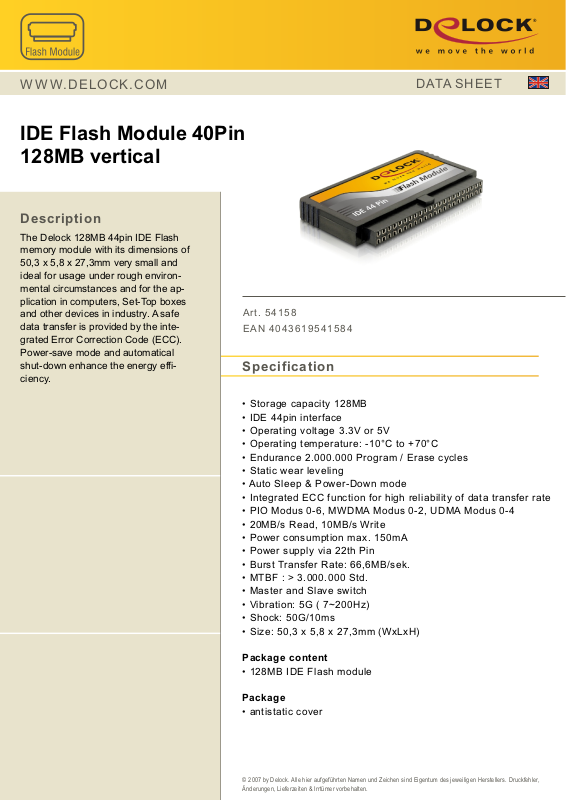

DeLOCK 54158 User Manual

W W W.DELO CK.C OM

IDE Flash Module 40Pin 128MB vertical

Description

The Delock 128MB 44pin IDE Flash memory module with its dimensions of 50,3 x 5,8 x 27,3mm very small and ideal for usage under rough environmental circumstances and for the application in computers, Set-Top boxes and other devices in industry. A safe data transfer is provided by the integrated Error Correction Code (ECC). Power-save mode and automatical shut-down enhance the energy efficiency.

Art. 5 4 1 5 8

EAN 4 0 4 3 6 1 9 5 4 1 5 8 4

Specification

DATA SH E ET

• Storage capacity 128MB

•

IDE 44pin interface

•

Operating voltage 3.3V or 5V

•

Operating temperature: -10°C to +70°C

•

Endurance 2.000.000 Program / Erase cycles

•

Static wear leveling

•

Auto Sleep & Power-Down mode

•

Integrated ECC function for high reliability of data transfer rate

•

PIO Modus 0-6, MWDMA Modus 0-2, UDMA Modus 0-4

•

20MB/s Read, 10MB/s Write

•

Power consumption max. 150mA

•

Power supply via 22th Pin

•

Burst Transfer Rate: 66,6MB/sek.

•

MTBF : > 3.000.000 Std.

•

Master and Slave switch

•

Vibration: 5G ( 7~200Hz)

•

Shock: 50G/10ms

•

Size: 50,3 x 5,8 x 27,3mm (WxLxH)

Package content

• 128MB IDE Flash module

Package

• antistatic cover
