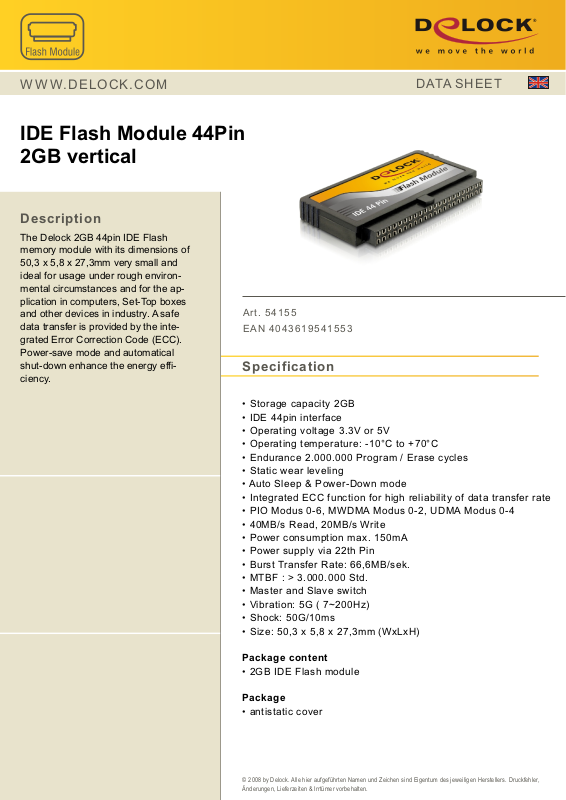

DeLOCK 54155 User Manual

W W W.DELO CK.C OM

IDE Flash Module 44Pin 2GB vertical

Description

The Delock 2GB 44pin IDE Flash memory module with its dimensions of 50,3 x 5,8 x 27,3mm very small and ideal for usage under rough environmental circumstances and for the application in computers, Set-Top boxes and other devices in industry. A safe data transfer is provided by the integrated Error Correction Code (ECC). Power-save mode and automatical shut-down enhance the energy efficiency.

Art. 5 4 1 5 5

EAN 4 0 4 3 6 1 9 5 4 1 5 5 3

Specification

DATA SH E ET

• Storage capacity 2GB

• IDE 44pin interface

• Operating voltage 3.3V or 5V

• Operating temperature: -10°C to +70°C

• Endurance 2.000.000 Program / Erase cycles

• Static wear leveling

• Auto Sleep & Power-Down mode

• Integrated ECC function for high reliability of data transfer rate

• PIO Modus 0-6, MWDMA Modus 0-2, UDMA Modus 0-4

• 40MB/s Read, 20MB/s Write

• Power consumption max. 150mA

• Power supply via 22th Pin

• Burst Transfer Rate: 66,6MB/sek.

• MTBF : > 3.000.000 Std.

• Master and Slave switch

• Vibration: 5G ( 7~200Hz)

• Shock: 50G/10ms

• Size: 50,3 x 5,8 x 27,3mm (WxLxH)

Package content

• 2GB IDE Flash module

Package

• antistatic cover
