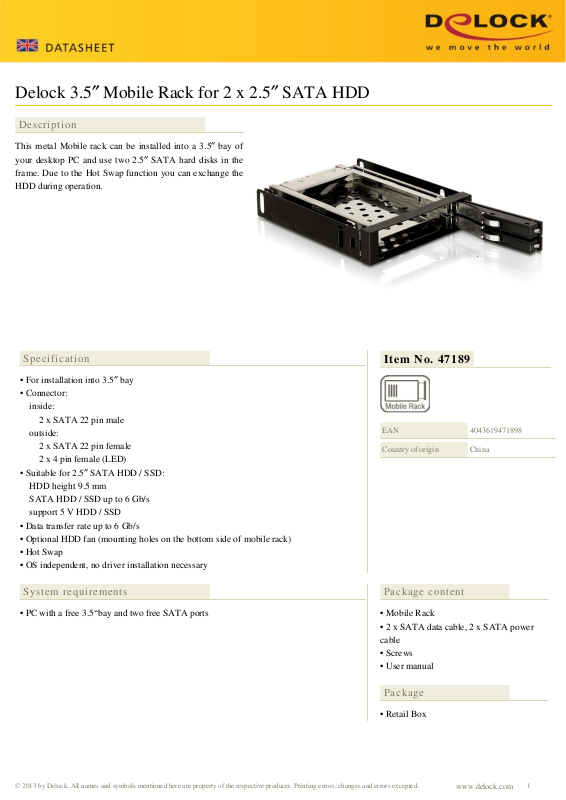

DeLOCK 47189 User Manual

Delock 3.5″ Mobile Rack for 2 x 2.5″ SATA HDD

Description

This metal Mobile rack can be installed into a 3.5″ bay of
your desktop PC and use two 2.5″ SATA hard disks in the
frame. Due to the Hot Swap function you can exchange the
HDD during operation.

Specification

• For installation into 3.5″ bay

• Connector:
inside:
2 x SATA 22 pin male
outside:
2 x SATA 22 pin female
2 x 4 pin female (LED)

• Suitable for 2.5″ SATA HDD / SSD:
HDD height 9.5 mm
SATA HDD / SSD up to 6 Gb/s
support 5 V HDD / SSD

• Data transfer rate up to 6 Gb/s

• Optional HDD fan (mounting holes on the bottom side of mobile rack)

• Hot Swap

• OS independent, no driver installation necessary

Item No. 47189

EAN

Country of origin

4043619471898

China

System requirements

• PC with a free 3.5“bay and two free SATA ports

Package content

• Mobile Rack

• 2 x SATA data cable, 2 x SATA power
cable

• Screws

• User manual

Package

• Retail Box
