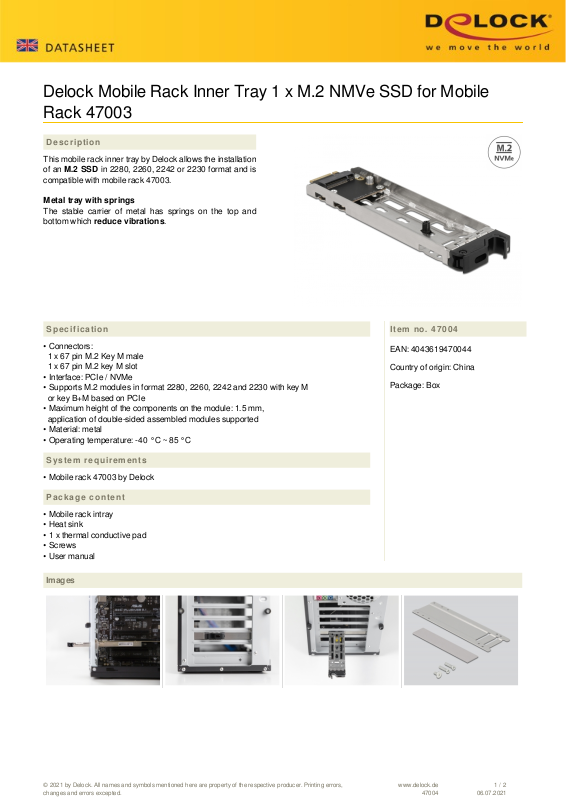

DELOCK 47004 Datasheet
Delock Mobile Rack Inner Tray 1 x M.2 NMVe SSD for Mobile
Rack 47003
Description
This mobile rack inner tray by Delock allows the installation
of an M.2 SSD in 2280, 2260, 2242 or 2230 format and is
compatible with mobile rack 47003.
Metal tray with springs
The stable carrier of metal has springs on the top and
bottom which reduce vibrations.
Specification
• Connectors:
1 x 67 pin M.2 Key M male
1 x 67 pin M.2 key M slot
• Interface: PCIe / NVMe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Material: metal
• Operating temperature: -40 °C ~ 85 °C
Item no. 47004
EAN: 4043619470044
Country of origin: China
Package: Box
System requirements
• Mobile rack 47003 by Delock
Package content
• Mobile rack intray
• Heat sink
• 1 x thermal conductive pad
• Screws
• User manual
Images
© 2021 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.de
47004
1 / 2
06.07.2021
Interface
Internal: 1 x 67 pin M.2 key M slot
1 x 67 pin M.2 Key M male
Technical characteristics
Data transfer rate: 32 Gbps
