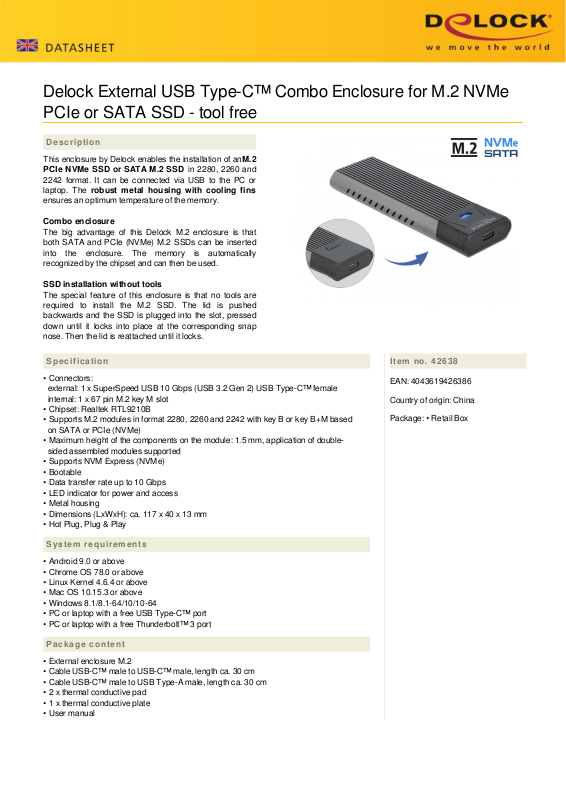

Page 1
Delock External USB Type-C™ Combo Enclosure for M.2 NVMe
PCIe or SATA SSD - tool free
Description
This enclosure by Delock enables the installation of anM.2
PCIe NVMe SSD or SATA M.2 SSD in 2280, 2260 and
2242 format. It can be connected via USB to the PC or
laptop. The robust metal housing with cooling fins
ensures an optimum temperature of the memory.
Combo enclosure
The big advantage of this Delock M.2 enclosure is that
both SATA and PCIe (NVMe) M.2 SSDs can be inserted
into the enclosure. The memory is automatically
recognized by the chipset and can then be used.
SSD installation without tools
The special feature of this enclosure is that no tools are
required to install the M.2 SSD. The lid is pushed
backwards and the SSD is plugged into the slot, pressed
down until it locks into place at the corresponding snap
nose. Then the lid is reattached until it locks.
Specification
• Connectors:
external: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
internal: 1 x 67 pin M.2 key M slot
• Chipset: Realtek RTL9210B
• Supports M.2 modules in format 2280, 2260 and 2242 with key B or key B+M based
on SATA or PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable
• Data transfer rate up to 10 Gbps
• LED indicator for power and access
• Metal housing
• Dimensions (LxWxH): ca. 117 x 40 x 13 mm
• Hot Plug, Plug & Play
Item no. 42638
EAN: 4043619426386
Country of origin: China
Package: • Retail Box
System requirements
• Android 9.0 or above
• Chrome OS 78.0 or above
• Linux Kernel 4.6.4 or above
• Mac OS 10.15.3 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ port
• PC or laptop with a free Thunderbolt™ 3 port
Package content
• External enclosure M.2
• Cable USB-C™ male to USB-C™ male, length ca. 30 cm
• Cable USB-C™ male to USB Type-A male, length ca. 30 cm
• 2 x thermal conductive pad
• 1 x thermal conductive plate
• User manual
Page 2

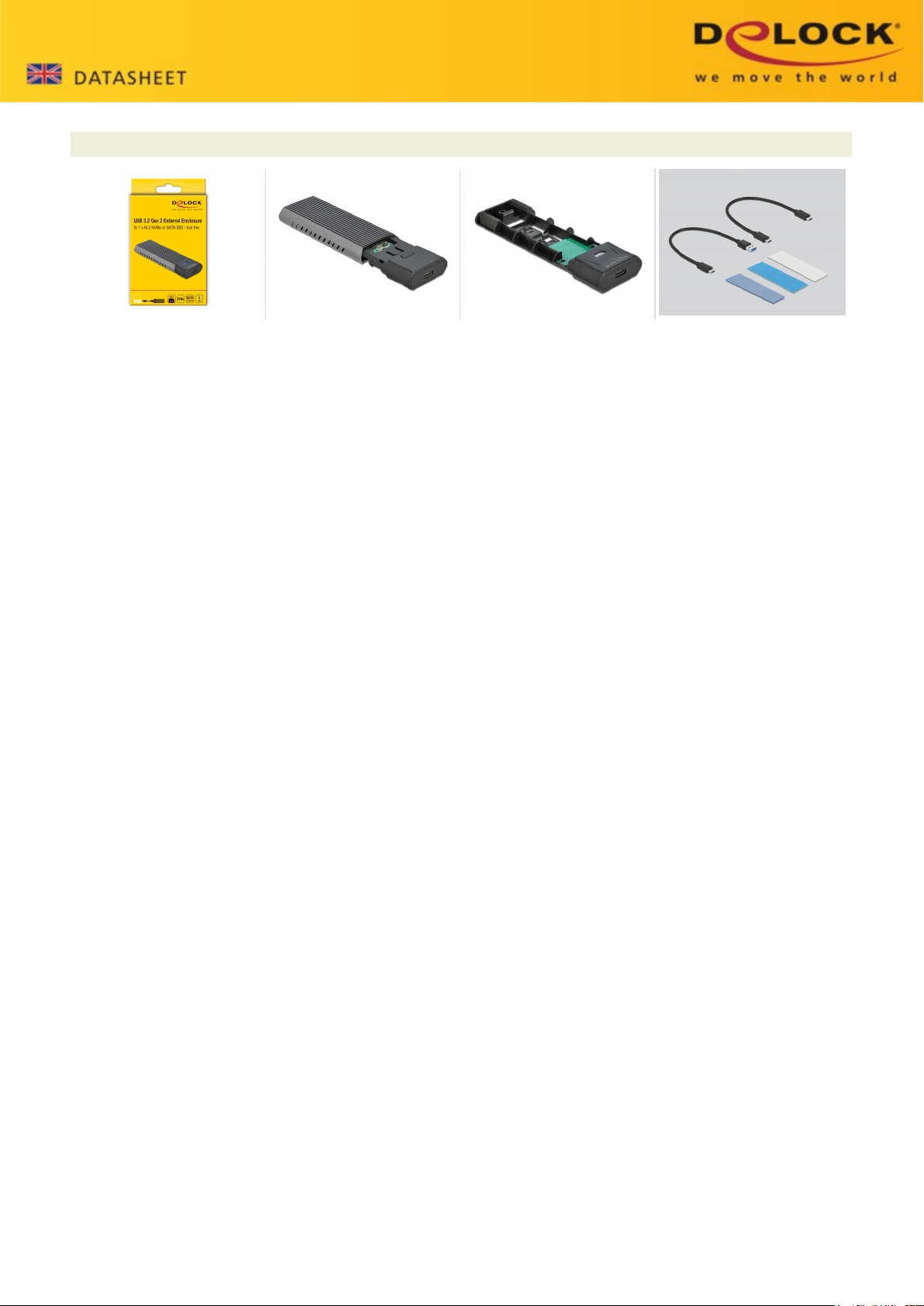

Images
Page 3
General
Function: NVM Express (NVMe)
Plug & Play
Supported operating system: Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 4.6.4 or above
Android 9.0 or above
Chrome OS 78.0 or above
Mac OS 10.15.3 or above
Supported module: Supports M.2 modules in format 2280, 2260 and 2242 with key B or key B+M based on
SATA or PCIe (NVMe)
Maximum height of the components on
the module:
Interface
External: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
Internal: 1 x 67 pin M.2 key M slot
Technical characteristics
Chipset: Realtek RTL9210B
Data transfer rate: up to 10 Gbps
Physical characteristics
Housing material: Aluminium
Cable length: 30 cm
Length: 117 mm
Width: 40 mm
Height: 13 mm
1.5 mm application of double-sided assembled modules supported
