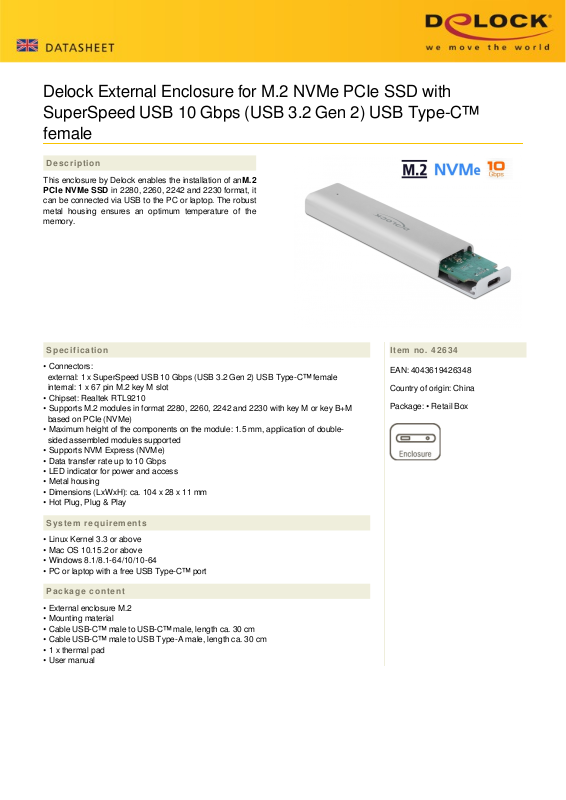

Delock External Enclosure for M.2 NVMe PCIe SSD with
SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™
female
Description
This enclosure by Delock enables the installation of anM.2
PCIe NVMe SSD in 2280, 2260, 2242 and 2230 format, it
can be connected via USB to the PC or laptop. The robust
metal housing ensures an optimum temperature of the
memory.
Specification
• Connectors:
external: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
internal: 1 x 67 pin M.2 key M slot
• Chipset: Realtek RTL9210
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M
based on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double sided assembled modules supported
• Supports NVM Express (NVMe)
• Data transfer rate up to 10 Gbps
• LED indicator for power and access
• Metal housing
• Dimensions (LxWxH): ca. 104 x 28 x 11 mm
• Hot Plug, Plug & Play
Item no. 42634
EAN: 4043619426348
Country of origin: China
Package: • Retail Box
System requirements
• Linux Kernel 3.3 or above
• Mac OS 10.15.2 or above
• Windows 8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ port
Package content
• External enclosure M.2
• Mounting material
• Cable USB-C™ male to USB-C™ male, length ca. 30 cm
• Cable USB-C™ male to USB Type-A male, length ca. 30 cm
• 1 x thermal pad
• User manual
Page 2

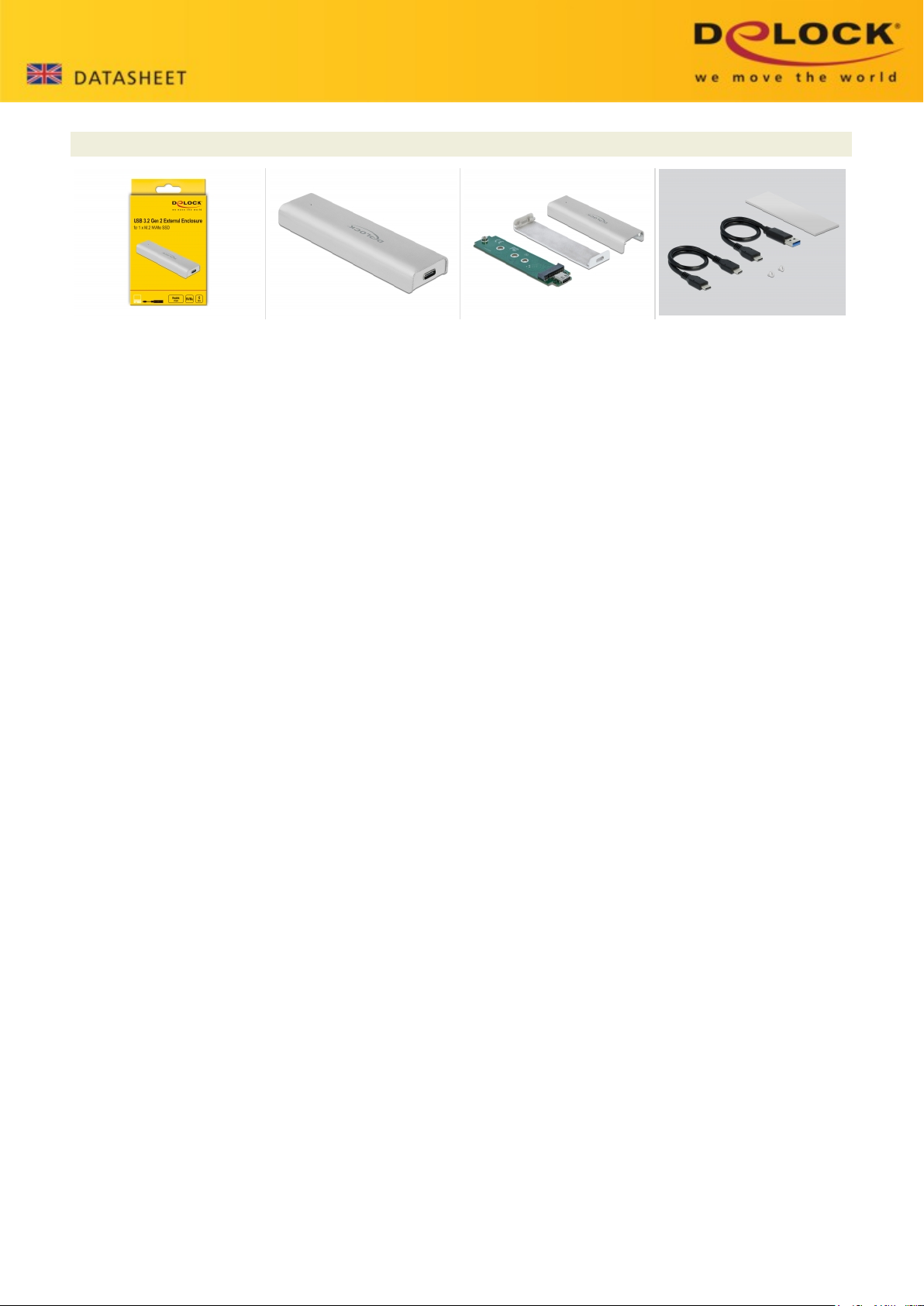

Images
Page 3
General
Function: NVM Express (NVMe)
Hot Plug
Plug & Play
Internal construction: full PCB
Supported operating system: Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 3.3 or above
Mac OS 10.15.2 or above
Supported module: M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
Maximum height of the components on
the module:
Interface
External: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
Internal: 1 x 67 pin M.2 key M slot
Technical characteristics
Chipset: Realtek RTL9210
Data transfer rate: up to 10 Gbps
Physical characteristics
Housing material: Aluminium
Cable length: 30 cm
Length: 104 mm
Width: 28 mm
Height: 11 mm
Colour: silver
1.5 mm application of double-sided assembled modules supported
