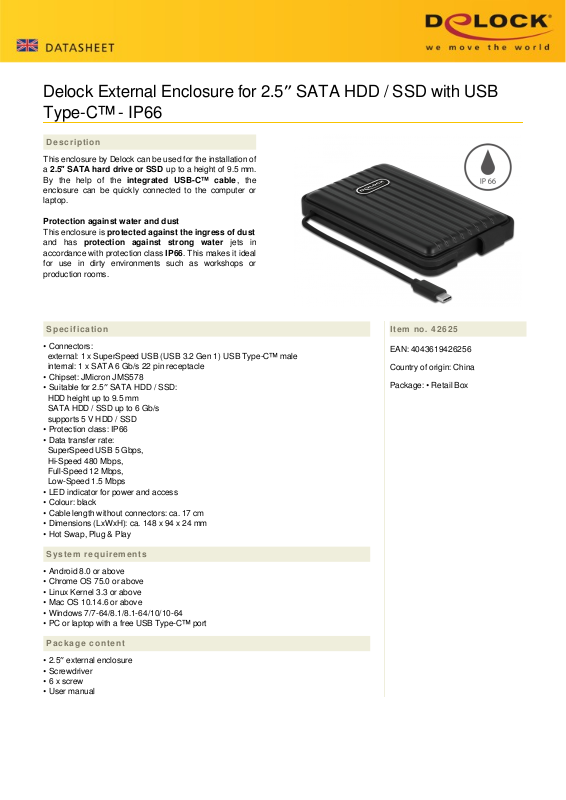

Page 1
Delock External Enclosure for 2.5″ SATA HDD / SSD with USB
Type-C™ - IP66
Description
This enclosure by Delock can be used for the installation of
a 2.5″ SATA hard drive or SSD up to a height of 9.5 mm.
By the help of the integrated USB-C™ cable, the
enclosure can be quickly connected to the computer or
laptop.
Protection against water and dust
This enclosure is protected against the ingress of dust
and has protection against strong water jets in
accordance with protection class IP66. This makes it ideal
for use in dirty environments such as workshops or
production rooms.
Specification
• Connectors:
external: 1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ male
internal: 1 x SATA 6 Gb/s 22 pin receptacle
• Chipset: JMicron JMS578
• Suitable for 2.5″ SATA HDD / SSD:
HDD height up to 9.5 mm
SATA HDD / SSD up to 6 Gb/s
supports 5 V HDD / SSD
• Protection class: IP66
• Data transfer rate:
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• LED indicator for power and access
• Colour: black
• Cable length without connectors: ca. 17 cm
• Dimensions (LxWxH): ca. 148 x 94 x 24 mm
• Hot Swap, Plug & Play
Item no. 42625
EAN: 4043619426256
Country of origin: China
Package: • Retail Box
System requirements
• Android 8.0 or above
• Chrome OS 75.0 or above
• Linux Kernel 3.3 or above
• Mac OS 10.14.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ port
Package content
• 2.5″ external enclosure
• Screwdriver
• 6 x screw
• User manual
Page 2

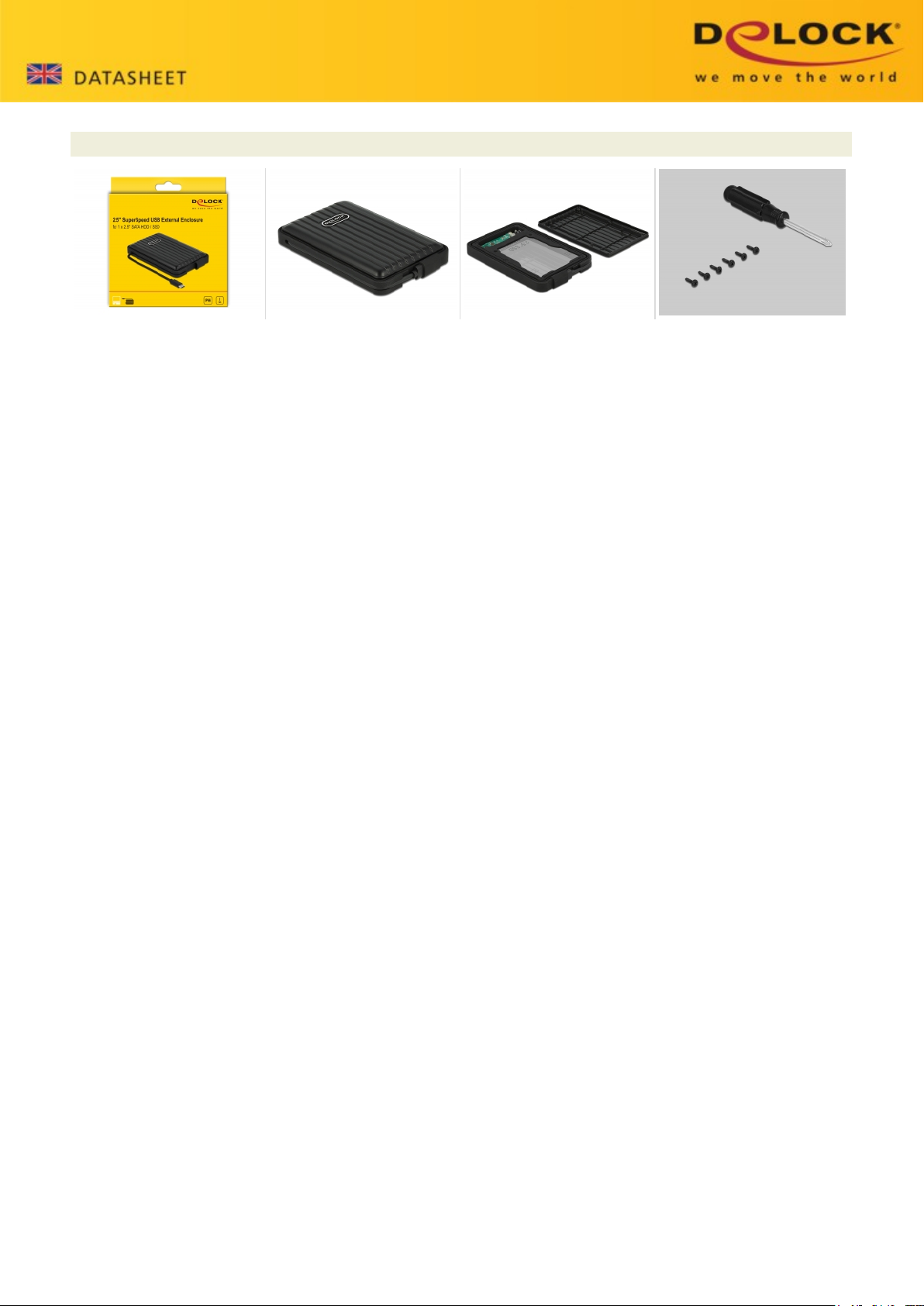

Images
Page 3
General
Suitable for data medium: SSD or HDD
height up to 9.5 mm
Supported operating system: Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 3.3 or above
Android 8.0 or above
Chrome OS 75.0 or above
Mac OS 10.14.6 or above
Interface
External: 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 1) USB Type-C™ male
Internal: 1 x SATA 6 Gb/s 22 pin receptacle
Technical characteristics
Chipset: JMicron JMS578
Data transfer rate: 6 Gb/s
Physical characteristics
Housing material: Plastic
Cable length: 17 cm
Length: 148 mm
Width: 94 mm
Height: 24 mm
Colour: black
