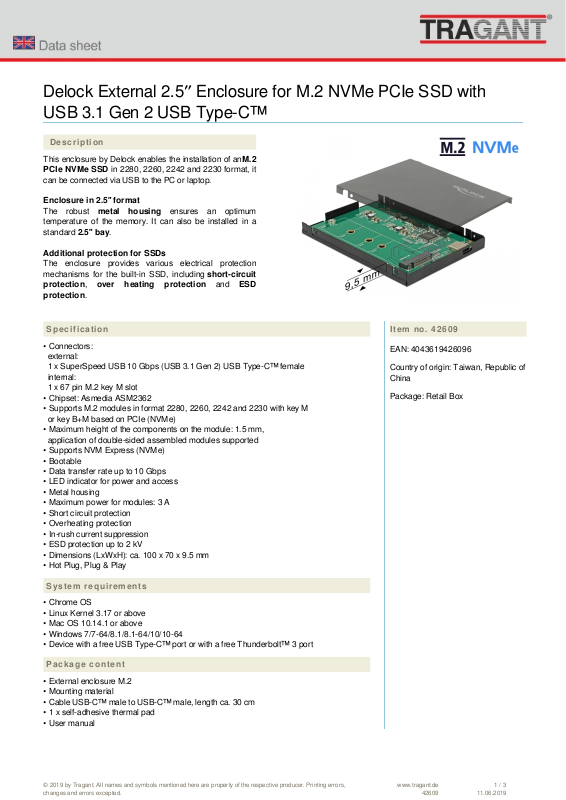

Page 1
Delock External 2.5″ Enclosure for M.2 NVMe PCIe SSD with
USB 3.1 Gen 2 USB Type-C™
Description
This enclosure by Delock enables the installation of anM.2
PCIe NVMe SSD in 2280, 2260, 2242 and 2230 format, it
can be connected via USB to the PC or laptop.
Enclosure in 2.5″ format
The robust metal housing ensures an optimum
temperature of the memory. It can also be installed in a
standard 2.5″ bay.
Additional protection for SSDs
The enclosure provides various electrical protection
mechanisms for the built-in SSD, including short-circuit
protection, over heating protection and ESD
protection.
Specification
• Connectors:
external:
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ female
internal:
1 x 67 pin M.2 key M slot
• Chipset: Asmedia ASM2362
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M
or key B+M based on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable
• Data transfer rate up to 10 Gbps
• LED indicator for power and access
• Metal housing
• Maximum power for modules: 3 A
• Short circuit protection
• Overheating protection
• In-rush current suppression
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 100 x 70 x 9.5 mm
• Hot Plug, Plug & Play
Item no. 42609
EAN: 4043619426096
Country of origin: Taiwan, Republic of
China
Package: Retail Box
System requirements
• Chrome OS
• Linux Kernel 3.17 or above
• Mac OS 10.14.1 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port
Package content
• External enclosure M.2
• Mounting material
• Cable USB-C™ male to USB-C™ male, length ca. 30 cm
• 1 x self-adhesive thermal pad
• User manual
© 2019 by Tragant. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.tragant.de
42609
1 / 3
11.06.2019
Page 2

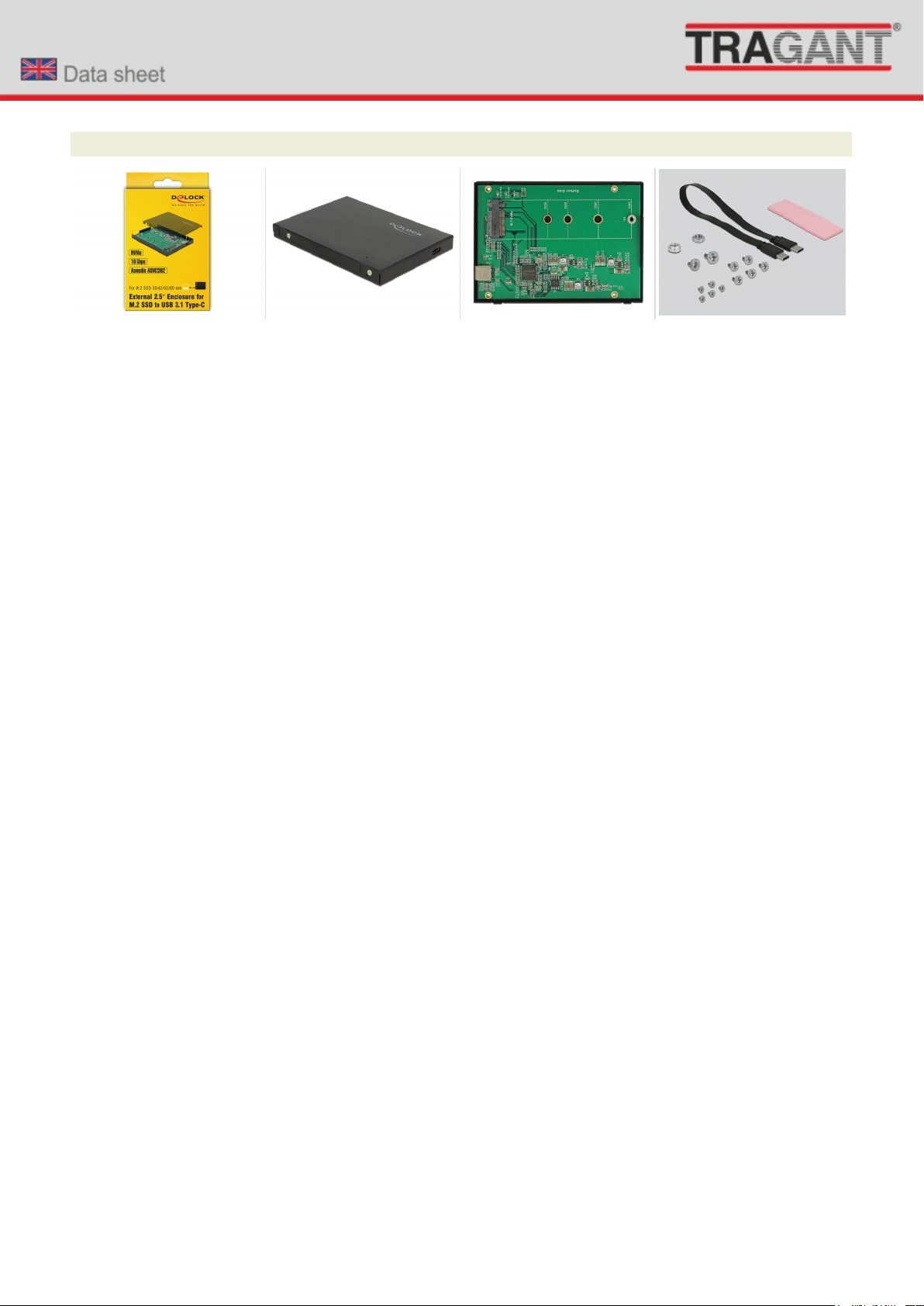

Images
© 2019 by Tragant. All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.tragant.de
42609
2 / 3
11.06.2019
Page 3
General
Function: standard
NVM Express (NVMe)
Hot Plug
Plug & Play
Internal construction: standard
full PCB
Supported operating system: standard
Chrome OS
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
Linux Kernel 3.17 or above
Mac OS 10.14.1 oder höher
Supported module: standard
M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
Maximum height of the components on
the module:
Interface
External: standard
Internal: standard
Technical characteristics
Chipset: standard
Data transfer rate: standard
Physical characteristics
Housing material: standard
Cable length: standard
Length: standard
Width: standard
Height: standard
Colour: standard
standard
1.5 mm application of double-sided assembled modules supported
1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) USB Type-C™ female
1 x 67 pin M.2 key M slot
Asmedia ASM2362
up to 10 Gbps
metal
30 cm
100 mm
70 mm
9.5 mm
black
