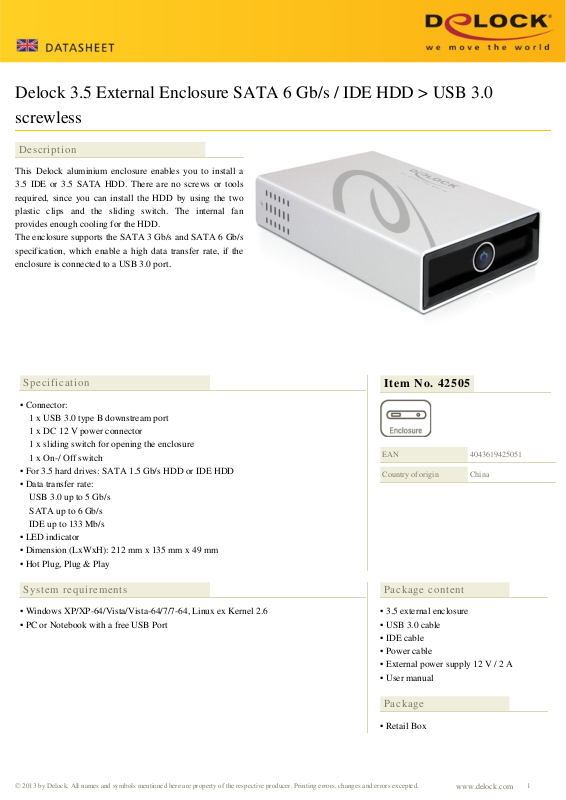

DeLOCK 42505 User Manual

Delock 3.5 External Enclosure SATA 6 Gb/s / IDE HDD > USB 3.0 screwless

Description

This Delock aluminium enclosure enables you to install a

3.5 IDE or 3.5 SATA HDD. There are no screws or tools required, since you can install the HDD by using the two plastic clips and the sliding switch. The internal fan provides enough cooling for the HDD. The enclosure supports the SATA 3 Gb/s and SATA 6 Gb/s specification, which enable a high data transfer rate, if the enclosure is connected to a USB 3.0 port.

Specification

• Connector: 1 x USB 3.0 type B downstream port 1 x DC 12 V power connector 1 x sliding switch for opening the enclosure 1 x On-/ Off switch

• For 3.5 hard drives: SATA 1.5 Gb/s HDD or IDE HDD

• Data transfer rate: USB 3.0 up to 5 Gb/s SATA up to 6 Gb/s IDE up to 133 Mb/s

• LED indicator

• Dimension (LxWxH): 212 mm x 135 mm x 49 mm

• Hot Plug, Plug & Play

Item No. 42505

EAN

Country of origin

4043619425051

China

System requirements

• Windows XP/XP-64/Vista/Vista-64/7/7-64, Linux ex Kernel 2.6

• PC or Notebook with a free USB Port

Package content

• 3.5 external enclosure

• USB 3.0 cable

• IDE cable

• Power cable

• External power supply 12 V / 2 A

• User manual

Package

• Retail Box
