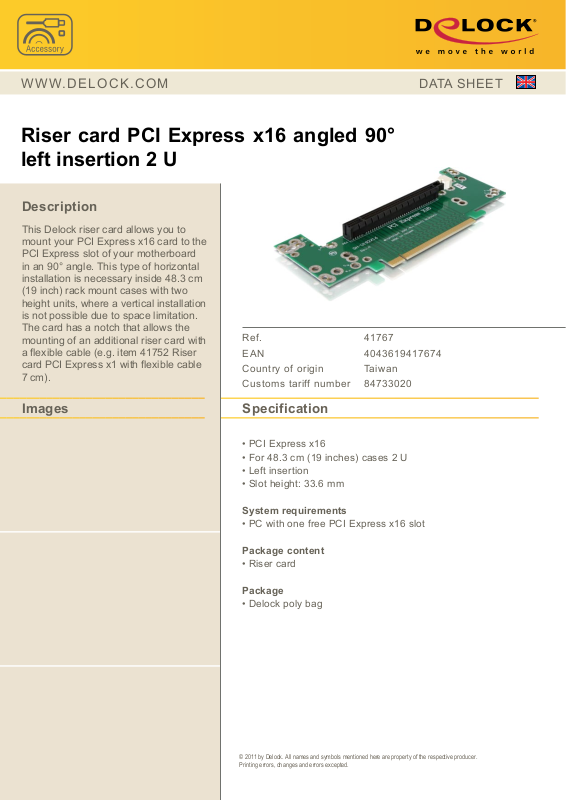

DeLOCK 41767 User Manual

WWW. D E L O C K . C O M

Riser card PCI Express x16 angled 90° left insertion 2 U

Description

This Delock riser card allows you to mount your PCI Express x16 card to the PCI Express slot of your motherboard in an 90° angle. This type of horizontal installation is necessary inside 48.3 cm (19 inch) rack mount cases with two height units, where a vertical installation is not possible due to space limitation. The card has a notch that allows the mounting of an additional riser card with a flexible cable (e.g. item 41752 Riser card PCI Express x1 with flexible cable 7 cm).

Ref.

EAN

Country of origin

Customs tariff number

41767

4043619417674

Taiwan

84733020

DATA SHEET

Images

Specification

• PCI Express x16

• For 48.3 cm (19 inches) cases 2 U

• Left insertion

• Slot height: 33.6 mm

System requirements

• PC with one free PCI Express x16 slot

Package content

• Riser card

Package

• Delock poly bag
