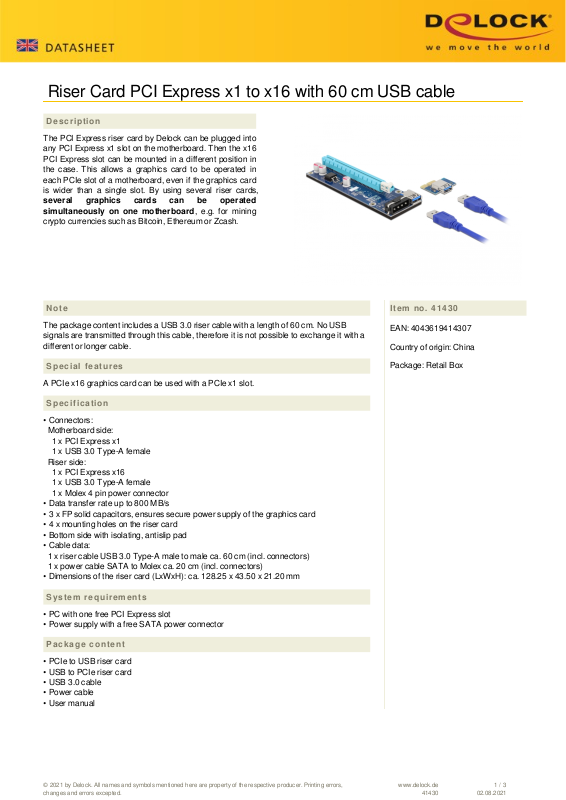

Riser Card PCI Express x1 to x16 with 60 cm USB cable
Description
The PCI Express riser card by Delock can be plugged into
any PCI Express x1 slot on the motherboard. Then the x16
PCI Express slot can be mounted in a different position in
the case. This allows a graphics card to be operated in
each PCIe slot of a motherboard, even if the graphics card
is wider than a single slot. By using several riser cards,
several graphics cards can be operated
simultaneously on one motherboard, e.g. for mining
crypto currencies such as Bitcoin, Ethereum or Zcash.
Note
The package content includes a USB 3.0 riser cable with a length of 60 cm. No USB
signals are transmitted through this cable, therefore it is not possible to exchange it with a
different or longer cable.
Special features
A PCIe x16 graphics card can be used with a PCIe x1 slot.
Item no. 41430
EAN: 4043619414307
Country of origin: China
Package: Retail Box
Specification
• Connectors:
Motherboard side:
1 x PCI Express x1
1 x USB 3.0 Type-A female
Riser side:
1 x PCI Express x16
1 x USB 3.0 Type-A female
1 x Molex 4 pin power connector
• Data transfer rate up to 800 MB/s
• 3 x FP solid capacitors, ensures secure power supply of the graphics card
• 4 x mounting holes on the riser card
• Bottom side with isolating, antislip pad
• Cable data:
1 x riser cable USB 3.0 Type-A male to male ca. 60 cm (incl. connectors)
1 x power cable SATA to Molex ca. 20 cm (incl. connectors)
• Dimensions of the riser card (LxWxH): ca. 128.25 x 43.50 x 21.20 mm
System requirements
• PC with one free PCI Express slot
• Power supply with a free SATA power connector
Package content
• PCIe to USB riser card
• USB to PCIe riser card
• USB 3.0 cable
• Power cable
• User manual
