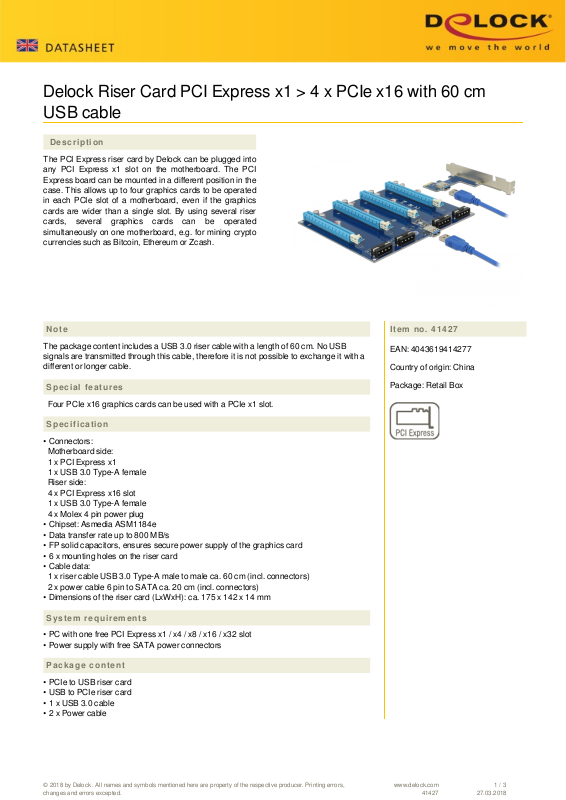

Delock Riser Card PCI Express x1 > 4 x PCIe x16 with 60 cm
USB cable
Description
The PCI Express riser card by Delock can be plugged into
any PCI Express x1 slot on the motherboard. The PCI
Express board can be mounted in a different position in the
case. This allows up to four graphics cards to be operated
in each PCIe slot of a motherboard, even if the graphics
cards are wider than a single slot. By using several riser
cards, several graphics cards can be operated
simultaneously on one motherboard, e.g. for mining crypto
currencies such as Bitcoin, Ethereum or Zcash.
Note
The package content includes a USB 3.0 riser cable with a length of 60 cm. No USB
signals are transmitted through this cable, therefore it is not possible to exchange it with a
different or longer cable.
Special features
Four PCIe x16 graphics cards can be used with a PCIe x1 slot.
Item no. 41427
EAN: 4043619414277
Country of origin: China
Package: Retail Box
Specification
• Connectors:
Motherboard side:
1 x PCI Express x1
1 x USB 3.0 Type-A female
Riser side:
4 x PCI Express x16 slot
1 x USB 3.0 Type-A female
4 x Molex 4 pin power plug
• Chipset: Asmedia ASM1184e
• Data transfer rate up to 800 MB/s
• FP solid capacitors, ensures secure power supply of the graphics card
• 6 x mounting holes on the riser card
• Cable data:
1 x riser cable USB 3.0 Type-A male to male ca. 60 cm (incl. connectors)
2 x power cable 6 pin to SATA ca. 20 cm (incl. connectors)
• Dimensions of the riser card (LxWxH): ca. 175 x 142 x 14 mm
System requirements
• PC with one free PCI Express x1 / x4 / x8 / x16 / x32 slot
• Power supply with free SATA power connectors
Package content
• PCIe to USB riser card
• USB to PCIe riser card
• 1 x USB 3.0 cable
• 2 x Power cable
© 2018 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
41427
1 / 3
27.03.2018
Page 2

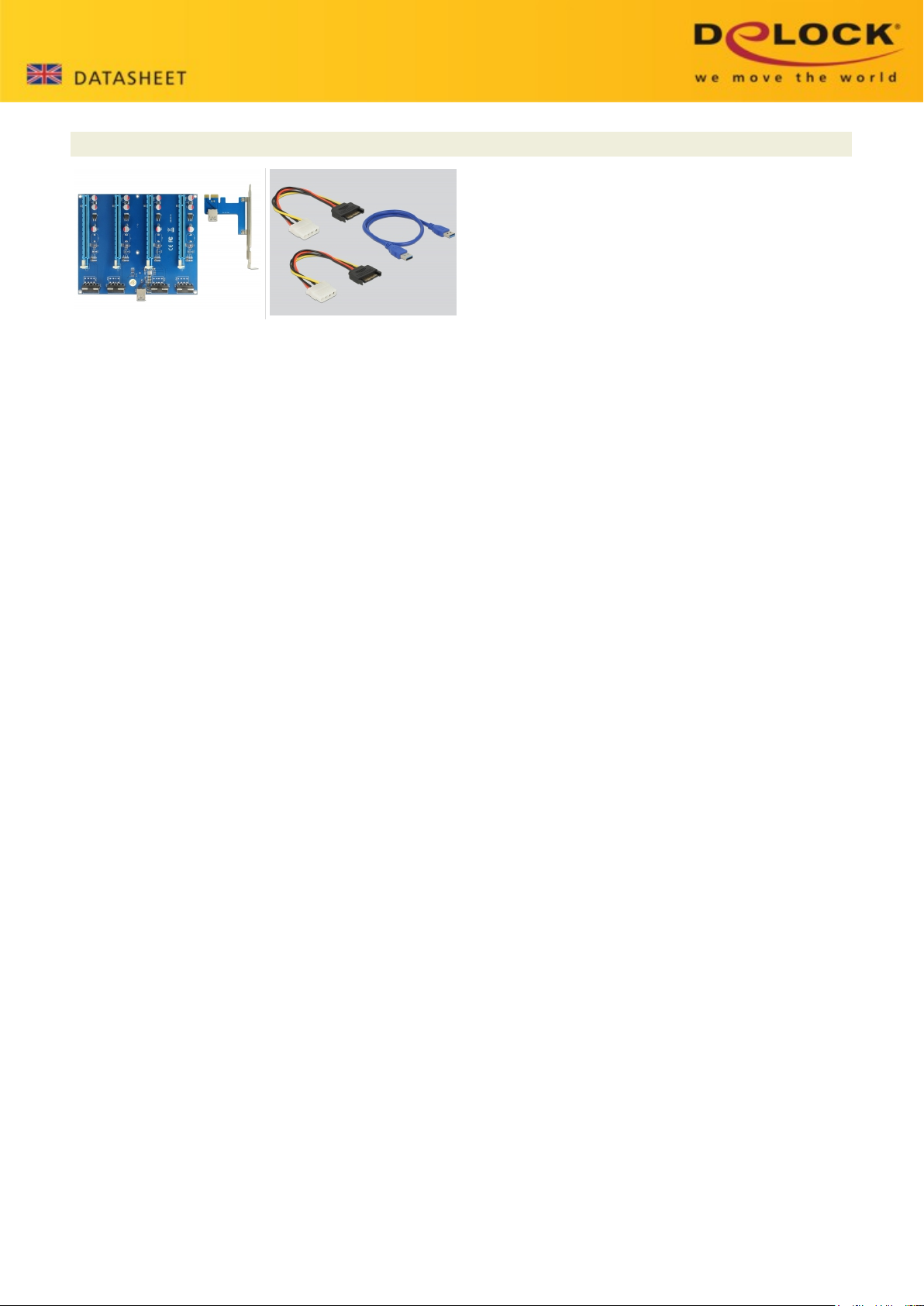

Images
© 2018 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.
www.delock.com
41427
2 / 3
27.03.2018
Page 3
General
Supported operating system: OS independent, no driver installation necessary
Interface
connector 1: 1 x PCI Express x1
connector 2: 2 x USB 3.0 Type-A female
connector 3: 4 x PCI Express x16 slot
connector 4: 4 x Molex 4 pin power plug
