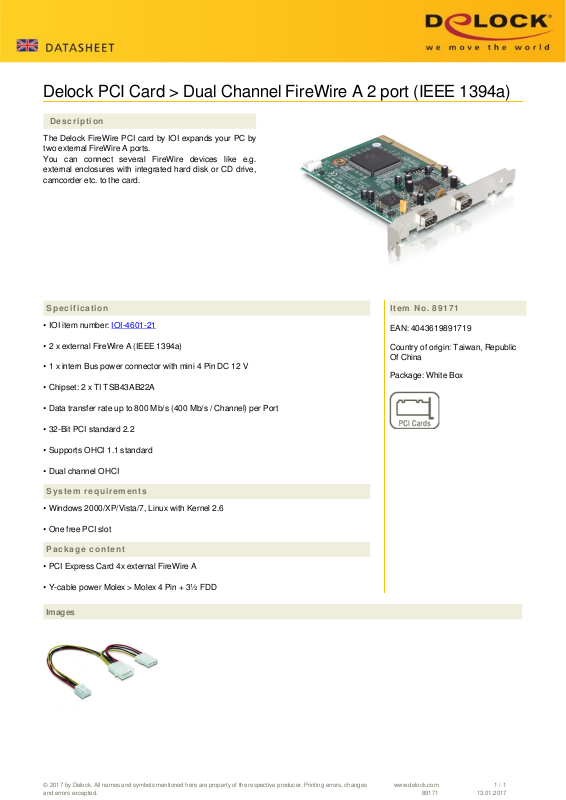

Delock PCI Card > Dual Channel FireWire A 2 port (IEEE 1394a)

Description

The Delock FireWire PCI card by IOI expands your PC by
two external FireWire A ports.
You can connect several FireWire devices like e.g.
external enclosures with integrated hard disk or CD drive,
camcorder etc. to the card.

Specification

• IOI item number: IOI-4601-21

• 2 x external FireWire A (IEEE 1394a)

• 1 x intern Bus power connector with mini 4 Pin DC 12 V

• Chipset: 2 x TI TSB43AB22A

Item No. 89171

EAN: 4043619891719

Country of origin: Taiwan, Republic
Of China

Package: White Box

• Data transfer rate up to 800 Mb/s (400 Mb/s / Channel) per Port

• 32-Bit PCI standard 2.2

• Supports OHCI 1.1 standard

• Dual channel OHCI

System requirements

• Windows 2000/XP/Vista/7, Linux with Kernel 2.6

• One free PCI slot

Package content

• PCI Express Card 4x external FireWire A

• Y-cable power Molex > Molex 4 Pin + 3½ FDD

Images
