DeLOCK 2.5 Converter U.2 SFF-8639 User Manual

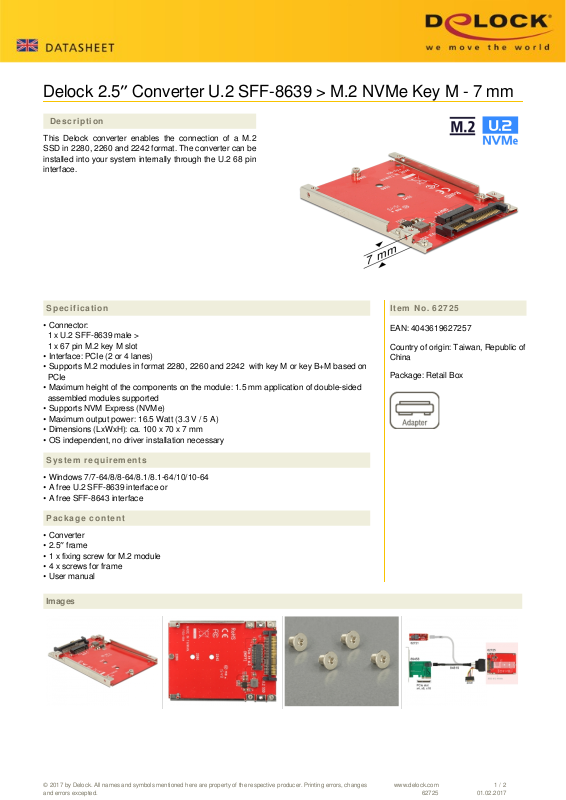

Delock 2.5″ Converter U.2 SFF-8639 > M.2 NVMe Key M - 7 mm
Description
This Delock converter enables the connection of a M.2
SSD in 2280, 2260 and 2242 format. The converter can be
installed into your system internally through the U.2 68 pin
interface.
Specification
• Connector:
1 x U.2 SFF-8639 male >
1 x 67 pin M.2 key M slot
• Interface: PCIe (2 or 4 lanes)
• Supports M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based on
PCIe
• Maximum height of the components on the module: 1.5 mm application of double-sided
assembled modules supported
• Supports NVM Express (NVMe)
• Maximum output power: 16.5 Watt (3.3 V / 5 A)
• Dimensions (LxWxH): ca. 100 x 70 x 7 mm
• OS independent, no driver installation necessary
Item No. 62725
EAN: 4043619627257
Country of origin: Taiwan, Republic of
China
Package: Retail Box
System requirements
• Windows 7/7-64/8/8-64/8.1/8.1-64/10/10-64
• A free U.2 SFF-8639 interface or
• A free SFF-8643 interface
Package content
• Converter
• 2.5″ frame
• 1 x fixing screw for M.2 module
• 4 x screws for frame
• User manual
Images
© 2017 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
62725
1 / 2
01.02.2017
General
Form factor: 2.5"
Supported operating system: Windows 7 32-bit
Windows 7 64-bit
Windows 8 32-bit
Windows 8 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit
LED indicator: power and activity
Supported module: M.2 NGFF modules in format 22110, 2280, 2260 and 2242 with key M or key B+M based
on PCIe
Maximum height of the components on
the module:
Interface
connector 1: 1 x M.2 based on PCIe
connector 2: 1 x U.2 SFF-8639 male
Physical characteristics
Length: 100 mm
Width: 70 mm
Height: 7 mm
1.5 mm application of double-sided assembled modules supported
