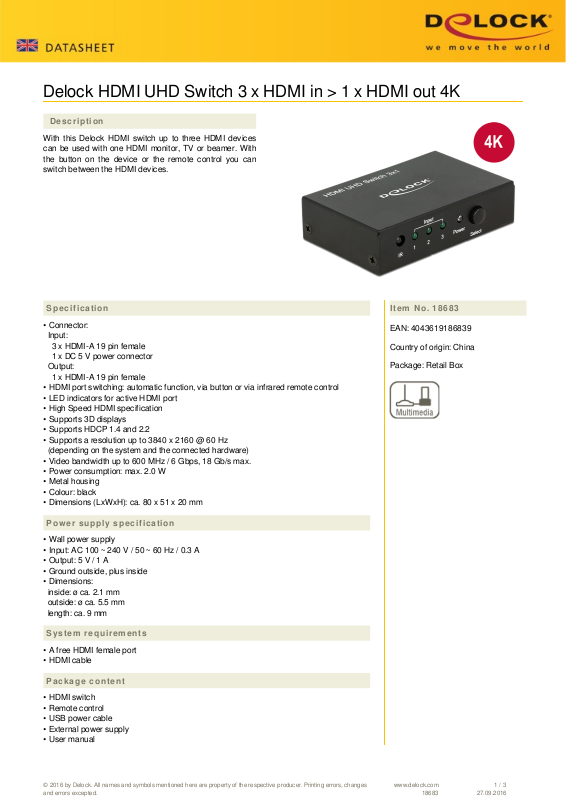

Page 1
Delock HDMI UHD Switch 3 x HDMI in > 1 x HDMI out 4K
Description
With this Delock HDMI switch up to three HDMI devices
can be used with one HDMI monitor, TV or beamer. With
the button on the device or the remote control you can
switch between the HDMI devices.
Specification
• Connector:
Input:
3 x HDMI-A 19 pin female
1 x DC 5 V power connector
Output:
1 x HDMI-A 19 pin female
• HDMI port switching: automatic function, via button or via infrared remote control
• LED indicators for active HDMI port
• High Speed HDMI specification
• Supports 3D displays
• Supports HDCP 1.4 and 2.2
• Supports a resolution up to 3840 x 2160 @ 60 Hz
(depending on the system and the connected hardware)
• Video bandwidth up to 600 MHz / 6 Gbps, 18 Gb/s max.
• Power consumption: max. 2.0 W
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 80 x 51 x 20 mm
Item No. 18683
EAN: 4043619186839
Country of origin: China
Package: Retail Box
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
System requirements
• A free HDMI female port
• HDMI cable
Package content
• HDMI switch
• Remote control
• USB power cable
• External power supply
• User manual
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
18683
1 / 3
27.09.2016
Page 2
Images
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
18683
2 / 3
27.09.2016
Page 3
General
Specification: High Speed HDMI
HDCP 2.2
Interface
Input: 1 x 5 V DC female 5,5 mm x 2,1 mm
3 x HDMI-A 19 pin female
Output: 1 x HDMI-A 19 pin female
Technical characteristics
Maximum screen resolution: 3840 x 2160 @ 60 Hz
Physical characteristics
Housing colour: black
Housing: metal
Length: 80 mm
Width: 51 mm
Height: 20 mm
Power supply
Type: Euro wall power supply
Input: AC 100 - 240 V / 50 - 60 Hz / 0.5 A
Output: 5 V / 2 A
Connector: DC male 5,5 mm x 2,1 mm
Cable length: 1 m
