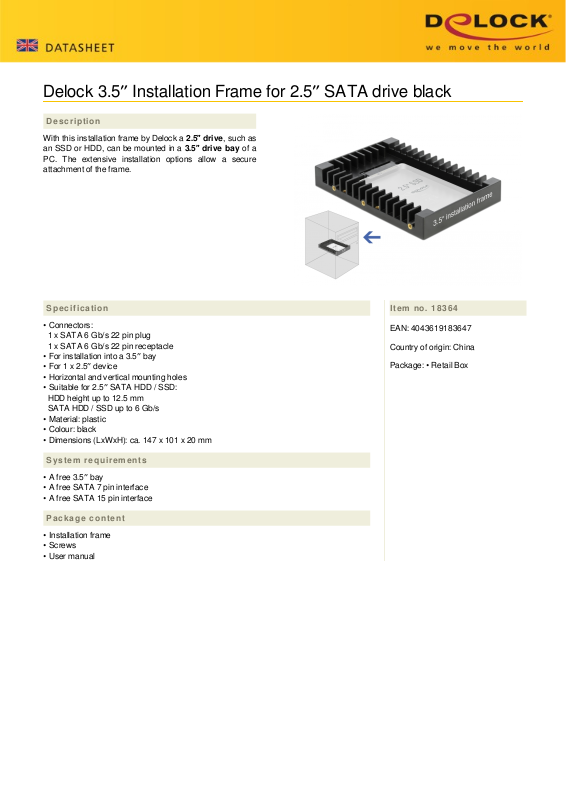

Delock 3.5″ Installation Frame for 2.5″ SATA drive black
Description
With this installation frame by Delock a 2.5″ drive, such as
an SSD or HDD, can be mounted in a 3.5″ drive bay of a
PC. The extensive installation options allow a secure
attachment of the frame.
Specification
• Connectors:
1 x SATA 6 Gb/s 22 pin plug
1 x SATA 6 Gb/s 22 pin receptacle
• For installation into a 3.5″ bay
• For 1 x 2.5″ device
• Horizontal and vertical mounting holes
• Suitable for 2.5″ SATA HDD / SSD:
HDD height up to 12.5 mm
SATA HDD / SSD up to 6 Gb/s
• Material: plastic
• Colour: black
• Dimensions (LxWxH): ca. 147 x 101 x 20 mm
Item no. 18364
EAN: 4043619183647
Country of origin: China
Package: • Retail Box
System requirements
• A free 3.5″ bay
• A free SATA 7 pin interface
• A free SATA 15 pin interface
Package content
• Installation frame
• Screws
• User manual
Page 2

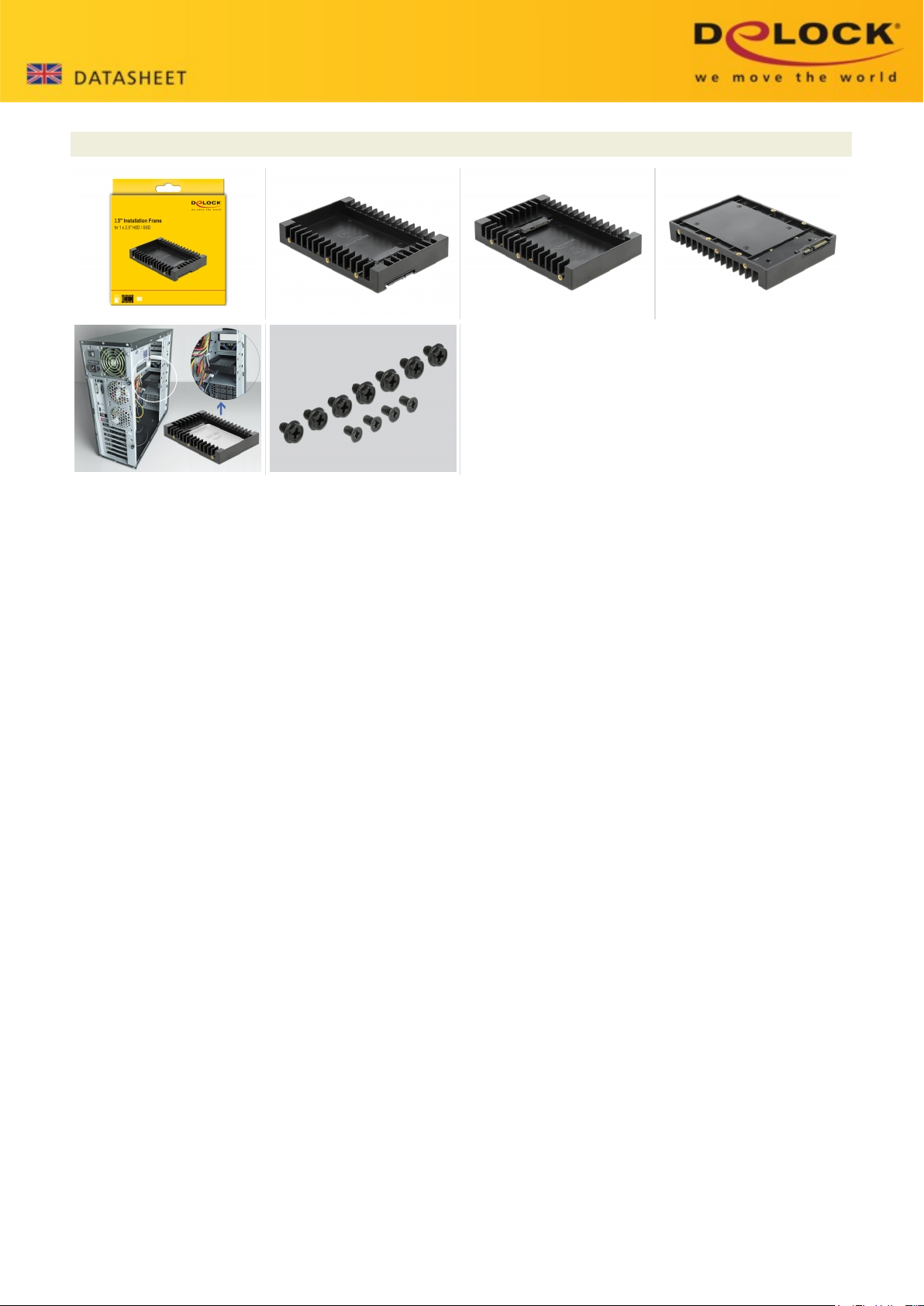

Images
Page 3
General
Form factor: 3.5"
Suitable for data medium: 2.5″
Interface
Connector 1: 1 x SATA 6 Gb/s 22 pin plug
Connector 2: 1 x SATA 6 Gb/s 22 pin receptacle
Technical characteristics
Data transfer rate: 6 Gb/s
Physical characteristics
Length: 147 mm
Width: 101 mm
Height: 20 mm
Colour: black
