DeLOCK 18158 User Manual

Page 1
User manual

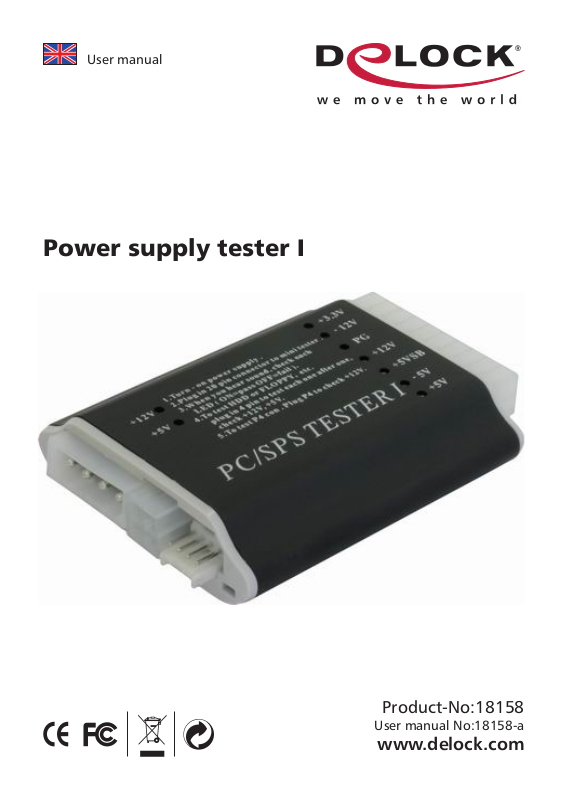

Power supply tester I
Product-No:18158
User manual No:18158-a
www.delock.com
Page 2
Description
Specification
• Voltage source: 20pin (ATX-connector)
• Voltage test: +12V, -12V, +5V, -5V, +3,3V 5V Stand By (SB) 12V Power Good (PG)
• Connectors: Floppy, HDD, CDROM, 4 pin (P4)
Package content*
• Power supply tester I
• User manual
Notice: Do not connect the powers supply to your PC while testing!
1. Plug-in the 20 pin connector to the Power Tester.
2. Switch on your power supply.
3. Check the voltage, the LED’s should light up.
4. Connect the P4 connector to the P4 female connector of the Power Tester.
The LED 12V illuminates.
5. Remove the P4 connector.
6. Plug-in the HDD cable.
The LED’s +12V and +5V should light up.
7. Remove the HDD cable.
8. Plug-in the Floppy cable.
9. The LED’s +12V and +5V should light up.
10. If the LED’s are not lightning, than the power supply is damaged.
-2-
Page 3
Support Delock
If you have further questions, please contact our customer support support@delock.de / www.delock.com or phone 0700 - DELOCKGE (0700 - 335 625 43). You can contact our service hotline during the following times:
Mon – Fri: 9:00 – 17:30 pm charge 0,12 € / min*
All callers outside of Germany dial please 00493081789324
You can find current product information on our homepage: www.delock.com
Final clause
Information and data contained in this manual are subject to change without notice in advance. Errors and misprints excepted.
Copyright
No part of this user manual may be reproduced, or transmitted for any purpose, regardless in which way or by which means, electronically or mechanically, without explicit written approval of Delock.
Edition: 06/2006
