Delock 5.25″ Installation Frame for 1 x 3.5″ + 2 x 2.5″ hard drives
Description
This Delock installation frame is multifunctional useable in
a 5.25″ drive bay of a computer. It can supports a 3.5″
device like a card reader on the bottom side, and
additional two 2.5″ hard drives above. Furthermore,
instead of a 3.5″ device another 3.5″ hard drive can be
installed. For that purpose the 3.5″ cover must be removed
from the frame and inserted at the front.
Specification
• For installation into 5.25″ bay
• For 1. option:
1 x 3.5″ device
2 x 2.5″ HDD / SSD
2. option:
1 x 3.5″ HDD / SSD
2 x 2.5″ HDD / SSD
3. option:
3 x 2.5″ HDD / SSD
• For 2nd and 3rd option the cover must be removed from the frame and inserted in the
front
• Supports 2.5″ hard drive height:
2 x 7 mm up to 9.5 mm
1 x 7 mm up to 15 mm
• Material: plastic
• Colour: black
Item No. 18000
EAN: 4043619180004
Country of origin: China
Package: Retail Box
System requirements
• PC with one free 5.25″ bay
Package content
• 5.25″ installation frame
• Screws
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
18000
1 / 3
04.04.2016
Page 2

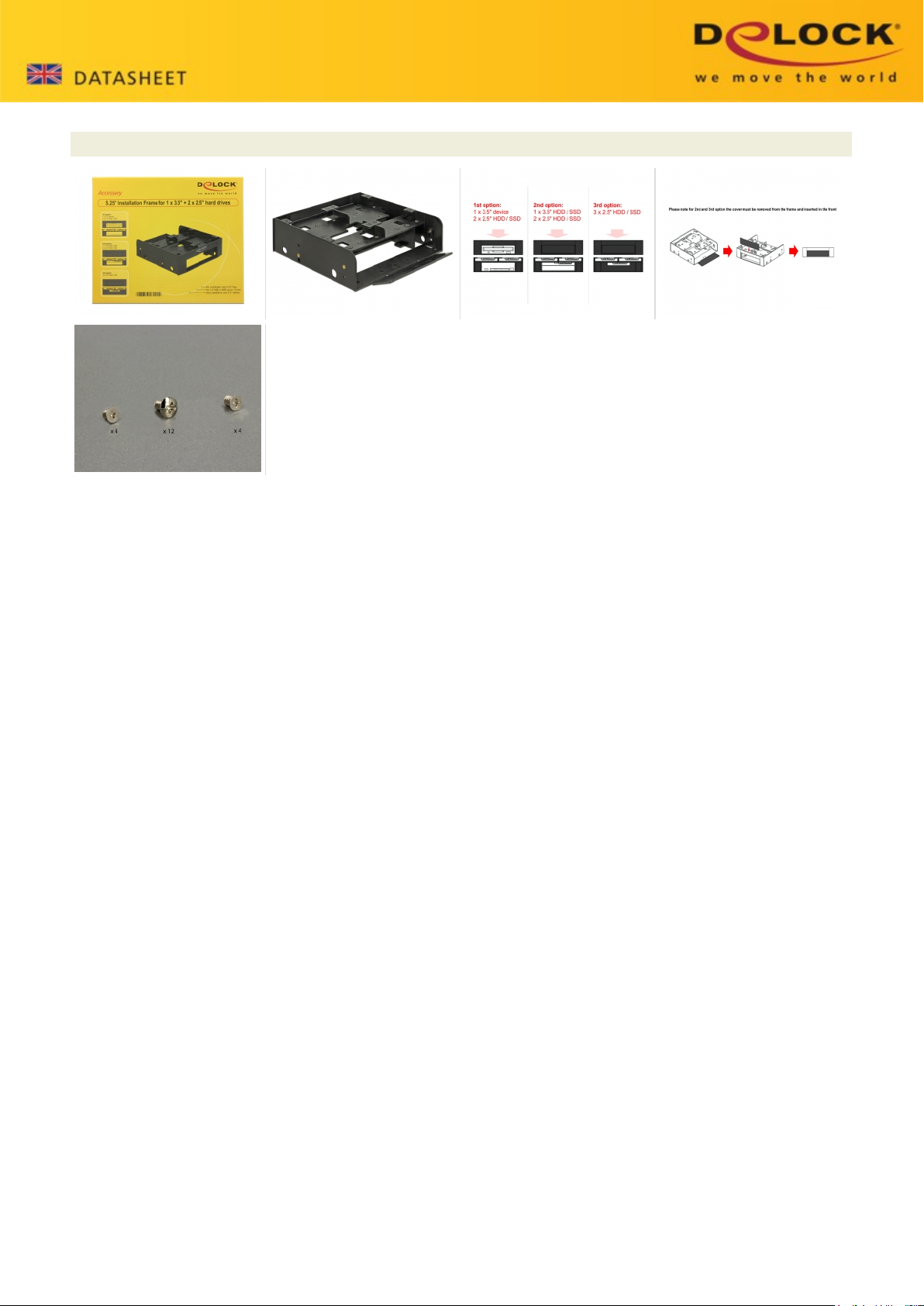

Images
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
18000
2 / 3
04.04.2016
Page 3
General
Form factor: 5.25"
Suitable for data medium: 2.5″
3.5″
SSD or HDD
height up to 15.0 mm
height up to 9.5 mm
Physical characteristics
Colour: black
Material: plastic
