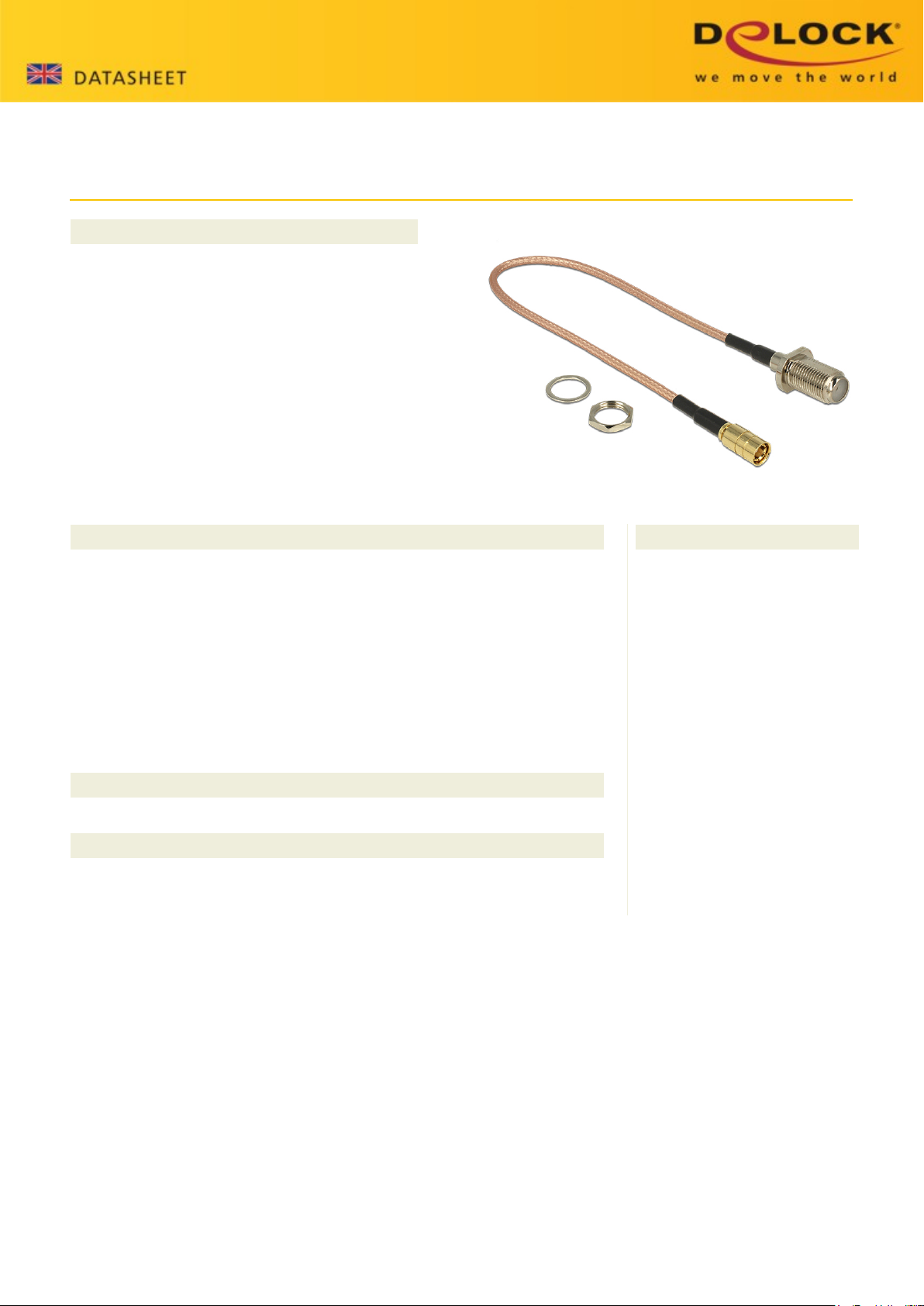

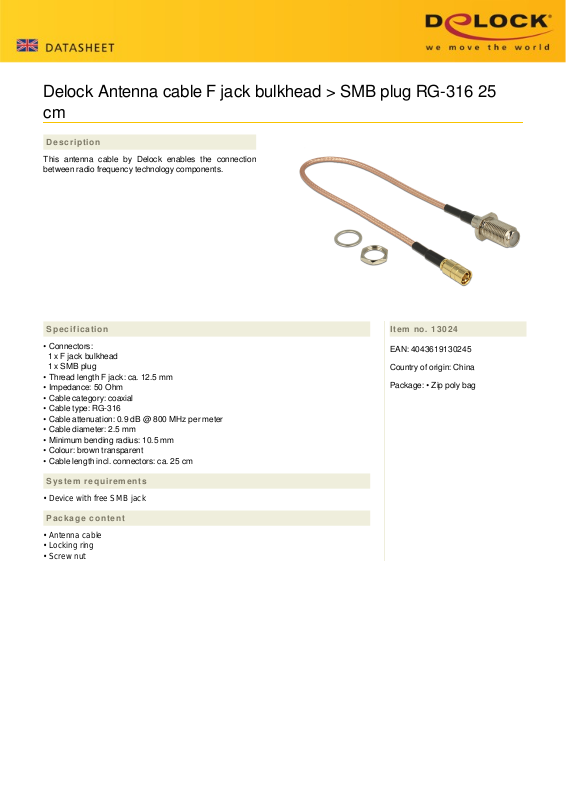

Delock Antenna cable F jack bulkhead > SMB plug RG-316 25 cm

Description

This antenna cable by Delock enables the connection between radio frequency technology components.

Specification

• Connectors: 1 x F jack bulkhead 1 x SMB plug

• Thread length F jack: ca. 12.5 mm

• Impedance: 50 Ohm

• Cable category: coaxial

• Cable type: RG-316

• Cable attenuation: 0.9 dB @ 800 MHz per meter

• Cable diameter: 2.5 mm

• Minimum bending radius: 10.5 mm

• Colour: brown transparent

• Cable length incl. connectors: ca. 25 cm

Item no. 13024

EAN: 4043619130245

Country of origin: China

Package: • Zip poly bag

System requirements

• Device with free SMB jack

Package content

• Antenna cable

• Locking ring

• Screw nut

Page 2

Interface

Connector 1: 1 x F jack Connector 2: 1 x SMB plug

Technical characteristics

Impedance: 50 󰾯Ω

Physical characteristics

Cable category: coaxial Cable type: RG-316 Cable attenuation: 0,9 dB @ 5.7 GHz per meter Cable colour: brown transparent Cable diameter: 2.5 mm Cable length incl. connector: 25 cm Pin finishing: gold-plated Smallest bending radius: 10,5 mm
