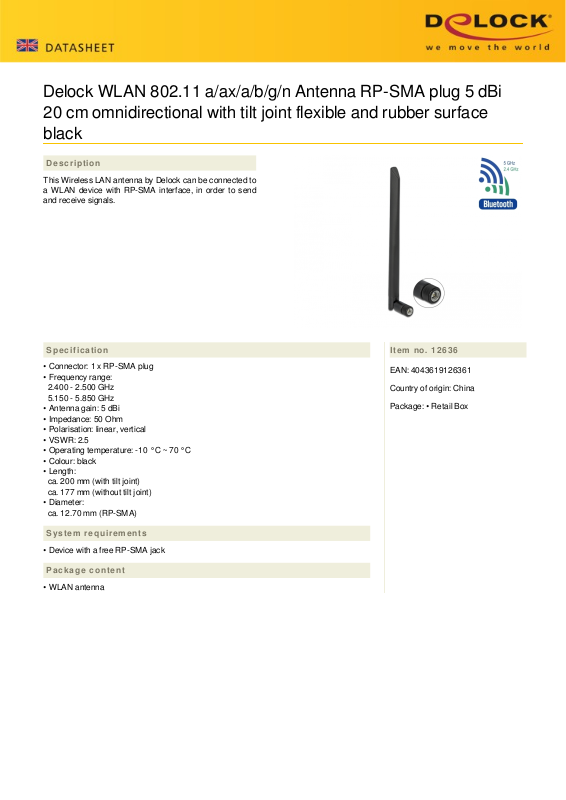

Page 1
Delock WLAN 802.11 a/ax/a/b/g/n Antenna RP-SMA plug 5 dBi
20 cm omnidirectional with tilt joint flexible and rubber surface
black
Description
This Wireless LAN antenna by Delock can be connected to
a WLAN device with RP-SMA interface, in order to send
and receive signals.
Specification
• Connector: 1 x RP-SMA plug
• Frequency range:
2.400 - 2.500 GHz
5.150 - 5.850 GHz
• Antenna gain: 5 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.5
• Operating temperature: -10 °C ~ 70 °C
• Colour: black
• Length:
ca. 200 mm (with tilt joint)
ca. 177 mm (without tilt joint)
• Diameter:
ca. 12.70 mm (RP-SMA)
Item no. 12636
EAN: 4043619126361
Country of origin: China
Package: • Retail Box
System requirements
• Device with a free RP-SMA jack
Package content
• WLAN antenna
Page 2

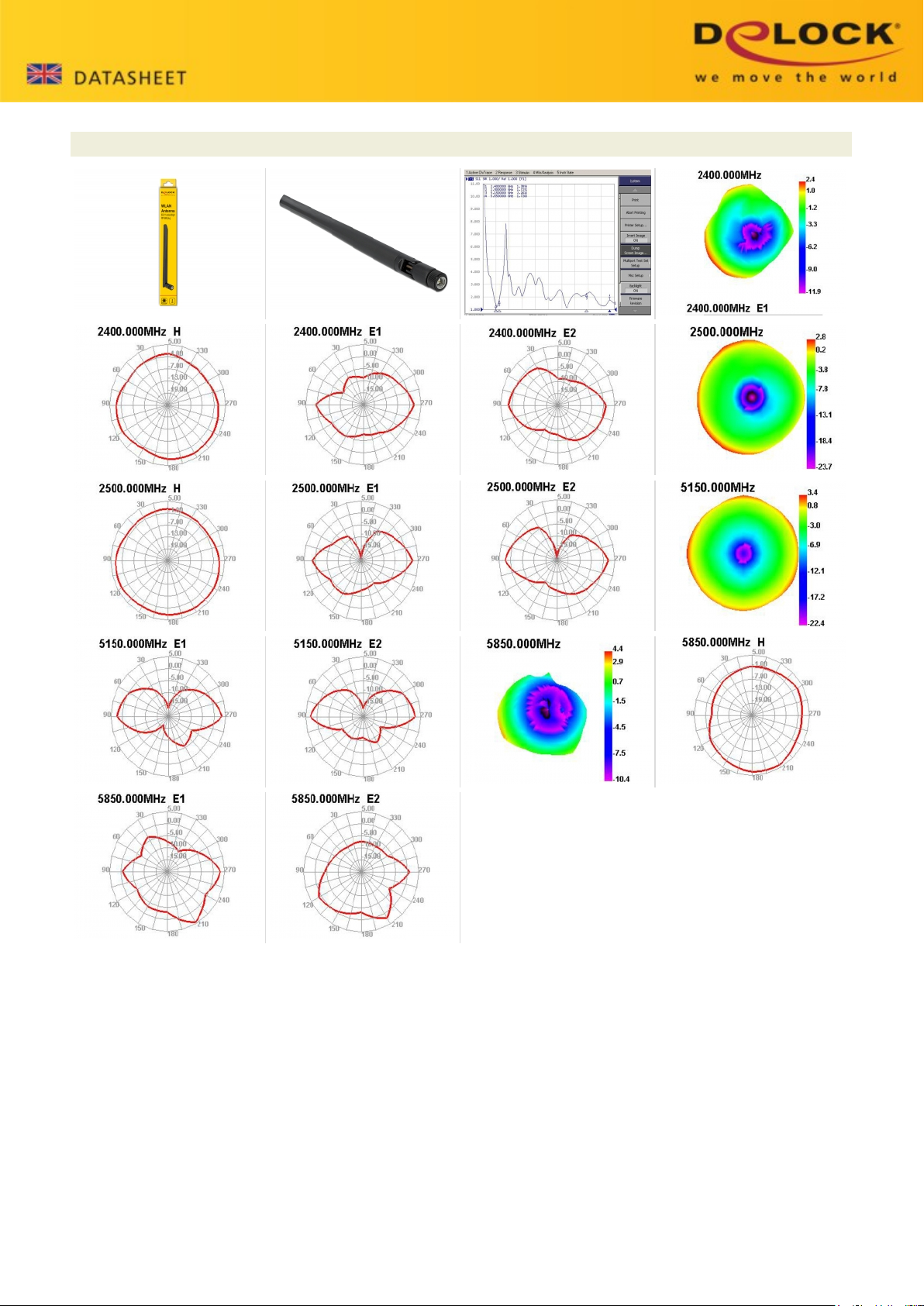

Images
Page 3
General
Mounting type: Screw mounting
Suitable for indoor: yes
Interface
connector: 1 x RP-SMA plug
Technical characteristics
Frequency range: 2400 MHz - 2500 MHz
5150 MHz - 5850 MHz
Antenna gain: 5 dBi
Impedance: 50 Ω
Operating temperature: -10 °C ~ 70 °C
Polarisation: linear vertical
VSWR: 2.5
Physical characteristics
Antenna type: omnidirectional
Housing material: ABS
Length: 20 cm
Diameter connector: 12.7 mm
Colour: black
