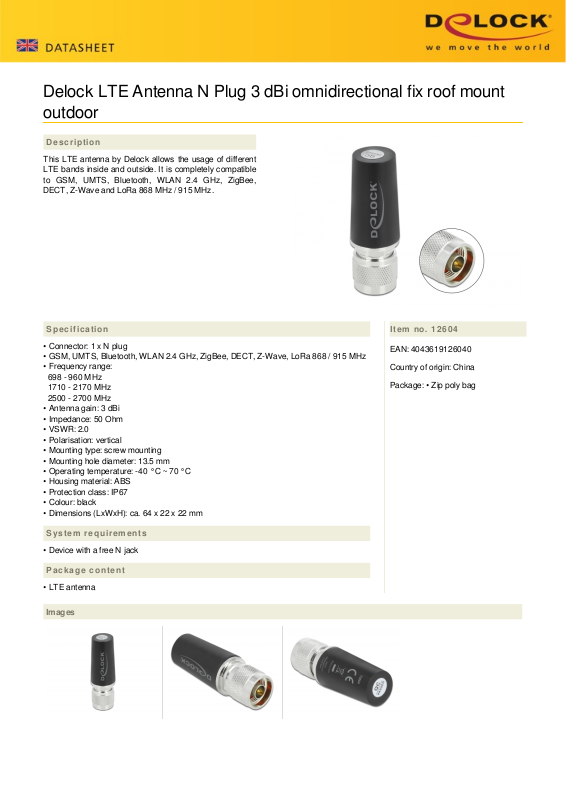

Page 1
Delock LTE Antenna N Plug 3 dBi omnidirectional fix roof mount
outdoor
Description
This LTE antenna by Delock allows the usage of different
LTE bands inside and outside. It is completely compatible
to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee,
DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Specification
• Connector: 1 x N plug
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave, LoRa 868 / 915 MHz
• Frequency range:
698 - 960 MHz
1710 - 2170 MHz
2500 - 2700 MHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: vertical
• Mounting type: screw mounting
• Mounting hole diameter: 13.5 mm
• Operating temperature: -40 °C ~ 70 °C
• Housing material: ABS
• Protection class: IP67
• Colour: black
• Dimensions (LxWxH): ca. 64 x 22 x 22 mm
Item no. 12604
EAN: 4043619126040
Country of origin: China
Package: • Zip poly bag
System requirements
• Device with a free N jack
Package content
• LTE antenna
Images
Page 2
General
Protection category: IP67
Interface
connector: 1x N plug
Technical characteristics
Frequency range: 1710 MHz - 2170 MHz
2500 MHz - 2700 MHz
698 MHz - 960 MHz
Gain: 3 dBi
Impedance: 50 Ω
Operating temperature: -40 °C ~ 70 °C
Polarisation: linear vertical
VSWR: 2.0
Physical characteristics
Housing material: ABS UV resistant
Weight: 43 g
Diameter: 22 mm
Height: 66 mm
Colour: black
