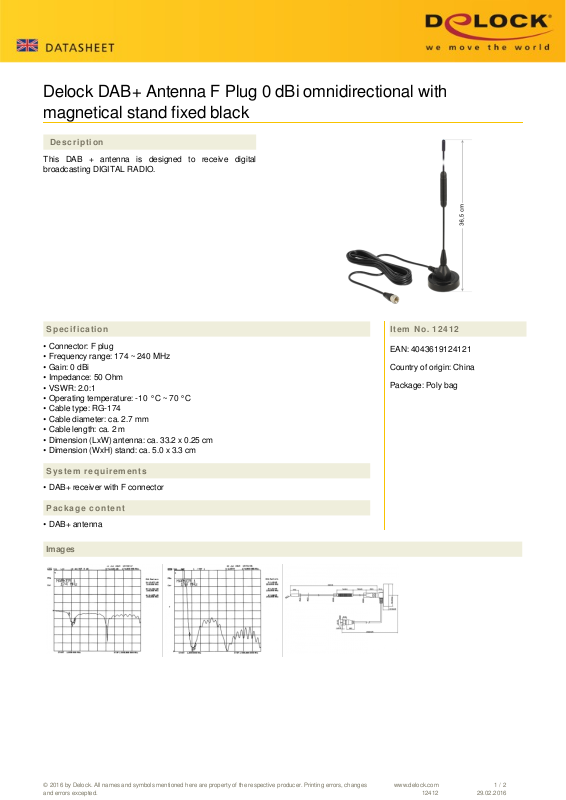

Page 1
Delock DAB+ Antenna F Plug 0 dBi omnidirectional with
magnetical stand fixed black
Description
This DAB + antenna is designed to receive digital
broadcasting DIGITAL RADIO.
Specification
• Connector: F plug
• Frequency range: 174 ~ 240
MHz
• Gain: 0 dBi
• Impedance: 50 Ohm
• VSWR: 2.0:1
• Operating temperature: -10 °C ~ 70 °C
• Cable type: RG-174
• Cable diameter: ca. 2.7 mm
• Cable length: ca. 2 m
• Dimension (LxW) antenna: ca. 33.2 x 0.25 cm
• Dimension (WxH) stand: ca. 5.0 x 3.3 cm
Item No. 12412
EAN: 4043619124121
Country of origin: China
Package: Poly bag
System requirements
• DAB+ receiver with F connector
Package content
• DAB+ antenna
Images
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
12412
1 / 2
29.02.2016
Page 2
Interface
Connection: F plug
Technical characteristics
Frequency range: 174 MHz ~ 240 MHz
Gain: 0 dBi
Impedance: 50 Ohm
Polarisation: linear vertical
VSWR: 2
Physical characteristics
Antenna length incl. magnetic base: 36.5 cm
Diameter magnetical base: 5.0 cm
Height magnetical base: 4.0 cm
Cable category: coaxial cable
Cable type: RG-174
Cable attenuation: 0.5 dB @ 200 MHz per meter
Cable colour: black
Cable diameter: 2.7 mm
Cable length: 2 m
Weight: 166 g
