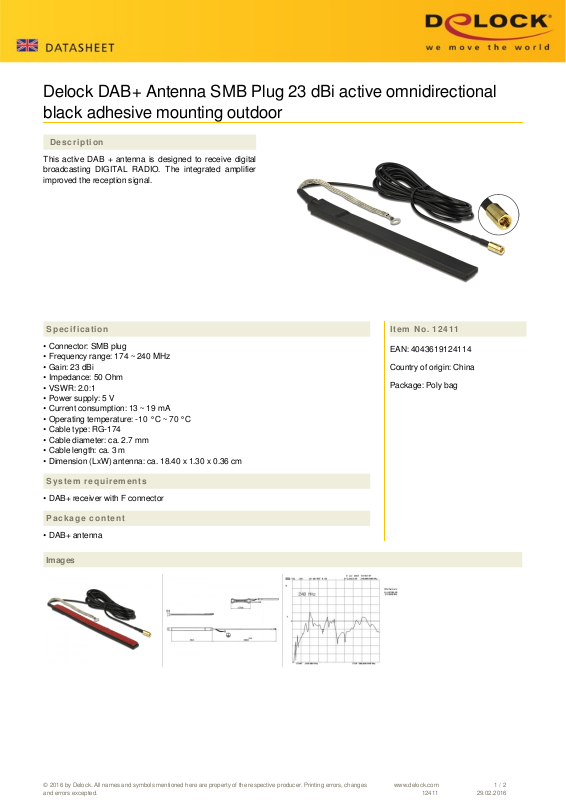

Delock DAB+ Antenna SMB Plug 23 dBi active omnidirectional
black adhesive mounting outdoor
Description
This active DAB + antenna is designed to receive digital
broadcasting DIGITAL RADIO. The integrated amplifier
improved the reception signal.
Specification
• Connector: SMB plug
• Frequency range: 174 ~ 240
MHz
• Gain: 23 dBi
• Impedance: 50 Ohm
• VSWR: 2.0:1
• Power supply: 5 V
• Current consumption: 13 ~ 19 mA
• Operating temperature: -10 °C ~ 70 °C
• Cable type: RG-174
• Cable diameter: ca. 2.7 mm
• Cable length: ca. 3 m
• Dimension (LxW) antenna: ca. 18.40 x 1.30 x 0.36 cm
Item No. 12411
EAN: 4043619124114
Country of origin: China
Package: Poly bag
System requirements
• DAB+ receiver with F connector
Package content
• DAB+ antenna
Images
© 2016 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes
and errors excepted.
www.delock.com
12411
1 / 2
29.02.2016
Page 2
General
Suitable for outdoor: yes
Interface
Connection: SMB plug
Technical characteristics
Frequency range: 174 MHz ~ 240 MHz
Gain: 23 dBi
Impedance: 50 Ohm
Polarisation: linear vertical
VSWR: 2
Operating voltage: 5 V
Current consumption: 13 mA ~ 19 mA
Physical characteristics
Housing colour: black
Cable category: coaxial cable
Cable type: RG-174
Cable attenuation: 0.5 dB @ 200 MHz per meter
Cable colour: black
Cable diameter: 2.7 mm
Cable length: 3 m
Length: 18.4 cm
Width: 1.3 cm
Height: 0.36 cm
Weight: 157 g
