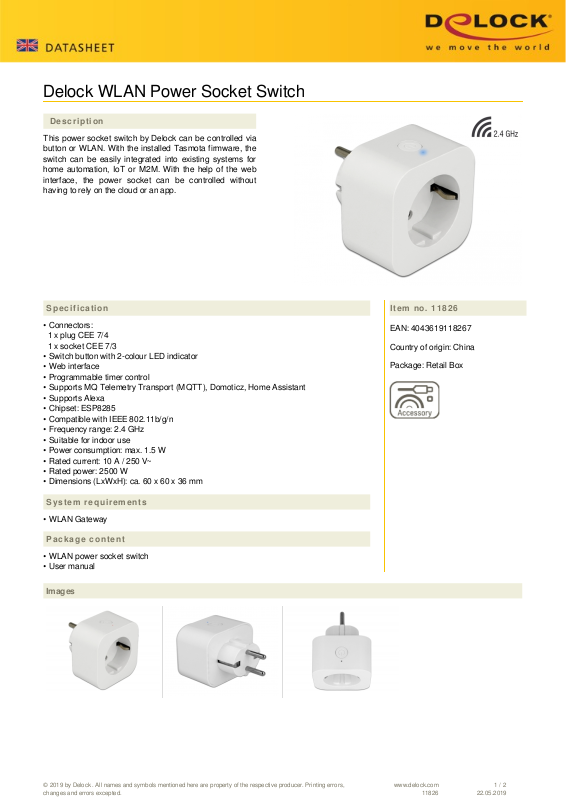

DELOCK 11826 Datasheet

Delock WLAN Power Socket Switch

Description

This power socket switch by Delock can be controlled via
button or WLAN. With the installed Tasmota firmware, the
switch can be easily integrated into existing systems for
home automation, IoT or M2M. With the help of the web
interface, the power socket can be controlled without
having to rely on the cloud or an app.

Specification

• Connectors:
1 x plug CEE 7/4
1 x socket CEE 7/3

• Switch button with 2-colour LED indicator

• Web interface

• Programmable timer control

• Supports MQ Telemetry Transport (MQTT), Domoticz, Home Assistant

• Supports Alexa

• Chipset: ESP8285

• Compatible with IEEE 802.11b/g/n

• Frequency range: 2.4 GHz

• Suitable for indoor use

• Power consumption: max. 1.5 W

• Rated current: 10 A / 250 V~

• Rated power: 2500 W

• Dimensions (LxWxH): ca. 60 x 60 x 36 mm

Item no. 11826

EAN: 4043619118267

Country of origin: China

Package: Retail Box

System requirements

• WLAN Gateway

Package content

• WLAN power socket switch

• User manual

Images

© 2019 by Delock . All names and symbols mentioned here are property of the respective producer. Printing errors,
changes and errors excepted.

www.delock.com

11826

1 / 2

22.05.2019

Technical characteristics

Frequency range: 2.4 GHz band

Physical characteristics

Length: 60 mm
Width: 60 mm
Height: 36 mm
Colour: white
