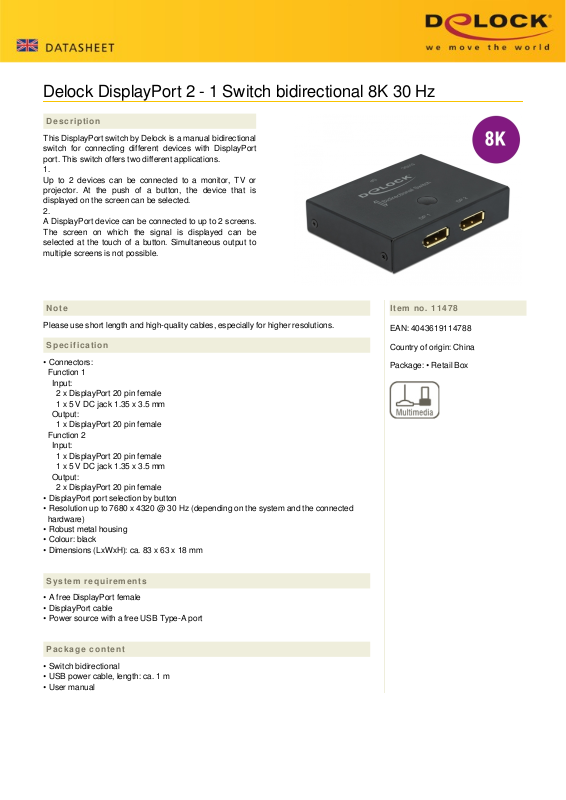

Delock DisplayPort 2 - 1 Switch bidirectional 8K 30 Hz
Description
This DisplayPort switch by Delock is a manual bidirectional
switch for connecting different devices with DisplayPort
port. This switch offers two different applications.
1.
Up to 2 devices can be connected to a monitor, TV or
projector. At the push of a button, the device that is
displayed on the screen can be selected.
2.
A DisplayPort device can be connected to up to 2 screens.
The screen on which the signal is displayed can be
selected at the touch of a button. Simultaneous output to
multiple screens is not possible.
Note
Please use short length and high-quality cables, especially for higher resolutions.
Specification
• Connectors:
Function 1
Input:
2 x DisplayPort 20 pin female
1 x 5 V DC jack 1.35 x 3.5 mm
Output:
1 x DisplayPort 20 pin female
Function 2
Input:
1 x DisplayPort 20 pin female
1 x 5 V DC jack 1.35 x 3.5 mm
Output:
2 x DisplayPort 20 pin female
• DisplayPort port selection by button
• Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected
hardware)
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 83 x 63 x 18 mm
Item no. 11478
EAN: 4043619114788
Country of origin: China
Package: • Retail Box
System requirements
• A free DisplayPort female
• DisplayPort cable
• Power source with a free USB Type-A port
Package content
• Switch bidirectional
• USB power cable, length: ca. 1 m
• User manual
