S5200F-ON Series
Setup Guide
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of
your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of
data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury,
or death.
Copyright © 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks
are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective
owners.
2018 - 11
Rev. A01
Contents
1 About this guide..............................................................................5
Regulatory.................................................................................................5
Related documents.................................................................................. 6
Information symbols.................................................................................6
2 Site preparations............................................................................ 7
Site selection.............................................................................................7
Cabinet placement................................................................................... 8
Rack mounting..........................................................................................8
Switch ground...........................................................................................8
Fans and airow....................................................................................... 9
Power.........................................................................................................9
Storing components...............................................................................10
3 S5200F-ON Series switch Installation........................................... 11
Unpack..................................................................................................... 12
Ground cable........................................................................................... 13
Rack or cabinet installation....................................................................13
Rack mount safety considerations..................................................14

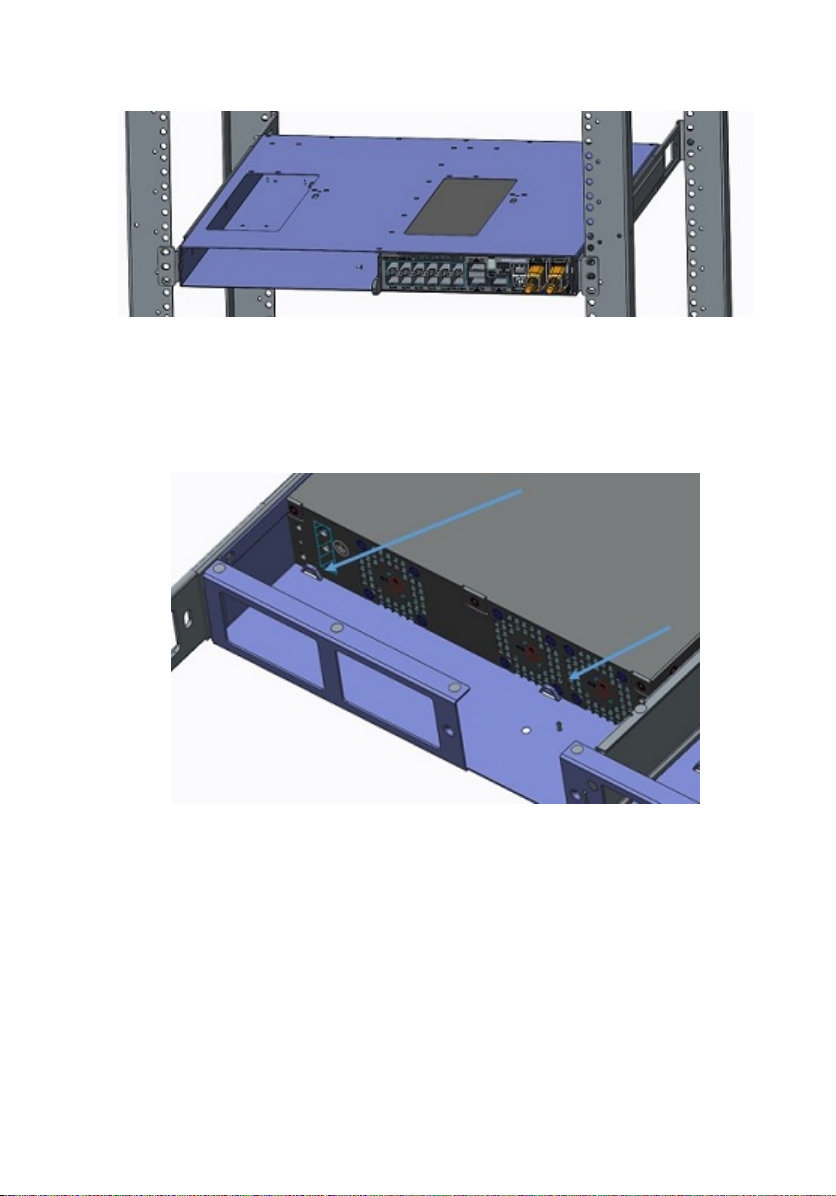

One-half U front-rack installation......................................................... 15
One-half U switch installation..........................................................17
One-half U switch removal.............................................................. 19

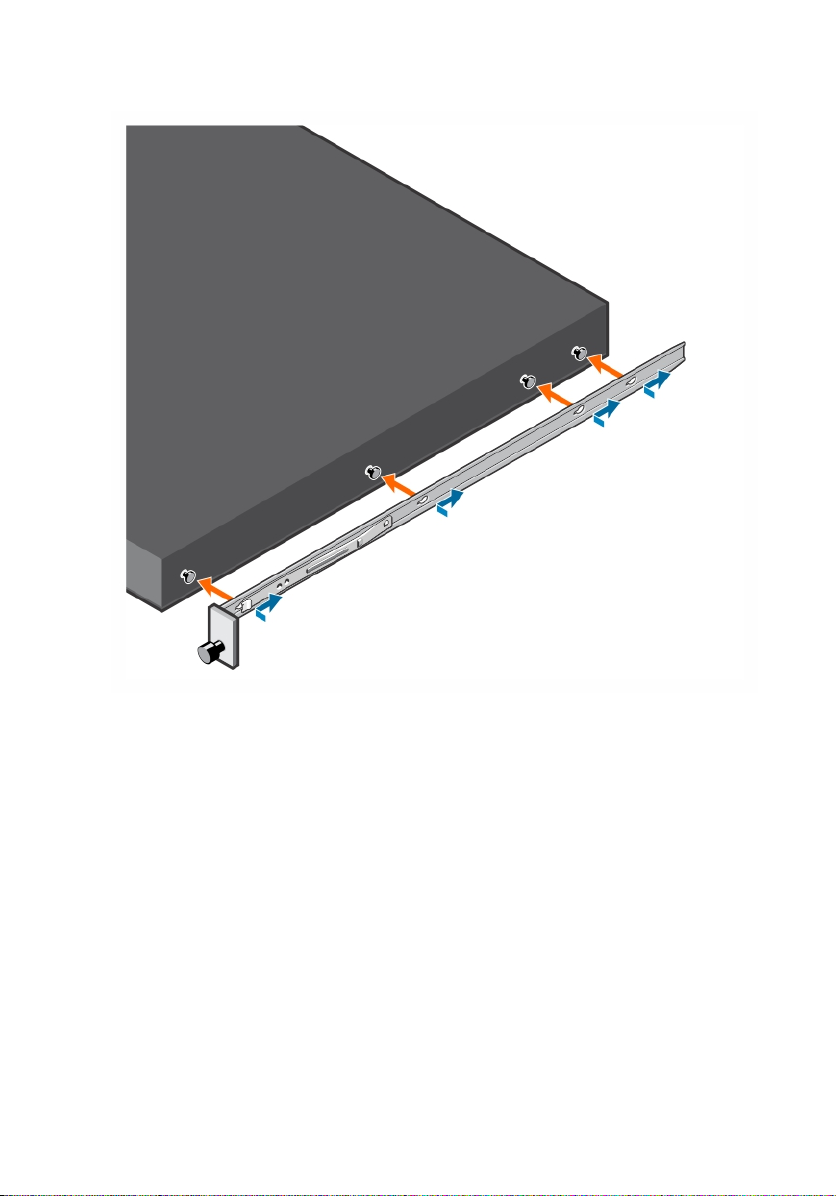

One U ReadyRails installation................................................................19
1U Tool-less mount installation........................................................ 21
Two-post ush-mount installation..................................................22
Two-post center-mount installation............................................... 24
Four-post threaded installation.......................................................25
S5200F-ON Series switch installation...........................................26
Two U four-post rack assembly............................................................30
Contents
3
Four-post rack mount......................................................................30
DC power connections..........................................................................33
S5212F-ON only DC power connections............................................ 35
Optics installation...................................................................................36
Optics removal..................................................................................37
Switch power-up.................................................................................... 37
Power up sequence..........................................................................37
After switch installation......................................................................... 38
4 Specications...............................................................................39
Chassis physical design......................................................................... 39
5 Support........................................................................................ 44
4 Contents
About this guide
This guide provides site preparation recommendations, step-by-step procedures for rack
mounting and desk mounting, inserting modules, and connecting to a power source.
CAUTION: To avoid electrostatic discharge (ESD) damage, wear grounding wrist
straps when handling this equipment.
WARNING: Only trained and qualied personnel can install this equipment. Read
this guide before you install and power up this equipment. This equipment contains
two power cords. Disconnect both power cords before servicing.
WARNING: This equipment contains optical transceivers, which comply with the
limits of Class 1 laser radiation.
1
Figure 1. Class 1 laser product tag
WARNING: When no cable is connected, visible and invisible laser radiation may be
emitted from the aperture of the optical transceiver ports. Avoid exposure to laser
radiation and do not stare into open apertures.
Regulatory
• Marketing model S5232F-ON is represented by the regulatory model E21W and the
regulatory type E21W005.
• Marketing model S5248F-ON is represented by the regulatory model E21W and the
regulatory type E21W002.
About this guide 5
• Marketing model S5224F-ON is represented by the regulatory model E21W and the
regulatory type E21W003.
• Marketing model S5296F-ON is represented by the regulatory model E26W and the
regulatory type E26W001.
• Marketing model S5212F-ON is represented by the regulatory model E29W and the
regulatory type E29W001.
Topics:
• Related documents
• Information symbols
Related documents
For more information about the S5200F-ON Series (S5232F-ON, S5248F-ON, S5296FON, S5224F-ON, and S5212F-ON) switches, see the following documents.
• OS10 Enterprise Edition Release Notes
• OS10 Enterprise Edition User Guide
• S5200F-ON Series Installation Guide
• S5200F-ON Series Release Notes
• S5200-ON Series BMC User Guide
• Open Networking Hardware Diagnostic Guide
: For the most recent documentation, see the support site: www.dell.com/
NOTE
support.
Information symbols
This book uses the following information symbols:
: The Note icon signals important operational information.
NOTE
CAUTION: The Caution icon signals information about situations that could result in
equipment damage or loss of data.
WARNING: The Warning icon signals information about hardware handling that
could result in injury.
WARNING: The ESD Warning icon requires that you take electrostatic precautions
when handling the device.
6 About this guide
Site preparations
The 5200F-ON Series (S5232F-ON, S5248F-ON, S5296F-ON, S5224F-ON, and S5212FON) switch is suitable for installation as part of a common bond network (CBN).
You can install the switch in:
• Network telecommunication facilities
• Data centers
• Other locations where the National Electric Code (NEC) applies
For more information about the S5200F-ON Series switch specications, see
Specications.
NOTE: Install the switch into a rack or cabinet before installing any additional
components such as cables or optics.
Topics:
• Site selection
• Cabinet placement
• Rack mounting
• Switch ground
• Fans and airow
• Power
• Storing components
2
Site selection
Install your equipment in restricted access areas. A restricted access area is one where
service personnel can only gain access using a special tool, lock, key, or other means of
security. The authority responsible for the location controls access to the restricted area.
Site preparations 7
Ensure that the area where you install your switch meets the following safety requirements:
• Near an adequate power source. Connect the switch to the appropriate branch circuit
protection according to your local electrical codes.
• Environmental—switch location—continuous temperature range is from 0°C to 45°C
(32°F to 113°F).
• Operating humidity is from 5 to 85 percent noncondensing, continuous.
• In a dry, clean, well-ventilated, and temperature-controlled room, away from heat
sources such as hot cooling vents or direct sunlight
• Away from sources of severe electromagnetic noise
• Positioned in a rack or cabinet, or on a desktop with adequate space in the front, back,
and sides for proper ventilation and access
• Install the switch in information technology rooms in accordance with Article 645 of the
National Electrical Code and NFPA 75.
For more information about switch storage and environmental temperatures, see
Specications.
Cabinet placement
Install the S5200F-ON Series switch only in indoor cabinets designed for use in a controlled
environment.
Do not install the switch in outside cabinets. For cabinet placement requirements, see Site
selection.
The cabinet must meet minimum size requirements. Airow must be in accordance with the
Electronic Industries Alliance (EIA) standard. Ensure that there is a minimum of 5 inches
(12.7 cm) between the intake and exhaust vents and the cabinet wall.
Rack mounting
When you prepare your equipment rack, ensure that the rack is grounded. Ground the
equipment rack to the same ground point the power service in your area uses. The ground
path must be permanent.
Switch ground
Dell EMC recommends grounding your switch. Use the S5200F-ON Series switch in a CBN.
8
Site preparations
Fans and airow
Fan installation is completed as part of the Factory Install based on the stock keeping unit
(SKU) type. The S5200F-ON Series switch has SKUs that support the following
congurations:
• AC PSU with fan airow from the I/O to the PSU—normal
• AC PSU with fan airow from the PSU to the I/O—reverse
• DC fan unit with airow from the I/O to the PSU—normal
• DC fan unit with fan airow from the PSU to the I/O—reverse
Be sure to order the fans suitable to support your site’s ventilation. Use a single type of
airow fan in your switch. Do not mix reverse and normal airows in a single switch.
For proper ventilation, position the switch in an equipment rack or cabinet with a minimum
of 5 inches (12.7 cm) of clearance around the exhaust vents. The fan speed varies based on
internal temperature monitoring. The switch never intentionally turns o the fans.
Power
To connect the switch to the applicable power source, use the appropriate power cable. An
AC power cable is included with the switch.
When installing AC or DC switches, follow the requirements of the National Electrical Code
ANSI/NFPA 70, where applicable.
The switch is powered-up when the power cable is connected between the switch and the
power source.
CAUTION
slots. The switch has multiple power cables. Before servicing, ensure that all power
cables are disconnected.
CAUTION: On the AC switch, use the power supply cable as the main disconnect
device. Ensure that the socket-outlet is located/installed near the equipment and is
easily accessible.
NOTE: Module power is software controlled. You do not see module LEDs when the
switch powers up in the open network install environment (ONIE).
: Always disconnect the power cable before you service the power supply
Site preparations 9
Storing components
If you do not install your S5200F-ON Series switch and components immediately, properly
store the switch and all components following these guidelines:
• Storage location temperature must remain constant. The storage range is from -40° to
70°C (-40° to 158°F).
• Store on a dry surface or oor, away from direct sunlight, heat, and air conditioning
ducts.
• Store in a dust-free environment.
NOTE: ESD damage can occur when components are mishandled. Always wear an
ESD-preventive wrist or heel ground strap when handling the switch and its
accessories. After you remove the original packaging, place the S5200F-ON Series
switch and its components on an anti-static surface.
10 Site preparations
3
S5200F-ON Series switch
Installation
To install the S5200F-ON Series (S5232F-ON, S5248F-ON, S5296F-ON, S5224F-ON, and
S5212F-ON) switch, complete the installation procedures in the order presented in this
section.
Always handle the switch and its components with care. Avoid dropping the switch or any
eld replaceable units (FRUs).
NOTE: ESD damage can occur if components are mishandled. Always wear an ESD-
preventive wrist or heel ground strap when handling the switch and its components.
As with all electrical devices of this type, take all the necessary safety precautions
to prevent injury when installing this switch.
Topics:
• Unpack
• Ground cable
• Rack or cabinet installation
• One-half U front-rack installation
• One U ReadyRails installation
• Two U four-post rack assembly
• DC power connections
• S5212F-ON only DC power connections
• Optics installation
• Switch power-up
• After switch installation
S5200F-ON Series switch Installation 11
Unpack
NOTE: Before unpacking the switch, inspect the container and immediately report
any evidence of damage.
NOTE: For the S5212F-ON and S5296F-ON switches only: the USB extension
cable is packaged separately. Do not throw it away.
When unpacking the switch, ensure that the following items are included:
• One S5200F-ON Series switch
• Two sets of rail kits, no tools needed
• One RJ-45 to DB-9 female cable
• S5232F-ON, S5248F-ON, S5296F-ON, and S5224F-ON: Ground lug kit
• S5232F-ON, S5248F-ON, S5296F-ON, and S5224F-ON: Two hot-swappable PSUs
• S5232F-ON, S5248F-ON, S5296F-ON, and S5224F-ON: Four hot-swappable fan units
• S5212F-ON: Two xed PSUs
• S5212F-ON: one USB extension cable; male to female
• S5212F-ON: Two xed fan units
• S5296F-ON: one USB extension cable; male to female
• Two country- and region-specic AC power cables
• S5200F-ON Series Set-up Guide
• Safety and Regulatory Information
• Warranty and Support Information
1 Place the container on a clean, at surface and cut all straps securing the container.
2 Open the container, or remove the container top.
3 Carefully remove the switch from the container and place it on a secure and clean
surface.
4 Remove all packing material.
5 Inspect the product and accessories for damage.
12
S5200F-ON Series switch Installation
Ground cable
To attach a ground cable to the switch, use the included M4 screws.
NOTE: For an AC-powered switch, although the third conductor of the AC power
cord provides a ground path, Dell EMC recommends grounding your switch with a
dedicated ground wire.
NOTE: For a DC-powered switch, the only way to safely ground your switch is to
attach a dedicated ground wire. The ground lug kit ships in a plastic bag placed with
the other accessories inside the shipping box. The ground lug bracket screws ship
attached to the switch. Before you install the DC switch in the dual-tray, attach the
ground lug and bracket to the switch using the included screws and then attach the
DC ground wire to the ground lug.
The ground cable is not included. The grounding lugs must be a UL-recognized, crimp-type
lug.
CAUTION: Grounding conductors
conductors.
NOTE: Coat the one-hole lug with an anti-oxidant compound before crimping. Also,
bring any unplated mating surfaces to a shiny nish and coat with an anti-oxidant
before mating. Plated mating surfaces must be clean and free from contamination.
NOTE: The rack installation ears are not suitable for grounding.
To connect the ground cable to the switch:
1 Cut the user-supplied ground cable to the desired length.
The cable length must facilitate proper operation of the fault interrupt circuits. Use the
shortest cable route allowable.
2 Crimp the ground cable inside the pre-installed ground lug.
3 Attach the other end of the ground cable to a suitable ground point such as the rack or
cabinet.
The rack installation ears are not a suitable grounding point.
must
be made of copper. Do not use aluminum
Rack or cabinet installation
You may either place the switch on a rack shelf or mount the switch directly into a 19" wide,
EIA-310- E-compliant rack. Rack mounting for the S5232F-ON, S5248F-ON, and S5224F-
S5200F-ON Series switch Installation
13
ON switches includes four-post, two-post, round threaded holes, or square holes. The
ReadyRails system is provided for 1U front-rack and two-post installations.
Do not use the ReadyRails system for the S5296F-ON or S5212F-ON switches. For the
S5296F-ON switch, see Two U four-post rack assembly. For the S5212F-ON switch, see
One-half U front-rack installation.
The ReadyRails system includes two separately packaged rail assemblies. To begin
installation, separate each rail assembly by sliding the inside rail out of the outside rail.
WARNING: This guide is a condensed reference. Read the safety instructions in
your
Safety, Environmental, and Regulatory
NOTE: The illustrations in this section are not intended to represent a specic
switch.
NOTE: Do not the use the mounted ReadyRails as a shelf or a workplace.
information booklet before you begin.
Rack mount safety considerations
• Rack loading—Overloading or uneven loading of racks may result in shelf or rack failure,
possibly damaging the equipment and causing personal injury. Stabilize racks in a
permanent location before loading begins. Mount the components starting at the
bottom of the rack, then work to the top. Do not exceed your rack’s load rating.
• Power considerations—Connect only to the power source specied on the unit. When
you install multiple electrical components in a rack, ensure that the total component
power ratings do not exceed the circuit capabilities. Overloaded power sources and
extension cables are re and shock hazards.
• Elevated ambient temperature—If you install the switch in a closed rack assembly, the
operating temperature of the rack environment may be greater than the room ambient
temperature. Use care not to exceed the 45°C (113°F) maximum ambient temperature
of the switch.
• Reduced airow—Do not compromise the amount of airow needed for safe operation
of the equipment. Install the equipment in the rack so that the equipment constantly
has the correct amount of airow surrounding it.
• Reliable earthing—Maintain reliable earthing of rack-mounted equipment. Pay particular
attention to the supply connections other than the direct connections to the branch
circuit, for example: use of power strips.
• Do not mount the equipment with the fan panel facing in the downward position.
14
S5200F-ON Series switch Installation
One-half U front-rack installation
Install the S5212F-ON switch using the following installation instructions.
NOTE: To install the S5232F-ON, S5248F-ON, or S5224F-ON switch, see One U
ReadyRails installation. To install the S5296F-ON switch, see Two U four-post rack
assembly.
The dual-tray mounting rails ship with the dual tray, not with the switch. You must supply
eight rackmount screws for this installation.
To install the one-half U switch:
• Attach the rails to the dual tray.
• Install the dual tray in the four-post rack.
• (Recommended) Attach the ground cable to the switch.
• Install the switch in the dual tray.
NOTE: Do not install the dual tray in a two-post rack.
1 Remove the dual tray and the rails from the shipping packaging and place them on a
clean antistatic surface.
2 Line up the three holes on the inner switch rail with the dual-tray mounting heads.
Figure 2. Dual-tray and rack mounting rail
3 Attach the rail to the dual tray. Slide the rail back until it locks into place.
4 Repeat with the other side.
S5200F-ON Series switch Installation
15
Figure 3. Attach dual-tray and rack mounting rails
5 Install the dual tray inside the four-post rack. Rackmount screws are not included.
6 Attach the front dual-tray switch rails to the four-post rack from the front. Secure the
dual tray to the rack using two user-supplied screws for each rack post.
Figure 4. Attach the dual-tray front to the four-post rack front
7 Attach the rear dual-tray switch rails to the four-post rack from the rear. Secure the
dual tray to the rack using two user-supplied screws for each rack post.
16
S5200F-ON Series switch Installation
Figure 5. Attach the dual-tray rear to the four-post rack rear
8 Tighten all mounting screws to securely mount the dual tray into the four-post rack.
Figure 6. Secure the dual-tray in the four-post rack
One-half U switch installation
Install one or two half-U switches in the four-post rack-mounted dual tray.
1 Install one switch into either dual-tray slot from the front.
S5200F-ON Series switch Installation
17
Figure 7. Install one-half U switch
The switch is fully inserted when it presses the stop feature on the dual tray. The front
switch latch snaps the switch into place.
Figure 8. Dual-tray stop feature
2 Insert the second switch in the open dual-tray slot if you are installing two switches.
18
S5200F-ON Series switch Installation
One-half U switch removal
Remove the S5212F-ON switch from the dual tray from the front of the four-post rack.
NOTE: To remove the S5232F-ON, S5248F-ON, or S5224F-ON switch, see One U
ReadyRails installation. To remove the S5296F-ON switch, see Two U four-post
rack assembly.
Push in the front switch latches according to the latch arrows and pull out the switch.
Figure 9. Switch release latches
Figure 10. Switch release arrow
One U ReadyRails installation
For the S5248F-ON, S5232F-ON, and S5224F-ON switches, you can install the ReadyRails
system using the 1U tool-less square-hole method or one of three possible 1U threaded
S5200F-ON Series switch Installation
19
round-hole methods. The tooled installation methods include two-post ush mount, twopost center mount, or four-post threaded mount.
NOTE: To install the S5212F-ON switch, see One-half U front-rack installation. To
install the S5296F-ON switch, see Two U four-post rack assembly.
To begin installation, separate each rail assembly by sliding the inside rail out of the outside
rail.
NOTE: For more installation instructions, see the installation labels attached to the
rail assembly.
Figure 11. Separate rails
20
S5200F-ON Series switch Installation
1U Tool-less mount installation
NOTE: For more installation instructions, see the installation labels attached to the
rail assembly.
1 Face the ReadyRails ange ears facing outward. Place one rail between the left and
right vertical posts. Align and seat the back ange rail pegs in the back vertical post
ange.
The center extractions show how the pegs appear in both the square and nonthreaded
round holes.
Figure 12. 1U tool-less installation
2 Align and seat the front ange pegs in the holes on the front side of the vertical post.
NOTE
: Be sure that the rails click into place and are secure.
3 Repeat this procedure for the second rail.
S5200F-ON Series switch Installation
21
To remove each rail, pull on the latch release button on each ange ear and unseat each rail.
Two-post ush-mount installation
NOTE: For more installation instructions, see the installation labels attached to the
rail assembly.
1 For this conguration, remove the latch castings from the front side of each
ReadyRails assembly, item 1.
To remove the two screws from each front ange ear on the switch side of the rail and
remove each latch casting, use a Torx screwdriver. Retain the latch castings for future
rack requirements. It is not necessary to remove the back ange castings.
22 S5200F-ON Series switch Installation
Figure 13. Two-post ush-mount installation
2 Attach one rail to the front post ange with two user-supplied screws, item 2.
3 Slide the plunger bracket forward against the vertical post and secure the plunger
bracket to the post ange with two user-supplied screws, item 3.
4 Repeat this procedure for the second rail.
S5200F-ON Series switch Installation
23
Two-post center-mount installation
NOTE: For more installation instructions, see the installation labels attached to the
rail assembly.
1 Slide the plunger bracket rearward until it clicks into place and secure the bracket to
the front post ange with two user-supplied screws, item 1.
Figure 14. Two-post center-mount installation
2 Slide the back bracket towards the post. Secure it to the post ange with two user-
supplied screws, items 2 and 3.
3 Repeat this procedure for the second rail.
24
S5200F-ON Series switch Installation
Four-post threaded installation
NOTE: For more installation instructions, see the installation labels attached to the
rail assembly.
1 Remove the latch castings from each end of the ReadyRails assemblies. To remove the
two screws each latch casting, use a Torx driver.
Retain the latch castings for future rack requirements.
S5200F-ON Series switch Installation 25
Figure 15. Four-post threaded installation
2 For each rail, attach the front and back anges to the post anges with two user-
supplied screws at each end.
S5200F-ON Series switch installation
For the 1U two-post congurations for the S5248F-ON, S5232F-ON, and S5224F-ON
switches, slide the switch into the rails in the same manner as the four-post congurations.
For the S5296F-ON switch installation, see S5296F-ON four-post rack assembly. For the
S5212F-ON switch installation, see One-half U switch installation.
26
S5200F-ON Series switch Installation
1U front-rack installation
Congure the rails that are attached to the switch.
1
NOTE: For more information, see the installation instruction labels on the rail.
Attach the inner switch rails to the S5200F-ON Series switch.
Line up the rail with the mounting heads and attach the rail to the chassis. Slide the rail
back until it locks into place. The following shows the detail of the front stando with
the locking tab:
S5200F-ON Series switch Installation 27
Figure 16. Switch rail attachment
2 After you install both rails, line them up on the ReadyRails. Slide the switch in until it is
ush with the front of rack.
About three inches before you fully insert your switch, the rail locking feature engages
to keep the switch from inadvertently sliding out and falling.
28
S5200F-ON Series switch Installation
Figure 17. Front rack installation
NOTE
: Do not the use the mounted Ready-Rails as a shelf or a workplace.
3 Tighten the two thumb screws and rack screws.
To remove the chassis from the rack or cabinet, press in the two side-release bars on the
chassis at the same time and slide the chassis forward.
S5200F-ON Series switch Installation
29
Two U four-post rack assembly
Due to the chassis weight, the S5296F-ON switch does not support a two-post rack
installation; you must install the S5296F-ON in a four-post rack.
NOTE: To install the S5212F-ON, see One-half U front-rack installation. To install
the S5232F-ON, S5248F-ON, or S5224F-ON switch, see One U ReadyRails
installation.
To install in a four-post rack, follow the instructions in your rack frame kit. In a four-post
rack, the maximum distance between the front and back vertical posts is 36 inches (91.44
cm); the minimum distance is 24 inches (60.96).
CAUTION: Use two people, an equipment lift, or pallet jack when lifting or moving
the chassis. Install the chassis into the rack before inserting the chassis
components. Lift the chassis only from the bottom. Lifting by the chassis shelves or
power supply openings might damage the chassis.
Four-post rack mount
Rack mounting safety considerations
WARNING: To prevent bodily injury when mounting or servicing this unit in a rack,
take special precautions to ensure that the chassis remains stable. The following
guidelines are provided to ensure your safety:
• If your chassis is the only unit in the rack, mount it at the bottom of the rack.
• When mounting this unit in a partially lled rack, load the rack from the bottom to
the top with the heaviest component at the bottom of the rack.
• If the rack comes with stabilizing devices, install the stabilizers before mounting or
servicing the unit in the rack.
• If the chassis ships with blanks, remove the blanks from each slot before lifting the
chassis.
WARNING: These instructions are a condensed reference. Read the safety
instructions in your
before you begin.
NOTE: The illustrations in this document are not intended to represent a specic
switch.
30 S5200F-ON Series switch Installation
Safety, Environmental, and Regulatory
information booklet
Rack mount safety considerations
• Rack loading—Overloading or uneven loading of racks may result in shelf or rack failure,
possibly damaging the equipment and causing personal injury. Stabilize racks in a
permanent location before loading begins. Mount the components starting at the
bottom of the rack, then work to the top. Do not exceed your rack’s load rating.
• Power considerations—Connect only to the power source specied on the unit. When
you install multiple electrical components in a rack, ensure that the total component
power ratings do not exceed the circuit capabilities. Overloaded power sources and
extension cables present re and shock hazards.
• Elevated ambient temperature—If you install the switch in a closed rack assembly, the
operating temperature of the rack environment may be greater than the room ambient
temperature. Use care not to exceed the 45°C (113°F) maximum ambient temperature
of the switch.
• Reduced airow—Do not compromise the amount of airow needed for safe operation
of the equipment. Install the equipment in the rack so that the equipment constantly
has the correct amount of airow surrounding it.
• Reliable earthing—Maintain reliable earthing of rack-mounted equipment. Pay particular
attention to the supply connections other than the direct connections to the branch
circuit, for example; use of power strips.
• Do not mount the equipment with the fan panel facing in the downward position.
Chassis installation and removal
1 Align the chassis with the rails and slide the chassis into the rack.
2 Tighten the screws on each side of the chassis’s front panel, items 1 and 2.
To remove the chassis from the rack, loosen the screws and slide the chassis out of the
rack.
S5200F-ON Series switch Installation
31
Figure 18. S5296F-ON installation
1
Extra screws to restrict front-back
movement of the switch.
32 S5200F-ON Series switch Installation
2 Main screw
DC power connections
NOTE: Use the following instructions for all S5200F-ON Series switches except for
the S5212F-ON switch. To connect DC power to the S5212F-ON switch, see
S5212F-ON only DC power connections.
Each DC powered system comes with a set containing a prewired (3-inch 8AWG) power
supply connector and a four-screw wiring block. One set is provided for each DC PSU.
Figure 19. DC Power Connector and Wiring Block
1
DC wire RTN 2 DC power connector
3 Captive screws (2) 4 Orange tab
5 PSU status LED 6 DC power socket
7 DC wire –48V
S5200F-ON Series switch Installation 33
Figure 20. DC Power Connector Ground
1 Ground nut 2 Washer
3 Lock washer 4 Ground cable
5 Device grounding rod
To connect a DC PSU to the site’s DC power source, follow these steps:
1 Strip 1/2 inches of insulation from each of the power connector’s wires, as shown.
2 Insert each of the power connector’s bare wire lengths into the wiring block, as shown.
3 Use a at-blade screwdriver to tighten the screws that secures the bare wires into the
wiring block.
4 Secure the site’s DC power source wires to the other side of the wiring block (See
steps 1 and 3).
5 Insert the DC power connector into the power socket of the DC PSU. Ensure that the
connector pins rmly seat and you hear the click of the power connector’s left and
right levered clamps lock into place.
WARNING
: Never try to force the power connector into or out of the DC PSU
power socket.
34 S5200F-ON Series switch Installation
NOTE: To remove the power connector from a DC PSU, squeeze the levers on both
sides of the connector. Doing so disengages the power connector’s clamps. While
continuing to squeeze, pull the power connector from the DC PSU socket.
S5212F-ON only DC power connections
NOTE: Use the following instructions for the S5212F-ON switch only. For all other
S5200F-ON Series switches, see DC power connections.
Each DC PSU comes with a connector cable. One cable is provided for each DC PSU.
Figure 21. DC power connector and wiring block
1
Wiring block 2 Power connector
S5200F-ON Series switch Installation 35
3 PSU connector
1 Strip a 1/2 inch section of insulation from each of the power connector’s wires, as
shown.
2 Insert each of the power connector’s bare wire lengths into the wiring block. The blue
wire is -48V, the black wire is the positive return, and the yellow/green wire is the
ground wire, as shown.
3 Use a at-blade screwdriver to tighten the screws that secures the bare wires into the
wiring block.
4 Secure the site’s DC power source wires to the other side of the wiring block, see
steps 1 and 3.
WARNING: Do not cross the wires.
5 Insert the DC power connector into the power socket of the DC PSU. Ensure that the
connector pins rmly seat and you hear the click of the power connector’s left and
right levered clamps lock into place.
WARNING: Never try to force the power connector into or out of the DC PSU
power socket.
NOTE: To remove the power connector from a DC PSU, unscrew the thumb screws
and pull the power connector from the DC PSU socket.
Optics installation
WARNING
wear eye protection. Never look directly into the end of a terminated or
unterminated ber or connector as it may cause eye damage.
1 Position the optic so it is in the correct position.
The optic has a key that prevents it from being inserted incorrectly.
2 Insert the optic into the port until it gently snaps into place.
36 S5200F-ON Series switch Installation
: When working with optical bers, follow all warning labels and always
NOTE
: When you cable the ports, be sure not to interfere with the airow from
the small vent holes above and below the ports.
Optics removal
Remove an optic by pushing the tab on the optic and sliding the optic from the port.
When removing optics with direct attach cables (DACs) from the port, pull the release tab
rmly and steadily. Before pulling the release tab, you may need to gently push the optic into
the port to ensure that it is seated properly. Do not jerk or tug repeatedly on the tab.
Switch power-up
Supply power to the S5200F-ON Series switch after you mount it in a rack or cabinet.
Reinspect your switch before power up. Verify the following:
• The equipment is properly secured to the rack. Dell EMC recommends properly
grounding the switch.
• The ambient temperature around the unit, which may be higher than the room
temperature, is within the limits specied for the S5200F-ON Series switch, see
Specications.
• There is sucient airow around the unit.
• The input circuits are correctly sized for the loads and that you use sucient
overcurrent protection devices.
• All protective covers are in place.
CAUTION
NOTE: A US AC power cable is included for powering up an AC power supply. You
must order all other power cables separately.
NOTE: ESD damage can occur if components are mishandled. Always wear an ESD-
preventive wrist or heel ground strap when handling the switch and its components.
: Do not power up the switch if you did not install a fan module.
Power up sequence
When the switch powers up, the fans immediately come on at high speed. The fan speed
slows as the switch continues to boot up.
S5200F-ON Series switch Installation
37
After switch installation
After you have securely installed and powered on the S5200F-ON Series switch:
• If you are using Dell EMC software, see switch documentation at www.dell.com/
support.
• If you are using third-party software, see ONIE documentation at www.onie.org.
38 S5200F-ON Series switch Installation
Specications
This section lists the S5200F-ON Series switch specications.
CAUTION: Operate the product at an ambient temperature not higher than 45°C
(113°F).
CAUTION: Lithium Battery Caution: There is a danger of explosion if the battery is
incorrectly replaced. Replace only with same or equivalent type of battery. Dispose
of the batteries according to the manufacturer's instructions.
NOTE: For RoHS information, see Restricted Material Compliance.
Chassis physical design
Table 1. Chassis physical design
Parameter Specications
Height
S5232F-ON: 1.72 inches (43.6 mm)
S5248F-ON: 1.72 inches (43.6 mm)
4
Width
S5296F-ON: 3.42 (87 mm)
S5224F-ON: 1.72 inches (43.6 mm)
S5212F-ON: 1.72 inches (43.6 mm)
S5232F-ON: 17.1 inches (434 mm)
S5248F-ON: 17.1 inches (434 mm)
S5296F-ON: 16.6 inches (422 mm)
S5224F-ON: 17.1 inches (434 mm)
Specications 39
Parameter Specications
S5212F-ON: 7.87 inches (199.8 mm)
Depth
Chassis weight with factory-installed
components
Rack clearance required
S5232F-ON: 18.1 inches (460 mm)
S5248F-ON: 18.1 inches (460 mm)
S5296F-ON: 20.1 inches (511 mm)
S5224F-ON: 18.1 inches (460 mm)
S5212F-ON: 16 inches (406.4 mm)
S5232F-ON: 21.6 lbs (9.8 kg)—PSUs and
fans
S5248F-ON: 21.4 lbs (9.7 kg)—PSUs and
fans
S5296F-ON: 33.3 lbs (15.1 kg)—PSUs and
fans
S5224F-ON: 21.4 lbs (9.7 kg)—PSUs and
fans
S5212F-ON: 10.05 lbs (4.5 kg)—PSUs and
fans
Front: 5 inches (12.7 cm)
Back: 5 inches (12.7 cm)
Table 2. Environmental parameters
Parameter Specications
Operating temperature 0° to 45°C (32°F to 113°F) continuously
40 Specications
Parameter Specications
NOTE: Reduce maximum
temperature by 1°C/125 meters
(1°F/228 feet) above 950 meters
(3,117 feet).
Operating humidity 5% to 85% (RH), non-condensing
Storage temperature –40° to 70°C (–40° to 158°F )
Storage humidity 5% to 90%, non-condensing
Maximum thermal output
S5232F-ON: 635W = 2167 BTU/Hr
S5248F-ON: 647W = 2208 BTU/Hr
S5296F-ON: 893W = 3047 BTU/Hr
S5224F-ON: 455W = 1552 BTU/Hr
S5212F-ON: 304W = 1037 BTU/Hr
Maximum operational altitude 10,000 feet (3,048 meters)
Maximum non-operational altitude 39,370 feet (12,000 meters)
Shock Dell EMC Spec SV0115
Table 3. AC power requirements
Parameter Specications
Power supply
S5232F-ON: 100–240 VAC 50/60 Hz
S5248F-ON: 100–240 VAC 50/60 Hz
S5296F-ON: 100–240 VAC 50/60 Hz
S5224F-ON: 100-240 VAC 50/60 Hz
Specications 41
Parameter Specications
S5212F-ON: 100-240 VAC 50/60 Hz
Maximum current draw per system
Maximum power consumption
Typical power consumption
S5232F-ON: 5.8A@110VAC and
2.4A@220VAC
S5248F-ON: 5.8A@110VAC and
2.4A@220VAC
S5296F-ON: 8.2A@110VAC and
4.1A@220VAC
S5224F-ON: 4.2A@110VAC and
2.1A@220VAC
S5212F-ON: 2.8A@110VAC and
1.4A@220VAC
S5232F-ON: 635W maximum
S5248F-ON: 647W maximum
S5296F-ON: 893W maximum
S5224F-ON: 455W maximum
S5212F-ON: 304W maximum
S5232F-ON: 360W typical
S5248F-ON: 310W typical
42 Specications
S5296F-ON: 457W typical
S5224F-ON: 200W typical
S5212F-ON: 140W typical
Table 4. DC power requirements
Parameter Specications
Minimum and maximum input voltage range –40VDC minimum
Maximum current at full load with fan
S5232F-ON: 15.9A @40VDC
S5248F-ON: 16.2A @40VDC
S5296F-ON: 22.3A @40VDC
S5224F-ON: 11.4A@40VDC
S5212F-ON: 7.6A@40VDC
Specications 43
5
Support
The support site provides documents and tools to help you eectively use your equipment
and mitigate network outages. Through the support site you can obtain technical
information, access software upgrades and patches, download available management
software, and manage your open cases. The support site provides integrated, secure access
to these services.
To access the support site, go to www.dell.com/support/. To display information in your
language, scroll down to the bottom of the web page and select your country from the
drop-down menu.
• To obtain product-specic information, enter the 7-character service tag, known as a
luggage tag, or 11-digit express service code of your switch and click Submit.
To view the chassis service tag or express service code, pull out the tag or enter the
show chassis command from the CLI.
• To receive more technical support, click Contact Us. On the Contact Information web
page, click Technical Support.
To access switch documentation, go to www.dell.com/manuals/.
To search for drivers and downloads, go to www.dell.com/drivers/.
To participate in community blogs and forums, go to www.dell.com/community.
44 Support
Loading...
