Dell EMC PowerEdge R940xa User Manual

Dell EMC PowerEdge R940xa

The 4S, 4U PowerEdge R940xa accelerates applications to deliver real-time decisions. The R940xa combines four CPUs with four GPUs in a powerful 1:1 ratio to drive database acceleration. With up to 6TB of memory and four-socket performance, the R940xa delivers consistent and fast response times.

Technical Guide

© 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

2018 - 05

Rev. A01

Contents

1 System overview............................................................................................................. 6

Introduction........................................................................................................................................................................6

New technologies...............................................................................................................................................................6

2 System features.............................................................................................................. 8

Product comparison........................................................................................................................................................... 8

Specications..................................................................................................................................................................... 9

3 Chassis views and features.............................................................................................11

Front view of the system................................................................................................................................................... 11

Control panels..............................................................................................................................................................11

LCD panel................................................................................................................................................................... 12

Back view of the system...................................................................................................................................................14

Control panels...................................................................................................................................................................14

Locating the information tag of your system.....................................................................................................................15

Security features...............................................................................................................................................................15

4 Processor...................................................................................................................... 16

Processors........................................................................................................................................................................16

Processor features......................................................................................................................................................16

Supported processors.................................................................................................................................................16

Chipset............................................................................................................................................................................. 18

5 Memory........................................................................................................................ 20

Supported memory.......................................................................................................................................................... 20

Memory speed................................................................................................................................................................. 20

Memory conguration.......................................................................................................................................................21

Memory RAS features.......................................................................................................................................................21

6 Storage......................................................................................................................... 23

Storage.............................................................................................................................................................................23

Supported drives........................................................................................................................................................23

Boot Optimized Storage Subsystem...........................................................................................................................24

Storage Controller ........................................................................................................................................................... 26

IDSDM with vFlash card...................................................................................................................................................26

External storage............................................................................................................................................................... 26

Optical drives............................................................................................................................................................. 26

Tape drives................................................................................................................................................................. 27

7 PCIe subsystem.............................................................................................................28

PCIe risers........................................................................................................................................................................28

PCIe slot power................................................................................................................................................................28

8 Power, thermal and acoustics .......................................................................................30

Power consumption and energy eciency....................................................................................................................... 30

Power supply units............................................................................................................................................................31

Thermal and acoustics......................................................................................................................................................32

Thermal design...........................................................................................................................................................32

Expanded operating temperature restrictions.............................................................................................................32

Acoustical design..............................................................................................................................................................32

9 Rack rails...................................................................................................................... 34

Sliding rails features summary...........................................................................................................................................34

10 Supported operating systems...................................................................................... 36

11 Dell EMC OpenManage systems management..............................................................37

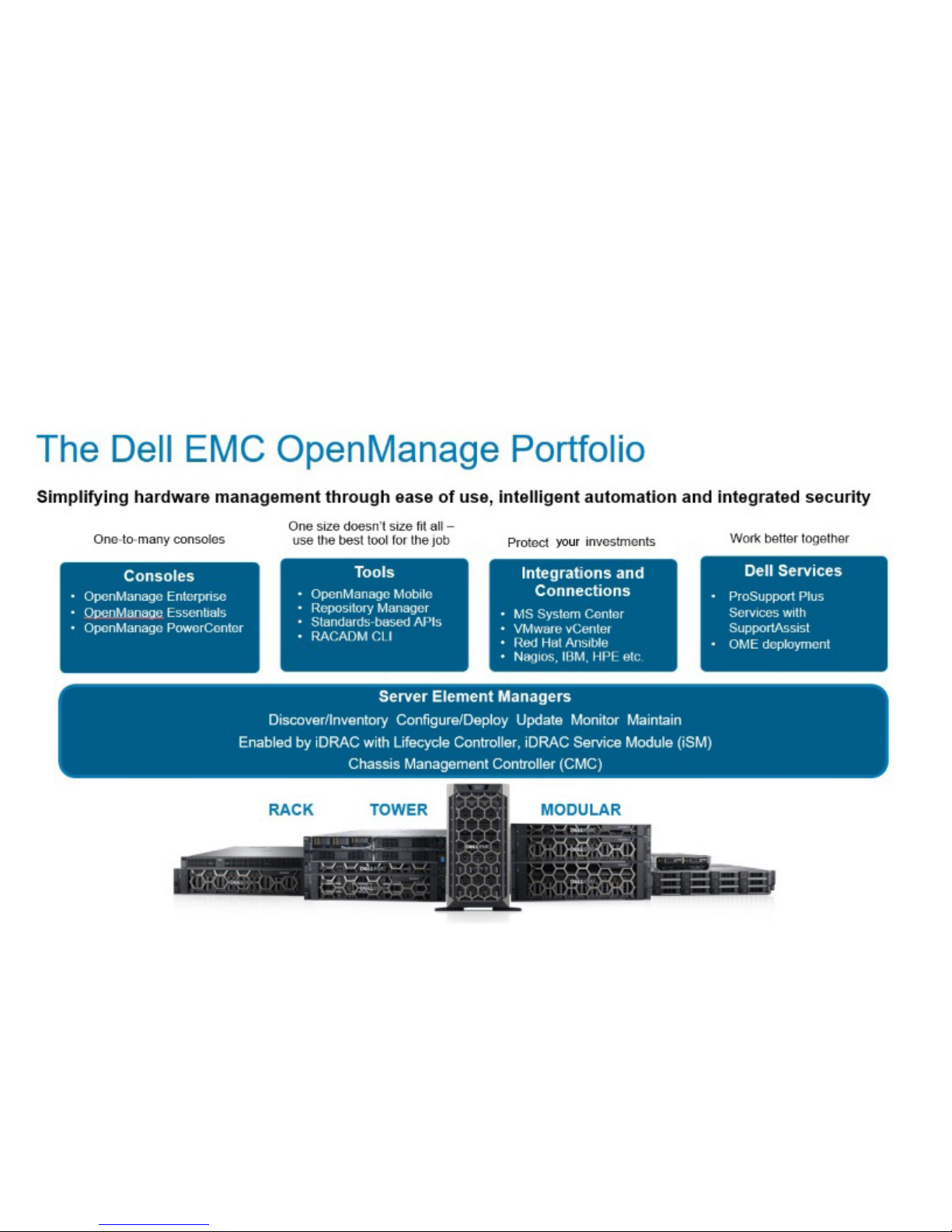

OpenManage systems management.................................................................................................................................37

iDRAC with Lifecycle controller........................................................................................................................................ 38

iDRAC features and comparison.................................................................................................................................38

Agent-free management.................................................................................................................................................. 43

Agent-based management............................................................................................................................................... 43

Dell EMC consoles............................................................................................................................................................43

Dell EMC OpenManage systems management tools, utilities and protocols..................................................................... 45

Integration with third-party consoles................................................................................................................................46

OpenManage connections with third-party consoles........................................................................................................47

12 Appendix A. Additional specications...........................................................................48

System dimensions...........................................................................................................................................................48

Environmental specications............................................................................................................................................49

Video specications..........................................................................................................................................................49

USB peripherals................................................................................................................................................................49

13 Appendix B. Standards compliance.............................................................................. 50

14 Appendix C. Additional resources..................................................................................51

15 Appendix D. Support and deployment services ........................................................... 52

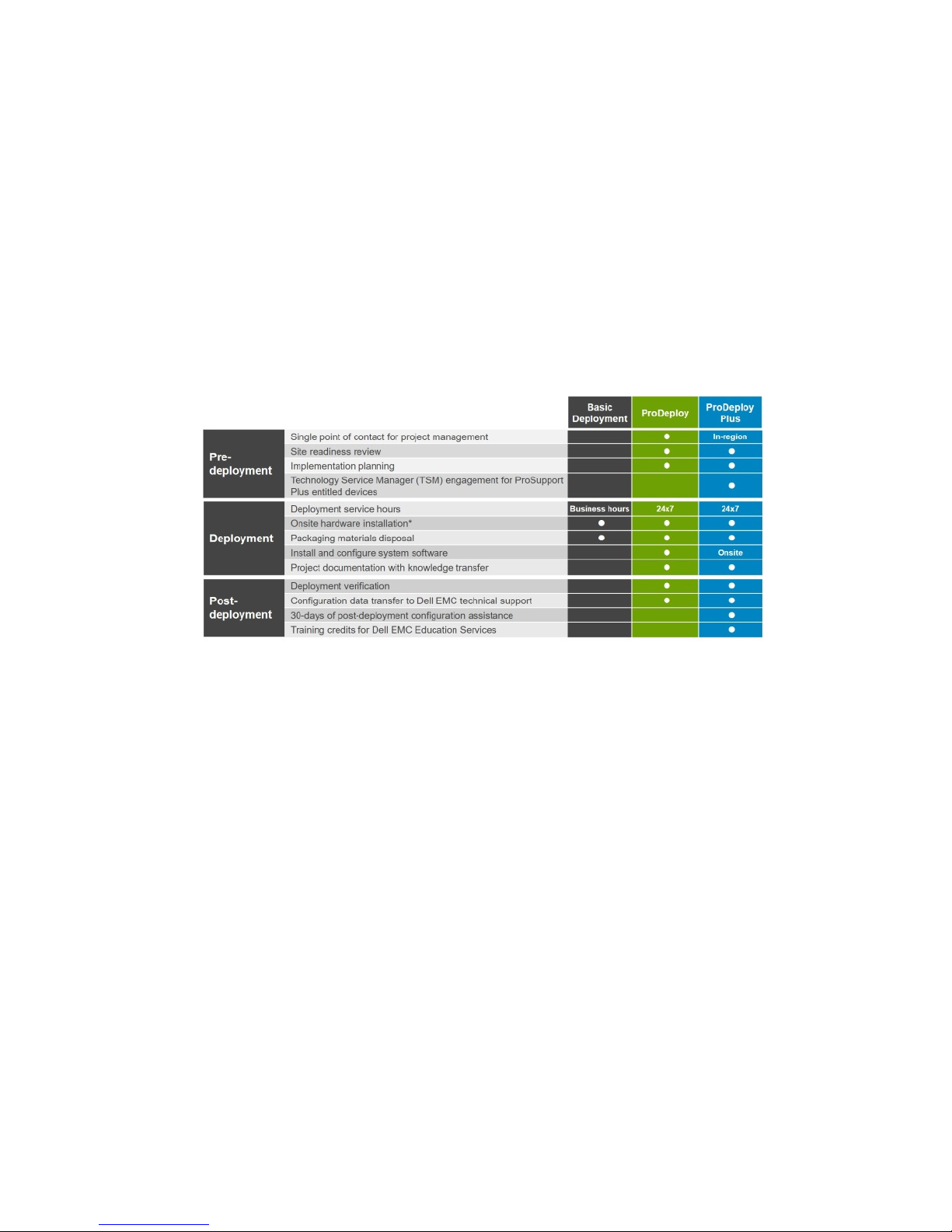

ProDeploy Enterprise Suite...............................................................................................................................................52

ProDeploy Plus...........................................................................................................................................................52

ProDeploy...................................................................................................................................................................52

Basic Deployment.......................................................................................................................................................52

ProSupport Enterprise Suite.............................................................................................................................................53

ProSupport Plus...............................................................................................................................................................53

ProSupport.......................................................................................................................................................................54

ProSupport One for Data Center......................................................................................................................................54

Support Technologies.......................................................................................................................................................54

SupportAssist.............................................................................................................................................................54

TechDirect..................................................................................................................................................................55

Additional professional services........................................................................................................................................55

Dell Education Services....................................................................................................................................................55

Dell Global Infrastructure Consulting Services..................................................................................................................55

Dell managed services......................................................................................................................................................55

System overview

Introduction

The Dell EMC™ PowerEdge™ R940xa is designed to run complex workloads using highly scalable memory, I/O, and network options. The systems features the Intel® Xeon® Scalable processor family, with up to 48 DDR4 DIMMs, 12 PCI Express® PCIe Gen3 enabled expansion slots, and a choice of embedded NIC technologies.

The PowerEdge R940Xa adds large storage capacity 4S performance and GPU database acceleration, making it well-suited for compute-intensive applications that require greater storage, while not sacricing I/O performance.

New technologies

The R940xa system is a 4-socket, 4U rack server. It features the Intel® Xeon® Processor Scalable Family, Gold & Platinum processors (up to 28 cores per socket) and supports up to 48 DIMMs (DDR4 RDIMM/LR-DIMM) and 12 NVDIMM.

The R940xa system has the following features:

• Intel Xeon Scalable processors.

• Simultaneous Multi-Threading (SMT) support.

• High Reliability mode/prole support.

• Software RAID support for SATA and NVMe.

• Ideal for compute-intensive applications that require greater storage, while not sacricing I/O performance. New line support for 4 double-wide GPUs (in a 1: CPU to GPU ratio) or up to 8 full-height FPGAs to accelerate business-critical workloads like AI and machine learning.

Table 1. New technologies

Technology Detailed description

Intel Xeon Processor Scalable Family

• 14nm process technology

• Intel Ultra Path Interconnect (UPI)

• Up to 28 cores per socket

• Up to 3.7 GHz

• Max TDP: 205W

Intel C610 chipset Intel Platform Controller Hub (PCH)

2666 MT/s DDR 4 memory The PowerEdge R940Xa supports two DIMMs per channel at

2666 MT/s.

• 6x DDR4 Channels per socket, 2 DIMMs per channel (2DPC)

• Up to 2666 MT/s (conguration-dependent)

• RDIMMs up to 32GB & LRDIMMs at 64GB and 128GB supported

• NVDIMMS of 16GB and 32GB supported

iDRAC9 with Lifecycle Controller The embedded systems management solution for PowerEdge

servers features hardware and rmware inventory and alerting,

Technology Detailed description

in-depth memory alerting, faster performance, a dedicated gigabit port and many more features.

Wireless management The Quick Sync feature is an extension of NFC based low

bandwidth Quick sync interface. Quick Sync 2.0 will oer feature parity with NFC interface with improved user experience. Since the introduction of iDRAC in PowerEdge Server, the server management has been improved by adding dierent local and remote user interfaces (Web GUI, RACADM, WSMAN, BIOS F2 Setup, and LCD) to iDRAC. The addition of Quick Sync 1.0 (NFC) interface in 13G server with handheld devices (Mobile, tablet) and OMM Android application. To extend this Quick Sync feature to wide variety of Mobile OS's with higher data throughput, the Quick Sync 2.0 version replaces NFC technology.

System features

Product comparison

The following table shows the comparison between the PowerEdge R940xa and the R930.

Table 2. Comparison table

Feature R940xa R930

CPU 4x Intel® Xeon® Processor Scalable Family gold

and platinum

4x Intel® Xeon® E5-5600 v3

CPU interconnect Intel Ultra Path Interconnect (UPI) Intel QuickPath Interconnect (QPI)

Memory

• 48x DDR4 RDIMM, LRDIMM, 12x NVDIMM

• Up to 6TB with 48x 128GB LR-DIMMs

• 96 x DDR4 RDIMM, LR-DIMM

• up to 3TB with 96x 32GB LR-DIMMs

Disk Drives 2.5inch - 12Gb SAS, 6Gb SATA 2.5 inch - 12Gb SAS, 6Gb SATA

Storage Controllers

Adapters: HBA330, H330, H730P, H740P, 12G SAS HBA

SW RAID: S140

12 Gbps PERC-9 series

PCIe SSD Up to 4x PCIe SSD 8x PCIe SSD with dedicated slots using two

extender cards.

PCIe Slots Max 12 PCIe 3.0 Max 10 PCIe 3.0

rNDC 4x 1GB, 4x 10GB, 2x 10GB+2x 1GB, or 2x 25GB 4x 1Gb, 4x 10Gb, or 2x 10Gb+2x 1Gb

Accelerators Up to 4 double-wide GPUs or up to 8 full-height

FPGAs.

Not Available

USB Ports

Front: 2 ports (USB 2.0), 1 managed (micro-usb)

Rear: 2 ports (USB 3.0)

Internal: 1 port (USB 3.0)

Optional: 1 Front port (USB 3.0) - only oered on 8-drive conguration

Front: 2 ports (USB 2.0)

Rear: 2 ports (USB 2.0)

Internal: 1 port (USB 2.0)

Rack Height 4U 4U

Power Supplies

AC (Platinum): 1100W, 1600W, 2000W, 2400W

DC: 1100W

Mix Mode/HVDC: 1100W

• AC: 750W, 1100W

• DC: 1100W

• Mix Mode/HVDC: 750W

System Management LC 3.x, OpenManage, QuickSync2.0, OMPC3,

Digital License Key, iDRAC Direct (dedicated microUSB port), Easy Restore, vFlash

LC 2.x, OpenManage, Digital License Key, iDRAC QuickSync, iDRAC Direct, Easy Restore

Availability

• Hot-plug Drives

• Hot-plug Redundant Cooling

Feature R940xa R930

• Hot-plug Redundant Cooling

• Hot-plug Redundant Power Supplies

• IDSDM

• Hot-plug Redundant Power Supplies

• IDSDM

Specications

Table 3. Technical specications

Feature PowerEdge R940xa

Processors 4x Intel® Xeon® Processor Scalable Family Gold and Platinum

Chipset Intel C610 - Intel® Platform Controller Hub (PCH)

CPU Interconnect Intel Ultra Path Interconnect (UPI)

Number of cores Up to 28 cores per socket

Memory

48x DDR4 RDIMM/LRDIMM 12x NVDIMM

Chassis Storage design modularity

• up to 32 Hard Drive Chassis

• up to 8 Hard Drive Chassis

Accelerators Up to 4 double-wide GPUs or up to 8 full-height FPGAs

Disk Drives

• 4 x 2.5-inch NVMe only

• 8 x 2.5-inch SAS/SATA or SATA only

• 24 x 2.5-inch SAS/SATA

• 32 x 2.5-inch SAS/SATA or SATA only

PCIe SSD Up to 4x CPU Direct Attach PCIe SSD

Storage Controller S140, HBA330, H330, H730, H730P, H740P, 12 Gbps SAS HBA(External)

LCD Module LCD module option in bezel

PCIe Slots Up to 12 x PCIe Gen3—x16/x16/x16

Embedded NIC 4x 1GB, 4x 10GB, 2x 10GB+2x 1GB, or 2x 25GB

Power Supplies AC (Platinum):

• 1100W

• 1600W

• 2000W

• 2400W

DC:

• 1100W

Mix Mode/HVDC (China and Japan only):

• 1100W

Remote Management iDRAC9

Systems management

Dell EMC Systems management consoles and tools:

Feature PowerEdge R940xa

• OpenManage Enterprise

• OpenManage Essentials

• OpenManage Mobile

• OpenManage Power Center

Embedded management:

• iDRAC9 with Lifecycle Controller

• iDRAC Direct iDRAC RESTful API with Redsh

• Quick Sync 2 BLE/wireless

Integrations:

• Microsoft® System Center

• VMware® vCenter™

• BMC Software (available from BMC)

• Ansible by RedHat.

Connections:

• Nagios Core and Nagios XI

• Oracle Enterprise Manager

• Microfocus Operations Manager i (OMi)

• IBM Tivoli Netcool/OMNIbus

TPM TPM China, TPM1.2, TPM2.0

iDRAC Direct front port Micro USB

Fan Up to 6 fans

IDSDM Module Internal Dual SD Module (IDSDM) and vFlash

BOSS Module M.2 SATA interface

PERC PERC 9 and 10

Chassis views and features

Front view of the system

Figure 1. Front view of 32 x 2.5-inch drive system

Left control panel 2. Drives (32)

3. Right control panel 4. Information tag

Control panels

The control panels allow you to manually control the inputs to the server.

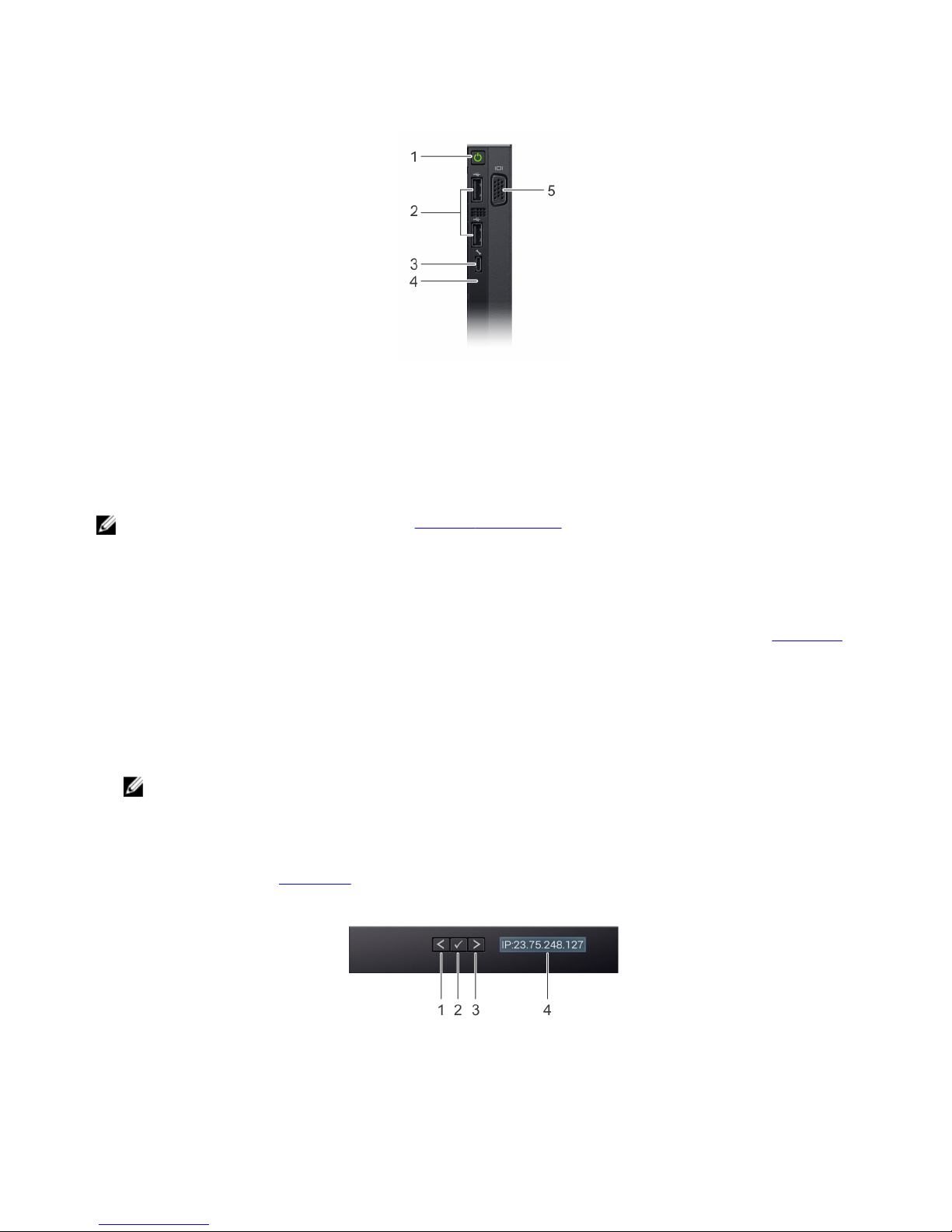

Left control panel view

Figure 2. Left control panel view

Status LED indicators 2. System health and system ID indicator

3. iDRAC Quick Sync 2 wireless indicator (optional)

Right control panel view

Figure 3. Right control panel view

1. Power button

2. USB 2.0 port (2)

3. iDRAC Direct port

4. iDRAC Direct LED

5. VGA port

NOTE: For more information on the ports, see Technical Specications.

LCD panel

The LCD panel provides system information, status, and error messages to indicate if the system is functioning correctly or requires attention. The LCD panel can also be used to congure or view the system’s iDRAC IP address. For more information about error messages, see the Event and Error Message Reference Guide for 14th Generation Dell EMC PowerEdge Servers at Dell.com/qrl.

The LCD panel is available only on the optional front bezel. The optional front bezel is hot pluggable.

The statuses and conditions of the LCD panel are outlined here:

• The LCD backlight is white during normal operating conditions.

• When the system needs attention, the LCD backlight turns amber, and displays an error code followed by descriptive text.

NOTE: If the system is connected to a power source and an error is detected, the LCD turns amber regardless of whether the system is turned on or o.

• When the system turns o and there are no errors, LCD enters the standby mode after ve minutes of inactivity. Press any button on the LCD to turn it on.

• If the LCD panel stops responding, remove the bezel and reinstall it.

If the problem persists, see Getting help.

• The LCD backlight remains o if LCD messaging is turned o using the iDRAC utility, the LCD panel, or other tools.

Figure 4. LCD panel features

Table 4. LCD panel features

Item Button or

display

Description

1 Left Moves the cursor back in one-step increments.

2 Select Selects the menu item highlighted by the cursor.

3 Right Moves the cursor forward in one-step increments.

During message scrolling:

• Press and hold the right button to increase scrolling speed.

• Release the button to stop.

NOTE: The display stops scrolling when the button is released. After 45 seconds of inactivity, the display starts scrolling.

4 LCD display Displays system information, status, and error messages or iDRAC IP address.

Viewing Home screen

The Home screen displays user-congurable information about the system. This screen is displayed during normal system operation when there are no status messages or errors. When the system turns o and there are no errors, LCD enters the standby mode after ve minutes of inactivity. Press any button on the LCD to turn it on.

1. To view the Home screen, press one of the three navigation buttons (Select, Left, or Right).

2. To navigate to the Home screen from another menu, complete the following steps:

a. Press and hold the navigation button till the up arrow is displayed.

b. Navigate to the using the up arrow c. Select the Home icon. d. On the Home screen, press the Select button to enter the main menu.

Setup menu

NOTE: When you select an option in the Setup menu, you must conrm the option before proceeding to the next action.

Option

Description

iDRAC Select DHCP or Static IP to congure the network mode. If Static IP is selected, the available elds are IP,

Subnet (Sub), and Gateway (Gtw). Select Setup DNS to enable DNS and to view domain addresses. Two separate DNS entries are available.

Set error Select SEL to view LCD error messages in a format that matches the IPMI description in the SEL. This

enables you to match an LCD message with an SEL entry.

Select Simple to view LCD error messages in a simplied user-friendly description. For more information about error messages, see the Dell Event and Error Messages Reference Guide at Dell.com/ openmanagemanuals > OpenManage software.

Set home Select the default information to be displayed on the Home screen. See View menu section for the options

and option items that can be set as the default on the Home screen.

View menu

NOTE: When you select an option in the View menu, you must conrm the option before proceeding to the next action.

Option Description

iDRAC IP Displays the IPv4 or IPv6 addresses for iDRAC9. Addresses include DNS (Primary and Secondary),

Gateway, IP, and Subnet (IPv6 does not have Subnet).

MAC Displays the MAC addresses for iDRAC, iSCSI, or Network devices.

Name Displays the name of the Host, Model, or User String for the system.

Number Displays the Asset tag or the Service tag for the system.

Power Displays the power output of the system in BTU/hr or Watts. The display format can be congured in the

Set home submenu of the Setup menu.

Temperature Displays the temperature of the system in Celsius or Fahrenheit. The display format can be congured in the

Set home submenu of the Setup menu.

Back view of the system

Figure 5. Back view of the system

Full-height expansion riser 1 2. Full-height expansion riser 2

3. Power supply units (4) 4. System identication button

5. CMA power port 6. iDRAC9 dedicated port

7. USB 3.0 ports (2) 8. VGA port

9. Serial port 10. Low prole expansion card slots (2)

11. NIC ports (4)

NOTE: For more information on the ports and connectors, see Technical specications.

NOTE: The expansion card congurations are X8 PCIe Riser 1+X8 PCIe Riser 2 or X16 PCIe Riser 1+X16 PCIe Riser 2.

Control panels

The control panels allow you to manually control the inputs to the server.

Locating the information tag of your system

You can identify your system using the unique Express Service Code and Service Tag. Pull out the information tag in front of the system to view the Express Service Code and Service Tag. Alternatively, the information may be on a sticker on the back of the system chassis. The mini Enterprise Service Tag (EST) is found on the back of the system chassis. This information is used by Dell to route support calls to the appropriate personnel.

Figure 6. Locating the information tag of your system

1. Information tag (Top view)

2. Information tag (Bottom view)

3. OpenManage Mobile (OMM) label

4. iDRAC MAC address and iDRAC secure password label

NOTE: If you have opted for secure default access to iDRAC, the iDRAC secure default password is available on the back of the system Information tag. This label will be blank, if you have not opted for secure default access to iDRAC, then the default user name and password are root and calvin.

5. Service Tag

Security features

A number of physical security features are present on the latest generation of the R940xa. Additional security features (nonphysical) are included in the BIOS and iDRAC sections.

The following table shows the available security features for the R940xa:

Table 5. Security features

Features Description

Cover latch The system cover contains a non-keyed locking mechanism

integrated into the latch.

Front bezel An optional bezel may be mounted to the front of the chassis.

The bezel includes a keyed lock to prevent its removal and to protect from unauthorized access to externally accessible media, such as hard drives. The system status remains viewable even when the bezel is attached.

Intrusion detection switch An internal intrusion detection switch allows for users to be

alerted when the system cover has been removed.

Power button The power button functionality can be disabled through BIOS.

Processor

Processors

Processor features

The Intel Xeon Processor Scalable Family is the next generation core architecture with improved Instructions per Cycle (IPC) and other architectural improvements. The Intel Xeon Processor Scalable Family features are as follows:

• Virtual address space of 48 bits and a physical address space of 46 bits.

• Intel Hyper-Threading Technology (Intel® HT Technology) when enabled allow each core to support two threads.

• First Level Cache (FLC) 64 KB total. The FLC is comprised of a 32 KB ICU (Instruction Cache) and 32 KB DCU (Data Cache).

• MB Mid-Level Cache (MLC) per core (non-inclusive with the LLC).

• Intel® Advanced Vector Extensions 512 (Intel® AVX-512) with a single AVX512 fused multiply-add (FMA) execution units. SKUs which support Advanced RAS enable a 2nd FMA execution unit.

Supported processors

Table 6. Supported processors for PowerEdge R940xa

Model Descript

ion

Cache Onboard

memory

Cores Speed

(GHz)

TDP SteppingSKU

type

Intel SKU

Intel Xeon Scalable Processor Family

H-0 16.5MB 768GB 4 3.6GHz105W XCC Gold 5122

Intel Xeon Scalable Processor Family

H-0 19.25MB 768GB 12 2.6GHz125W XCC Gold 6126

Intel Xeon Scalable Processor Family

H-0 19.25MB 768GB 14 2.6GHz135W NA Gold 6132

Intel Xeon Scalable Processor Family

H-0 22MB 768GB 16 2.1GHz 125W XCC Gold 6130

Intel Xeon Scalable Processor Family

H-0 22MB 768GB 16 2.6GHz150W XCC Gold 6142

Intel Xeon Scalable Processor Family

H-0 27.5MB 768GB 20 2.0GHz125W XCC Gold 6138

Intel Xeon Scalable Processor Family

H-0 24.75MB 768GB 12 3.0GHz150W XCC Gold 6136

Intel Xeon Scalable Processor Family

H-0 1.5TB NA 18 2.3GHz140W NA Gold 6140M

Intel Xeon Scalable Processor Family

H-0 24.75MB 768GB 18 2.3GHz140W XCC Gold 6140

Intel Xeon Scalable Processor Family

H-0 24.75MB 768GB 18 2.7GHz 165W XCC Gold 6150

Model Descript

ion

Cache Onboard

memory

Cores Speed

(GHz)

TDP SteppingSKU

type

Intel SKU

Intel Xeon Scalable Processor Family

H-0 27.5MB 768GB 20 2.4GHz150W XCC Gold 6148

Intel Xeon Scalable Processor Family

H-0 24.75MB 768GB 8 3.6GHz165W NA Gold 6144 QS

Intel Xeon Scalable Processor Family

H-0 24.75MB 768GB 12 3.4GHz165W NA Gold 6146 QS

Intel Xeon Scalable Processor Family

H-0 1.5TB NA 16 2.6GHz150W NA Gold 6142M

Intel Xeon Scalable Processor Family

H-0 24.75MB 768GB 18 3.0GHz200W XCC Gold 6154

Intel Xeon Scalable Processor Family

H-0 24.75MB NA 8 3.2GHz130W NA Gold 6134M

Intel Xeon Scalable Processor Family

H-0 24.75MB 768GB 8 3.2GHz130W XCC Gold 6134

Intel Xeon Scalable Processor Family

H-0 30.25MB 768GB 22 2.1GHz 140W XCC Gold 6152

Intel Xeon Scalable Processor Family

H-0 35.75MB 768GB 26 2.0GHz150W NA Platinum 8164

Intel Xeon Scalable Processor Family

H-0 1.5TB NA 24 2.1GHz 150W NA Platinum 8160M

Intel Xeon Scalable Processor Family

H-0 33MB 768GB 24 2.1GHz 150W XCC Platinum 8160

Intel Xeon Scalable Processor Family

H-0 NA 768GB 12 3.0GHz150W XCC Platinum 8158

Intel Xeon Scalable Processor Family

H-0 16.5MB 768GB 4 3.6GHz105W NA Platinum 8156

Intel Xeon Scalable Processor Family

H-0 33MB 768GB 24 2.7GHz 205W XCC Platinum 8168

Intel Xeon Scalable Processor Family

H-0 1.5TB NA 26 2.1GHz 165W NA Platinum 8170M

Intel Xeon Scalable Processor Family

H-0 35.75MB 768GB 26 2.1GHz 165W XCC Platinum 8170

Intel Xeon Scalable Processor Family

NA NA 1.5TB 28 2.1GHz 165W NA Platinum 8176M

Intel Xeon Scalable Processor Family

H-0 38.5MB 768GB 28 2.1GHz 165W XCC Platinum 8176

Intel Xeon Scalable Processor Family

NA NA 1.5TB 28 2.5GHz205W NA Platinum 8180M

Intel Xeon Scalable Processor Family

H-0 38.5MB 768GB 28 2.5GHz205W XCC Platinum 8180

Model Descript

ion

Cache Onboard

memory

Cores Speed

(GHz)

TDP SteppingSKU

type

Intel SKU

Intel Xeon Scalable Processor Family

H-0 NA 768GB 16 2.0GHz125W XCC Platinum 8153

Intel Xeon Scalable Processor Family

NA NA 768GB 10 2.4GHz85W HCC Gold 5115

Intel Xeon Scalable Processor Family

NA NA 768GB 12 2.3GHz105W HCC Gold 5118

Intel Xeon Scalable Processor Family

NA NA 768GB 14 2.2GHz105W HCC Gold 5120

NOTE: The CPU SKUs ending with M can support up to 1.5TB of memory per socket

Processor congurations

The PowerEdge R940xa supports four processors with up to 28 cores per processor.

Processor Installation

For processor installation instructions see the PowerEdge R940xa Installation and Service Manuals.

Chipset

The PowerEdge R940xa systems use the Intel C610 - Intel® Platform Controller Hub (PCH) that provides extensive I/O support. Functions and capabilities include:

• ACPI Power Management Logic Support, Revision 4.0a

• PCI Express Base Specication Revision 3.0

• Integrated Serial ATA host controller, supports data transfer rates of up to 6 Gb/s on all ports.

• xHCI USB controller with SuperSpeed USB 3.0 ports

• Direct Media Interface

• Serial Peripheral Interface

• Enhanced Serial Peripheral Interface

• Flexible I/O - Allows some high speed I/O signals to be congured as PCIe root ports, PCIe uplink for use with certain PCH SKUs, SATA (and sSATA), or USB 3.0.

• General Purpose Input Output (GPIO)

• Low Pin Count interface, interrupt controller, and timer functions

• System Management Bus Specication, Version 2.0

• Integrated Clock Controller / Real Time Clock Controller

• Intel High Denition Audio and Intel Smart Sound Technology

• Integrated 10/1 Gb Ethernet

• Integrated 10/100/1000 Mbps Ethernet MAC

• Supports Intel Rapid Storage Technology Enterprise

• Supports Intel Active Management Technology and Server Platform Services

• Supports Intel Server Platform Service rmware

• Supports Intel Virtualization Technology for Directed I/O

• Supports Intel Trusted Execution Technology

• JTAG Boundary Scan support

• Intel QuickAssist Technology

• Intel PCIe QuickAssist card

• Intel Trace Hub for debug

For more information, visit Intel.com

Memory

The PowerEdge R940xa support up to 48 DIMMs, with up to 6144GB of memory and speeds of up to 2666MT/s. The PowerEdge 940xa support registered (RDIMMs) and load reduced DIMMs (LRDIMMs) which use a buer to reduce memory loading and provide greater density, allowing for the maximum platform memory capacity. Also supports new persistent memory technologies like NVDIMM-N.

The following list are key highlights for the PowerEdge R940xa memory modules:

• The PowerEdge R940xa oers 48 Direct connect DDR4, no memory buer

• Memory speed at 2666MT/s

• 12 DIMMs per CPU, 6 Channels per CPU

• Optimal memory capacity with 6 DIMM per CPU increment 192GB, 384GB, 768GB, 1.5TB and 3TB are optimized capacity

• Only DDR4 RDIMMs, LR-DIMMs and NVDIMMs are supported

• If DIMMs with mixed speed are installed, the memory will run at the lower frequency

• NVDIMMs are only supported on the baseboard (12 max)

• RDIMMs cannot be mixed with LR-DIMMs

• NVDIMMs can be mixed with RDIMMS

• NVDIMMs cannot be mixed with LR-DIMMs

Supported memory

The table below shows the supported memory technologies for the PowerEdge R940xa:

Table 7. Supported memory technologies

Feature Description

DIMM type

• RDIMM

• LRDIMM

• NVDIMM

Transfer speed

• 2666MT/s

• 2400MT/s

• 1866MT/s

Voltage 1.2V DDR4

Memory speed

The R940xa support memory speeds of 2666MT/s, 2400MT/s, 2133MT/s, and 1866MT/s depending on the DIMM types installed and the conguration. All memory on all processors and channels run at the same speed and voltage. By default, this speed will be the highest speed supported by the CPU and the DIMMs. For example both DIMMs and CPUs must be capable of running at 2666MT/s in order for memory to run at 2666MT/s (specic CPU / DIMM conguration required). CPU SKUs in the Platinum category support up to 2666MT/s memory speed while CPU SKUs in Gold and Silver category support up to 2400MT/s memory speed. he operating speed of the memory is also determined by the maximum speed supported by the processor, the speed settings in the BIOS, and the operating voltage of the system

The table below lists the memory conguration and performance details of the PowerEdge R940xa, based on the quantity and type of DIMMs per memory channel:

Table 8. Memory conguration and performance details

DIMM type DIMM ranking Capacity DIMM rated voltage, speed

RDIMM 1R / 2R 8GB, 16GB, 32GB DDR4 (1.2V), 2666MT/s

LRDIMM 4R / 8R 64GB, 128GB DDR4 (1.2V), 2666MT/s

Memory conguration

The R940xa servers support exible memory congurations ranging from capacities of 8GB (minimum) to 6144 GB(maximum). The R940xa support up to 12 DIMMs per processor (up to 48 DIMMs in a four- processor conguration). Each server has 6 memory channels per processor, with each channel supporting up to 2 DIMMs.

Both systems support a exible memory conguration according to the following population rules:

• Speed: If DIMMs of dierent speeds are mixed, all channels across all processors operate at the slowest DIMM's common frequency.

• DIMM type: Only one type of DIMM is allowed per system: RDIMM, or LRDIMM. These types cannot be mixed.

• DIMMs with dierent data widths can be mixed. For 14G, DIMMs with x4 and x8 data widths are supported and mixing is allowed.

• Can mix DIMMs with dierent capacities.

– Population rules require the largest capacity DIMM be placed rst (slot A1 populated rst, then A2, and so on... The second

CPU mirrors the rst CPU population).

– Maximum of two dierent capacity DIMMs allowed in a system

• Can mix DIMMs with dierent ranks.

– Maximum of two dierent rank DIMMs allowed in a system

Table 9. Two dierent rank DIMMS conguration

DIMM type RDIMM LRDIMM NVDIMM

RDIMM Allowed Not Allowed Allowed

LRDIMM Not Allowed Allowed Not Allowed

NVDIMM Allowed Not Allowed Allowed

Memory RAS features

Reliability, Availability, and Serviceability (RAS) features help keep the system online and operational without signicant impact to performance, and can decrease data loss and crashing due to errors. RAS aids in rapid, accurate diagnosis of faults which require service. The table below describes the memory RAS features supported for the PowerEdge R940xa:

Table 10. Supported RAS features

Feature Description

Dense conguration optimized prole Increased memory reliability can be a result from this selectable

platform prole that adjusts parameters to reduce faults regarding refresh rates, speed, temperature and voltage

Memory demand and patrol scrubbing Demand scrubbing is the ability to write corrected data back to

the memory once a correctable error is detected on a read transaction. Patrol scrubbing proactively searches the system memory, repairing correctable errors.

Feature Description

Recovery from single DRAM device failure (SDDC) Recovery from Single DRAM Device Failure (SDDC) provides

error checking and correction that protects against any single memory chip failure as well as multi- bit errors from any portion of a single memory chip.

Failed DIMM isolation This feature provides the ability to identify a specic failing

DIMM channel pair, thereby enabling the user to replace only the failed DIMM pair.

Memory mirroring Memory mirroring is a method of keeping a duplicate (secondary

or mirrored) copy of the contents of memory as a redundant backup for use if the primary intra-socket memory fails. The mirrored copy of the memory is stored in memory of the same processor socket.

Memory address parity protection This feature provides the ability to detect transient errors on the

address lines of the DDR channel.

Memory sparing (rank) Memory sparing allocates one rank per channel as a spare. If

excessive correctable errors occur in a rank or channel, they are moved to the spare area while the operating system is running to prevent the errors from causing an uncorrectable failure.

Memory thermal throttling This feature helps to optimize power/performance and can also

be used to prevent DIMMs from overheating.

Storage

The Dell EMC PowerEdge R940xa provide scalable storage that allows you to adapt to your workload and operational demands. The Dell EMC PowerEdge R940xa oers storage expansion with the middle hard drive tray and rear hard drive cage. The hard drive bay supports up to 32 2.5 inch hard drives or SSDs.

Drive

The PowerEdge R940xa system supports SAS, SATA, Nearline SAS hard drives/SSDs, or NVMe drives.

The supported drive options for the PowerEdge R940xa system are:

• 8 drives system - Up to eight 2.5 inch (SAS, SATA or Nearline SAS) front accessible drives in slots 0 through 7.

• 32 drives system - Up to 24 2.5 inch (SAS, SATA or Nearline SAS) including 4 NVMe front accessible drives (slots 20 to 23)in slots 0 to 23 of upper drives bay, and up to eight 2.5 inch (SAS, SATA or Nearline SAS) front accessible drives in slots 24 to 31 of lower drives bay.

Supported drives

Table 11. Supported Drives - SAS and SATA or SSD

Form Factor

Type Speed Rotational

Speed

Capacities

2.5 inch SATA, SSD

6 Gb N/A 240GB, 400GB, 480GB, 800GB, 960GB, 1600GB, 1920GB, 3200GB, 3840GB

SATA 6 Gb 7.2K 1 TB, 2 TB

SAS 12 Gb 7.2K 1 TB, 2 TB, 2 TB(SED FIPS)

SAS,SSD 12 Gb N/A 400GB, 480GB, 800GB, 960GB, 1600GB, 1920GB, 3840GB, 800GB(SED FIPS),

1600GB(SED FIPS)

SAS 12 Gb 10K 300GB, 600GB, 1.2TB, 1.8TB, 2.4TB, 1.2TB(SED FIPS), 2.4TB (SED FIPS)

SAS 12 Gb 15K 300GB, 600GB, 900GB, 900GB (SED FIPS)

The NVMe SSD drives supported by the Dell EMC PowerEdge R940xa are:

• 800 GB 2.5 inch device

• 1 TB 2.5 inch device

• 1.6 TB 2.5 inch device

• 2 TB 2.5 inch device

• 3.2 TB 2.5 inch device

• 4 TB 2.5 inch device

• 6.4 TB 2.5 inch device

• KIT,CRD,NVM,1.6,HHHL,PM1725

• KIT,CRD,CTL,NVME,PM1725

• KIT,CRD,NVM,3.2,HHHL,PM1725

Boot Optimized Storage Subsystem

The Boot Optimized Storage Subsystem (BOSS) is oered as a means of booting PowerEdge systems to a full OS mode when,

• Target OS is a full OS and not hypervisor that may be supported best by IDSDM

• You do not wish to trade o standard hot plug drive slots for OS install

The RAID controller on the BOSS card has limited set of features. This RAID controller presents the M.2 SATA SSDs as either a nonRAID volume or as a single RAID volume.

Figure 7. Boot Optimized Storage Subsystem (BOSS)

Table 12. BOSS features

Function or feature Supported

Stripe size supported 64K

Conguration (HII) Yes

Full initialization No

Fast initialization Yes

NOTE: By default, fast initialization is performed when you create a virtual disk.

Background initialization No

RAID 0 No

RAID 1 Yes

Single non-RAID Yes

Dual non-RAID Yes

Degraded RAID1 and non-RAID No

Foreign import Yes

Consistency check No

Patrol read No

Load balance N/A

Rebuild Yes

Function or feature Supported

NOTE: You must manually start the rebuild process using HII or using the Marvell CLI.

Auto-rebuild Yes

NOTE: Auto-rebuild is performed when the system is powered on only if there is a surviving native virtual disk and another physical disk is present.

Hot spare No

Change rebuild priority/rate No

Virtual disk write back/read ahead cache No

NOTE: BOSS controller does not support controller cache.

Battery support N/A

NOTE: BOSS controller does not support a battery.

Non-RAID disk cache policy Yes

NOTE: OS controlled/Device defaults.

SMART Info Yes

NOTE: Use the Marvell CLI to retrieve the SMART information from the drives.

Physical disk hot swap No

Virtual disk expansion No

Virtual disk slicing No

Virtual disk migration Yes

NOTE: On new controller, virtual disk must be Imported from HII before presented to OS.

Split mirror No

NOTE: System required to shutdown and migrate one physical disk to another system and continue rebuild.

Non-RAID migration Yes

BIOS conguration utility (Ctrl-M) No

Add on driver for data path (OS device driver)

NOTE: Console Windows driver or Linux library is required for management purposes only.

4K native drive support No

TRIM and UNMAP virtual disk No

TRIM and UNMAP Non-RAID physical disk Yes

Self-encrypting drives(SED) support No

Cryptographic erase (sanitize) Yes

NOTE: If drive supports SANITIZE Crypto Erase. No other encryption support from controller or drive.

Storage Controller

Dell EMC’s RAID controller options oer performance improvements, including the MiniPERC solution. Mini PERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high density connector to the base planar.

The new PERC controller oerings leverage heavily on previous generation PERC family. The premium performance PERC series controller drives better IOPs and enhanced the SSD performance.

Table 13. PERC series controller oerings

Performance Level Controller & Description

Entry S140 (SATA, NVMe) SW RAID SATA

Value HBA330 (Internal), 12Gbps SAS HBA (External) Memory: None

x8 12 Gb SAS x8 PCIe 3.0, H330, 12Gbps SAS HBA (External) Memory: None x8 12 Gb SAS x8 PCIe 3.0

Value Performance H730P Memory: 2GB, NV 72-bit, 866MHz x8 12 Gb SAS x8

PCIe 3.0

Premium Performance H740P, 8x8 ROC Memory: 4/8GB, NV 72-bit

IDSDM with vFlash card

The Internal Dual microSD Module (IDSDM) and vFlash card are combined into a single card module in the latest PowerEdge systems. The following are SKUs available for PowerEdge R940xa systems:

• vFlash only

• IDSDM only

• vFlash and IDSDM

NOTE: The IDSDM only option come with vFlash hardware but required iDRAC Enterprise license to enable it.

The IDSDM with vFlash module sits in the back of the chassis, in a Dell-proprietary PCIe x1 slot using a USB 3.0 interface to host. In 14 Gen system, the IDSDM and/or vFlash card moves from SD to microSD and the supported capacity for IDSDM microSD cards are 16, 32, and 64 GB while for vFlash the capacity is 16 GB only. The write-protect switch is built onboard on the IDSDM with vFlash module.

External storage

Table 14. External storage device types

Device Type Description

External Tape Supports connection to external USB tape products

NAS/IDM appliance software Supports NAS software stack

JBOD Supports connection to 12Gb MD-series JBODs

Optical drives

The PowerEdge R940xa supports one of the following internal optical drive options:

• DVD-ROM

• DVD+RW

Tape drives

The PowerEdge R940xa does not support internal tape drives. However, external tape drives are supported. The supported external tape drives are as mentioned below:

• External RD1000 USB

• External LTO-5, LTO-6,LTO-7 and 6 Gb SAS tape drives

• 114X rack mount chassis with LTO-5, LTO-6, and LTO-7 6 Gb SAS tape drives

• TL1000 with LTO-5, LTO-6, and LTO-7 6 Gb SAS tape drives

• TL2000 with LTO-5, LTO-6, and LTO-7 6 Gb SAS tape drives

• TL2000 with LTO-5, LTO-6, and LTO-7 8Gb FC tape drives

• TL4000 with LTO-5, LTO-6, and LTO-7 6 Gb SAS tape drives

• TL4000 with LTO-5, LTO-6, and LTO-7 8Gb FC tape drives

• ML6000 with LTO-5, LTO-6, 6 Gb SAS tape drives

• ML6000 with LTO-5, LTO-6, LTO-7 8Gb FC tape drives

PCIe subsystem

The section below contains information about the PCIe Risers and PCIe slot power.

PCIe risers

The R940xa must have Riser 1 to be installed. The list below are the riser oerings for R940xa:

Table 15. Expansion card riser specications

PCIe slot Riser Processor connection Height Length Slot width

1 X8 PCIe Riser 1 CPU 4 Full Height Full Length x8

2 X16 PCIe Riser 1 CPU 4 Full Height Half Length x16

2 X8 PCIe Riser 1 CPU 4 Full Height Full Length x8

3 X8 PCIe Riser 1 CPU 1 Full Height Full Length x8

4 X16 PCIe Riser 1 CPU 1 Full Height Half Length x16

4 X8 PCIe Riser 1 CPU 1 Full Height Full Length x8

5 X16 PCIe Riser 1 CPU 4 Full Height Half Length x8

6 X16 PCIe Riser 1 CPU 1 Low Prole Half Length x16

7 X16 PCIe Riser 2 CPU 2 Low Prole Half Length x16

8 X8 PCIe Riser 2 CPU 3 Full Height Full Length x8

9 X16 PCIe Riser 2 CPU 3 Full Height Half Length x16

9 X8 PCIe Riser 2 CPU 3 Full Height Full Length x8

10 X8 PCIe Riser 2 CPU 2 Full Height Half Length x8

11 X16 PCIe Riser 2 CPU 2 Full Height Half Length x16

11 X8 PCIe Riser 2 CPU 2 Full Height Full Length x8

12 X16 PCIe Riser 2 CPU 3 Full Height Half Length x8

12 X8 PCIe Riser 2 CPU 3 Full Height Full Length x8

PCIe slot power

Each Slot is designed to allow 75W for each card edge connector. In addition to this there are a total of two auxiliary PCIe power connectors available-one each for Riser1 and Riser 2. Riser 1C/2C and 1D/2D auxiliary PCIe power connectors are populated on the riser itself, whereas Riser 1A/2A/1B/2B connect to auxiliary power connectors on the system board.

Table 16. PCIe Riser Slot-Power and Aux Power Matrix

Slots/Riser Riser 1 Riser 2 LP Slots

1C 1D 2C 2D Slot 3(6) Slot 4(7)

Slot 1 75W

Slot 2 300W 75W

Slot 3 75W

Slot 4 300W 75W

Slot 5 75W 75W

Slot 6 75W

Slot 7 75W

Slot 8 75W

Slot 9 300W 75W

Slot 10 75W

Slot 11 300W 75W

Slot 12 75W 75W

Power, thermal and acoustics

PowerEdge servers have an extensive collection of sensors that automatically track thermal activity, which helps regulate temperature thereby reducing server noise and power consumption.

Power consumption and energy eciency

With the rise in the cost of energy coupled with increasing data center density, Dell EMC provides tools and technologies to help you realize greater performance with lower energy cost and wastage. More ecient data center usage can reduce costs by slowing the need for additional data center space. The following table lists the tools and technologies that Dell EMC oers to help you achieve your data center goals by lowering power consumption and increasing energy eciency.

Table 17. Power tools and technologies

Feature Description

Power supply units (PSU) portfolio PSU portfolio includes intelligent features such as dynamically optimizing eciency

while maintaining availability and redundancy. For more information, see the Power supply units section.

Tools for right-sizing Enterprise Infrastructure Planning Tool (EIPT) is a tool that helps you plan and tune

your computer and infrastructure equipment for maximum eciency by calculating hardware power consumption, power infrastructure and storage. Learn more at

Dell.com/calc.

Power monitoring accuracy PSU power monitoring improvements include:

• Power monitoring accuracy of 1%, whereas the industry standard is 5%

• More accurate reporting of power

• Better performance under a power cap

Power capping Use Dell EMC systems management tools such as OpenManage Power Center and

iDRAC9 with an Enterprise license can be used to set a power limit for your server. This limits the output of a PSU and reduce system power consumption and help in constrained power situations.

Systems management The integrated Dell Remote Access Controller 9 (iDRAC9) with Lifecycle Controller is

embedded within every Dell EMC PowerEdge™ server and provides functionality that helps IT administrators deploy, update, monitor, and maintain servers with no need for any additional software to be installed. iDRAC functions regardless of operating system or hypervisor presence because from a pre-OS or bare-metal state, iDRAC is ready to work because it is embedded within each server from the factory.

Active power management Dell EMC oers a complete power management solution accessed through the iDRAC9

with Enterprise licensing and OpenManage Power Center to implement policy-based management of power and thermal levels at the individual system, rack, or data center level. Hot spares reduce power consumption of redundant power supplies. Thermal control of fan speed optimizes the thermal settings for your environment to reduce fan consumption and lower system power consumption.

Power supply units

Energy Smart power supplies have intelligent features, such as the ability to dynamically optimize eciency while maintaining availability and redundancy. Also featured are enhanced power-consumption reduction technologies, such as high-eciency power conversion and advanced thermal-management techniques, and embedded power-management features, including high-accuracy power monitoring

The table below shows the power supply unit options that are available for R940xa:

Wattage Frequency Voltage Class Heat dissipation

1100W DC - '-48--60Vdc/32A N/A 4416 BTU/hr

1100W 50/60Hz 100-240Vac/12-6.5A Platinum 4100 BTU/hr

1100W Mix Mode/ HVDC(China and Japan Only)

50/60Hz 100-240Vac/12A-6.5A Platinum 4100 BTU/hr

N/A 200-380Vdc/6.4A-3.2A N/A 4100 BTU/hr

1600W 50/60Hz 100-240Vac/10A Platinum 6000 BTU/hr

2000W 50/60Hz 100-240Vac/11.5A Platinum 7500 BTU/hr

2400W 50/60Hz 100-240Vac/16A Platinum 9000 BTU/hr

NOTE: If a system with AC 1100 W PSUs operate at low line 100-120 Vac, then the power rating per PSU is derated to 1050 W.

NOTE: If a system with AC 1600 W PSUs operate at low line 100-120 Vac, then the power rating per PSU is derated to 800 W.

NOTE: If a system with AC 2000 W PSUs operate at low line 100-120 Vac, then the power rating per PSU is derated to 1000 W.

The PowerEdge R940xa support up to 2 AC or DC power supplies with 1+1 redundancy, auto sensing, and auto-switching capability.

If two PSUs are present during POST, a comparison is made between the wattage capacities of the PSUs. In the event that the PSU wattages don't match, the larger of the two PSU's is enabled. Also, there is a PSU mismatch warning displayed in BIOS, iDRAC, or on the System LCD.

If a second PSU is added at run-time, in order for that particular PSU to be enabled, the wattage capacity of the rst PSU must equal the second PSU. Otherwise, the PSU will be agged as unmatched in iDRAC and the second PSU will not be enabled

Dell EMC PSUs have achieved Platinum and Titanium eciency levels as shown in the table below:

Table 18. PSU eciency level

Form factor Eciency target by load

Output Class 10 20 50 100

Redundant 86mm

1100W AC Platinum 89.00% 93.00% 94.50% 92.00%

1100W DC Gold 0.00% 88.00% 91.00% 88.00%

1600W AC Platinum 87.00% 90.00% 94.00% 91.00%

2000W AC Platinum 89.00% 93.0 0% 94.00% 91.00%

2400W AC Platinum 89.00% 93.0 0% 94.00% 92.00%

Thermal and acoustics

The system's thermal management delivers high performance through optimized cooling of components at the lowest fan speeds across a wide range of ambient temperatures from 10°C to 35°C (50°F to 95°F) and to extended ambient temperature ranges. These optimizations result in lower fan power consumption which translate to lower system power and data center power consumption.

Thermal design

The thermal design of the system reects the following:

• Optimized thermal design: The system layout is architected for optimum thermal design. System component placement and layout are designed to provide maximum airow coverage to critical components with minimal expense of fan power.

• Comprehensive thermal management: The thermal control system regulates the system fan speeds based on feedback from system component temperature sensors, as well as for system inventory and subsystem power draw. Temperature monitoring includes components such as processors, DIMMs, chipset, system inlet air ambient, hard disk drives, NDC, and GPU.

• Open and closed loop fan speed control: Open loop fan control uses system conguration to determine fan speed based on system inlet air temperature. Closed loop thermal control uses temperature feedback to dynamically adjust fan speeds based on system activity and cooling requirements.

• User-congurable settings: With the understanding and realization that every customer has a unique set of circumstances or expectations from the system, in this generation of servers, we have introduced limited user-congurable settings in the iDRAC9 BIOS setup screen. For more information, see the Dell EMC PowerEdge system Installation and Service Manual on Dell.com/ Support/Manuals and “Advanced Thermal Control: Optimizing across Environments and Power Goals” on Dell.com.

• Cooling redundancy: The system allows N+1 fan redundancy, allowing continuous operation with one fan failure in the system.

• Environmental Specications: The optimized thermal management makes the R940xa reliable under a wide range of operating environments.

Expanded operating temperature restrictions

• The operating temperature is for a maximum altitude of 950 m for fresh air cooling

• No cold start-ups below 5°C due to hard drive constraints

• Apache Pass DIMM, NVDIMM, PCIeSSD and NVME are not supported

• GPGPU conguration are not supported

• LRDIMM > 32 GB are not supported in x4 socket congurations

• Redundant power supply units are required

• Non Dell qualied peripheral cards and /or peripheral cards greater than 25 W are not supported

Acoustical design

The acoustical design of the PowerEdge R940xa reect the following:

• Versatility: The R940xa save you power draw in the data center but are also quiet enough for oce environment in typical and minimum congurations. You may nd that the system is suciently quiet where the sound it emits blends into the environment .

• Adherence to Dell EMC's high sound quality standards: Sound quality is dierent from sound power level and sound pressure level in that it describes how humans respond to annoyances in sound, like whistles and hums. One of the sound quality metrics in the Dell EMC specication is prominence ratio of a tone.

• Noise ramp and descent at boot-up from power o: Fan speeds and noise levels ramp during the boot process (from power- o to power- on) in order to add a layer of protection for component cooling in the event that the system were not to boot properly. In order to keep the boot-up process as quiet as possible, the fan speed reached during boot-up is limited to about half of full speed.

• Noise level dependencies: If acoustics is important to you, several conguration choices and settings are important to consider:

– For lower acoustical output, use a small number of lower rotational- speed SATA hard drives, nearline SAS hard drives, or

non- rotational devices like SSDs. 15k hard drives generate more acoustic noise than that of lower rotational- speed hard drives, and noise increases with number of hard drives.

– Fan speeds and noise may increase from baseline factory congurations if certain proles are changed by the user or the

system congurations are updated.

The following is a list of items that impact fan speeds and acoustical output:

• iDRAC9 BIOS settings: Performance Per Watt (DAPC or OS) may be quieter than Performance or Dense Conguration (iDRAC Settings > Thermal > Max. Exhaust Temperature or Fan speed oset).

• The quantity and type of PCIe cards installed: This aects overall system acoustics. Installation of more than two PCIe cards results in an increase in overall system acoustics.

• Using a GPU card: This results in an increase in overall system acoustics.

• PCIe controller-based SSD drives: Drives such as Express ash drives and Fusion- IO cards require greater airow for cooling, and result in signicantly higher noise levels.

• Systems with an H330 PERC: This conguration may be quieter than those with an H730P PERC with battery backup. However, higher noise levels result when a system is congured as non-RAID.

• Hot spare feature of power supply unit: In the system default setting, the Hot Spare Feature is disabled; acoustical output from the power supplies is lowest in this setting.

Rack rails

Stab-in/Drop-in sliding rails are oered for the R940xa. The R940xa does not have a static rail option.

Sliding rails features summary

Sliding rails allow the system to be fully extended out of the rack for service. A strain relief bar (SRB) is provided with each rail kit to organize and secure cables exiting the back of the server. A cable management arm (CMA) is not available.

Figure 8. Sliding rails with SRB

Stab-in/Drop-in sliding rails for 4-post racks (New for 14G systems)

• Supports drop-in or stab-in installation of the chassis to the rails.

• Supports tool-less installation in 19" EIA-310-E compliant 4-post square hole racks, including all generations of the Dell racks.

• Supports tool-less installation in 19" EIA-310-E compliant 4-post round hole racks and threaded hole racks.

• Required for installing R940xa in a Dell EMC Titan or Titan-D rack.

• Support full extension of the system out of the rack to allow serviceability of key internal components.

• Support for strain relief bar.

• Minimum rail mounting depth without the SRB: 846 mm.

• Minimum rail mounting depth with the SRB: 903 mm.

• Square-hole rack adjustment range: 602-928 mm.

• Round-hole rack adjustment range: 602-928 mm.

• Threaded-hole rack adjustment range: 602-928 mm.

Strain Relief Bar

• Tool-less attachment to rails.

• Two depth positions to accommodate various cable bundle sizes and rack depths.

• Supports cable bundle weight and controls stresses on server connectors.

• Cables can be segregated into discrete, purpose specic bundles.

Supported operating systems

The supports the following operating systems:

RedHat Enterprise Linux Novell SuSE Linux Enterprise Server Microsoft Windows Server Ubuntu VMWare ESXi Citrix Xen Server

For more information on the specic versions and additions, visit Dell.com/OSsupport.

Dell EMC OpenManage systems management

Whether your IT environment consists of a few servers or a few thousand servers, Dell EMC OpenManage systems management solutions provide comprehensive management for evolving IT environments. OpenManage is based on open standards and provides agent-based and agent-free server lifecycle management functionality for Dell EMC PowerEdge servers. OpenManage solutions help you automate and streamline essential hardware management tasks.

Start with a rm foundation for ecient hardware management using OpenManage tools, utilities and management consoles. OpenManage systems management solutions consist of a combination of embedded management features and software products that help you automate and simplify the entire server lifecycle: deploy, update, monitor and maintain. OpenManage solutions are innovatively designed for simplicity and ease of use to help you reduce complexity, save time, achieve eciency, control costs and empower productivity. OpenManage centers around ecient management of server lifecycle.

Figure 9. Server lifecycle management operations

OpenManage systems management

The Dell EMC OpenManage systems management portfolio includes powerful hardware and software management tools and consoles. OpenManage simplies the lifecycle of deploying, updating, monitoring and maintaining your Dell EMC PowerEdge servers.

iDRAC with Lifecycle controller

The integrated Dell Remote Access Controller 9 (iDRAC9) with Lifecycle Controller is embedded within every Dell EMC PowerEdge server and provides functionality that helps IT administrators deploy, update, monitor, and maintain servers with no need for any additional software to be installed. iDRAC functions regardless of operating system or hypervisor presence because from a pre-OS or bare-metal state, iDRAC is ready to work because it is embedded within each server from the factory.

iDRAC features and comparison

The R940xa supports the following iDRAC licenses – Basic (default), Express (upgrade) and Enterprise (upgrade).

NOTE: The features listed in bold in the below table are new for iDRAC9.

Table 19. iDRAC feature comparison

Features iDRAC8

Basic

iDRAC9 Basic

iDRAC8 Express

iDRAC9 Express

iDRAC8 Express for Blades

iDRAC9 Express for Blades

iDRAC8 Enterprise

iDRAC9 Enterprise

Interface/Standards

Redsh Yes Yes Yes Yes Yes Yes Yes Yes

IPMI 2.0 Yes Yes Yes Yes Yes Yes Yes Yes

DCMI 1.5 Yes Yes Yes Yes Yes Yes Yes Yes

Web-based GUI Yes Yes Yes Yes Yes Yes Yes Yes

Racadm command line— local/remote

Yes Yes Yes Yes Yes Yes Yes Yes

SMASH-CLP—SSH-only Yes Yes Yes Yes Yes Yes Yes Yes

Telnet Yes Yes Yes Yes Yes Yes Yes Yes

SSH Yes Yes Yes Yes Yes Yes Yes Yes

Serial redirection Yes Yes Yes Yes Yes Yes Yes Yes

WSMAN Yes Yes Yes Yes Yes Yes Yes Yes

Network Time Protocol No No Yes Yes Yes Yes Yes Yes

Connectivity

Shared NIC Yes Yes Yes Yes N/A N/A Yes Yes

Dedicated NIC Yes Yes Yes Yes Yes Yes Yes Yes

VLAN tagging Yes Yes Yes Yes Yes Yes Yes Yes

IPv4 Yes Yes Yes Yes Yes Yes Yes Yes

IPv6 Yes Yes Yes Yes Yes Yes Yes Yes

DHCP (new default; no static IP)

Yes Yes Yes Yes Yes Yes Yes Yes

DHCP with Zero Touch No No No No No No No Yes

Dynamic DNS Yes Yes Yes Yes Yes Yes Yes Yes

OS pass-through Yes Yes Yes Yes Yes Yes Yes Yes

Features iDRAC8

Basic

iDRAC9 Basic

iDRAC8 Express

iDRAC9 Express

iDRAC8 Express for Blades

iDRAC9 Express for Blades

iDRAC8 Enterprise

iDRAC9 Enterprise

iDRAC Direct-Front panel USB

Yes Yes Yes Yes Yes Yes Yes Yes

Connection View No Yes No Yes No Yes No Yes

NFS v4 No Yes No Yes No Yes No Yes

NTLM v1 and NTLM v2 No Yes No Yes No Yes No Yes

Security

Role-based authority Yes Yes Yes Yes Yes Yes Yes Yes

Local users Yes Yes Yes Yes Yes Yes Yes Yes

SSL encryption Yes Yes Yes Yes Yes Yes Yes Yes

IP blocking No No Yes Yes Yes Yes Yes Yes

Directory services—AD, LDAP

No No No No No No Yes Yes

Two-factor authentication No No No No No No Yes Yes

Single sign-on No No No No No No Yes Yes

PK authentication No No Yes Yes Yes Yes Yes Yes

FIPS 140-2 Yes Yes Yes Yes Yes Yes Yes Yes

Secure UEFI bootcerticate management

No Yes No Yes No Yes No Yes

Lock down mode No No No No No No Yes

Unique iDRAC default password

No Yes No Yes No Yes No Yes

Customizable Security Policy Banner-login page

No Yes No Yes No Yes No Yes

Quick Sync 2.0-optional auth for read operations

No Yes No Yes No Yes No Yes

Quick Sync 2.0-add mobile device number to LCL

No Yes No Yes No Yes No Yes

Remote Presence

Power control Yes Yes Yes Yes Yes Yes Yes Yes

Boot control Yes Yes Yes Yes Yes Yes Yes Yes

Serial-over-LAN Yes Yes Yes Yes Yes Yes Yes Yes

Virtual Media No No No No Yes Yes Yes Yes

Virtual Folders No No No No No No Yes Yes

Remote File Share No No No No No No Yes Yes

Virtual Console No No No No Yes Yes Yes Yes

HTML5 access to virtual console

No No No No Yes Yes Yes Yes

Features iDRAC8

Basic

iDRAC9 Basic

iDRAC8 Express

iDRAC9 Express

iDRAC8 Express for Blades

iDRAC9 Express for Blades

iDRAC8 Enterprise

iDRAC9 Enterprise

VNC connection to OS No No No No No No Yes Yes

Quality/bandwidth control No No No No No No Yes Yes

Virtual Console collaboration—6 users

No No No No No No Yes Yes

Virtual Console chat No No No No No No Yes Yes

Virtual Flash partitions No No No No No No Yes Yes

Group manager No No No No No No No Yes

HTTP/HTTPS support along with NFS/CIFS

No Yes No Yes No Yes No Yes

Power and Thermal

Real-time power meter Yes Yes Yes Yes Yes Yes Yes Yes

Power thresholds & alerts No No Yes Yes Yes Yes Yes Yes

Real-time power graphing No No Yes Yes Yes Yes Yes Yes

Historical power counters No No Yes Yes Yes Yes Yes Yes

Power capping No No No No No No Yes Yes

Power Center integration No No No No No No Yes Yes

Temperature monitoring Yes Yes Yes Yes Yes Yes Yes Yes

Temperature graphing No No Yes Yes Yes Yes Yes Yes

Health Monitoring

Predictive failure monitoring

Yes Yes Yes Yes Yes Yes Yes Yes

SNMPv1, v2 and v3—traps and gets

Yes Yes Yes Yes Yes Yes Yes Yes

Email alerting No No Yes Yes Yes Yes Yes Yes

Congurable thresholds Yes Yes Yes Yes Yes Yes Yes Yes

Fan monitoring Yes Yes Yes Yes Yes Yes Yes Yes

Power Supply monitoring Yes Yes Yes Yes Yes Yes Yes Yes

Memory monitoring Yes Yes Yes Yes Yes Yes Yes Yes

CPU monitoring Yes Yes Yes Yes Yes Yes Yes Yes

RAID monitoring Yes Yes Yes Yes Yes Yes Yes Yes

NIC monitoring Yes Yes Yes Yes Yes Yes Yes Yes

HD monitoring—enclosure Yes Yes Yes Yes Yes Yes Yes Yes

Out of Band Performance Monitoring

No No No No No No Yes Yes

Alerts for excessive SSD wear

No Yes No Yes No Yes No Yes

Features iDRAC8

Basic

iDRAC9 Basic

iDRAC8 Express

iDRAC9 Express

iDRAC8 Express for Blades

iDRAC9 Express for Blades

iDRAC8 Enterprise

iDRAC9 Enterprise

Customizable settings for Exhaust Temperature

No Yes No Yes No Yes No Yes

Update

Remote agent-free update Yes Yes Yes Yes Yes Yes Yes Yes

Embedded update tools Yes Yes Yes Yes Yes Yes Yes Yes

Sync with repository— scheduled updates

No No No No No No Yes Yes

Auto update No No No No No No Yes Yes

Improved PSU rmware updates

No Yes No Yes No Yes No Yes

Deployment and Conguration

Local conguration via F10 Yes Yes Yes Yes Yes Yes Yes Yes

Embedded OS deployment tools

Yes Yes Yes Yes Yes Yes Yes Yes

Embedded conguration tools

Yes Yes Yes Yes Yes Yes Yes Yes

AutoDiscovery No No Yes Yes Yes Yes Yes Yes

Remote OS deployment No No Yes Yes Yes Yes Yes Yes

Embedded driver pack Yes Yes Yes Yes Yes Yes Yes Yes

Full conguration inventory Yes Yes Yes Yes Yes Yes Yes Yes

Inventory export Yes Yes Yes Yes Yes Yes Yes Yes

Remote conguration Yes Yes Yes Yes Yes Yes Yes Yes

Zerotouch conguration No No No No No No Yes Yes

System Retire/Repurpose Yes Yes Yes Yes Yes Yes Yes Yes

Server Conguration Prole in GUI

No Yes No Yes No Yes No Yes

Diagnostics, Service and Logging

Embedded diagnostic tools Yes Yes Yes Yes Yes Yes Yes Yes

Part Replacement No No Yes Yes Yes Yes Yes Yes

Server Conguration Backup

No No No No No No Yes Yes

Server Conguration Restore

Yes Yes Yes Yes Yes Yes Yes Yes

Easy Restore—system

conguration

Yes Yes Yes Yes Yes Yes Yes Yes

Easy Restore Auto Timeout

No Yes No Yes No Yes No Yes

Features iDRAC8

Basic

iDRAC9 Basic

iDRAC8 Express

iDRAC9 Express

iDRAC8 Express for Blades

iDRAC9 Express for Blades

iDRAC8 Enterprise

iDRAC9 Enterprise

LED health status indicator

Yes Yes Yes Yes Yes Yes Yes Yes

LCD screen—iDRAC9 requires optional bezel

Yes Yes Yes Yes N/A N/A Yes Yes

Quick Sync—require NFC bezel (13 G only)

Yes No Yes No N/A No Yes No

Quick Sync 2.0—requires BLE/WiFi hardware

No Yes No Yes No N/A No Yes

iDRAC Direct—front USB mgmt port

Yes Yes Yes Yes Yes Yes Yes Yes

iDRAC Service Module (iSM) embedded

No Yes No Yes No Yes No Yes

iSM to inband alert forwarding to consoles

No Yes No Yes No Yes No Yes

Crash screen capture No No Yes Yes Yes Yes Yes Yes

Crash video capture No No No No No No Yes Yes

Boot capture No No No No No No Yes Yes

Manual reset for iDRAC— LCD ID button

Yes Yes Yes Yes Yes Yes Yes Yes

Remote reset for iDRAC— requires iSM

Yes Yes Yes Yes Yes Yes Yes Yes

Virtual NMI Yes Yes Yes Yes Yes Yes Yes Yes

OS watchdog Yes Yes Yes Yes Yes Yes Yes Yes

SupportAssist Report— embedded

Yes Yes Yes Yes Yes Yes Yes Yes

System Event Log Yes Yes Yes Yes Yes Yes Yes Yes

Lifecycle Log Yes Yes Yes Yes Yes Yes Yes Yes

Enhanced logging in the Lifecycle controller log

Yes Yes Yes Yes Yes Yes Yes Yes

Work notes Yes Yes Yes Yes Yes Yes Yes Yes

Remote Syslog No No No No No No Yes Yes

License management Yes Yes Yes Yes Yes Yes Yes Yes

Improved customer experience

iDRAC -Faster processor, more memory

No Yes No Yes No Yes No Yes

GUI rendered in HTML5 No Yes No Yes No Yes No Yes

Add BIOS conguration to iDRAC GUI

No Yes No Yes No Yes No Yes

Features iDRAC8

Basic

iDRAC9 Basic

iDRAC8 Express

iDRAC9 Express

iDRAC8 Express for Blades

iDRAC9 Express for Blades

iDRAC8 Enterprise

iDRAC9 Enterprise

iDRAC support for SW RAID licensing

No Yes No Yes No Yes No Yes

Agent-free management

As Dell EMC PowerEdge servers have embedded server lifecycle management, in many cases, there is no need to install an OpenManage systems management software agent into the operating system of a Dell EMC PowerEdge server. This greatly simplies and streamlines the management footprint.

Agent-based management

Most systems management solutions require pieces of software, called agents, to be installed on each node in order to be managed within the IT environment. Additionally, the same agent is often used as a local interface into the hardware health and may be accessed remotely as a management interface, typically referred to as a one-to-one interface. For customers that continue to use agent-based solutions, Dell EMC provides OpenManage Server Administrator.

Dell EMC consoles

The central console in a systems management solution is often referred to as the one-to-many console. The central console provides a rapid view and insight into the overall health of all systems in the IT environment. The Dell EMC systems management portfolio includes several powerful consoles, depending upon your needs, including the following:

Dell EMC OpenManage Essentials

OpenManage Essentials is the one-to-many management console for monitoring Dell HW infrastructure including server, storage and networking, as well as for lifecycle management of PowerEdge servers. It support Windows, Linux, VMware, and HyperV environments. OME provides a simple and easy interface for system administrators to maximize the uptime and health of Dell systems. It helps to

• Monitor health status and events for PowerEdge servers, EqualLogic or MD series storage, and PowerConnect and Force 10 switches.

• Provide hardware-level control and management for PowerEdge server, blade system, and internal storage arrays.

• Link and Launch element management interfaces, such as, iDRAC, CMC, EQL group manager etc

• Integrate with the following Dell solutions:

– Dell Repository Manager : Builds customized server update baselines that OpenManage Essentials can use.

– OpenManage Power Center : Optimize power consumption in the servers.

– SupportAssist : Enables automatic hardware failure notication to be sent securely to Dell technical support for intelligent

analysis and diagnosis to optimize availability and reduce manual intervention. This solution is available as part of Dell ProSupport and ProSupport Plus at no additional cost.

• Provide REST interface API support for 3rd Party Integration.

• Manage Server Conguration - it is a fee-based license available on Dell’s 14th generation of PowerEdge servers with iDRAC Enterprise or iDRAC Express licenses. The key features include the following:

– Congure a server or chassis using a template and deploying an operating system on the PowerEdge bare metal servers.

– During a server operation, automatically detect and notify any server or chassis drift from a customer-dened baseline

conguration.

– Boot a system from a network-mounted ISO using iDRAC.

– Replicate of FN-IOM and M-IOA congurations within M1000e chassis.

– Support VLAN Management for FN-IOM and M-IOA.

• For more information, see delltechcenter.com/OME

OpenManage Mobile

OpenManage Mobile(OMM) is a software application that enables easy, convenient, and secure monitoring and management of PowerEdge servers remotely, or at-the-server. With OpenManage Mobile, IT Administrators can securely perform several data center monitoring and remediation tasks using an Android or iOS mobile device. The OpenManage Mobile app is available as a free software download from the Apple Store and the Google Play Store.

OMM can also monitor and manage PowerEdge servers through a OpenManage Essentials console or by directly accessing the server’s iDRAC.

The OpenManage Essentials console can be accessed through OpenManage Mobile over a secure IP network. This allows you to monitor all devices managed by OpenManage Essentials such as Dell EMC servers, storage, networking, rewall, and supported third party devices.

If you are remote, you can access iDRAC over a secure IP network. If you are at-the-server, an iDRAC can be accessed directly by tapping an NFC-enabled android mobile device on a PowerEdge “Quick Sync” bezel to perform several basic bare-metal conguration tasks such as assigning an IP address, and changing server credentials or the boot order.

Key Features of OpenManage Mobile (When connected through OpenManage Essentials console):

• Connect to multiple servers which have OME installed, from a single mobile device.

• Connect to multiple servers individually through the iDRAC interface.

• Receive critical alert notication on your mobile device as they arrive into your OpenManage Essentials management console.

• Acknowledge, forward, and delete alerts from your mobile device.

• Browse through device details, rmware inventory, and event logs of individual systems.

• Perform several server management functions such as power-on, power cycle, reboot, and shutdown from the mobile application.

Key Features of OpenManage Mobile (When connected through iDRAC):

• Connect to any 14th gen, 13th gen, or 12th gen server remotely

• Access 14th gen rack or tower server through Quick Sync 2 module.

• Assign IP address, change credentials, and update common BIOS attributes for Bare Metal Conguration

• Congure one server manually, or multiple servers simultaneously through a template.

• Browse server details, health status, hardware & rmware inventory, networking details, and System Event or LC logs. Share this information easily with other IT Administrators.

• Access SupportAssist reports, Last Crash screen and video (PowerEdge 14th gen servers)

• Access Virtual Console (and reduce the need for crash carts).

• Power On, Shut down, or Reboot your server from anywhere.

• Run any RACADM command

OpenManage Power Center

OpenManage Power Center is a one-to-many application that can read power usage and thermal readings information from Dell EMC servers, Power Distribution Units (PDU), and Uninterruptible Power Supplies (UPS). It can aggregate this information into rack, row, and room-level views. On servers with iDRAC Enterprise license, you can also cap or throttle the power consumption. You may need to set power caps to reduce the power consumption due to external events such as brownouts or failures of data-center cooling devices. You can also use power capping to safely increase the numbers of servers in a rack to match the power that is provisioned for that rack.

For more information, see OpenManage Power Center User’s Guide available at Dell.com/openmanagemanuals.

Dell EMC OpenManage systems management tools, utilities and protocols

Dell EMC OpenManage systems management tools and utilities consist of the following:

Dell EMC Repository Manager:

Dell EMC Repository Manager (DRM) is an application that helps you to:

• Identify the updates that are relevant to the systems in your data center.

• Identify and notify when updates are available.

• Package the updates into dierent deployment format.

To automate the creation of baseline repositories, DRM provides advanced integration capabilities with iDRAC/LC, OpenManage Essentials, Chassis Management Controller, OpenManage Integration for VMware vCenter and OpenManage Integration for Microsoft System Center (OMIMSSC). Also, DRM packages updates into custom catalogs that can be used for deployment.

Dell EMC Repository Manager can create the following deployment tools:

• Custom catalogs

• Lightweight deployment pack

• Bootable Linux ISO

• Custom Server Update Utility (SUU)

For more information, see Dell EMC Repository Manager User’s Guide available at Dell.com/support/manuals.

Dell Update Packages

Dell Update Packages (DUP) is a self-contained executable supported by Microsoft Windows or Linux that updates a component on a server and applications like OMSA, iSM, and DSET.

DUPs can be executed in GUI or in CLI mode.

For more information, see Dell EMC Update Packages User’s Guide available at www.delltechcenter.com/DSU.

Dell Remote Access Controller Administration (RACADM) CLI

The RACADM command-line utility provides a scriptable interface to perform inventory, conguration, update, and health status check of PowerEdge servers. RACADM operates in multiple modes:•

• Local — supports running RACADM commands from the managed server’s operating system.

• SSH or Telnet — known as Firmware RACADM; is accessible by logging in to iDRAC using SSH or Telnet

• Remote — supports running RACADM commands from a remote management station such as a laptop or desktop.

RACADM is supported by the iDRAC with Lifecycle Controller and by the Chassis Management Controller of the M1000e, VRTX and FX2 modular systems. Local and Remote RACADM is supported on Windows Server, Windows clients, and on Red Hat, SuSe and Ubuntu Linux.

For more information, see the RACADM Command Line Reference Guide for iDRAC and CMC available at Dell.com/support/

manuals.

iDRAC with Lifecycle Controller Embedded Management APIs

iDRAC with Lifecycle Controller provides a range of standards-based applications programming interfaces (APIs) that enable scalable and automated management of PowerEdge servers. Standard systems management APIs have been developed by organizations such as the Institute of Electrical and Electronics Engineers (IEEE) and Distributed Management Task Force (DMTF). These APIs are

widely used by commercial systems management products and by custom programs and scripts developed by IT sta to automate management functions such as discovery, inventory, health status checking, conguration, update, and power management. The APIs supported by iDRAC with Lifecycle Controller include:

• Redsh - In 2015, the DMTF Scalable Platforms Management Forum published Redsh, an open industry-standard specication and schema designed to meet the needs of IT administrators for simple, modern, and secure management of scalable platform hardware. Dell is a key contributor to the Redsh standard, acting as co-chair of the SPMF, promoting the benets of Redsh, and working to deliver those benets within industry-leading systems management solutions. Redsh is a next generation management standard using a data model representation inside a hypermedia RESTful interface. The data model is dened in terms of a standard, machine-readable schema, with the payload of the messages expressed in JSON and the OData v4 protocol.

• WSMan -The Web Services For Management (WSMan) API, rst published by the DMTF in 2008, is the most mature and robust API provided by iDRAC with Lifecycle Controller. WSMan uses a Simple Object Access Protocol (SOAP) with data modeled using the Common Information Model. WSMan provides interoperability between management applications and managed resources, and identies a core set of web service specications and usage requirements that expose a common set of operations central to all systems management.

• IPMI - The Intelligent Platform Management Interface (IPMI) is a message-based, hardware-level interface specication that can operate over both LAN and serial interfaces. IPMI is supported broadly by server vendors, systems management solutions, and open source software.

• SNMP - The Simple Network Management Protocol (SNMP) helps in standardizing the management of network devices. SNMP allows commercial management consoles created for monitoring network switches and routers to also monitor X86 severs. SNMP is primarily used to deliver event messages to alert administrators of problems on their systems but can also be used to discover, inventory and congure servers.

To assist automating system management tasks and simplify API integration, Dell provides PowerShell and Python libraries and script examples utilizing the WSMan interface. The iDRAC with LC pages of Dell Techcenter oer a library of technical white papers detailing the use of the embedded management APIs. For more information, see delltechcenter.com/iDRAC and delltechcenter.com/LC.

Integration with third-party consoles

Dell EMC OpenManage provides integration with several leading third-party consoles, including:

OpenManage Integration Suite for Microsoft System Center

The combination of Dell OpenManage Integration Suite and Microsoft System Center simplies and enhances deployment, conguration, monitoring and updating of Dell servers and storage in physical and virtual environments. Our agent-free and agent-

based plug-ins deliver a unique level of integration and eciency when managing Dell hardware within a System Center environment.

The OpenManage Integration Suite for Microsoft System Center includes: Dell Server and Storage Management Packs for System Center Operations Manager (SCOM); Dell Server Deployment Packs and Update Catalogs for System Center Conguration Manager (SCCM); and tools for optimizing management of Dell PowerEdge servers in virtual environments using System Center Virtual Machine Manager (SCVMM).

OpenManage Integration for VMware vCenter

The OpenManage Integration for VMware vCenter allows you to monitor, provision, and manage PowerEdge server hardware and rmware. You can perform these tasks through a dedicated Dell menu that can be accessed directly through the VMware vCenter console. OMIVV also allows granular control and reporting for the hardware environment using the same role-based access control model as vCenter. The OpenManage Management Pack for vRealize Operations Manager is available with OMIVV v4.0 onwards. This helps in checking hardware health and alerting into vRealize operations, which also includes dashboard and reporting on the server environment.

You can manage and monitor Dell hardware within the virtualized environment

• Alerting and monitoring environment for servers and chassis

• Monitoring and reporting for servers and chassis

• Updating rmware on servers

• Deploying enhanced options

For more information, see delltechcenter.com/omivv

NOTE: The Dell EMC Repository Manager integrates with OpenManage Integration for VMware vCenter. The Dell EMC Repository Manager provides advanced functionality, simplies the discovery, and deployment of new updates.

BMC Software

Dell EMC and BMC Software work together to simplify IT by ensuring tight integration between Dell EMC server, storage, and network management functionality and the BMC Software process and data center automation products.

OpenManage connections with third-party consoles

Dell EMC OpenManage Connections gives you an easy path to adding support for third-party devices, so you can continue to use your existing management tools while easily adding Dell EMC server systems to your existing IT environment. Integrate new systems at your own pace. Manage new Dell EMC servers and storage with your legacy management tools, while extending the useful life of your existing resources. With OpenManage Connections you can add monitoring and troubleshooting of Dell EMC assets to your IT infrastructure.

• OpenManage Connection for Nagios Core and Nagios XI

• OpenManage Connection for HPE Operations Manager i (OMi)

For more information on these OpenManage Connections, visit Dell.com/openmanage.

Appendix A. Additional specications

This section contains information about additional specications for the PowerEdge R940xa.

System dimensions

This section describes the physical dimensions of the system.

Figure 10. System dimensions of PowerEdge R940xa system

Table 20. Dimensions

System Xa

Zb Zc

Upper Bottom

(with

bezel)

(without

bezel)

PowerEdg

R940xa

482.0 mm (18.98

inches)

441.16 mm (17.37

inches)

422.5 mm (16.64

inches)

174.3 mm

(6.87

inches)

35.84 mm

(1.41 inches)

23.9 mm

(0.94 inches)

812 mm

(31.96

inches)

842 mm

(33.14 inches)

Environmental specications

See Dell EMC PowerEdge R940xa installation service manuals on Dell.com/Support/Manuals for detailed environmental

specications.

Video specications

The PowerEdge R940xa system supports integrated Matrox G200eW3 graphics controller with 16 MB of video frame buer.

Table 21. Supported video resolution options

Resolution Refresh Rate Color depth

(bits)

Horizontal Freq.

Pixel Clock Rear Panel Front

Panel

DVO DisplayPort

1024 x 768 60 Hz 8, 16, 32 48.4 kHz 65.0 MHz Yes Yes Yes*

1280 x 800 60 Hz 8, 16, 32 49.7 kHz 83.5 MHz Yes Yes Yes*

1280 x 1024 60 Hz 8, 16, 32 64.0 kHz 108.0 MHz Yes TBD Yes*

1360 x 768 60 Hz 8, 16, 32 47.71 kHz 85.5 MHz Yes Yes Yes*

1440 x 900 60 Hz 8, 16, 32 55.9 kHz 106.5 MHz Yes TBD Yes*

1600 x 900 60 Hz (RB) 8, 16, 32 55.54 kHz 97.75 MHz Yes Yes Yes*

1600 x 1200 60 Hz 8, 16, 32 75.0 kHz 162.0 MHz TBD TBD Yes*

1680 x 1050 60 Hz (RB) 8, 16, 32 64.7 kHz 119.0 MHz Yes TBD Yes*

1920 x 1080 60 Hz 8, 16, 32 67.158 kHz 173.0 MHz TBD No No

1920 x 1200 60 Hz 8, 16, 32 74.556 kHz 193.25 MHz TBD No No

NOTE: 1920 x 1080 and 1920 x 1200 resolutions are only supported in reduced blanking mode.

USB peripherals

Front, rear, and internal USB ports are included in the base system for PowerEdge R940xa. Rear and internal ports support up to USB 3.0, while front ports support USB 2.0. The PowerEdge R940xa oer an upsell option that adds an additional USB 3.0 port to the front of the chassis. The optional USB module cable connects to the internal USB port on the planar and the default internal moves closer to the front of the chassis

Appendix B. Standards compliance

Table 22. Industry standard documents

Standard URL for information and specications

ACPI Advance Conguration and Power Interface Specication,

v2.0c

acpi.info

Ethernet IEEE 802.3-2005 standards.ieee.org/getieee802/802.3.html

HDG Hardware Design Guide Version 3.0 for Microsoft Windows

Server

microsoft.com/whdc/system/platform/pcdesign/desguide/ serverdg.mspx

IPMI Intelligent Platform Management Interface, v2.0 intel.com/design/servers/ipmi

DDR4 Memory DDR4 SDRAM Specication jedec.org/standards-documents/docs/jesd79-4.pdf

PCI Express PCI Express Base Specication Rev. 2.0 and 3.0 pcisig.com/specications/pciexpress

PMBus Power System Management Protocol Specication, v1.2 pmbus.info/specs.html

SAS Serial Attached SCSI, v1.1 t10.org

SATA Serial ATA Rev. 2.6; SATA II, SATA 1.0a Extensions, Rev. 1.2 sata-io.org

SMBIOS System Management BIOS Reference Specication,

v2.7

dmtf.org/standards/smbios

TPM Trusted Platform Module Specication, v1.2 and v2.0 trustedcomputinggroup.org

UEFI Unied Extensible Firmware Interface Specication, v2.1 ue.org/specications

USB Universal Serial Bus Specication, Rev. 2.0 usb.org/developers/docs

Appendix C. Additional resources

Table 23. Additional resources

Resource Description of contents Location

Installation and Service Manual

This manual, available in PDF format, provides the following information:

• Chassis features

• System Setup program

• System messages

• System codes and indicators

• System BIOS

• Remove and replace procedures

• Troubleshooting

• Diagnostics

• Jumpers and connectors

Dell.com/Support/Manuals

Getting Started Guide

This guide ships with the system, and is also available in PDF format. This guide provides the following information:

• Initial setup steps

• Key system features

• Technical specications

Dell.com/Support/Manuals

Rack Installation Instructions This document ships with the rack kits, and provides

instructions for installing a server in a rack.

Dell.com/Support/Manuals

Information Update This document ships with the system, is also available in PDF

format online, and provides information on system updates.

Dell.com/Support/Manuals

System Information Label The system information label documents the system board

layout and system jumper settings. Text is minimized due to space limitations and translation considerations. The label size is standardized across platforms.

Inside the system chassis cover

Quick Resource Locator (QRL) This code on the chassis can be scanned by a phone

application to access additional information and resources for the server, including videos, reference materials, service tag information, and Dell contact information.

Inside the system chassis cover

Energy Smart Solution Advisor (ESSA)

The Dell online ESSA enables easier and more meaningful estimates to help you determine the most ecient conguration possible. Use ESSA to calculate the power consumption of your hardware, power infrastructure, and storage.

Dell.com/calc

Appendix D. Support and deployment services

ProDeploy Enterprise Suite

ProDeploy Enterprise Suite gets your server out of the box and into optimized production - fast. Our elite deployment engineers with broad and deep experience utilizing best-in-class processes along with our established global scale can help you around the clock and around the globe. From simple to the most complex server installations and software integration, we take the guess work and risk out of deploying your new server technology. Who's better suited to implement the latest Dell EMC servers than the Dell EMC elite deployment engineers who do it every day?

Figure 11. ProDeploy Enterprise Suite capabilities

ProDeploy Plus

From beginning to end, ProDeploy Plus provides the skill and scale needed to successfully execute demanding deployments in today's complex IT environments. Certied Dell EMC experts start with extensive environmental assessments and detailed migration planning and recommendations. Post-deployment conguration assistance, testing, and product orientation help you rest easy knowing your systems have been deployed and integrated by the best.

ProDeploy

ProDeploy provides full service installation and conguration of both server hardware and system software by certied deployment engineers. To prepare for the deployment, we conduct a site readiness review and implementation planning. System testing, validation and full project documentation with knowledge transfer complete the process. We focus on getting you up and running so you can focus on your business and prepare for whatever comes next.

Basic Deployment

Basic Deployment delivers worry-free professional installation of your servers by experienced technicians who know Dell EMC servers inside and out.

ProSupport Enterprise Suite

With Dell EMC ProSupport Services, we can help you keep your operation running smoothly, so you can focus on running your business. We will help you maintain peak performance and availability of your most essential workloads. Dell EMC ProSupport is a suite of support services that enable you to build the solution that is right for your organization. Choose support models based on how you use technology and where you want to allocate resources. From the desktop to the data center, address everyday IT challenges, such as unplanned downtime, mission-critical needs, data and asset protection, support planning, resource allocation, software application management and more. Optimize your IT resources by choosing the right support model.

Figure 12. ProSupport Enterprise Suite

ProSupport Plus

When you purchase your PowerEdge server, we recommend ProSupport Plus, our proactive and preventative support for your business-critical systems. ProSupport Plus provides you with all the benets of ProSupport, plus the following:

• A designated Technology Service Manager who knows your business and your environment.

• Access to senior ProSupport engineers for faster issue resolution.

• Personalized, preventive recommendations based on analysis of support trends and best practices from across the Dell EMC customer base to reduce support issues and improve performance.

• Predictive analysis for issue prevention and optimization enabled by SupportAssist and Secure Remote Services.

• Proactive monitoring, issue detection, notication and automated case creation for accelerated issue resolution enabled by SupportAssist and Secure Remote Services.

ProSupport

Our ProSupport service oers highly trained experts around the clock and around the globe to address your IT needs. We will help you minimize disruptions and maximize availability of your PowerEdge server workloads with:

• 24x7x365 access to certied hardware and software experts

• Collaborative 3rd party support

• Hypervisor and Operating Environment Software and OS support

• Consistent level of support available for Dell EMC hardware, software and solutions

• Onsite parts and labor response options including next business day or four-hour mission critical

ProSupport One for Data Center

ProSupport One for Data Center oers exible site-wide support for large and distributed data centers with more than 1,000 assets. This oering is built on standard ProSupport components that leverage our global scale but are tailored to your company's needs. While not for everyone, it oers a truly unique solution for Dell EMC's largest customers with the most complex environments.

• Team of designated Technology Services Managers with remote, on-site options

• Designated ProSupport One technical and eld engineers who are trained on your environment and congurations

• On-demand reporting and analytics-based recommendations

• Flexible on-site support and parts options that t your operational model

• A tailored support plan and training for your operations sta

Figure 13. ProSupport One for Data Center model

Support Technologies

Powering your support experience with predictive, data-driven technologies.

SupportAssist

The best time to solve a problem is before it happens. The automated proactive and predictive technology SupportAssist* helps reduce your steps and time to resolution, often detecting issues before they become a crisis. Benets include:

• Value - SupportAssist is available to all customer at no additional charge.

• Improve productivity - replace manual, high-eort routines with automated support.

• Accelerate time to resolution - receive issue alerts, automatic case creation and proactive contact from Dell experts.

• Gain insight and control - optimize enterprise devices with on-demand ProSupport Plus reporting in TechDirect and get predictive issue detection before the problem starts.

SupportAssist is included with all support plans but features vary based on service level agreement.

Figure 14. SupportAssist model

Get started at Dell.com/SupportAssist

TechDirect

Boost your IT teams productivity when supporting Dell EMC systems. With over 1.4 million self-dispatches processed each year, TechDirect has proven its eectiveness as a support tool. You can:

• Self-dispatch replacement parts

• Request technical support

• Integrate APIs into your help desk

Or, access all your Dell EMC certication and authorization needs. Train your sta on Dell EMC products as TechDirect allows you to:

• Download study guides

• Schedule certication and authorization exams

• View transcripts of completed courses and exams

Additional professional services

Dell Education Services

Dell Education Services oers the PowerEdge server training courses designed to help you achieve more with your hardware investment. The curriculum is designed in conjunction with the server development team, as well as Dell’s technical support team, to ensure that the training delivers the information and practical, hands-on skills you and your team need to condently manage and maintain your Dell server solution. To learn more or register for a class today, visit LearnDell.com/Server.

Dell Global Infrastructure Consulting Services

Dell Global Infrastructure Consulting Services use skilled solution architects, innovative tools, automated analysis and Dell’s intellectual property to give you rapid insight into the root causes of unnecessary complexity. We seek better answers than traditional service models, and our strategy is to help you quickly identify high-impact, short-duration projects that deliver return on investment (ROI) and free up resources. The results are practical, action-oriented plans with specic, predictable, measurable outcomes. From data center optimization to server virtualization to systems management, our consulting services can help you build a more ecient enterprise.

Dell managed services

Dell Managed Services are a modular set of lifecycle services designed to help you automate and centrally congure, deploy, and manage your day-to-day data center operations. These services extend your existing on-premise IT infrastructure with o-premise

cloud services designed to better address challenges with mobility, highly distributed organizations, security, compliance, business continuity, and disaster preparedness.

Dell EMC PowerEdge R940xa User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
