Dell Vostro 430 User Manual
About Warnings
11
8
7
6
4
3
2
17
15
12
14
13
9
1
5
16
10
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Dell™ Vostro™ 430 Setup and Features Information Tech Sheet
Front and Back View
1 drive bay front panel (open) 2 optical drive eject buttons (2)
3 USB 2.0 connectors (4) 4 front panel door (open)
5 power button 6 headphone connector
7 microphone connector 8 media card reader (optional)
9 drive access light 10 optical drive (optional)
11 optical drive 12 padlock ring
January 2010
Regulatory Model: D02M series
Regulatory Type: D02M001
13 security cable slot 14 expansion card slots (4)
12
3
4
5
6
87
11
10
9
15 back panel connectors 16 voltage selector switch
17 power connector
NOTE: Second eject button is functional only if a second optical drive is installed in the system.
Back Panel
1 link integrity light 2 network adapter connector
3 network activity light 4 line-in connector / rear L/R connector
5 line-out connector / front L/R connector 6 microphone connector / center /
7 USB 2.0 connectors (6) 8 serial port
9 DVI-I connector 10 PS/2 connector – keyboard
11 PS/2 connector – mouse
subwoofer connector
NOTE: The DVI–I connector is only available with Intel
®
H57 Express Chipset.
Quick Setup
WARNING: Before you begin any of the procedures in this section, read the safety
information that shipped with your computer. For additional best practices information,
see www.dell.com/regulatory_compliance.
NOTE: Some devices may not be included if you did not order them.
1
Connect the monitor using only one of the following cables:
a
The blue VGA cable
c
The VGA cable to DVI adapter
2
Connect the USB keyboard or mouse
(optional).
b
The white DVI cable
3

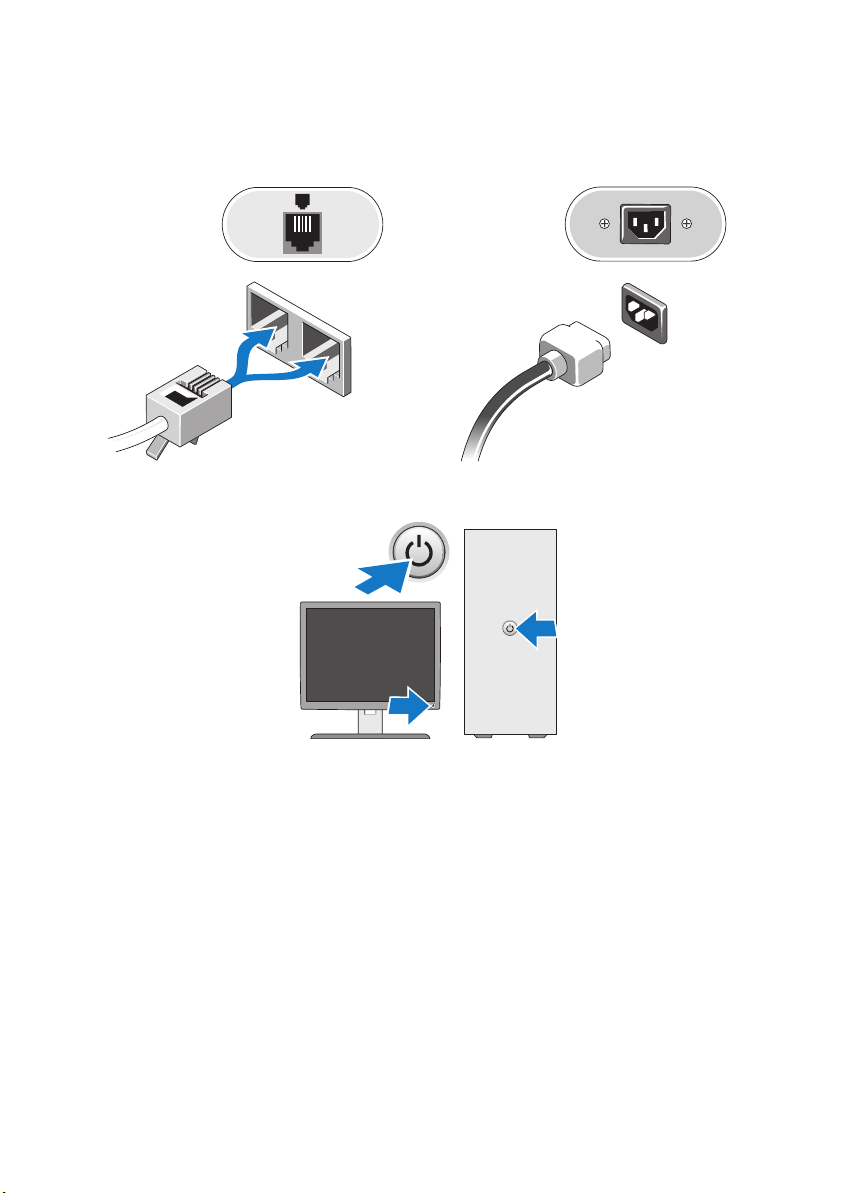

Connect the network cable (optional).
