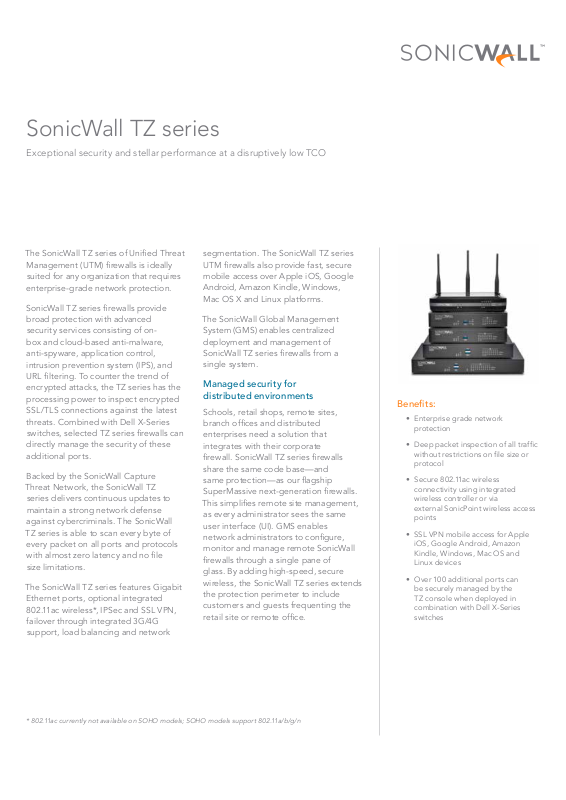

SonicWall TZ series

Exceptional security and stellar performance at a disruptively low TCO

The SonicWall TZ series of Unied Threat

Management (UTM) rewalls is ideally suited for any organization that requires enterprise-grade network protection.

SonicWall TZ series rewalls provide broad protection with advanced security services consisting of onbox and cloud-based anti-malware, anti-spyware, application control, intrusion prevention system (IPS), and URL ltering. To counter the trend of encrypted attacks, the TZ series has the processing power to inspect encrypted SSL/TLS connections against the latest threats. Combined with Dell X-Series switches, selected TZ series rewalls can directly manage the security of these additional ports.

Backed by the SonicWall Capture

Threat Network, the SonicWall TZ

series delivers continuous updates to maintain a strong network defense against cybercriminals. The SonicWall

TZ series is able to scan every byte of

every packet on all ports and protocols with almost zero latency and no le size limitations.

The SonicWall TZ series features Gigabit

Ethernet ports, optional integrated

802.11ac wireless*, IPSec and SSL VPN, failover through integrated 3G/4G support, load balancing and network

segmentation. The SonicWall TZ series UTM rewalls also provide fast, secure mobile access over Apple iOS, Google Android, Amazon Kindle, Windows, Mac OS X and Linux platforms.

The SonicWall Global Management

System (GMS) enables centralized deployment and management of SonicWall TZ series rewalls from a single system.

Managed security for distributed environments

Schools, retail shops, remote sites, branch ofces and distributed enterprises need a solution that integrates with their corporate rewall. SonicWall TZ series rewalls share the same code base—and same protection—as our agship SuperMassive next-generation rewalls.

This simplies remote site management,

as every administrator sees the same user interface (UI). GMS enables network administrators to congure, monitor and manage remote SonicWall rewalls through a single pane of glass. By adding high-speed, secure wireless, the SonicWall TZ series extends the protection perimeter to include customers and guests frequenting the retail site or remote ofce.

Benets:

• Enterprise grade network protection

• Deep packet inspection of all trafc without restrictions on le size or protocol

• Secure 802.11ac wireless connectivity using integrated wireless controller or via external SonicPoint wireless access points

• SSL VPN mobile access for Apple iOS, Google Android, Amazon Kindle, Windows, Mac OS and Linux devices

• Over 100 additional por ts can be securely managed by the TZ console when deployed in combination with Dell X-Series switches

* 802.11ac currently not available on SOHO models; SOHO models support 802.11a/b/g/n

Page 2

SonicWall TZ600 series

For emerging enterprises, retail and branch ofces looking for security performance at a value price, the SonicWall TZ600 nextgeneration rewall secures networks with enterprise-class features and uncompromising performance.

Specication TZ600 series

Firewall throughput 1.5 Gbps

Full DPI throughput 500 Mbps

Anti-malware throughput 500 Mbps

IPS throughput 1.1 Gbps

IMIX throughput 900 Mbps

Max DPI connections 125,000

New connections/sec 12,000

Power LED Test LED

USB port

(3G/4G WAN

failover)

Link and

activity

indicator LEDs

Expansion

module

Console

port

8x1-GbE

switch

(congurable)

X0 LAN port

X1 WAN port

SonicWall TZ500 series

For growing branch ofces and SMBs, the SonicWall TZ500 series delivers highly effective, no-compromise protection with network productivity and optional integrated 802.11ac dual-band wireless.

Specication TZ500 series

Firewall throughput 1.4 Gbps

Full DPI throughput 400 Mbps

Anti-malware throughput 400 Mbps

IPS throughput 1.0 Gbps

IMIX throughput 700 Mbps

Max DPI connections 100,000

New connections/sec 8,000

Optional 802 .11ac wireless

Secure

power

Power LED Test LED 6x1-GbE

USB port

(3G/4G WAN

failover)

Link and

activity

indicator LEDs

Console

port

switch

(congurable)

X0 LAN port

X1 WAN port

Secure

power

Page 3

SonicWall TZ400 series

For small business, retail and branch ofce locations, the SonicWall TZ400 series delivers enterprise-grade protection. Flexible wireless deployment is available with optional 802.11ac dual-band wireless integrated into the rewall.

Specication TZ400 series

Firewall throughput 1.3 Gbps

Full DPI throughput 300 Mbps

Anti-malware throughput 300 Mbps

IPS throughput 900 Mbps

IMIX throughput 500 Mbps

Max DPI connections 90,000

New connections/sec 6,000

Optional 802 .11ac wireless

Power LED Test LED 5x1-GbE switch

USB port

(3G/4G WAN

failover)

Link and

activity

indicator

Console

port

(congurable)

X0 LAN port

X1 WAN port

Secure

power

LEDs

SonicWall TZ300 series

The SonicWall TZ300 series offers an all-in-one solution that protects networks from attack. Unlike consumer grade products, the

SonicWall TZ300 series rewall combines effective intrusion prevention, anti-malware and content/URL ltering with optional

802.11ac integrated wireless and broadest secure mobile platforms support for laptops, smartphones and tablets.

Specication TZ300 series

Firewall throughput 750 Mbps

Full DPI throughput 100 Mbps

Anti-malware throughput 100 Mbps

IPS throughput 300 Mbps

IMIX throughput 200 Mbps

Max DPI connections 50,000

New connections/sec 5,000

Optional 802 .11ac wireless

Power LED Test LED

USB port

(3G/4G WAN

failover)

Link and

activity

indicator LEDs

Console

port

3x1-GbE switch

(congurable)

X0 LAN port

X1 WAN port

Secure

power

Page 4

SonicWall SOHO series

For wired and wireless small and home ofce environments, the SonicWall SOHO series delivers the same business-class protection large organizations require at a more affordable price point.

Specication SOHO series

Firewall throughput 300 Mbps

Full DPI throughput 50 Mbps

Anti-malware throughput 50 Mbps

IPS throughput 100 Mbps

IMIX throughput 60 Mbps

Max DPI connections 10,000

New connections/sec 1,8 00

Optional 802 .11n wireless

Power LED Test LED

Link and

activity

indicator LEDs

USB port

(3G/4G WAN

failover)

Extensible architecture for extreme scalability and performance

The Reassembly-Free Deep Packet Inspection (RFDPI) engine is designed from the ground up with an emphasis on providing security scanning at a high performance level, to match both the inherently parallel and ever-growing nature of network trafc. When combined with multi-core processor systems, this parallel-centric software architecture scales up perfectly to

NSA or SuperMassive

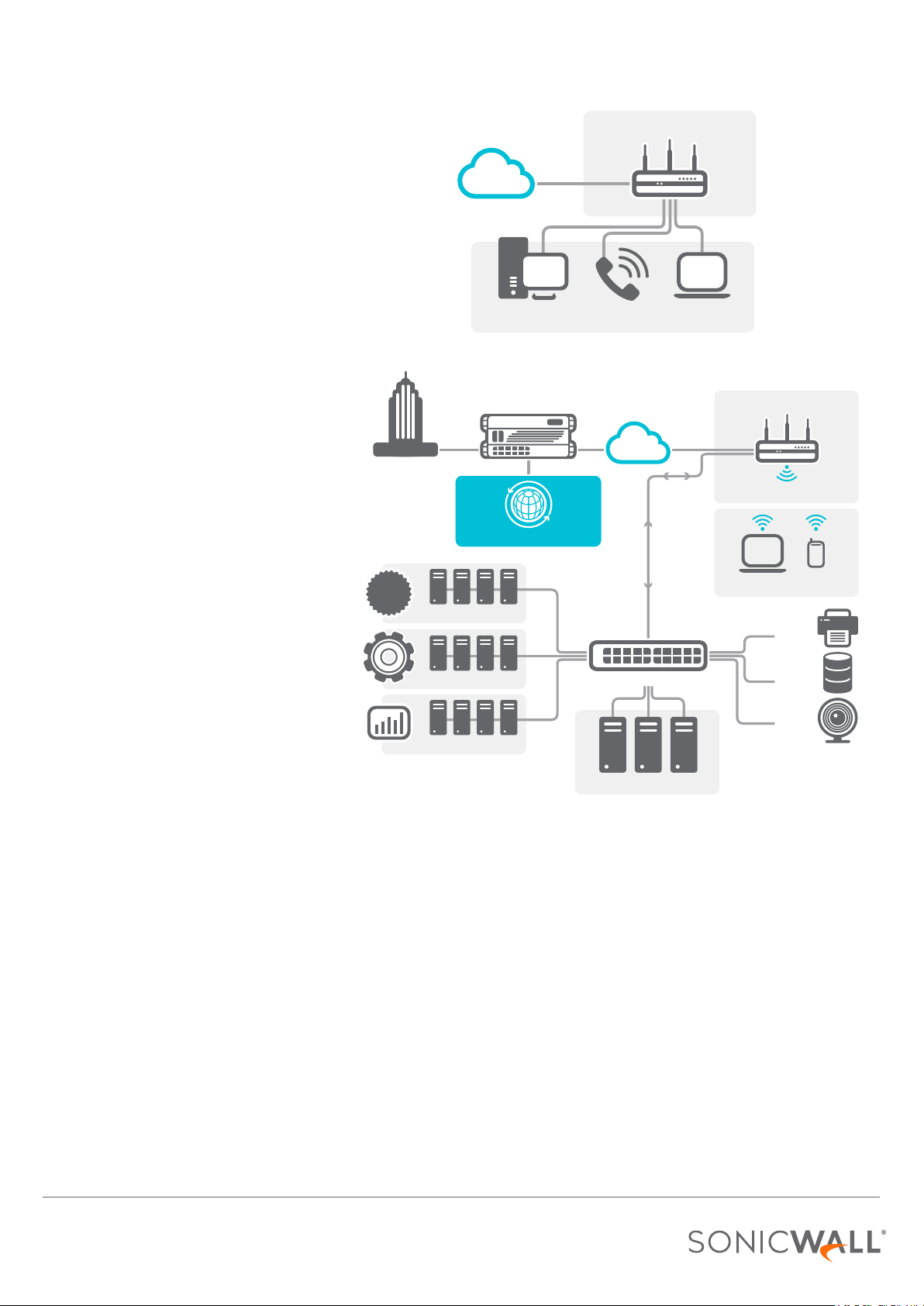

Corporate

Headquarters

Console

port

3x1-GbE switch

(congurable)

X0 LAN port

X1 WAN port

Secure

power

address the demands of deep packet inspection at high trafc loads. The SonicWall TZ Series platform relies on processors that, unlike x86, are optimized for packet, crypto and network processing while retaining exibility and programmability in the eld — a weak point for ASICs systems. This exibility is essential when new code and behavior updates are necessary to protect against new attacks that require updated and more sophisticated detection techniques.

SOHO

Home office

Internet

TZ400

Global Management System

TZ600

18 port

X-Series switch

Small

branch office

Large

branch office

Page 5

Reassembly-Free Deep Packet Inspection (RFDPI) engine

The RFDPI engine provides superior threat protection and

application control without compromising performance. This patented engine inspects the trafc stream to detect threats at Layers 3-7. The RFDPI engine takes network streams through extensive and repeated normalization and decryption in order to neutralize advanced evasion techniques that seek to confuse detection engines and sneak malicious code into the network. Once a packet undergoes the necessary preprocessing, including SSL decryption, it is analyzed against

a single proprietary memory representation of three signature databases: intrusion attacks, malware and applications. The connection state is then advanced to represent the position of the stream relative to these databases until it encounters a state of attack, or another “match” event, at which point a pre-set action is taken. As malware is identied, the SonicWall rewall terminates the connection before any compromise can be achieved and properly logs the event. However, the engine can also be congured for inspection only or, in the case of application detection, to provide Layer 7 bandwidth management services for the remainder of the application stream as soon as the application is identied.

Packet assembly-based process

Packet

disassembly

Traffic out

Inspection capacity

Min Max

Traffic in

Inspection time

Less More

Proxy

Scanning

When proxy

becomes full or

content too large,

files bypass

scanning.

Global management and reporting

For larger, distributed enterprise deployments, the optional SonicWall Global Management System (GMS) provides administrators a unied, secure and extensible platform to manage SonicWall security appliances and Dell X-Series switches. It enables enterprises to easily consolidate the management of security appliances, reduce administrative and troubleshooting complexities and governs all operational

Packet reassembly-free process

Traffic in

Inspection time

Less More

Reassembly-free packet

scanning eliminates proxy

and content size limitations.

Traffic out

Inspection capacity

Min Max

SonicWall stream-based architectureCompetitive proxy-based architecture

aspects of the security infrastructure including centralized policy management and enforcement, real-time event monitoring, analytics and reporting, and more. GMS also meets the rewall change management requirements of enterprises through a workow automation feature. GMS provides a better way to manage network security by business processes and service levels that dramatically simplify the lifecycle management of your overall security environments rather than on a device-by-device basis.

Page 6

Security and protection

The dedicated, in-house SonicWall

Capture Labs threat research team works on researching and developing countermeasures to deploy to the

rewalls in the eld for up-to-date

protection. The team leverages more than one million sensors across the globe for malware samples, and for telemetry feedback on the latest threat information, which in turn is fed into the intrusion prevention, anti-malware and application detection capabilities. SonicWall rewall customers with current subscriptions are provided continuously updated threat protection around the clock, with new updates taking effect immediately without reboots or interruptions. The signatures on the appliances protect against wide classes of attacks, covering up to tens of thousands of individual threats with a single signature. In addition to the countermeasures on the appliance, all SonicWall rewalls also have access to SonicWall CloudAV, which extends the onboard signature intelligence with more than 20 million signatures, and growing. This CloudAV database is accessed via a proprietary light-weight protocol by the rewall to augment the inspection done on the appliance. With Geo-IP and botnet ltering capabilities, SonicWall next-generation rewalls are able to block trafc from dangerous domains or entire geographies in order to reduce the risk prole of the network.

Corporate

Headquarters

Engineering network

Finance network

Internet

NSA or SuperMassive

Global Management System

Sales network

TZ product line

Home office / small office LAN

Internet

18-port X-Series switch

Protected server network

TZ product line

3G/analog failover

Secure wireless zone

Printers

Storage

PoE cameras

Application intelligence

and control

granular insight into application trafc, bandwidth utilization and security threats, as well as powerful

Application intelligence informs

administrators of application trafc traversing the network, so they can schedule application controls based on business priority, throttle unproductive applications and block potentially dangerous applications. Real-time visualization identies trafc anomalies

troubleshooting and forensics capabilities. Additionally, secure single sign-on (SSO) capabilities enhance the user experience, increase productivity and reduce support calls. Management of application intelligence and control is simplied by using an intuitive webbased interface.

as they happen, enabling immediate countermeasures against potential inbound or outbound attacks or performance bottlenecks. SonicWall application trafc analytics provide

* 802.11ac currently not available on SOHO models; SOHO models support 802.11a/b/g/n

Flexible and secure wireless

Available as an optional feature, highspeed 802.11ac wireless* combines with SonicWall next-generation

rewall technology to create a wireless network security solution that delivers comprehensive protection for wired and wireless networks.

This enterprise-level wireless

performance enables WiFi-ready devices to connect from greater distances and use bandwidth-intensive mobile apps, such as video and voice, in higher density environments without experiencing signal degradation.

Page 7

Features

RFDPI engine

Feature Description

Reassembly-Free Deep Packet Inspection This high-performance, proprietary and patented inspection engine performs stream based bi-directional trafc

Bi-directional inspection Scans for threats in both inbound and outbound trafc simultaneously to ensure that the network is not used to

Single-pass inspection A single-pass DPI architecture simultaneously scans for malware, intrusions and application identication, drastically

Stream-based inspection Proxy-less and non-buffering inspection technology provides ultra-low latency performance for deep packet

Deep Packet Inspection of Secure Socket Shell (DPI-SSH)

Capture Advanced Threat Protection

Feature Description

Multi-engine sandboxing The multi-engine sandbox platform, which includes virtualized sandboxing, full system emulation, and hypervisor

Broad le type analysis Supports analysis of a broad range of le types, including executable programs (PE), DLL, PDFs, MS Ofce

Rapid deployment of signatures When a le is identied as malicious, a signature is immediately deployed to rewalls with SonicWall Capture

Block until verdict To prevent potentially malicious les from entering the network, les sent to the cloud for analysis can be held at the

Encrypted threat prevention

Feature Description

TLS/SSL decryption and inspection

SSH inspection

Intrusion prevention

Feature Description

Countermeasure-based protection Tightly integrated intrusion prevention system (IPS) leverages signatures and other countermeasures to scan packet

Automatic signature updates The SonicWall Capture Labs threat research team continuously researches and deploys updates to an extensive list of

Intra-zone IPS protection Bolsters internal security by segmenting the network into multiple security zones with intrusion prevention, preventing

Botnet command and control (CnC) detection and blocking

Protocol abuse/anomaly Identies and blocks attacks that abuse protocols in an attempt to sneak past the IPS.

Zero-day protection Protects the network against zero-day attacks with constant updates against the latest exploit methods and

Anti-evasion technology Extensive stream normalization, decoding and other techniques ensure that threats do not enter the network

Threat prevention

Feature Description

Gateway anti-malware The RFDPI engine scans all inbound, outbound and intra-zone trafc for viruses, Trojans, key loggers and other

CloudAV malware protection A continuously updated database of over 20 million threat signatures resides in the SonicWall cloud servers and is

Around-the-clock security updates New threat updates are automatically pushed to rewalls in the eld with active security services, and take effect

analysis, without proxying or buffering, to uncover intrusion attempts, malware and identify application trafc regardless of port.

distribute malware, and does not become a launch platform for attacks in case an infected machine is brought inside.

reducing DPI latency and ensuring that all threat information is correlated in a single architecture.

inspection of simultaneous network streams without introducing le and stream size limitations, and can be applied on common protocols as well as raw TCP streams.

Detects and prevents advanced encrypted attacks that leverage SSH, blocks encrypted malware downloads, ceases the spread of infections, and thwarts command and control communications and data exltration.

level analysis technology, executes suspicious code and analyzes behavior, providing comprehensive visibility to malicious activity.

documents, archives, JAR, and APK plus multiple operating systems including Windows, Android, Mac OSX and multi-browser environments.

subscriptions and Gateway Anti-Virus and IPS signature databases and the URL, IP and domain reputation databases within 48 hours.

gateway until a verdict is determined.

Decrypts and inspects SSL trafc on the y, without proxying, for malware, intrusions and data leakage, and applies application, URL and content control policies in order to protect against threats hidden in TLS/SSL encrypted trafc. Included with security subscriptions for all models except SOHO. Sold as a separate license on SOHO.

Deep packet inspection of SSH (DPI-SSH) decrypts and inspects data traversing over SSH tunnels to prevent attacks that leverage SSH.

payloads for vulnerabilities and exploits, covering a broad spectrum of attacks and vulnerabilities.

IPS countermeasures that covers more than 50 attack categories. The new updates take immediate effect without any reboot or service interruption required.

threats from propagating across the zone boundaries.

Identies and blocks command and control trafc originating from bots on the local network to IPs and domains that are identied as propagating malware or are known CnC points.

techniques that cover thousands of individual exploits.

undetected by utilizing evasion techniques in Layers 2-7.

malware in les of unlimited length and size across all ports and TCP streams.

referenced to augment the capabilities of the onboard signature database, providing RFDPI with extensive coverage of threats.

immediately without reboots or interruptions.

Page 8

Threat prevention con't

Feature Description

SSL decryption and inspection Decrypts and inspects SSL trafc on the y, without proxying, for malware, intrusions and data leakage, and applies

Bi-directional raw TCP inspection The RFDPI engine is capable of scanning raw TCP streams on any port bi-directionally preventing attacks that they to

Extensive protocol support Identies common protocols such as HTTP/S, FTP, SMTP, SMBv1/v2 and others, which do not send data in raw TCP,

Application intelligence and control

Feature Description

Application control Control applications, or individual application features, that are identied by the RFDPI engine against a continuously

Custom application identication Control custom applications by creating signatures based on specic parameters or patterns unique to an application

Application bandwidth management Granularly allocate and regulate available bandwidth for critical applications or application categories while inhibiting

Granular control Control applications, or specic components of an application, based on schedules, user groups, exclusion lists and a

Content ltering

Feature Description

Inside/outside content ltering Enforce acceptable use policies and block access to websites containing information or images that are objectionable

Granular controls Block content using the predened categories or any combination of categories. Filtering can be scheduled by time

YouTube for Schools Enable teachers to choose from hundreds of thousands of free educational videos from YouTube EDU that are

Web caching URL ratings are cached locally on the SonicWall rewall so that the response time for subsequent access to frequently

Enforced anti-virus and anti-spyware

Feature Description

Multi-layered protection Utilize the rewall capabilities as the rst layer of defense at the perimeter, coupled with endpoint protection to

Automated enforcement option Ensure every computer accessing the network has the most recent version of anti-virus and anti-spyware signatures

Automated deployment and installation option Machine-by-machine deployment and installation of anti-virus and anti-spyware clients is automatic across the

Always on, automatic virus protection Frequent anti-virus and anti-spyware updates are delivered transparently to all desktops and le servers to improve

Spyware protection

Firewall and networking

Feature Description

Stateful packet inspection All network trafc is inspected, analyzed and brought into compliance with rewall access policies.

DDoS/DoS attack protection SYN Flood protection provides a defense against DOS attacks using both Layer 3 SYN proxy and Layer 2 SYN

Flexible deployment options

IPv6 support Internet Protocol version 6 (IPv6) is in its early stages to replace IPv4. With the latest SonicOS, the hardware will

Biometric authentication for remote access Supports mobile device authentication such as ngerprint recognition that cannot be easily duplicated or shared to

Dell X-Series switch integration Manage security settings of additional ports, including POE and POE+, under a single pane of glass using TZ series

application, URL and content control policies in order to protect against threats hidden in SSL encrypted trafc Included with security subscriptions for all models except SOHO. Sold as a separate license on SOHO.

sneak by outdated security systems that focus on securing a few well-known ports.

and decodes payloads for malware inspection, even if they do not run on standard, well-known ports.

expanding database of over 3,500 application signatures, to increase network security and enhance network productivity.

in its network communications, in order to gain further control over the network.

nonessential application trafc.

range of actions with full SSO user identication through LDAP/AD/Terminal Services/Citrix integration.

or unproductive with Content Filtering Service. Extend policy enforcement to block internet content for devices located outside the rewall perimeter with the Content Filtering Client.

of day, such as during school or business hours, and applied to individual users or groups.

organized by subject and grade and align with common educational standards.

visited sites is only a fraction of a second.

block, viruses entering network through laptops, thumb drives and other unprotected systems.

installed and active, eliminating the costs commonly associated with desktop anti-virus and anti-spyware management.

network, minimizing administrative overhead.

end user productivity and decrease security management.

Powerful spyware protection scans and blocks the installation of a comprehensive array of spyware programs on desktops and laptops before they transmit condential data, providing greater desktop security and performance.

blacklisting technologies. Additionally, it provides the ability to protect against DOS/DDoS through UDP/ICMP ood protection and connection rate limiting.

The SonicWall TZ Series can be deployed in traditional NAT, Layer 2 Bridge, Wire Mode and Network Tap modes.

support ltering implementations.

securely authenticate the user's identity for network access.

dashboard with X-Series switch (not available with the SOHO model)

Page 9

Firewall and networking con't

Feature Description

High availability SonicWall TZ500 and SonicWall TZ600 models support high availability with Active/Standby with

Threat API Enables the rewall to receive any and all proprietary, original equipment manufacturer and third-party intelligence

Wireless Network Security IEEE 802.11ac wireless technology can deliver up to 1.3 Gbps of wireless throughput with greater range and

Management and reporting

Feature Description

Global Management System SonicWall GMS monitors, congures and reports on multiple SonicWall appliances and Dell X-Series switches through

Powerful, single device management An intuitive, web-based interface allows quick and convenient conguration. Also, a comprehensive command line

IPFIX/NetFlow application ow reporting Exports application trafc analytics and usage data through IPFIX or NetFlow protocols for real-time and historical

Virtual Private Networking

Feature Description

Auto-provision VPN Simplies and reduces complex distributed rewall deployment down to a trivial effort by automating the initial

IPSec VPN for site-to-site connectivity High-performance IPSec VPN allows the SonicWall TZ Series to act as a VPN concentrator for thousands of other

SSL VPN or IPSec client remote access Utilizes clientless SSL VPN technology or an easy-to-manage IPSec client for easy access to email, les, computers,

Redundant VPN gateway When using multiple WANs, a primary and secondary VPN can be congured to allow seamless automatic failover

Route-based VPN The ability to perform dynamic routing over VPN links ensures continuous uptime in the event of a temporary VPN

Content/context awareness

Feature Description

User activity tracking User identication and activity are made available through seamless AD/LDAP/Citrix1/TerminalServices SSO

GeoIP country trafc identication

Regular expression DPI ltering Prevents data leakage by identifying and controlling content crossing the network through regular

state synchronization. SonicWall TZ300 and SonicWall TZ400 models support high availability without Active/Standby synchronization. There is no high availability on SonicWall SOHO models.

feeds to combat advanced threats such as zero-day, malicious insider, compromised credentials, ransomware and advanced persistent threats.

reliability. Available on SonicWall TZ600 through SonicWall TZ300 models. Optional 802.11 a/b/g/n is available on SonicWall SOHO models.

a single management console with an intuitive interface to reduce management costs and complexity.

interface and support for SNMPv2/3.

monitoring and reporting with tools such as SonicWall GMSFlow Server or other tools that support IPFIX and NetFlow with extensions.

site-to-site VPN gateway provisioning between SonicWall rewalls while security and connectivity occurs instantly and automatically.

large sites, branch ofces or home ofces.

intranet sites and applications from a variety of platforms.

and failback of all VPN sessions.

tunnel failure, by seamlessly re-routing trafc between endpoints through alternate routes.

integration combined with extensive information obtained through DPI.

Identies and controls network trafc going to or coming from specic countries to either protect against attacks from known or suspected origins of threat activity, or to investigate suspicious trafc originating from the network.

expression matching.

Page 10

SonicOS feature summary

Firewall

• Stateful packet inspection

• Reassembly-Free Deep Packet Inspection

• DDoS attack protection (UDP/ICMP/SY N ood)

• IPv4/IPv6 support

• Biometric authentication for remote

access

• DNS proxy

• Threat API

SSL/SSH decryption and inspection

• Deep packet inspection for TLS/SSL/SSH

• Inclusion/exclusion of objects, groups or hostnames

• SSL control

Capture Advanced Threat Protection

• Cloud-based multi-engine analysis

• Virtualized sandboxing

• Hyper visor level analysis

• Full system emulation

• Broad le type examination

• Automated & manual submission

• Real-time threat intelligence updates

• Auto-Block capability

Intrusion prevention

• Signature-based scanning

• Automatic signature updates

• Bidirectional inspection

• Granular IPS rule capability

• GeoIP/Botnet ltering

• Regular expression matching

Anti-malware

• Stream-based malware scanning

• Gateway anti-virus

• Gateway anti-spyware

• Bi-directional inspection

• No le size limitation

• Cloud malware database

Application identication

• Application control

• Application visualization

• Application component blocking

• Application bandwidth management

• Custom application signature creation

• Data leakage prevention

• Application reporting over NetFlow/ IPFIX

• User activity tracking (SSO)

• Comprehensive application signature database

Web content ltering

• URL ltering

• Anti-proxy technology

• Keyword blocking

• Bandwidth manage CFS rating categories

• Unied policy model with app control

• Content Filtering Client

VPN

• Auto-provision VPN

• IPSec VPN for site-to-site connectivity

• SSL VPN and IPSec client remote access

• Redundant VPN gateway

• Mobile Connect for iOS, Mac OS X, Windows, Chrome, Android and Kindle Fire

• Route-based VPN (OSPF, RIP, BGP)

Networking

• PortShield

• Enhanced logging

• Layer-2 QoS

• Port security

• Dynamic routing (RIP/OSPF/BGP)

• SonicWall wireless controller

• Policy-based routing (ToS/metric and ECMP)

• Asymmetric routing

• DHCP ser ver

• NAT

• Bandwidth management

• High availability - Active/Standby with state sync

• Inbound/outbound load balancing

• L2 bridge mode, NAT mode

• 3G/4G WAN failover

• Common Access Card (CAC) support

VoIP

• Granular QoS control

• Bandwidth management

• DPI for VoIP trafc

• H.323 gatekeeper and SIP proxy support

Management and monitoring

• Web GUI

• Command line interface (CLI)

• SNMPv2/v3

• Centralized management and reporting with SonicWall GMS

• Logging

• Netow/IPFix exporting

• Cloud-based conguration backup

• Application and bandwidth visualization

• IPv4 and IPv6 management

• Dell X-Series switch management including cascaded switches

Integrated Wireless

• Dual-band (2.4 GHz and 5.0 GHz)

• 802.11 a/b/g/n/ac wireless standards

• Wireless intrusion detection and prevention

• Wireless guest services

• Lightweight hotspot messaging

• Virtual access point segmentation

• Captive portal

• Cloud ACL

Requires added subscription

Not available on SOHO series

State sync high availability only on SonicWall TZ50 0 and SonicWall TZ60 0 models

Page 11

SonicWall TZ series system specications

Hardware overview SOHO series TZ300 series TZ400 series TZ500 series TZ600

Operating system

Security processing cores 2 2 4 4 4

Interfaces 5x1GbE, 1 USB,

1 Console

5x1GbE, 1 USB,

1 Console

Expansion USB USB USB 2 USB Expansion Slot

Single Sign-On (SSO) Users 250 500 500 500 500

VLAN interfaces 25 25 50 50 50

Access points supported (maximum) 2 8 16 16 24

Dell X-Series switch models supported Not available X1008/P, X1018/P, X1026/P, X1052/P, X4012

Firewall/VPN performance SOHO series TZ300 series TZ400 series TZ500 series TZ600

Firewall inspection throughput

Full DPI throughput

Application inspection throughput

IPS throughput

Anti-malware inspection throughput

300 Mbps 750 Mbps 1,300 Mbps 1,400 Mbps 1,500 Mbps

50 Mbps 100 Mbps 300 Mbps 400 Mbps 500 Mbps

- 300 Mbps 900 Mbps 1,000 Mbps 1,100 Mbps

100 Mbps 300 Mbps 900 Mbps 1,000 Mbps 1,100 Mbps

50 Mbps 100 Mbps 300 Mbps 400 Mbps 500 Mbps

IMIX throughput 60 Mbps 200 Mbps 500 Mbps 700 Mbps 900 Mbps

TLS/SSL inspection and decryption throughput

(DPI SSL)

IPSec VPN throughput

15 Mbps 45 Mbps 100 Mbps 150 Mbps 200 Mbps

100 Mbps 300 Mbps 900 Mbps 1,000 Mbps 1,100 Mbps

Connections per second 1,800 5,000 6,000 8,000 12,000

Maximum connections (SPI) 10,000 50,000 100,000 125,000 150,000

Maximum connections (DPI) 10,000 50,000 90,000 100,000 125,000

Maximum connections (DPI SSL) 100 500 500 750 750

VPN SOHO series TZ300 series TZ400 series TZ500 series TZ600

Site-to-site VPN tunnels 10 10 20 25 50

IPSec VPN clients (maximum) 1 (5) 1 (10) 2 (25) 2 (25) 2 (25)

SSL VPN licenses (maximum) 1 (10) 1 (50) 2 (100) 2 (150) 2 (200)

Virtual assist bundled (maximum) - 1 (30-day trial) 1 (30-day trial) 1 (30-day trial) 1 (30-day trial)

Encryption/authentication DES, 3DES, AES (128, 192, 256-bit), MD5, SHA-1, Suite B Cryptography

Key exchange Dife Hellman Groups 1, 2, 5, 14

Route-based VPN RIP, OSPF

Certicate support Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP

VPN features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN

Global VPN client platforms supported Microsoft

Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Windows 10

NetExtender Microsoft Windows Vista 32/64-bit, Windows 7, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux

FC3+/Ubuntu 7+/OpenSUSE

Mobile Connect Apple

iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome, Windows 8.1 (Embedded)

Security services SOHO series TZ300 series TZ400 series TZ500 series TZ600

Deep Packet Inspection services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL

Content Filtering Service (CFS) HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive ltering based on le types such as ActiveX, Java,

Cookies for privacy, allow/forbid lists

Enforced Client Anti-Virus and Anti-Spyware McAfee

Comprehensive Anti-Spam Service Supported

Application Visualization No Yes Yes Yes Yes

Application Control Yes Yes Yes Yes Yes

Capture Advanced Threat Protection No Ye s Ye s Ye s Yes

SonicOS

7x1GbE, 1 USB,

1 Console

and Kaspersky

8x1GbE, 2 USB,

1 Console

™

10x1GbE, 2 USB,

1 Console,

1 Expansion Slot

(Rear)*, 2 USB

Page 12

SonicWall TZ series system specications con't

Networking SOHO series TZ300 series TZ400 series TZ500 series TZ600

IP address assignment Static, (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay

NAT modes 1:1, 1:many, many:1, many:many, exible NAT (overlapping IPs), PAT, transparent mode

Routing protocols

QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)

Authentication LDAP (multiple

Local user database 150 250

VoIP Full H.323v1-5, SIP

Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3

Certications FIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Firewall, ICSA Anti-virus

Certications pending Common Criteria NDPP

Common Access Card (CAC) Supported

High availability No Active/standby Active/standby Active/standby

Hardware SOHO series TZ300 series TZ400 series TZ500 series TZ600

Form factor Desktop

Power supply (W) 24W external 24W external 24W external 36W external 60W external

Maximum power consumption (W) 6.4 / 11.3 6.9 / 12.0 9.2 / 13.8 13.4 / 17.7 16.1

Input power 100 to 240 VAC, 50-60 Hz, 1 A

Total heat dissipation 21.8 / 38.7 BTU 23.5 / 40.9 BTU 31.3 / 47.1 BTU 45.9 / 60.5 BTU 55.1 BTU

Dimensions 3.6x14.1x19cm 3.5x13.4x19cm 3.5x13.4x19cm 3.5x15x22.5cm 3.5x18x28cm

Weight 0.34 kg / 0.75 lbs

WEEE weight 0.80 kg / 1.76 lbs

Shipping weight 1.20 kg / 2.64 lbs

MTBF (years) 58.9/56.1 (wireless) 56.1 54.0 40.8 18.4

Environment (Operating/Storage) 32°-105° F (0°-40° C)/-40° to 158° F (-40° to 70° C)

Humidity 5-95% non-condensing

Regulatory SOHO series TZ300 series TZ400 series TZ500 series TZ600

Regulatory model (wired) APL31-0B9 APL28-0B4 APL28-0B4 APL29-0B6 APL30-0B8

Major regulatory compliance (wired models) FCC Class B, ICES

Regulatory model (wireless) APL41-0BA APL28-0B5 APL28-0B5 APL29-0B7 -

Major regulatory compliance (wireless models) FCC Class B, FCC

domains), XAUTH/

RADIUS, SSO,

Novell, internal

user database

0.48 kg / 1.06 lbs

0.94 kg / 2.07 lbs

1.34 kg / 2.95 lbs

Class B, CE (EMC,

LVD, RoHS), C-Tick,

VCCI Class B, UL,

cUL, TUV/GS, CB,

Mexico CoC by UL,

WEEE , REACH,

KCC/MSIP

RF ICES Class B,

IC RF CE (R&TTE,

EMC, LVD, RoHS),

RCM, VCCI Class

B, MIC/TELEC, UL,

cUL, TUV/GS, CB,

Mexico CoC by UL,

WEEE , REACH

BGP4, OSPF, RIPv1/v2, static routes, policy-based routing

LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database,

0.73 kg / 1.61 lbs

0.84 kg / 1.85 lbs

1.15 kg / 2.53 lbs

1.26 kg / 2.78 lbs

1.37 kg / 3.02 lbs

1.48 kg / 3.26 lbs

FCC Class B, ICES Class B, CE (EMC,

LVD, RoHS), C-Tick,

VCCI Class B, UL,

cUL, TUV/GS, CB,

Mexico CoC by UL,

WEEE , REACH,

KCC/MSIP

FCC Class B, FCC

RF ICES Class B,

IC RF CE (R&TTE,

EMC, LVD, RoHS),

RCM, VCCI Class

B, MIC/TELEC, UL,

cUL, TUV/GS, CB,

Mexico CoC by UL,

WEEE , REACH

0.73 kg / 1.61 lbs

0.84 kg / 1.85 lbs

1.15 kg / 2.53 lbs

1.26 kg / 2.78 lbs

1.37 kg / 3.02 lbs

1.48 kg / 3.26 lbs

FCC Class B, ICES Class B, CE (EMC,

LVD, RoHS), C-Tick,

VCCI Class B, UL,

cUL, TUV/GS, CB,

Mexico CoC by UL,

WEEE , REACH,

FCC Class B, FCC

RF ICES Class B,

IC RF CE (R&TTE,

EMC, LVD, RoHS),

RCM, VCCI Class

B, MIC/TELEC, UL,

cUL, TUV/GS, CB,

Mexico CoC by UL,

WEEE , REACH

Terminal Services, Citrix

KCC/MSIP

with stateful

synchronization

0.92 kg / 2.03 lbs

1.05 kg / 2.31 lbs

1.34 kg / 2.95 lbs

1.48 kg / 3.26 lbs

1.93 kg / 4.25 lbs

2.07 kg / 4.56 lbs

FCC Class B, ICES Class B, CE (EMC,

LVD, RoHS), C-Tick,

VCCI Class B, UL,

cUL, TUV/GS, CB,

Mexico CoC by UL,

WEEE , REACH,

BSMI, KCC/MSIP

FCC Class B, FCC

RF ICES Class B,

IC RF CE (R&TTE,

EMC, LVD, RoHS),

RCM, VCCI Class

B, MIC/TELEC, UL,

cUL, TUV/GS, CB,

Mexico CoC by UL,

WEEE , REACH

stateful synchronization

Class A, CE (EMC, LVD,

Class A, UL cUL, TUV/

by UL, WEEE , REACH,

Active/standby with

1.47 kg / 3.24 lbs

1.89 kg /4.16 lbs

2.48 kg / 5.47 lbs

FCC Class A, ICES

RoHS), C-Tick, VCCI

GS, CB, Mexico CoC

KCC/MSIP

Page 13

SonicWall TZ series system specications con't

Integrated Wireless SOHO series TZ300, TZ400, TZ500 series TZ600

Standards 802.11 a/b/g/n 802.11a/b/g/n/ac (WEP, WPA, WPA2, 802.11i, TKIP, PSK,02.1x,

Frequency bands

Operating Channels 802.11a: US and Canada 12, Europe 11, Japan 4, Singapore

Transmit output power Based on the regulatory domain specied by the system

802.11a: 5.180-5.825 GHz; 802.11b/g: 2.412-2.472 GHz;

802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz;

4, Taiwan 4; 802.11b/g: US and Canada 1-11, Europe 1-13,

Japan 1-14 (14-802.11b only); 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13; 802.11n (5 GHz):

US and Canada 36-48/149-165, Europe 36-48, Japan 36-48,

Spain 36-48/52-64;

802.11a: 5.180-5.825 GHz; 802.11b/g: 2.412-2.472 GHz;

802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz; 802.11ac: 2.412-

802.11a: US and Canada 12, Europe 11, Japan 4, Singapore 4,

Taiwan 4; 802.11b/g: US and Canada 1-11, Europe 1-13, Japan

1-14 (14-802.11b only); 802.11n (2.4 GHz): US and Canada 1-11,

Europe 1-13, Japan 1-13; 802.11n (5 GHz): US and Canada

36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64;

802.11ac: US and Canada 36-48/149-165, Europe 36-48, Japan

Based on the regulatory domain specied by the

administrator

Transmit power control Supported Supported -

Data rates supported 802.11a: 6, 9, 12, 18,24, 36, 48, 54 Mbps per channel;

802.11b: 1, 2, 5.5, 11 Mbps per channel; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11n: 7.2, 14.4,

21.7, 28.9, 43.3, 57.8, 65, 72.2, 15,30, 45, 60, 90, 120, 135,

150 Mbps per channel;

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11b: 1, 2, 5.5, 11 Mbps per channel; 802.11g: 6, 9, 12, 18, 24, 36, 48,

54 Mbps per channel; 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8,

65, 72.2, 15,30, 45, 60, 90, 120, 135, 150 Mbps per channel;

802.11ac: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 86.7, 96.3, 15, 30, 45, 60, 90, 120, 135, 150, 180, 200, 32.5, 65, 97.5, 130,

195, 260, 292.5, 325, 390, 433.3, 65, 130, 195, 260, 390, 520,

Modulation technology spectrum

802.11a: Orthogonal Frequency Division Multiplexing

(OFDM); 802.11b: Direct Sequence Spread Spectrum (DSSS);

802.11g: Orthogonal Frequency Division Multiplexing

(OFDM)/Direct Sequence Spread Spectrum (DSSS); 802.11n:

Orthogonal Frequency Division Multiplexing (OFDM)

802.11a: Orthogonal Frequency Division Multiplexing (OFDM);

802.11b: Direct Sequence Spread Spectrum (DSSS); 802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct

Sequence Spread Spectrum (DSSS); 802.11n: Orthogonal

Frequency Division Multiplexing (OFDM); 802.11ac: Orthogonal

Frequency Division Multiplexing (OFDM)

EAP-PEAP, EAP-TTLS

2.472 GHz, 5.180-5.825 GHz

36-48, Spain 36-48/52-64

system administrator

585, 650, 780, 866.7 Mbps per channel

*Future u se.

Testing Methodologies: Maximum performance based on RFC 2544 (for rewall). Actual performance may var y depending on network conditions and activated services.

Full DPI/GatewayAV/Anti-Spyware/IPS throughput measured using industry standard Spirent WebAvalanche HTTP per formance test and Ixia test tools. Testing done with multiple ows through multiple port pairs.

VPN throughput measured using UDP trafc at 1280 byte packet size adhering to RFC 2544. All specications, features and availability are subjec t to change.

BGP is available only on SonicWall TZ40 0, TZ500 and TZ600.

All TZ integrated wireless models can support either 2.4GHz or 5GHz band. For dual-band support, please use SonicWall's wireless access points products (SonicPoints)

SonicWall TZ Series ordering information

Product SKU

SonicWall SOHO with 1-year TotalSecure 01-SSC-0651

SonicWall SOHO Wireless-N with 1-year TotalSecure 01-SSC-0653

SonicWall TZ300 with 1-year TotalSecure 01-SSC-0581

SonicWall TZ300 Wireless-AC with 1-year TotalSecure 01-SSC-0583

SonicWall TZ400 with 1-year TotalSecure 01-SSC-0514

SonicWall TZ400 Wireless-AC with 1-year TotalSecure 01-SSC-0516

SonicWall TZ500 with 1-year TotalSecure 01-SSC-0445

SonicWall TZ500 Wireless-AC with 1-year TotalSecure 01-SSC-0446

SonicWall TZ600 with 1-year TotalSecure 01-SSC-0219

High availability options (each unit must be the same model)

SonicWall TZ500 High Availability 01-SSC-0439

SonicWall TZ600 High Availability 01-SSC-0220

Page 14

SonicWall TZ Series ordering information con't

Services SKU

For SonicWall SOHO Series

Comprehensive Gateway Security Suite 1-year 01-SSC-0688

Gateway Anti-Virus, Intrusion Prevention and Application Control 1-year 01-SSC-0670

Content Filtering Service 1-year 01-SSC-0676

Comprehensive Anti-Spam Service 1-year 01-SSC-0682

24x7 Support 1-year 01-SSC-0700

For SonicWall TZ300 Series

Advanced Gateway Security Suite – Capture ATP, Threat Prevention, Content Filtering and 24x7 Support for TZ300 (1-year)

Capture Advanced Threat Protection for TZ300 (1-year) 01-SSC-1435

Gateway Anti-Virus, Intrusion Prevention and Application Control 1-year 01-SSC-0602

Content Filtering Service 1-year 01-SSC-0608

Comprehensive Anti-Spam Service 1-year 01-SSC-0632

24x7 Support 1-year 01-SSC-0620

For SonicWall TZ400 Series

Advanced Gateway Security Suite – Capture ATP, Threat Prevention, Content Filtering and 24x7 Support for TZ400 (1-year)

Capture Advanced Threat Protection for TZ400 (1-year) 01-SSC-1445

Gateway Anti-Virus, Intrusion Prevention and Application Control 1-year 01-SSC-0534

Content Filtering Service 1-year 01-SSC-0540

Comprehensive Anti-Spam Service 1-year 01-SSC-0561

24x7 Support 1-year 01-SSC-0552

For SonicWall TZ500 Series

Advanced Gateway Security Suite – Capture ATP, Threat Prevention, Content Filtering and 24x7 Support for TZ500 (1-year)

Capture Advanced Threat Protection for TZ500 (1-year) 01-SSC-1455

Gateway Anti-Virus, Intrusion Prevention and Application Control 1-year 01-SSC-0458

Content Filtering Service 1-year 01-SSC-0464

Comprehensive Anti-Spam Service 1-year 01-SSC-0482

24x7 Support 1-year 01-SSC-0476

For SonicWall TZ600

Advanced Gateway Security Suite – Capture ATP, Threat Prevention, Content Filtering and 24x7 Support for TZ600 (1-year)

Capture Advanced Threat Protection for TZ600 (1-year) 01-SSC-1465

Gateway Anti-Virus, Intrusion Prevention and Application Control 1-year 01-SSC-0228

Content Filtering Service 1-year 01-SSC-0234

Comprehensive Anti-Spam Service 1-year 01-SSC-0252

24x7 Support 1-year 01-SSC-0246

01-SSC-1430

01-SSC-1440

01-SSC-1450

01-SSC-1460

About Us

SonicWall has been ghting the cyber-criminal industry for over 25 years, defending small, medium size businesses and enterprises worldwide. Our combination of products and partners has enabled a real-time cyber defense solution tuned to the specic needs of the more than 500,000 global businesses in over 150 countries, so you can do more business with less fear.

SonicWall, Inc.

5455 Great America Parkway | Santa Clara, CA 95054 Refer to our website for additional information.

www.sonicwall.com

trademark or registered trademark of SonicWall Inc. and/or its afliates

in the U.S.A. and/or other countries. All other trademarks and registered trademarks are property of their respective owners.

Datasheet-TZ Series-US-VG-MKTG658
