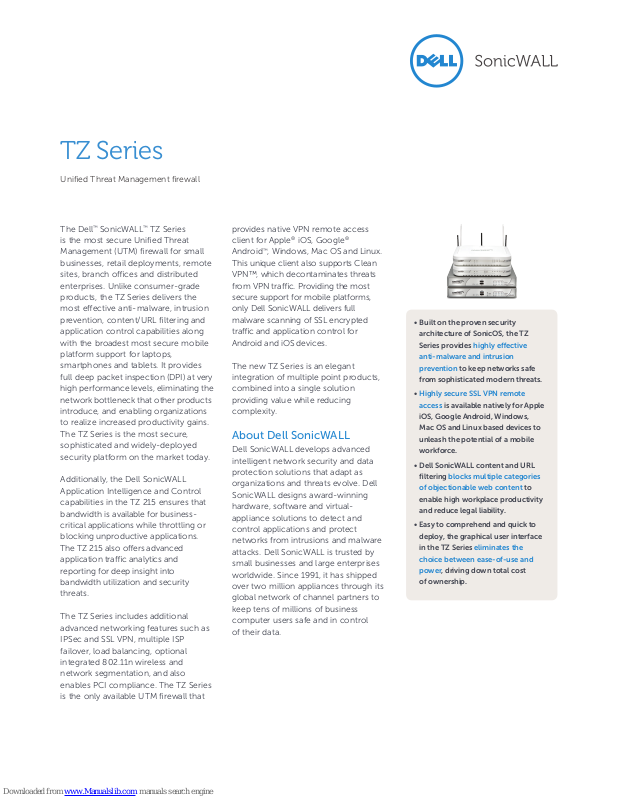

The Dell™ SonicWALL™ TZ Series
is the most secure Unified Threat
Management (UTM) firewall for small
businesses, retail deployments, remote
sites, branch oces and distributed
enterprises. Unlike consumer-grade
products, the TZ Series delivers the
most eective anti-malware, intrusion
prevention, content/URL filtering and
application control capabilities along
with the broadest most secure mobile
platform support for laptops,
smartphones and tablets. It provides
full deep packet inspection (DPI) at very
high performance levels, eliminating the
network bottleneck that other products
introduce, and enabling organizations
to realize increased productivity gains.
The TZ Series is the most secure,
sophisticated and widely-deployed
security platform on the market today.

Additionally, the Dell SonicWALL
Application Intelligence and Control
capabilities in the TZ 215 ensures that
bandwidth is available for business­critical applications while throttling or
blocking unproductive applications.
The TZ 215 also oers advanced
application trac analytics and
reporting for deep insight into
bandwidth utilization and security
threats.

The TZ Series includes additional
advanced networking features such as
IPSec and SSL VPN, multiple ISP
failover, load balancing, optional
integrated 802.11n wireless and
network segmentation, and also
enables PCI compliance. The TZ Series
is the only available UTM firewall that

provides native VPN remote access
client for Apple

®

iOS, Google®

Android

™

, Windows, Mac OS and Linux.
This unique client also supports Clean
VPN™, which decontaminates threats
from VPN trac. Providing the most
secure support for mobile platforms,
only Dell SonicWALL delivers full
malware scanning of SSL encrypted
trac and application control for
Android and iOS devices.

The new TZ Series is an elegant
integration of multiple point products,
combined into a single solution
providing value while reducing
complexity.

About Dell SonicWALL

Dell SonicWALL develops advanced
intelligent network security and data
protection solutions that adapt as
organizations and threats evolve. Dell
SonicWALL designs award-winning
hardware, software and virtual­appliance solutions to detect and
control applications and protect
networks from intrusions and malware
attacks. Dell SonicWALL is trusted by
small businesses and large enterprises
worldwide. Since 1991, it has shipped
over two million appliances through its
global network of channel partners to
keep tens of millions of business
computer users safe and in control
of their data.

TZ Series

Unified Threat Management firewall

• Built on the proven security

architecture of SonicOS, the TZ

Series provides highly eective

anti-malware and intrusion

prevention to keep networks safe

from sophisticated modern threats.

• Highly secure SSL VPN remote

access is available natively for Apple

iOS, Google Android, Windows,

Mac OS and Linux based devices to

unleash the potential of a mobile

workforce.

• Dell SonicWALL content and URL

filtering blocks multiple categories

of objectionable web content to

enable high workplace productivity

and reduce legal liability.

• Easy to comprehend and quick to

deploy, the graphical user interface

in the TZ Series eliminates the

choice between ease-of-use and

power, driving down total cost

of ownership.

*U.S. P atents 7,310, 815; 7,600,2 57; 7,738,38 0; 7,835,361 ; 7,991,723

IPS

Application

Control

Gateway
Ant-Virus

App

Visualization

Anti-Malware

SonicOS

URL

Filtering

TZ 105 TZ 205 TZ 215

Firewall overview

Stateful Packet Inspection Firewall throughput 200 Mbps 500 Mbps 500 Mbps
IPS throughput 60 Mbps 80 Mbps 110 Mbps
GAV throughput 40 Mbps 60 Mbps 70 Mbps
VPN throughput 75 Mbps 100 Mbps 110 Mbps
Full DPI (UTM) 25 Mbps 40 Mbps 60 Mbps
Maximum UTM/DPI connections 8,000 12,000 32,000
Unlimited file size protection ● ● ●

Hardware
Dual core processor ● ●
Gigabit ethernet ● ●

802.11n suppor t ● ● ●
Dual band 802.11 a/b/g/n support ● ●

Security services
Intrusion protection* ● ● ●
Gateway Anti-Virus, Anti-Spy ware and Cloud AV* ● ● ●
Content and URL Filtering (CFS)* ● ● ●
Enforced Client Anti-Virus and Anti-Spyware* ● ● ●
Application Intelligence and Control* ●

*Available with subscription service

2

Dell SonicWALL architecture

The Dell SonicWALL TZ 205 and
TZ 215 feature dual-core Cavium CPUs,
which process parallel data streams
simultaneously, increasing overall
protection and performance. Dual­core technology oers superior
performance, scalability, and energy
eciency when compared with network
security platforms based on general­purpose processors with separate
security co-processors, or Application­Specific Integrated Circuits (ASIC),
which can’t keep up with evolving
complex attacks in real time from both
inside and outside the network

perimeter. The advanced high
performance dual-core architecture
makes the TZ Series the fastest solution
in its class, with performance levels of
up to 500 Mbps of stateful throughput,
110 Mbps deep packet inspection
throughput and 130 Mbps 3DES or AES
VPN throughput.

SonicOS software

Dell SonicWALL’s patented*
Reassembly-Free Deep Packet
Inspection

®

(RFDPI) technology
enables simultaneous, multi-threat and
application scanning and analysis of
unlimited files sizes and connections
at extremely high speeds. This single
code base is at the core of every Dell
SonicWALL firewall, from the TZ 105
to the Dell SonicWALL SuperMassive
E10800. The SuperMassive E10800
earned the coveted ‘Recommend’ rating
in NSS Labs 2013 Next-Generation

Firewall Security Value Map for
the second year in a row and Dell
SonicWALL rates as one of the top
vendors for security eectiveness.
RFDPI is tightly integrated into the
firewall platform, streamlining
management of granular firewall
policies, directly via the firewall
interface or via the Dell SonicWALL
Global Management System.
Organizations can choose from an
entire line of proven Dell SonicWALL
firewalls with SonicOS, which massively
scale to meet the needs of the highest
performance networks.

The new Dell SonicWALL TZ 105
is the most secure Unified Threat
Management (UTM) firewall available
for small oces, home oces and
small retail deployments. Unlike
consumer-grade products, the TZ 105
delivers the proven, most eective
intrusion prevention, anti-malware and
content/URL filtering, along with the
broad mobile platform support for
laptops, smartphones and tablets. It
provides full deep packet inspection
(DPI) at very high performance levels,
eliminating the network bottleneck that
other products introduce, and enabling
organizations to realize increased
productivity gains without the
increased cost.

Dell SonicWALL TZ 105
home oce/small oce

Hardware description

TZ 105 TotalSecure 1-year 01-SSC-4906

TZ 105 Wireless-N TotalSecure International 1-year 01-SSC-4910

Service description

Comprehensive Gateway Security Suite 1-year 01-SSC-4877

Gateway Anti-Virus, Intrusion Prevention and Application 01-SSC-4844
Control 1-year

Content/URL Filtering 1-year 01-SSC-4850

Comprehensive Anti-Spam Service 1-year 01-SSC-4871

8x5 Support 1-year 01-SSC-4856

24x7 Support 1-year 01-SSC-4862

Home oce/small oce LAN Home/work LAN

TZ 105

3

LAN po rt

Tes t

LED

WAN por t Res et

switch

Console

port

Power

LED

USB Por t

(3G/4G WAN)

Configurable
Fast Ethernet

interfaces

Link and

activity

Indicator LEDs

Secure

power

Small businesses, retail deployments,
government organizations, remote
sites and branch oces can benefit
from the powerful security and
business-class performance of the
new Dell SonicWALL TZ 205. Unlike
consumer grade products, this
powerful Unified Threat Management
(UTM) firewall combines the most
eective intrusion prevention, anti­malware and content/URL filtering
with the broadest, most secure
mobile platform support for laptops,
smartphones and tablets. By providing
full deep packet inspection (DPI) at very
high performance levels, it eliminates
the tradeo between comprehensive
security and performance.

Dell SonicWALL TZ 205
small oce/retail

Hardware description SKU

TZ 205 01-SSC-6945

TZ 205 Wireless-N International 01-SSC-4883

TZ 205 TotalSecure 1-year 01-SSC-4890

TZ 205 Wireless-N TotalSecure International 1-year 01-SSC-4894

Service description SKU

Comprehensive Gateway Security Suite 1-year 01-SSC-4838

Gateway Anti-Virus, Intrusion Prevention and Application 01-SSC-4799
Control 1-year

Content/URL Filtering 1-year 01-SSC-4805

Comprehensive Anti-Spam Service 1-year 01-SSC-4832

8x5 support 1-year 01-SSC-4811

24x7 support 1-year 01-SSC-4817

Gigabit

LAN po rt

Gigabit

WAN por t

Reset

switch

Console

port

USB por t

(3G/4G WAN)

Configurable

Gigabit

Ethernet

interfaces

Secure

power

Future

expansion

3G/analog

failover

TZ 205

Sales network Protected server network

Secure wireless zone

Corporate

headquarters

Global

Management

System

4

Tes t
LED

Power

LED

Link and

activity

indicator LEDs

Hardware description SKU

TZ 215 01-SSC-4976

TZ 215 Wireless-N International 01-SSC-4969

TZ 215 TotalSecure 1-year 01-SSC-4982

TZ 215 Wireless-N TotalSecure International 1-year 01-SSC-4986

Service description SKU

Comprehensive Gateway Security Suite 1-year 01-SSC-4793

Gateway Anti-Virus, Intrusion Prevention, and Application 01-SSC-4757
Intelligence, Control and Visualization 1-year

Content/URL Filtering 1-year 01-SSC-4763

Comprehensive Anti-Spam Service 1-year 01-SSC-4787

8x5 support 1-year 01-SSC-4769

24x7 support 1-year 01-SSC-4775

The new Dell SonicWALL TZ 215 is the most
secure, highest performance Unified Threat
Management (UTM) firewall available for small
businesses and branch oces. Designed for
small businesses, distributed enterprises, branch
oces and retail deployments, the TZ 215
integrates anti-malware, intrusion prevention,
application control and URL filtering, driving
down cost and complexity. It provides a
dual-core architecture delivering full deep
packet inspection (DPI) without diminishing
network performance, thus eliminating
bottlenecks that other products introduce,
enabling businesses to realize increased
productivity gains. The TZ 215 also provides
application control to ensure bandwidth for
critical applications, while throttling non­productive ones. Advanced networking features
include multiple ISP failover and load balancing,
optional dual-band secure wireless, IPSec VPN
support, network segmentation and
PCI compliance capabilities.

Dell SonicWALL TZ 215
retail/branch oce

Gigabit

LAN po rt

Gigabit

WAN por t

Res et

switch

Ground

Console

port

USB
por t

(3G /4G

WAN)

Configurable

Gigabit

Ethernet

interfaces

Secure

power

TZ 215

Sales network Protected server network

Secure wireless zone

Corporate

headquarters

Global

Management

System

3G/analog failover

5

Power

LED

Tes t
LED

Link and

activity

indicator LEDs

Features

Intrusion prevention

Feature Description

Signature-based Tightly integrated, signature-based intrusion prevention scans packet payloads for vulnerabilities
scanning and exploits that target critical internal systems.

Automatic signature Dell SonicWALL’s Research Team continuously updates and deploys an extensive list of over 5,400
updates IPS signatures covering 52 attack categories. These signatures take immediate eect and do not
require reboots or any other interruption in service.

Outbound threat The ability to inspect both inbound and outbound trac ensures that the network will not
prevention unwittingly be used in Distributed Denial of Service attacks and will prevent any Command and
Control Botnet communication.

Intra-zone IPS Intrusion prevention can be deployed between internal security zones to protect sensitive servers
protection and to prevent internal attacks.

VPN

IPSec VPN for site- High-performance IPSec VPN allows the firewall to connect remote branch oces to a central
to-site connectivity location.

SSL VPN or IPSec Utilize clientless SSL VPN technology or an easy-to-manage IPSec client for easy access to email,
client remote access files, computers, intranet sites and applications from a variety of platforms.

Redundant VPN When using multiple WANs, a primary and secondary VPN can be configured to allow seamless
gateway automatic failover and failback of all VPN sessions.

Route-based VPN The ability to perform dynamic routing over VPN links ensures continuous uptime in the event of
temporary VPN tunnel failure by seamlessly re-routing trac between endpoints through alternate routes.

Clean VPN Dell SonicWALL Clean VPN™ both secures the integrity of VPN access and decontaminates
malicious threats before they can enter the corporate network.

Gateway threat prevention

Gateway anti-malware Dell SonicWALL’s patented RFDPI engine scans all ports and protocols for viruses without file size
or stream length limitation. SonicLabs Researchers constantly provide updated threat protection,
providing faster response times and threat prevention.

Reassembly-Free Reassembly-Free Deep Packet Inspection keeps track of malware regardless of the order or
Deep Packet (RFDPI) inspection timingwith which the packets arrive. This allows for extremely low latency while
eliminating file and stream size limitations. This provides greater performance and security than
outdated proxy designs which reassemble contents using sockets bolted to traditional anti-virus
programs and are plagued with ineciencies and the overhead of memory thrashing leading to
high latency, low performance and size limitations.

Cloud anti-virus Using the built-in RFDI engine, Dell SonicWALL can leverage the power of the cloud to provide the
most comprehensive set of anti-malware signatures available, while minimizing latency or delay.
The Dell SonicWALL Cloud Anti-Virus Service provides millions of additional malware signatures for
inspection of executable files using the most up-to-date information available.

Bi-directional RFDPI can be performed on both inbound and outbound connections to provide protection in all
Inspection networktrac directions.

24x7 signature SonicLabs Research Team team creates and updates signature databases that are propagated
updates automatically to the firewalls in the field, with those signatures taking immediate eect without
any reboot or service interruption required.

Firewall and networking

Stateful packet inspection All network trac is inspected, analyzed and brought into compliance with firewall access policies.

DOS attack protection SYN Flood protection provides defense against DOS attacks using both layer 3 SYN proxy and
layer 2 SYN blacklisting technologies.

Flexible deployment Can be deployed in traditional NAT and Layer 2 Bridge modes.

Policy-based routing Create routes based on protocol to direct trac to a preferred WAN connection with the ability
to fail backto a secondary WAN in the event of an outage.

High availability Supports Active/Passive failover to ensure increased reliability by protecting against hardware or
software faults.

WAN load balancing Load balance up to four WAN interfaces using Round Robin, Spillover or Percentage based methods.

WAN acceleration WAN Acceleration decreases latency and increases transfer speeds between remote sites for even
higher network eciency gains.

6

Features

VoIP

Feature Description

Advanced QoS Guarantee critical communications with 802.1p and DSCP tagging and remapping of VoIP trac
on the network.

DPI of VoIP trac Predefined signatures detect and block VoIP specific threats.

H.323 gatekeeper and Block spam calls by requiring that all incoming calls are authorized and authenticated by H.323
SIP proxy support gatekeeper or SIP proxy.

Management and monitoring

Web GUI An intuitive web-based interface allows quick and convenient configuration in addition to
management through Dell SonicWALL Global Management System (GMS

®

), or the CLI.

SNMP SNMP provides the ability to protectively monitor and respond to threats and alerts.

Netflow/IPFIX Export an extended set of data through IPFIX or NetFlow protocols for granular insight into
application trac, bandwidth utilization and security threats in addition to powerful troubleshooting
and forensics capabilities. Compatible with Dell SonicWALL Scrutinizer and third-party
monitoring and reporting applications. (TZ 215 only)

Centralized policy With Dell SonicWALL GMS, monitor, configure and report on multiple Dell SonicWALL appliances
from management a single intuitive interface and customize your security environment to suit your individual policies.

Application intelligence and control

Application control Identify and control applications or individual components of an application based on RFDPI
technology instead of relying on well-known ports and protocols.

Application bandwidth Allocate bandwidth to critical applications while throttling unproductive application trac for an
management ecient and productive network.

Custom application Create and configure custom application identification based on trac parameters or on patterns
identification unique to an application in its network communications.

Application trac Provides organizations with granular insight into application trac, bandwidth utilization and
analytics security in addition to powerful troubleshooting and forensics capabilities. (TZ 215 only)

Application signature A continuously expanding database of over 3,500 application signatures ensures that
database administrators are able to control the usage of all the latest applications on their network at a
category or individual level.

User activity tracking User identification is seamlessly integrated with Microsoft

®

Active Directory and other

authentication systems enabling tracking and reporting of individual user identification.

GeoIP country Identify and control network trac going to or coming from specific countries. (TZ 215 only)
trac identification

Firewall and networking

Firewall

• Reassembly-Free Deep Packet

Inspection

• Stateful packet inspection

• DOS attack protection

• TCP reassembly

• Stealth mode

Application control

• Application control

• Application component blocking

• Application bandwidth management

• Custom application signature

creation

• AppFlow visualization

• Data leakage prevention

• IPFIX with extensions reporting

• User activity tracking

• GeoIP country trac identification

• Comprehensive application signature

database

Intrusion prevention

• Signature-based scanning

• Automatic signature updates

• Outbound threat prevention

• IPS exclusion list

• Hyperlinked log messages

• Unified CFS and app control with
bandwidth throttling

Anti-malware

• Stream-based malware scanning

• Gateway anti-virus

• Gateway anti-spyware

• Cloud Anti-Virus Service

VoIP

• Advanced QoS

• Bandwidth management

• DPI of VoIP trac

• Full Interoperability

• H.323 gatekeeper and SIP proxy

support

Networking

• Dynamic routing

• Policy-based routing

• Advanced NAT

• DHCP server

• Bandwidth management

• Link aggregation

• Port redundancy

• High availability

• IPv6 ready

• Load balancing

Management and monitoring

• Web GUI

• Command line interface

• SNMP

• Analyzer reporting

• Scrutinizer reporting

• GMS policy management and
reporting

• Logging

• Netflow/IPFix

• App visualization

• Centralized policy management

• Single sign-on

• Terminal service/Citrix support

Security services

• Intrusion Prevention Service

• Gateway Anti-Malware Service

• Content Filtering Service

• Enforced Client Anti-Virus and

Anti-Spyware Service – McAfee

®

• Application Intelligence, Control

and Visualization Service

7

Specifications

Mobile

Connect

Copyright 2012 Dell Inc. All rights reserved. Dell SonicWALL is a trademark of Dell Inc. and all other Dell SonicWALL product and service
names and slogans are trademarks of Dell Inc. Other product and company names mentioned herein may be trademarks and/or registered
trademarks of their respective owners. 03/13 DSNWL 0441

Firewall

TZ 105 Series

TZ 205 Series TZ 215 Series

SonicOS ve rsion SonicOS 5 .8.1 and later

Stateful throughput1 200 Mbps 500 Mbps 500 Mbps

IPS throughput2 60 Mbps 80 Mbps 110 Mbps

GAV throughput2 40 Mbps 60 Mbps 70 M bps

UTM throughput2 25 Mbps 4 0 Mbps 60 Mbps

Maximum connections3 8,000 12,000 48,000

Maximum UTM/DPI connections 8,000 12,000 32,000

New connec tions/sec 1,0 00 1,500 1,800

Nodes supportedA Unrestricted

Denial of se rvice attack pro tection 22 classes o f DoS, DDoS and scan ning attacks

SonicPoi nts supported 1 2 16

VPN

3DES/AES throughput

4

75 Mb ps 100 Mbps 130 Mbps

Site-to-site VPN t unnels 5 10 20

Bundled GVC l icenses (maximum ) 0 (5) 2 (10) 2 (25)

Bundled SS L VPN licenses (maxi mum) 1 (5) 1 (10) 2 (10)

Encrypti on/Authenticatio n/DH Group DES, 3D ES, AES (128, 142, 2 56-bit), MD5, SHA-1/ DH Group 1, 2, 5, 14

Virtual assist bundled (maximum) — 1 (30-day trial) 2 (30-day trial)

Key exchange IKE, Manual Key, Cer tificates (X. 509), L2TP over IPS ec

Certific ate support Verisign, Thawte , Cybertrust, RS A Keon, Entrust and M icrosoft CA for Del l SonicWALL-to-Dell SonicWA LL VPN, SCEP

VPN features Dead Peer Detect ion, DHCP Over VPN , IPSec NAT Traversal, Re dundant VPN Gateway, Ro ute-based VPN

Global VP N client platforms s upported Microsof t® Windows XP, Vist a 32/64-bit, Wind ows 7 32/64-bit

SSL VPN plat forms Microsoft Win dows XP/Vista 32/6 4-bit/Windo ws 7, Mac OSX 10.4+, Linux FC3+/Ubunt u 7+/OpenSUS E

Mobile Connect platform supported Apple® iOS 4.2 or hi gher, Google® Android™ 4 .0 or higher

Security services

Deep Packet I nspection ser vices Gateway Anti-Virus, An ti-Spyware, Intru sion Prevention, A pplication Intel ligence and Contro l (TZ 215 only)

Content Filte ring Service (CFS ) HTTP URL , HTTPS IP, keyword a nd content scanning , ActiveX, Java A pplet, and cookie b locking
bandwidth management on filtering categories, allow/forbid lists

Enforced Clie nt Anti-Virus and Ant i-Spyware McAfee

®

Comprehensive Anti-Spam Service6 Supported

Applicat ion Intelligence a nd Control Applic ation control Application Trac Vi sualization and
Advanced Application Control

Networking

IP address a ssignment Stati c, (DHCP, PPPoE, L2TP a nd PPTP client), Inte rnal DHCP serve r, DHCP relay

NAT modes 1:1, 1:many, ma ny:1, many:many, flexib le NAT (overlapping IP s), PAT, transpare nt mode

VLANS 5, PortShield 10, PortSh ield 20, PortSh ield

DHCP Inte rnal server, relay

Routing OSPF, RIP v1/v2, stat ic routes, policy-b ased routing, mul ticast

Authentic ation XAUTH/R ADIUS, Active D irectory, SSO, LDAP, Novell , internal user data base, Terminal Ser vices, Citrix

Local user d atabase 1 50 users

VoIP Full H.323v1-5, SIP, gatekee per support, o utbound bandwi dth management , VoIP over WLAN,
de ep inspection se curity, full interop erability with m ost VoIP gateway and comm unications devi ces

System

Zone securi ty Yes

Schedule s Yes

Object-based/group-based management Yes

DDNS Dynamic DNS providers include: dyndns.org, yi.org, no-ip.com and changeip.com

Managem ent and monitoring Lo cal CLI, Web GUI (HT TP, HTTPS), SNMP v2; G lobal managem ent with Dell Soni cWALL GMS

Logging an d reporting Analyzer, Scr utinizer, GMS, Local Lo g, Syslog, Soler a Networks, NetFl ow v5/v9 (TZ 215 ), IPFIX
with Extensions (TZ 215), Real-time Visualization (TZ 215 only)

Hardware failover — Active/Passive Active/Passive

Anti-spam RBL support, A llowed/Blocked Lis ts, Optional De ll SonicWALL Compr ehensive Anti-Spa m Service

6

Load balancing Yes, Outgoing and Incoming

Standard s TCP/IP, UDP, ICMP, HTTP, HTT PS, IPSec, ISA KMP/IKE, SNMP, DHCP, PPPoE, L2 TP, PPTP, RADIUS, IEEE 802 .3

WAN acceleration support

7

Yes, with Dell S onicWALL WXA app liances

Built-in wirel ess LAN

Standard s 8 02.11b/g/n 802.11 a/b/g/n (3x3) 802.11a /b/g/n (3x3)

Wireless se curity standa rds (WEP, WPA, WPA2, 80 2.11i, TKIP, PSK, 02.1x, EAP-PE AP, EAP-TTLS)

Virtual A ccess Points (VAPs) Up to 8

Antennas Double: detachable, external Triple: 2 external detachable, 1 internal Triple: detachable, external

Radio powe r–802.11b/802.1 1g/802.11n 18 dBm max/18 dBm @ 6Mbps, 15.5 dBm ma x/18 dBm max/17 dB M @ 6 Mbps, 13 dBM @ 54 Mb ps
15 dBm @ 54M bps

Radio powe r–802.11a/802. 11b/802.11g/802 .11n — 15.5 dBm max/18 d Bm max/17 dBM @ 6 Mbps , 13 dBM @ 54 Mbps

Radio powe r–802.11n (2.4GH z)/802.11n (5.0G Hz) 1 9 dBm MCS 0, 12 dBm MC S 15 19 dBm MCS 0, 1 1 dBm MCS 15/17 dBm MC S 0, 12 dBm MCS 15

Radio recei ve sensitivity– -90 dBm @ 11Mb ps/-91 dBm @ 6 Mbps , -95 dB m MCS 0, -81 dBm MCS 15/-90 dB m @ 11Mbps/

802.11 a/802.11b/802. 11g -74 dBm @54 Mbps -91 dBm @ 6Mbps, -74 dBm @ 54 M bps

Radio receive sensitivity– -89 dBm MCS 0, -70 dBm MCS 15 -89 dBm MCS 0, -70 dBm MCS 15/

802.11n ( 2.4GHz)/802.11 n (5.0GHz) -95 d Bm MCS 0, -76 dBm MCS 15

Hardware b uilt-in wireless L AN

Interface s (5) 10/100 f ast ethernet, (5) 10/100/1000 copper gig abit, (7) 10/100/1000 cop per gigabit,
1 USB, 1 console 1 USB, 1 console 2 U SB, 1 console

Processor Single-core Dual-core Dual-core

Flash mem ory/RAM 32 MB/256 MB 32 MB/256 MB 32 MB/512 MB

3G wireless/modem

5

Supported with approved adapters5

USB port s 1 1 2

Power input 100 to 24 0 VAC, 50-60 Hz, 1 A

Max power con sumption 5.2W/7.0W 6.4 W/10.5W 9.0W/12.0W

Total heat dissi pation 1 7.8 BTU/23.7 B TU 21.9 BTU/35 .8 BTU 30.6 BTU/41.4 BTU

Certific ations VPNC, ICS A Firewall 4.1

Certific ations pending EAL4+, FIP S 140-2 Level 2, IPv6 Ph ase 1, IPv6 Phase 2

Form factor a nd dimensions 5.555 x 1.4 2 x 7.48 in 5.555 x 1. 42 x 7.48 in 7.125 x 1.5 x 10. 5 in
(14.1 x 3.6 x 19 cm) (14.1 x 3.6 x 19 cm) (18.1 x 3. 81 x 26.67 cm)

Weight 0.75 lb s/0.34 kg 0 .75 lbs/0.34 kg 1.95 lbs/0.97 kg

0.84 lbs/0. 38 kg 0.84 lbs/0.38 kg 2 .15 lbs/0.97 kg

Major regu latory complian ce FCC Class A , CES Class A, CE , C-Tick, VCCI, Co mpliance MIC, NO M, UL, cUL, TUV/GS , CB, NOM, WEEE, RoHS

Environme nt/humidity 4 0-105° F, 0-40° C/ 5-95% non-con densing

MTBF 2 8 years/15 years

1

Testing Metho dologies: Maximu m performance ba sed on RFC 2544 (for fi rewall). Actual per formance may var y depending on ne twork conditions a nd activated ser vices. 2 UTM/Gateway AV/Anti-Spyware/
IPS throug hput measured usi ng industry sta ndard Spirent WebAv alanche HTT P performance tes t and Ixia test tools . Testing do ne with multiple flow s through multiple p ort pairs. 3 Actual max imum
connecti on counts are lower wh en DPI services ar e enabled. 4 VPN through put measured usin g UDP trac at 1280 by te packet size adherin g to RFC 2544. 5 3G card and mo dem are not include d. See http://
www.sonicwall.com/us/products/cardsupport.html for supported USB devices. 6 The Compre hensive Anti-Spam S ervice suppor ts an unrestric ted number of users b ut is recommended f or 250 users or less .

7

With Dell So nicWALL WXA Ser ies Appliances .

Security Monitoring
Serv ices from D ell
SecureWorks are availab le
for this ap plian ce Serie s.
For more information, visit

www.dell.com/secureworks
