Dell Latitude E6320/E6420 ATG

Setup and Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,
or death.

Front And Back View

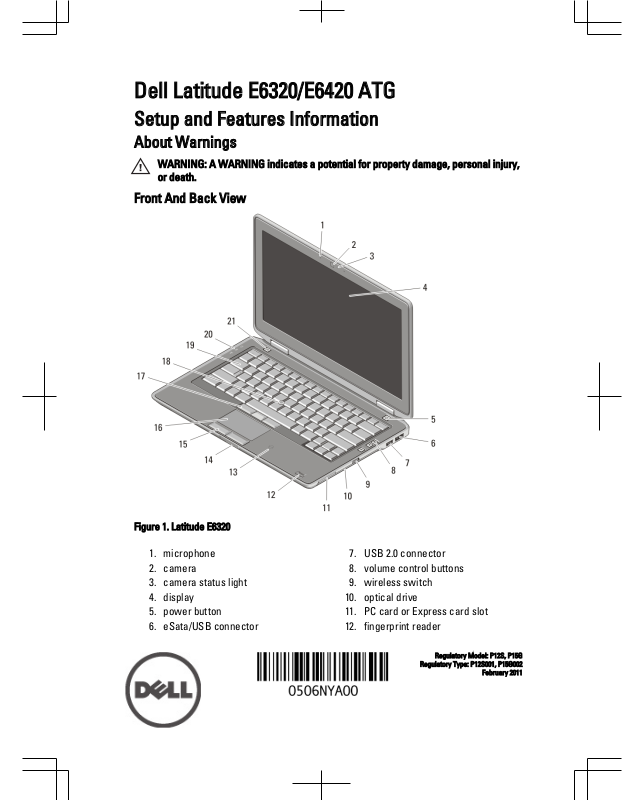

Figure 1. Latitude E6320

1. microphone

2. camera

3. camera status light

4. display

5. power button

6. eSata/USB connector

7. USB 2.0 connector

8. volume control buttons

9. wireless switch

10. optical drive

11. PC card or Express card slot

12. fingerprint reader

Regulatory Model: P12S, P15G

Regulatory Type: P12S001, P15G002

February 2011

13. contactless smart card reader

14. Secure Digital (SD) memory-card
reader

15. touchpad buttons

16. touchpad

17. trackstick buttons

18. trackstick

19. keyboard

20. device status lights

21. Latitude ON button

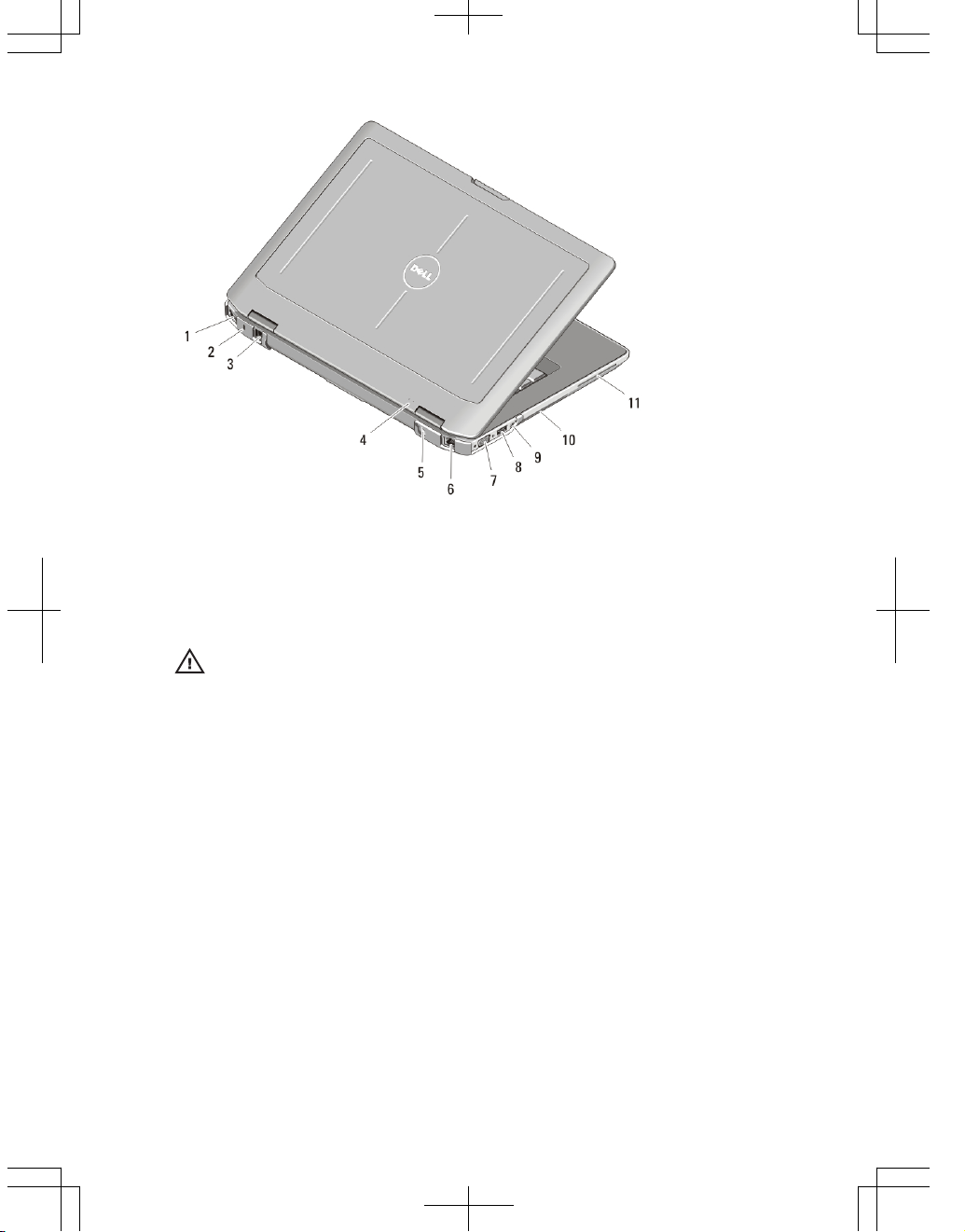

1. network connector

2. mini HDMI connector

3. power and battery status lights

4. security cable slot

5. AC adapter connector

6. video connector (VGA)

7. audio connector

8. cooling vents

9. smart card slot

WARNING: Do not block, push objects into, or allow dust to accumulate in the air
vents. Do not store your Dell computer in a low-airflow environment, such as a
closed briefcase, while it is running. Restricting the airflow can damage the
computer or cause a fire. The computer turns on the fan when the computer gets
hot. Fan noise is normal and does not indicate a problem with the fan or the
computer.

2

Front And Back View

Figure 2. Latitude E6420 ATG

1. microphone

2. display release latch

3. camera

4. camera status light

5. display latch

6. display

7. Latitude ON button

8. power button

9. eSata/USB connector

10. USB 2.0 connectors (2)

11. volume control buttons

12. wireless switch

13. optical drive

14. PC card or Express card slot

15. fingerprint reader

16. Secure Digital (SD) memory-card
reader

17. contactless smart card reader

18. touchpad buttons

19. touchpad

20. trackstick buttons

21. trackstick

22. keyboard

23. device status lights
