Page 1
888-24-232-M-00 rev.A • 01/13
1 / 13
04N8GH
ENGLISH

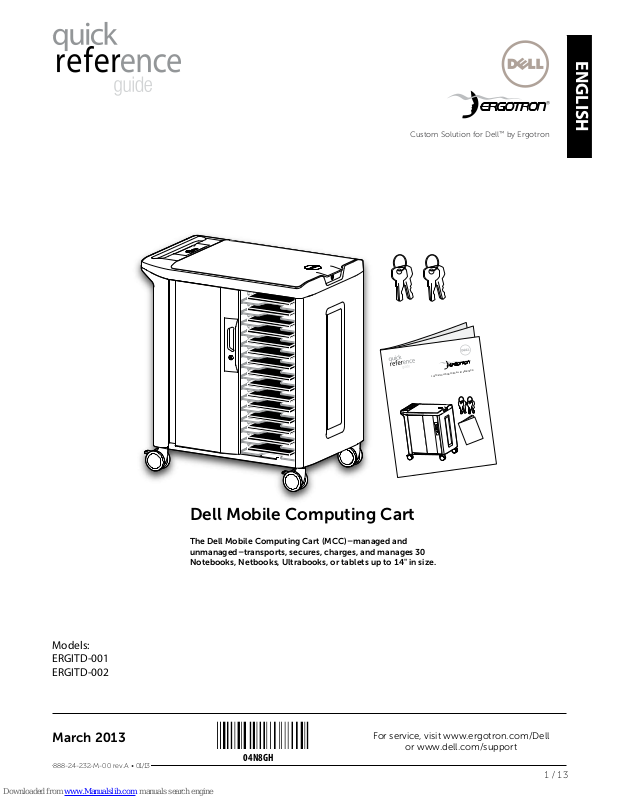

Dell Mobile Computing Cart
For service, visit www.ergotron.com/Dell
or www.dell.com/support
March 2013
The Dell Mobile Computing Cart (MCC)–managed and
unmanaged–transports, secures, charges, and manages 30
Notebooks, Netbooks, Ultrabooks, or tablets up to 14" in size.
Models:
ERGITD-001
ERGITD-002
Custom Solution for Dell™ by Ergotron
CUSTOM SOLUTION FOR DELL BY ERGOTRON
Page 2
888-24-232-M-00 rev.A • 01/13
2 / 13
ENGLISH
Dell Mobile Computing Cart
8
Upper Compartment
9
Locks
10
Power/ Fault Status Indicators
11
Casters
1
Sliding Device Compartment Door
2
Power Adapter Compartment Door
3
Ergonomic Handle
4
Auxiliary Outlets
5
Cooling Fans (Managed Carts Only)
6
Power Management Compartment
7
Cord Wrap Bay
Exterior Features
8
9
10
11
1
2
3
4
5
6
7
Page 3
888-24-232-M-00 rev.A • 01/13
3 / 13
ENGLISH
Dell Mobile Computing Cart
Interior Features
NOTE: Refer to separate product guides for Mobile Devices and optional
Dell PowerConnect™ 3548 Ethernet Switch.
1
Device Shelves
2
Device Outlets
3
Adapter Shelves
4
Optional Outlets (Managed Carts only)
5
Optional Dell PowerConnect 3548 Ethernet Switch (Managed Carts only)
1
5
4
3
2
Page 4
888-24-232-M-00 rev.A • 01/13
4 / 13
ENGLISH
Set-Up and Go
1
Open the power adapter compartment.
2
3
Place power adapters into adapter shelves.
Route adapter connector into
device compartment.
a
a b
a b c
b
c
x 15

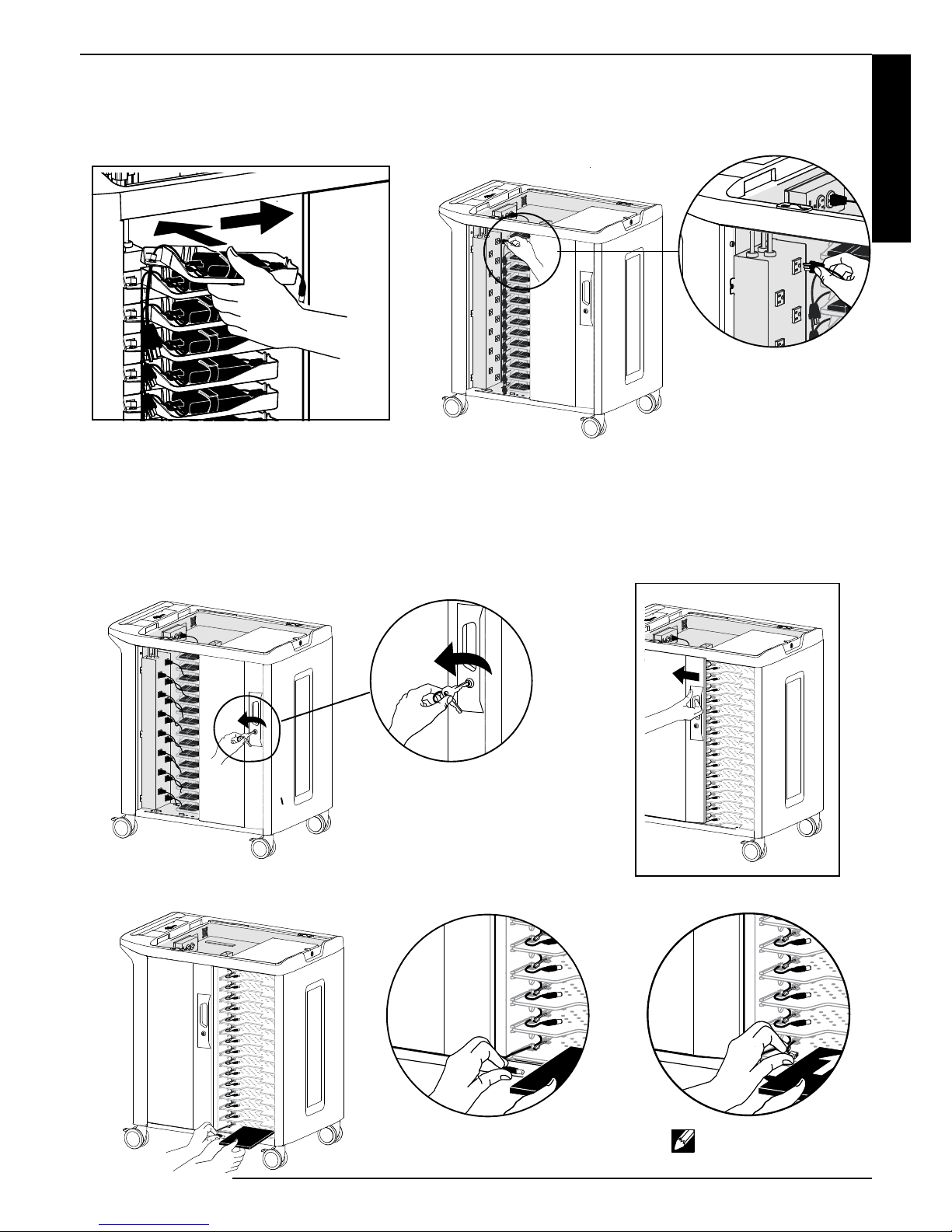

Page 5
888-24-232-M-00 rev.A • 01/13
5 / 13
ENGLISH
4
Plug-in adapters.
5
Insert mobile devices and connect cables.
a
b
c d
a
Managed Carts only
b
Page 6
888-24-232-M-00 rev.A • 01/13
6 / 13
ENGLISH
6

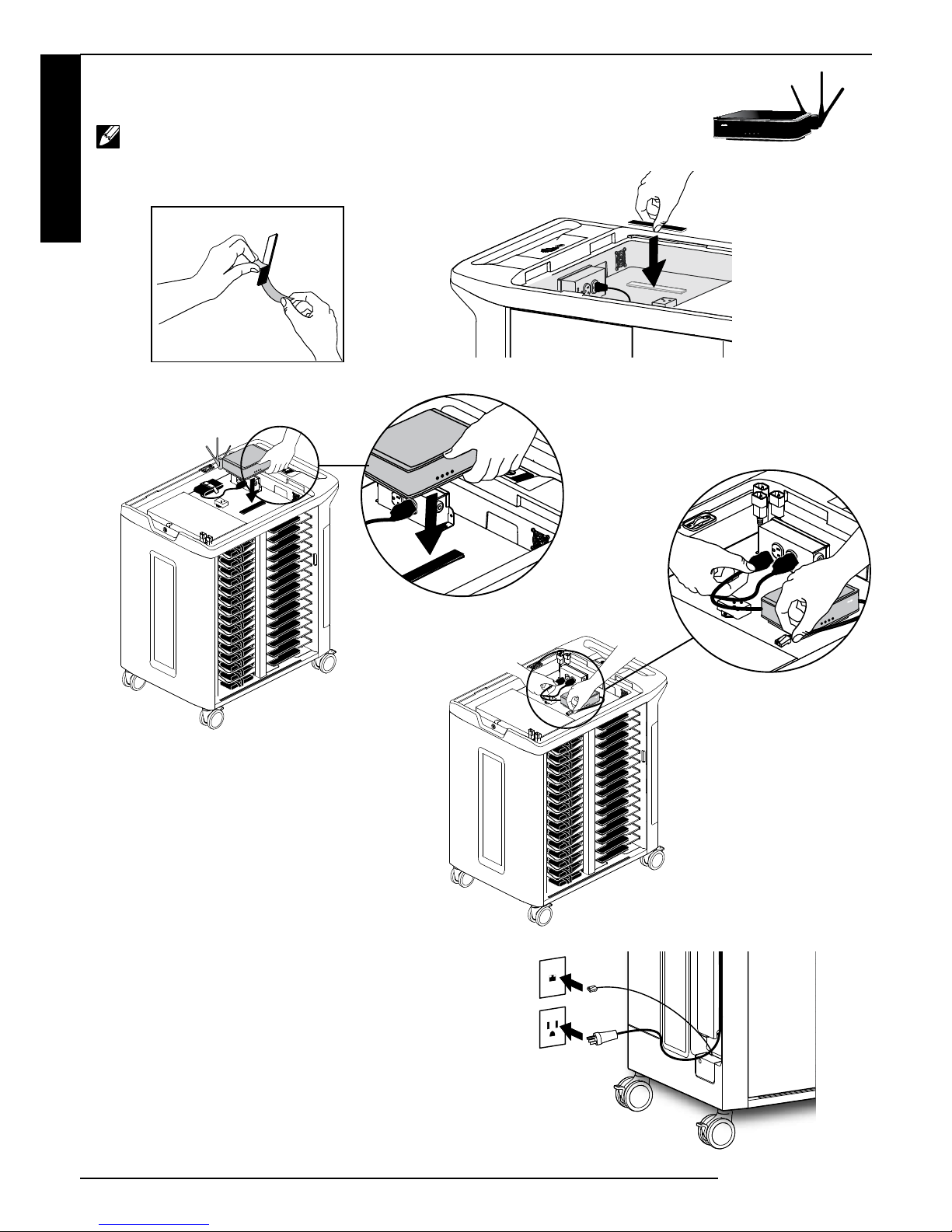

Optional Step for Managed Carts only - Install wireless access point.
a b
c
d
NOTE: For Managed Carts, install optional, customer-supplied WAP using the provided Velcro.
POWER
PoE
WIRELESS
ETHERNET
CISCO
CISCO
CISCO
CISCO
CISCO
CISCO
CISCO
CISCO
CISCO
7
Verify cart operation
Connect the MCC power cable to a dedicated circuit, (one
that is not being shared with other mobile devices).
Verify that the white light on the Power Indicator near the
MCC top surface is lit.
CISCO
Page 7
888-24-232-M-00 rev.A • 01/13
7 / 13
ENGLISH
Monitoring mobile device power
The Power/Fault Status Indicator lights near the MCC top surface communicate the following conditions:
NOTE: Charge status of individual mobile devices can be seen directly on mobile devices.
White light, solid Power "ON"
White light, slow flash Zone is charging
White light, fast flash Zone is scanning
All Flashing Overcurrent. Reset by removing excess devices
on aux outlet. Unplug and re-plug the cart.
Amber light, flashing Maximum temperature has been exceeded *
White light, solid Auxilary outlets in use
* When recommended temperature has been exceeded, power to the mobile
devices is terminated. Charging resumes once the temperature falls within an
acceptable operating range.
Power/Fault Status Indicator Signal Meaning
Zones
First-Time battery charge
NOTE: Before using the mobile devices for the first time
or after they have spent some time in storage, ensure that the
mobile devices have a full (100%) charge.
Prior to first-time use, allow the mobile devices to charge in the MCC for at least - hours before removing them for use.
Notebook Shelf Removal
a. Disconnect the Ethernet cable (Managed carts only).
b. Release the shelf by lifting up on the tab.
c. Pull shelf out.
a b
c
Page 8
888-24-232-M-00 rev.A • 01/13
8 / 13
ENGLISH
Made in China DP/N 020D9K
CN-020D9K-14941-932-0123
Service Tag: ABC1234
Rev X00
Service and Warranty
NOTE: When contacting customer service reference the serial
number located above the external cable management bay.
For service, visit www.ergotron.com/Dell
or www.dell.com/support
Serial Number is
required for warranty
entitlement.
Power System
//V~, A /Hz or //V~, A /Hz
depending on region and model of Dell MCC
MCC Physical Dimensions
Height , mm (.-inches)
Length . mm (-inches)
Width mm (.-inches)
Weight (without Mobile Devices) kg (. lb)
Weight Capacity:
Top Surface . kg ( lb)
Shelves . kg ( lb)
Tip Test/Angle degrees
Optional Ethernet Switch
Dell PowerConnect Ethernet Switch
Environmental
Temperature range:
Operating ° to °C (° to °F)
Storage -° to °C (-° to °F)
Relative humidity (maximum):
Operating %–% (non condensing)
Storage %–% (non condensing)
Altitude (maximum): m (, ft)
Specifications
Operating
-29 °C
-20 °F
60 °C
140 °F
Relative
Humidity
Range
5-95% rH
Storage
0 °C
32 °F
30 °C
86 °F
Relative
Humidity
Range
10-90% rH
Page 9
888-24-232-M-00 rev.A • 01/13
9 / 13
ENGLISH
Product and Safety Alerts
Hazard Symbols Review
Symbol
Signal
Word
Level of Hazard
NOTE
A NOTE indicates important information that helps
you make better use of your MCC.
CAUTION
A CAUTION indicates either potential damage to
hardware or loss of data and tells you how to avoid
the problem.
WARNING
A WARNING indicates either potential for property
damage, personal injury, or death.
Risk of Electric Shock
DANGER!
ELECTRICAL
An ELECTRICAL indicates an impending electrical
hazard which, if not avoided, may result in personal
injury, fire and/or death.
These symbols alert users of a safety
condition that demands attention. All
MCC users should be able to recognize
and understand the significance of the
following Safety Hazards if encountered on
the MCC or within MCC documentation.
Children who are not able to recognize
and respond appropriately to Safety Alerts
should not use the MCC without adult
supervision!
CAUTION: Observe all the safety precautions related
to the Dell MCC operation and maintenance included in this
reference guide! Failure to follow the safety precautions may
result in injury or damage to equipment.
CAUTION: There is no on/o switch on this equipment;
the only power disconnect is the AC power cable.
Therefore, the socket outlet should be easily accessible and
should be installed near the equipment.
There are specific risks associated with the use of equipment having power cables. You must be aware of, and avoid these risks
when the Cart is located in close proximity to children.
Risk of Electric Shock
DANGER!
WARNING: Failure to observe the following Electrical Safety notices can result in fire or death by electric shock.
Risk of Electric Shock
DANGER!
Electrical: Electrical cables can be hazardous. Misuse can result in fire or death by electrical shock.
• Double Pole / Neutral Fusing
• Inspect power cables thoroughly before each use.
• Do not use cables that are damaged.
• Insert the plug completely into the outlet.
• Grasp the plug to remove from the outlet.
• Do not unplug by pulling on the cable.
• Do not use excessive force to make connections.
• Use only Dell power adapters that come with Dell systems with this cart.
• Do not plug the cable into an extension cable.
• Do not remove, bend or modify any metal prongs or pins of cable.
• Do not drive, drag or place objects over the cable.
• Do not walk on the cable.
• Avoid overheating. Uncoil the cable and do not cover it with any material.
• Do not run cable through doorways, holes in ceilings, walls or floors.
Risk of Electric Shock
DANGER!
Electrical: Keep the Cart away from water.
• Do not use it when wet.
• Do not place the Cart in close proximity to flammable liquids or gases.
Equipment Electrical Safety
Risk of Electric Shock
DANGER!
DANGER!
Risk of Electric Shock
DANGER! Electrical calabes can be hazardous.
Misuse can result in fire or death by electrical shock.
DO NOT REMOVE THIS LABEL!
• Inspect Cord Thoroughly Before Each Use. DO NOT USE IF DAMAGED.
• Do Not Plug More Than SPECIFIED NUMBER OF WATTS Into Power System.
• Do Not Run Cord Through Doorways, Holes in Ceilings, Walls or Floors.
• FULLY INSERT Plug Into Outlet.
• Do Not Remove, Bend or Modify Any Metal Prongs or Pins of Cord.
• Do Not Use Excessive Force to Make Connections.
• Keep Away From Water. DO NOT USE WHEN WET.
• Keep Children Away From Cord.
• Do Not Plug Cord into An Extension Cord.
• AVOID OVERHEATING. Uncoil Cord and Do Not Cover It With Any Material.
• Do Not Drive, Drag or Place Objects Over Cord. Do Not Walk On Cord.
• GRASP PLUG to REMOVE FROM Outlet. Do Not Unplug By Pulling On Cord.
Page 10
888-24-232-M-00 rev.A • 01/13
10 / 13
ENGLISH
WARNING: Failure to observe the following safety notices may result in serious personal injury or equipment damage.
Inspect for damage, dirt and debris on a regular basis. All paint and plastic components used in the Cart will withstand cleaning
by most commonly used, diluted, non-abrasive solutions such as quaternary ammonia compounds, ammonia enzyme cleaners,
bleach, or alcohol solutions. It is recommended that any cleaning solution be tested on a small, inconspicuous area to ensure it
does not harm the surface of the Cart.
• Marks from permanent marker, dry-erase marker, and pens can be removed with % isopropyl alcohol and a soft cloth.
• Iodine stains can be removed with commonly used cleaners and a soft cloth.
• Do not use steel wool or other abrasive materials that may damage the surface finish.
Risk of Electric Shock
DANGER!
Electrical: To avoid risk of electric shock, do not expose electrical components to water, cleaning solutions or other
potentially corrosive liquids or substances.
Risk of Electric Shock
DANGER!
Electrical: Do not immerse Cart or Cart components in liquid or allow liquids to flow into the Cart. Wipe all cleaners o
surface immediately using a damp cloth. Dry the surface thoroughly after cleaning.
Risk of Electric Shock
DANGER!
Electrical: Do not use flammable cleaners on Cart surfaces.
CAUTION: Adjustment, Service, Replacement - DO NOT attempt to adjust, service or replace any part of the Cart unless
directed to do so through Ergotron-approved documentation (i.e. installation instructions). Only Ergotron, Inc. or an Ergotron-
certified entity may adjust, service or replace Cart components. If any component on the Cart is missing or damaged, the Cart
must not be used. Contact Ergotron immediately to request a replacement part.
CAUTION: Casters - Check casters periodically to make sure they are clean and free of debris that would prevent smooth
travel. Avoid moving Cart across uneven, dirty, or damaged surfaces.
CAUTION: Customer Equipment- Make sure equipment is balanced and installed securely to Cart. Contact Ergotron for
information about moving Cart components.
Cleaning and Maintenance
CAUTION: Changes or Modifications not expressly approved by Ergotron could void the user’s
authority to operate the equipment.
Page 11
888-24-232-M-00 rev.A • 01/13
11 / 13
ENGLISH
Safe Use Recommendations
There are specific risks associated with the use of Cart when moving or stationary (for charging or storage). You must be aware of,
and avoid these risks when the Cart is located in close proximity to children.
WARNING: Failure to observe the following Cart Use Safety notices may result in serious personal injury or equipment damage.
Only Adults should move this cart.
• Do not allow anyone to sit, stand, or climb on the Cart.
• Do not lift the Cart from the bottom.
• Do not block the fans and vent openings. To prevent overheating, leave at least mm (-inch) clearance around fans and
vents.
The Cart is designed to be used indoors only.
• Do not use the Cart to transport or store equipment other than what has been noted in this guide.
• Do not use the Cart to store liquids or cleaning supplies.
• Do not place heavy objects on the Cart surface or shelf.
– The maximum weight capacity of the top surface is . kg ( lb).
– The maximum weight capacity of the shelf is . kg (. lb).
Moving the Cart
• Before moving the Cart:
. Disconnect the power cable from the wall.
. Make sure the cable is wrapped and secure.
. Close and lock the doors.
. Remove items from the top work surface.
. Unlock the casters.
• Push (do not pull) the Cart for optimum maneuverability and to prevent muscle strain.
• Do not move the Cart across rough, uneven or irregular surfaces such as gravel.
Parking the Cart
Observe these safety alerts for times when the cart is stationary:
• Do not park the Cart in areas of heavy trac.
• Do not run cables through doorways, holes in ceilings, walls, or floors.
• Do not run cables across hallways, classrooms, or other areas where they will be walked on.
• Do not leave Cart unattended in areas where children have access.
• Keep Cart doors closed and locked whenever it is unattended or parked for charging or storage.
• Keep Cart casters locked whenever it is unattended.
Page 12
888-24-232-M-00 rev.A • 01/13
12 / 13
ENGLISH
Safety, Environmental, and Regulatory Information
Recycling Information
Dell recommends that customers dispose of their used
computer hardware, monitors, pr inters, and other peripherals
in an environmentally sound man ner. Potential methods
include reuse of parts or whole products and recycling of
.slairetam ro /dna ,stnenopmoc ,stcudorp
For specific information on Dell’s worldwide recycling
programs, see ediwdlrowgnilcycer /moc .lled .www .
Regulatory Notices
For Electromagnetic Compati bility (EMC), regulatory information and
Safety Best Practices information, see the Regulatory Compliance
home page on moc .lled .www at the following location:
ecnailpmoc _yrotaluger /moc .lled .www
Dell has determined that this product is a Class A
harmonized product.
Safety, Environmental, and Regulatory Information
Recycling Information
Dell recommends that customers dispose of their used
computer hardware, monitors, printers, and other peripherals
in an environmentally sound manner. Potential methods
include reuse of parts or whole products and recycling of
products, components, and/ or materials.
For specific information on Dell’s worldwide recycling
programs, see www. dell. com/ recyclingworldwide.
Regulatory Notices
For Electromagnetic Compatibility (EMC), regulatory information and
Safety Best Practices information, see the Regulatory Compliance
home page on www. dell. com at the following location:
www. dell. com/ regulatory_ compliance.
Dell has determined that this product is a Class B
harmonized product.
Waste Electrical and Electronic Equipment
(WEEE) Directive
In the European Union, this label indicates
that this product should not be disposed of
with household waste. It should be deposited
at an appropriate facility to enable recovery
and recycling. For information on how to
recycle this product in your country, please
visit: www. euro. dell. com/ recycling.
Директива за изхвърляне на електрическо
и електронно оборудване (WEEE)
В Европейския съюз този етикет означава,
че този продукт не бива да се изхвърля
заедно с домакинските отпадъци. Той трябва
да бъде изхвърлен на подходящо място,
за да се позволи възстановяването или
рециклирането му. За информация относно
отговорността за рециклиране на този
продукт във вашата страна, моляпосетете:
www. euro. dell. com/ recycling.
Směrnice WEEE (Waste Electrical and
Electronic Equipment)
Tento štítek označuje v Evropské unii, že tento
produkt nesmí být likvidován s domovním
odpadem. Musí být předán specializované
sběrně pro recyklaci a další využití. Pokyny
o recyklaci tohoto produktu ve vaší zemi viz:
www. euro. dell. com/ recycling.
Direktiv for bortskaffelse af elektrisk og
elektronisk udstyr (WEEE)
I den Europæiske Union indikerer denne etiket,
at dette produkt ikke bør kasseres sammen
med husholdningsaffald. Det bør bortskaffes
ved en egnet facilitet for at muliggøre
genbrug. For information om hvordan dette
produkt genbruges i dit land, bedes du gå til:
www. euro. dell. com/ recycling.
Richtlijn WEEE, Waste Electrical and
Electronic Equipment (afdanken van
elektrische en elektronische apparaten)
In de Europese Unie geeft dit label aan
dat dit product niet via huishoudelijk
afval mag worden afgedankt. Het moet
gedeponeerd worden bij een daarvoor
geschikte voorziening zodat herstel en
recycling mogelijk zijn. Raadpleeg voor meer
informatie over verantwoorde recycling
van dit product in uw land de website
www. euro. dell. com/ recycling.
Elektriliste ja elektrooniliste seadmete
kasutusjärgne töötlemine (direktiiv WEEE)
Euroopa Liidu riikides tähistab selline
silt toodet, mida ei tohi kasutusjärgselt
olmejäätmete hulka visata. Taoline toode
tuleb viia jäätmekäitlusettevõttesse, kus seda
nõuetekohaselt töödeldakse. Toote käitlemise
kohta oma kodumaal leiate teavet aadressilt
www. euro. dell. com/ recycling.
Direktiivi sähkö- ja elektroniikkalaiteromusta
(WEEE)
Euroopan unionissa tämä tarra tarkoittaa,
että tuotetta ei tule hävittää kotitalousjätteen
joukossa. Se tulee toimittaa asianmukaiseen
paikkaan uudelleenkäyttöä tai kierrätystä
varten. Tietoja tämän tuotteen kierrättämisestä
eri maissa saat seuraavasta osoitteesta:
www. euro. dell. com/ recycling.
Directive sur la mise au rebut des appareils
électriques et électroniques (Waste
Electrical and Electronic Equipment - WEEE)
En Union européenne, cette étiquette
indique que ce produit ne doit pas être
jeté avec les déchets ménagers. Il doit
être mis au rebut dans un centre de dépôt
spécialisé pour un recyclage approprié.
Pour obtenir davantage d’informations sur
le recyclage approprié de ce produit dans
votre pays, veuillez vous rendre sur le site :
www. euro. dell. com/ recycling.
Richtlinine für Abfall von elektrischen und
elektronischen Geräten (WEEE)
In der Europäischen Union wird mit
diesem Etikett darauf hingewiesen, dass
dieses Produkt nicht mit dem Hausmüll
entsorgt werden sollte. Es sollte an einer
entsprechenden Einrichtung abgegeben
werden, um Wiedergewinnung und Recycling
zu ermöglichen. Weitere Informationen über
das Recyceln dieses Produkts erhalten Sie
unter: www. euro. dell. com/ recycling.
Οδηγία σχετικά με τα απόβλητα ειδών
ηλεκτρικού και ηλεκτρονικού εξοπλισμού (ΑΗΗΕ)
Στην Ευρωπαϊκή Ένωση, αυτή η ετικέτα υποδεικνύει
ότι αυτό το προϊόν δεν πρέπει να απορρίπτεται
μαζί με τα οικιακά απορρίμματα. Θα πρέπει
να αποκομίζεται σε κατάλληλο χώρο ώστε να
είναι δυνατή η ανάκτηση και η ανακύκλωση. Για
πληροφορίες σχετικά με την ανακύκλωση αυτού
του προϊόντος στη χώρα σας, επισκεφθείτε τη
διεύθυνση: www. euro. dell. com/ recycling.
Waste Electrical and Electronic Equipment
(WEEE), azaz az elektromos és elektronikus
berendezések hulladékaira vonatkozó irányelv
Az Európai Unióban az ilyen címkével jelölt
terméket tilos háztartási hulladékként kezelni.
Az ilyen hulladékot a helyreállíthatóság és az
újrahasznosíthatóság érdekében a megfelelő
elfogadóhelyre kell szállítani. A termék saját
országán belül érvényes újrahasznosításával
kapcsolatban információt a következő weboldalon
talál: www. euro. dell. com/ recycling.
Direttiva Rifiuti di apparecchiature
elettriche ed elettroniche (RAEE)
Nell’Unione Europea, questa etichetta indica
che questo prodotto non deve essere smaltito
insieme ai rifiuti domestici. Deve essere
depositato in un impianto adeguato che sia
in grado di eseguire operazioni di recupero e
riciclaggio. Per informazioni sulle procedure di
riciclaggio di questo prodotto nel proprio Paese,
visitare: www. euro. dell. com/ recycling.
Direktīva par elektriskajiem un
elektroniskajiem atkritumiem
Eiropas Savienībā šis apzīmējums norāda,
ka produktu nedrīkst izmest kopā ar sadzīves
atkritumiem. Tas ir jānodod atbilstošā
savākšanas punktā, lai pareizi atjaunotu
vai pārstrādātu. Informāciju par šī produkta
pārstrādes iespējām jūsu valstī skatiet:
www. euro. dell. com/ recycling.
Direktyva dėl elektros ir elektroninės įrangos
atliekų (Waste Electrical and Electronic
Equipment, WEEE)
Šis ženklas rodo, kad Europos Sąjungoje šio
gaminio negalima išmesti kartu su buitinėmis
atliekomis. Nebenaudojamą gaminį reikia
atiduoti į tam skirtą punktą atnaujinti arba
perdirbti. Informacijos apie tinkamą šio gaminio
perdirbimą jūsų šalyje rasite interneto svetainėje:
www. euro. dell. com/ recycling.
Direttiva dwar Skart magħmul minn Tagħmir
Elettroniku u Elettriku (Waste Electrical and
Electronic Equipment - WEEE)
Fl-Unjoni Ewropea, din it-tikketta tindika li dan
il-prodott m’għandux jintrema ma’ l-iskart domestiku.
Għandu jintrema f’faċilità adattata fejn ikun jista’
jiġi rkuprat u riċiklat. Għal aktar tagħrif dwar kif
għandek tirriċikla dan il-prodott fil-pajjiż tiegħek, jekk
jogħġbok żur: www. euro. dell. com/ recycling.
Direktivet for kassert elektrisk og
elektronisk utstyr (WEEE)
I den Europeiske Unionen angir dette
merket at produktet ikke skal kastes
sammen med husholdningsavfall. Det
skal leveres til et mottak for spesialavfall
for gjenvinning og resirkulering. For
informasjon om hvordan du resirkulerer
dette produktet i ditt land, vennligst besøk:
www. euro. dell. com/ recycling.
Dyrektywa dotycząca odpadów urządzeń
elektrycznych i elektronicznych (WEEE)
W Unii Europejskiej etykieta ta oznacza, że
tego produktu nie należy wyrzucać razem
z odpadami z gospodarstwa domowego.
Należy go przekazać do odpowiedniego
zakładu, gdzie zostanie poddany odzyskowi
i recyklingowi. Informacje o sposobie
recyklingu tego produktu w poszczególnych
krajach można znaleźć pod adresem:
www. euro. dell. com/ recycling.
Directiva WEEE (Waste Electrical and Electronic
Equipment)
Na União Europeia, esta etiqueta indica que
esse produto não deve ser eliminado juntamente
com o lixo normal. Deve ser depositado numa
instalação apropriada para recolha e reciclagem.
Para obter informações sobre como reciclar este
produto de forma responsável no seu país, visite:
www. euro. dell. com/ recycling.
Directiva privind deşeurile provenite din
echipamentele electrice şi electronice
(WEEE)
În Uniunea Europeană, această etichetă indică
faptul că acest produs nu trebuie aruncat
laolată cu gunoiul menajer. El trebuie depozitat
într-un loc special amenajat pentru a permite
recuperarea şi reciclarea. Pentru informaţii
privitoare la reciclarea în mod reponsabil
a acestui produs în ţara dvs., vizitaţi:
www. euro. dell. com/ recycling.
Директива об утилизации электрического
и электронного оборудования (WEEE)
В Европейском союзе эта маркировка
означает, что данный продукт не следует
утилизировать вместе с бытовым
мусором. Продукт следует утилизировать
на специализированном предприятии,
чтобы в дальнейшем его можно
было переработать. Информацию о
правилах утилизации изделия в вашей
стране можно получить на веб узле:
www. euro. dell. com/ recycling.
Smernica o odpadoch z elektrických a
elektronických zariadení (WEEE)
V Európskej únii tento štítok znamená, že sa
výrobok nesmie likvidovať ako komunálny
odpad. Musí sa odovzdať na príslušnom
mieste na obnovu alebo recykláciu.
Informácie o správnej recyklácii tohto
produktu vo vašej krajine nájdete na stránke:
www. euro. dell. com/ recycling.
Direktiva o odlaganju električne in
elektronske opreme (WEEE)
V Evropski uniji ta znak označuje, da izdelek
ni primeren za odlaganje skupaj z običajnimi
gospodinjskimi odpadki. Odložiti ga je treba na
ustreznem mestu za odlaganje in reciklažo. Za
informacije o reciklaži tega izdelka v vaši državi
obiščite: www. euro. dell. com/ recycling.
Residuos de Aparatos Eléctricos y
Electrónicos (RAEE)
Direktiv för kassering av elektrisk och
elektronisk utrustning (WEEE - Waste
Electrical and Electronic Equipment)
Inom EU betyder den här etiketten att
produkten inte får slängas i hushållsavfallet.
Den ska lämnas in på en återvinningsstation.
Information om hur produkten
återvinns i ditt land finns på adressen
www. euro. dell. com/ recycling.
Waste Electrical and Electronic Equipment
(WEEE) Yönergeleri
Avrupa Birliği’nde bu etiket, ürünün
ev elektroniği aletleri atklar ile imha
edilemeyeceğini gösterir. Kurtarmak ve
geri dönüşümünü sağlamak için uygun
şartlarda saklanmas gerekir. Bu ürünün geri
döşünümünün nasl sağlanacağ konusunda
bilgi için lütfen şu adresi ziyaret edin:
www. euro. dell. com/ recycling.
EEE Yönetmeliğine Uygundur Ve
Elektronik Eşyalarda Bazi Zararli
Maddelerin Kullaniminin Sinirlandirilmasina
Dair Yönetmelik.
En la Unión Europea, esta etiqueta indica que
la eliminación de este producto no se puede
hacer junto con el deshecho doméstico. Se
debe depositar en una instalación apropiada
que facilite la recuperación y el reciclado. Para
obtener más información sobre cómo reciclar
este producto en su país, visite el sitio web:
www. euro. dell. com/ recycling.
Україна RoHS
України ТЕХНІЧНИЙ РЕГЛАМЕНТ обмеження використання
деяких небезпечних речовин в електричному та
електронному обладнанні (від 3 грудня 2008 р. N 1057):
Обладнання відповідає вимогам Технічного регламенту
обмеження використання деяких небезпечних речовин в
електричному та електронному обладнанні
Page 13
888-24-232-M-00 rev.A • 01/13
13 / 13
ENGLISH
FCC Compliance Statement
This MCC has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used according to the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at their own expense.
Operation of this equipment is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Changes or Modifications not expressly approved by Ergotron could void the user’s authority to operate the equipment.
This Class A digital apparatus complies with Canadian CAN ICES-3(A)/NMB-3(A). / Cet appareil numérique de la classe A est conforme à la norme CAN ICES-3(A)/NMB-3(A) du
Canada.
Safety, Environmental, and Regulatory Information
CUSTOM SOLUTION FOR DELL BY ERGOTRON
For service, visit www.ergotron.com/Dell
or www.dell.com/support
Warranty
years for mechanical components and functions
and year for electrical components and functions.
All third-party components (AC Power Adapter and
optional Ethernet Switch) will follow the warranty as
defined by the manufacturer.
Recycling Information
Dell recommends that customers disp ose of their used
computer hardware, monitors, pr inters, and other peripherals
in an environmentally sound man ner. Potential methods
include reuse of parts or whole products and recycling of
.slairetam ro /dna ,stnenopmoc ,stcudorp
For specific information on Dell’s worldwide recycling
programs, see ediwdlrowgnilcycer /moc .lled .www .
.
Regulatory Notices
For Electromagnetic Compatib ility (EMC), regulatory information and
Safety Best Practices information, see the Regulatory Compliance
home page on moc .lled .www at the following location:
ecnailpmoc _yrotaluger /moc .lled .www
Dell has determined that this product is a Class A
harmonized product.
Waste Electrical and Electronic Equipment
(WEEE) Directive
In the European Union, this label indicates
that this product should n ot be disposed of
with household waste. It should be d eposited
at an appropriate facility to en able recovery
and recycling. For information on ho w to
recycle this product in your co untry, please
visit: gnilcycer /moc .lled .orue .www .
Richtlijn WEEE, Waste Electrical and
Electronic Equipment (afdanken van
elektrische en elektronische apparaten)
In de Europese Unie ge eft dit label aan
dat dit
product niet via huishoudelijk
afval mag worden afgedankt. Het moet
gedeponeerd worden bij een d aarvoor
geschikte voorziening zodat herstel e n
recycling mogelijk zijn. Raadpleeg voor mee r
informatie over verantwoorde rec ycling
van dit product in uw land de website
gnilcycer /moc .lled .orue .www .
Richtlinine für Abfall von elektrischen und
elektronischen Geräten (WEEE)
In der Europäischen Union wird mit
diesem Etikett darauf hinge wiesen, dass
dieses Produkt nicht mit dem Hausmül l
entsorgt werden sollte. Es sollte an ei ner
entsprechenden Einrichtung abgegeben
werden, um Wiedergewinnung und Recycling
zu ermöglichen. Weitere Information en über
das Recyceln dieses Produkts er halten Sie
unter: gnilcy
cer /moc .lled .orue .www .
Registration, Evaluation, Authorization of
Chemicals (REACH)
REACH is the Europe an Union (EU) chemical substances
regulatory framework. Information o n substances of very
high concern contained in Dell prod ucts in a concentration
ta dnuof eb nac )w /w( thgiew yb thgiew % 1.0 evoba
HCAER /moc .lled .www .
Residuos de Aparatos Eléctricos y
Electrónicos (RAEE)
En la Unión Europea, esta etiqueta indica que
la eliminación de este p roducto no se puede
hacer junto con el deshecho doméstico. Se
debe depositar en una instalación apropiada
que facilite la recuperación y el reciclado. Para
obtener más información sobre cómo reciclar
este producto en su país, visite el siti o web:
gnilcycer /moc .lled .orue .www .
Directive sur la mise au rebut des appareils
électriques et électroniques (Waste
Electrical and Electronic Equipment - WEEE)
En Union européenne, cette étiquette
indique que ce produit ne doit pas être
jeté avec les déchets ménagers. Il doit
être mis au rebut dans un centre de
dépôt
spécialisé pour un recyclage approprié.
Pour obtenir davantage d’informations sur
le recyclage approprié de ce produit dans
votre pays, veuillez vous rendre sur le site :
gnilcycer /moc .lled .orue .www .
Directiva WEEE (Waste Electrical and Electronic
Equipment)
Na União Europeia, esta etiqueta indi ca que
esse produto não deve ser eliminado juntament e
com o lixo normal. Deve ser depositado numa
instalação apropriada para recolha e recic lagem.
Para obter informações sobre como reciclar e ste
produto de forma responsável no seu país, visite:
gnilcycer /moc .lled .orue .www .
Registration, Evaluation, Authorization of
Chemicals (REACH)
REACH is het regelgevingskader van de Europese Unie (EU)
op het gebied van chemische stoen . Informatie over zeer
gevaarlijke stoen in Dell-producten in een concentratie van
boven de 0,1 % gewicht per gewicht (w/ w) is te vinden op
www.dell.com/REACH.
Registrierung, Beurteilung und Zulassung
von Chemikalien (REACH, Registration,
Evaluation, Authorization of Chemicals)
Die EU-Richtlinie REACH ist das Regelwerk der Europäischen
Union für chemische Substanzen. Informationen zu bedenklichen
Substanzen, die in Dell-Produkten in einer Konzentration von
netlahtne )hgieW yb thgieW ,w /w( tnezorpsthciweG 1,0 sla rhem
sind, finden Sie unter HCAER /moc .lled .www .
Enregistrement, évaluation, autorisation des
produits chimiques (REACH)
REACH est le programme de r églementation des produits
chimiques dans l’Union européenne (UE). Vous trouverez
des informations sur les substances très préoccupantes que
contiennent les produits Dell en concentration supérieure à 0,1 %
rus )m /m( sdiop ne HCAER /moc .lled .www .
Registro, evaluación y autorización de
productos químicos (Registration, Evaluation,
Authorization of Chemicals - REACH)
REACH es el organismo de regulación de sustancias químicas
de la Unión Europea (UE). La infor mación sobre sustancias de
alto riesgo contenidas en pr oductos Dell en una concentración
superior al 0,1% peso por peso (p/p) se puede encontrar en
www.dell.com/REACH.
REACH (Registration, Evaluation, Authorization
of Chemicals - Registo, avaliação e autorização
de substâncias químicas)
O REACH é o sistema regulador de substâncias químicas da
União Europeia (UE). As informaç
ões sobre substâncias que são
motivo de grande preocupação existentes nos produtos Dell numa
concentração acima de 0,1 % peso por peso (p/p) podem ser
encontradas em www.dell.com/REACH.
中国大陆 RoHS
根据中国大陆《电子信息产品污染控制管理办法》（也称为中国大陆 RoHS）,以下部分列出了产品中可能包含
的 有毒和/或有害物质的名称和含量。
O /I LLED 设备（键盘，鼠标等）
EIP（RMSD，介质，电源设备及所有其他电子信息产品）
部件名称
有毒或有害物质及元素
铅（Pb） 汞（Hg） 镉（Cd）
六价铬
（Cr VI）
多溴联苯
（PBB）
多溴联苯醚
（PBDE）
EIP x o o o o o
介质/软件 x o o o o o
*印刷电路部件包括所有印刷电路板 (PCB)及其各自的离散组件、 IC 及连接器。
“〇”表明该部件所含有毒和有害物质含量低于 MCV 标准 定义的阈值。
“X”表明该部件所含有毒和有害物质含量高于 MCV 标准
(SJ/T11363-2006)
(SJ/T11363-2006)
定义的阈值。所有显示 X 的情
况，是按照欧 盟RoHS 采用了容许的豁免指标。
在中国大陆销售的相应电子信息产品 (EIP) 都必须遵照中国大陆《电子信息产品污染控制标识要求》标准
贴上环保使用期限 (EPUP) 标签。该产品所采用的 EPUP 标签是基于中国大陆的《电子信
息产品环保使用期限通则》标准。
(SJ/T11363-2006)
Loading...
