User‘s Guide

Dell E1916HV Dell E1916HL Dell E2016HV Dell E2016HL Dell E2216HV Dell E2216HVM

Regulatory model: E1916HVf / E2016HVf / E2216HVf

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice. Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™ and the DELL logo are trademarks of Dell Inc.; Microsoft®, Windows®, and the Windows start button logo are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. DellInc. disclaims any proprietary interest in trademarks and trade names other than its own.

2016 – 7 Rev. A04

Contents

About Your Monitor ..................................... 5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Identifying Parts and Controls. . . . . . . . . . . . . . . . . . . . . . . . . 7

Monitor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Plug and Play Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

LCD Monitor Quality & Pixel Policy . . . . . . . . . . . . . . . . . . . . . 18

Maintenance Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Setting Up the Monitor.................................. 19

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Connecting Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Organizing Your Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Removing the Monitor Stand . . . . . . . . . . . . . . . . . . . . . . . . 21

Wall Mounting (Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Operating the Monitor .................................. 23

Power On the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the Front-Panel Controls . . . . . . . . . . . . . . . . . . . . . . . 23

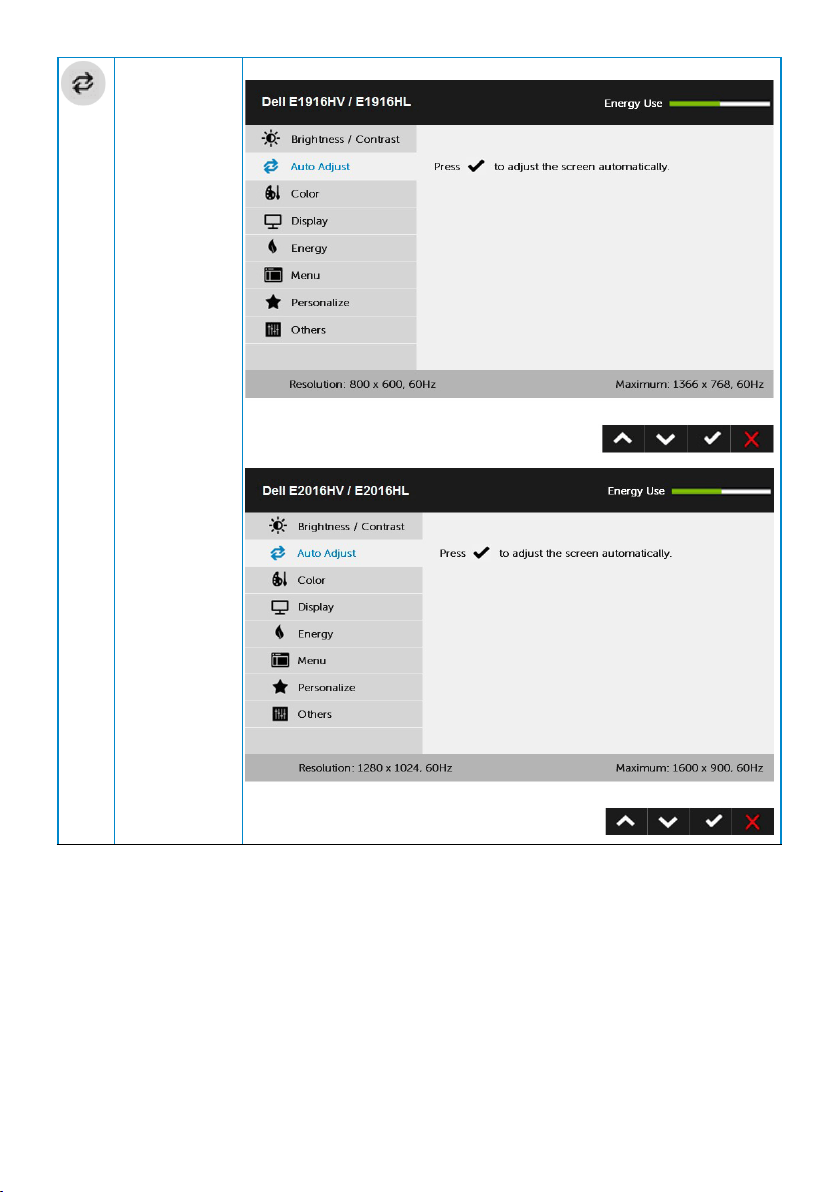

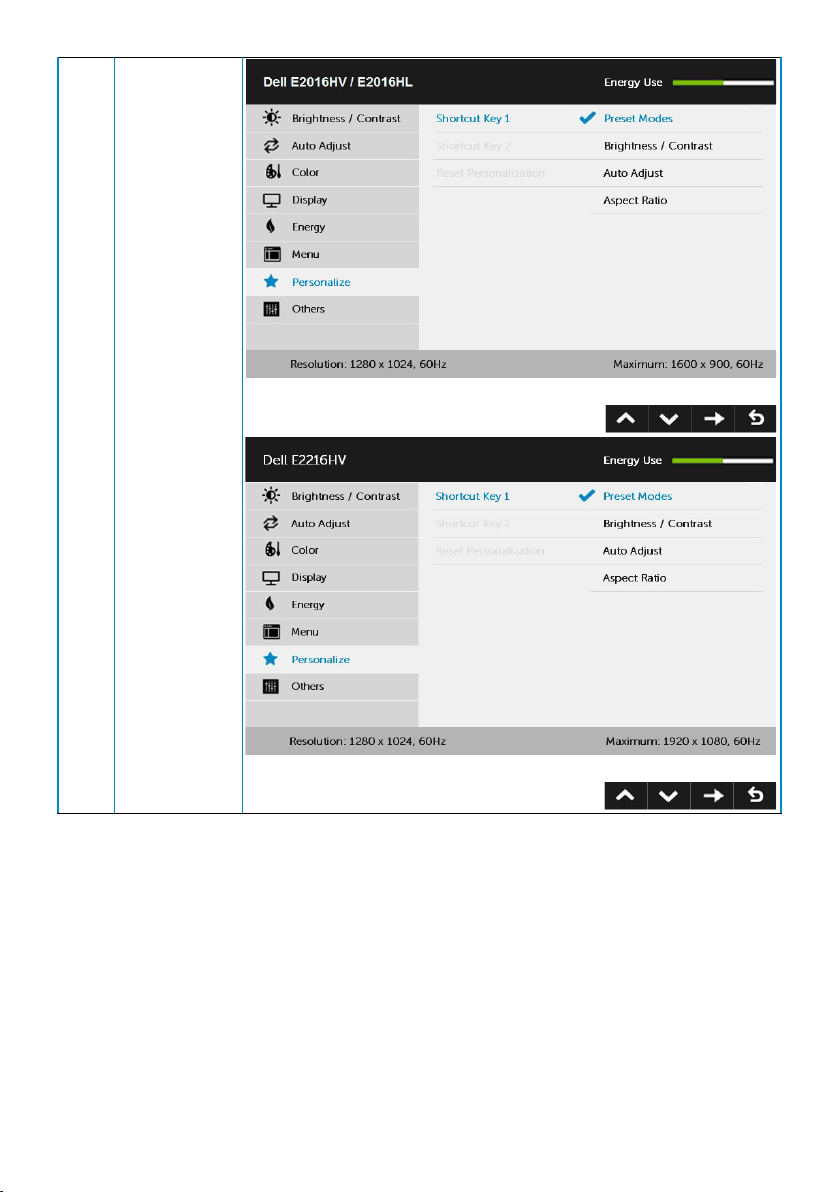

Using the On-Screen Display (OSD) Menu. . . . . . . . . . . . . . . . . 24

Setting the Maximum Resolution . . . . . . . . . . . . . . . . . . . . . . 48

Using the Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Troubleshooting ....................................... 51

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Product-Specific Problems. . . . . . . . . . . . . . . . . . . . . . . . . . 56

Dell Soundbar Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Appendix ..............................................60

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

FCC Notices (U.S. Only) and Other Regulatory Information. . . . . . 60

Contact Dell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

About Your Monitor

Package Contents

Your monitor ships with all the components shown below. Ensure that you have received all the components and Contact Dell if anything is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some

features or media may not be available in certain countries.

•Monitor

•Stand Riser

•Stand Base

•VESA™ Screw Cover

•Power Cable (varies with countries)

•VGA Cable

•Drivers and Documentation media

•Quick Setup Guide

•Safety and Regulatory Information

About Your Monitor 5

Product Features

The Dell E1916HV / E1916HL / E2016HV / E2016HL / E2216HV / E2216HVM flat-panel display has an active matrix, Thin-Film Transistor, Liquid Crystal Display and LED backlight. The monitor’s features include:

• E1916HV / E1916HL: 47.01 cm (18.51 inches) diagonal viewable image size, 1366 x 768 resolution, plus full-screen support for lower resolutions.

• E2016HV / E2016HL: 49.41 cm (19.5 inches) diagonal viewable image size, 1600 x 900 resolution, plus full-screen support for lower resolutions.

• E2216HV / E2216HVM: 54.69 cm (21.53 inches) diagonal viewable image size, 1920 x 1080 resolution, plus full-screen support for lower resolutions.

• Tilt adjustment capability.

• Removable pedestal and Video Electronics Standards Association (VESA) 100 mm

mounting holes for flexible mounting solutions.

• Plug and play capability if supported by your system.

• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

• Software and documentation media which includes an information file (INF), Image

Color Matching File (ICM), and product documentation.

• Dell Display Manager Software

• ENERGY STAR-compliant.

• Security lock slot.

• Asset Management Capability.

• EPEAT Silver compliant.

• CECP (for China).

• RoHS compliant.

• Energy Gauge shows the energy level being consumed by the monitor in real time.

• Analog backlight dimming control for flicker free display.

NOTE: Dell monitors are Energy Star certified in all regions except for the following:

E1916HV, E1916HL and E2016HV in Asia Pacific, E2216HV in America/ Asia Pacific. DELL registers products in the EPEAT environmental performance rating system.

EPEAT registration varies by country. See www.epeat.net for registration status by country.

6 About Your Monitor

Identifying Parts and Controls

Front View

1 Function buttons (For more information, see Operating the Monitor)

2 Power On/Off button (with LED indicator)

Back View

E1916HV / E1916HL / E2016HV / E2016HL:

Back View with Monitor Stand

About Your Monitor 7

E2216HV / E2216HVM:

Back View with Monitor Stand

Label Description Use

1 VESA mounting holes (100

mm)

2 Regulatory rating label Lists the regulatory approvals. 3 Security lock slot Secures monitor with security lock

4 Barcode serial number label Refer to this label if you need to contact

5 Cable management slot Use to organize cables by placing them

To mount the monitor.

(security lock not included).

Dell for technical support.

through the slot.

Side View

Right Side

8 About Your Monitor

Bottom View

Label Description Use

1 AC power connector To connect the monitor power cable. 2 VGA connector To connect your computer to the monitor using

3 Dell soundbar

mounting slots

a VGA cable. To attach the optional Dell Soundbar.

Monitor Specifications

The following sections give you information about the various power management modes and pin assignments for the various connectors of your monitor.

Power Management Modes

If you have VESA’s DPM compliance display card or software installed in your PC, the monitor automatically reduces its power consumption when not in use. This is referred to as Power Save Mode. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this automatic power-saving feature:

E1916HV / E1916HL:

VESA Modes

Normal operation Active Active Active White 17 W (Maximum)**

Active-off mode Inactive Inactive Blank Glowing

Switch off - - Off Less than 0.3 W *

Horizontal Sync

Vertical Sync

Video

Power Indicator

white

Power Consumption

14 W (Typical) Less than 0.3 W

Energy Star Power Consumption

TEC

33.2 kWh***

E2016HV:

VESA Modes

Normal operation Active Active Active White 17 W (Maximum)**

Active-off mode Inactive Inactive Blank Glowing

10 W***

Horizontal Sync

Vertical Sync

Video

Power Indicator

white

Power Consumption

14 W (Typical) Less than 0.3 W

About Your Monitor 9

Switch off - - Off Less than 0.3 W *

Energy Star Power Consumption

TEC

38.6 kWh***

11.98 W***

E2016HL:

VESA Modes

Horizontal Sync

Vertical Sync

Video

Power Indicator

Power Consumption

Normal operation Active Active Active White 19 W (Maximum)**

15 W (Typical)

Active-off mode Inactive Inactive Blank Glowing

Less than 0.3 W

white

Switch off - - Off Less than 0.3 W *

Energy Star Power Consumption

TEC

37.9 kWh***

E2216HV / E2216HVM:

VESA Modes

Normal operation Active Active Active White 24 W (Maximum)**

Active-off mode Inactive Inactive Blank Glowing

Switch off - - Off Less than 0.3 W *

11.98 W***

Horizontal Sync

Vertical Sync

Video

Power Indicator

white

Power Consumption

18 W (Typical) Less than 0.3 W

Energy Star Power Consumption

TEC

49.6 kWh***

15.5 W***

NOTE:

: Power consumption of on mode as defined in Energy Star 7.0 version.

TEC

: Total energy consumption in kWh as defined in Energy Star 7.0 version.

The OSD will only function in the normal operation mode. When any button except power button is pressed in Active-off mode, the following messages will be displayed:

Activate the computer and monitor to gain access to the OSD.

10 About Your Monitor

NOTE: Dell monitors are Energy Star certified in all regions except for the following:

E1916HV, E1916HL and E2016HV in Asia Pacific, E2216HV in America/ Asia Pacific. DELL registers products in the EPEAT environmental performance rating system.

EPEAT registration varies by country. See www.epeat.net for registration status by country.

* Zero-power consumption in OFF mode can only be achieved by disconnecting the

main cable from the monitor. ** Maximum power consumption with max luminance and contrast. *** This document is informational only and reflects laboratory performance. Your

product may perform differently, depending on the software, components and peripherals you ordered and shall have no obligation to update such information. Accordingly, the customer should not rely upon this information in making decisions about electrical tolerances or otherwise. No warranty as to accuracy or completeness is expressed or implied.

Pin Assignments

15-pin D-Sub connector

Pin Number Monitor Side of the 15-pin Side Signal Cable

1 Video-Red 2 Video-Green 3 Video-Blue 4 GND 5 Self-test 6 GND-R 7 GND-G 8 GND-B 9 DDC +5 V

10 GND-sync

About Your Monitor 11

11 GND 12 DDC data 13 H-sync 14 V-sync 15 DDC clock

Plug and Play Capability

You can install the monitor in any Plug and Play compatible system. The monitor automatically provides the computer with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so that the system can configure itself and optimize the monitor settings. Most monitor installations are automatic. You can select different settings if required.

Flat-Panel Specifications

Model number E1916HV / E1916HL E2016HV

Screen type Active matrix - TFT LCD Active matrix - TFT LCD

Panel Type TN TN

Viewable image

Diagonal

Horizontal Active Area

Vertical Active Area

Area

470.1 mm (18.51 inches)

409.8 mm (16.13 inches)

230.4 mm (9.07 inches)

94417.92 mm (146.35 inches

Pixel pitch 0.30 x 0.30 mm

Viewing angle:

)

494.1 ± 0.02 mm (19.5 ± 0.05 inches)

432.0 ± 1.92 mm (17.0 ± 0.08 inches)

239.76 ± 3.42 mm (9.44 ± 0.13 inches)

102552.65 ± 1050 mm (158.84± 1.56 inches

)

0.2712 ± 0.0012 x 0.2626 ± 0.0074 mm

Horizontal 90° typical 90° typical

Vertical 65° typical 50° to 65° typical Luminance

output

200 cd/m² (typical) 200 cd/m² (typical)

Contrast ratio 600 to 1 (typical) 600 to 1 (typical)

12 About Your Monitor

Faceplate coating

Antiglare with hard-coating 3HAntiglare with hard-coating

Backlight LED light bar system LED light bar system

Response Time

5 ms typical (white to black, black to white)

Color Depth 16.7 mil colors 16.7 mil colors

Color Gamut 85 % (typical) ** 85 % (typical) **

Model number E2016HL E2216HV / E2216HVM

Screen type Active matrix - TFT LCD Active matrix - TFT LCD

Panel Type TN TN

Viewable image

Diagonal

Horizontal Active Area

Vertical Active Area

Area

494.1 ± 0.02 mm (19.5 ± 0.05 inches)

432.0 ± 1.92 mm (17.0 ± 0.08 inches)

239.76 ± 3.42 mm (9.44 ± 0.13 inches)

102552.65 ± 1050 mm (158.84± 1.56 inches

)

546.86 mm (21.53 inches)

476.64 mm (18.77 inches)

268.11 mm (10.56 inches)

127791.95 mm (198.21 inches

)

Pixel pitch

0.2712 ± 0.0012 x 0.2626 ± 0.0074 mm

0.248 x 0.248 mm

Viewing angle:

Horizontal 170° typical 90° typical

Vertical 160° typical 50° to 65° typical Luminance

output

250 cd/m² (typical) 200 cd/m² (typical)

Contrast ratio 1000 to 1 (typical) 600 to 1 (typical)

Faceplate coating

Antiglare with hardcoating 3H

Backlight LED edgelight system LED light bar system

Response Time

5 ms typical (white to black, black to white)

Color Depth 16.7 mil colors 16.7 mil colors

Color Gamut 86 % (typical) * 85 % (typical) **

About Your Monitor 13

** E1916HV / E1916HL / E2016HV / E2216HV / E2216HVM color gamut (typical) is based

on CIE1976 (85 %) and CIE1931 (72 %) test standards. E2016HL color gamut (typical) is based on CIE1976 (86 %) and CIE1931 (72 %) test standards.

Resolution Specifications

Model number E1916HV /

E1916HL

Scan range

• Horizontal 30 kHz to 83 kHz (automatic)

• Vertical 56 Hz to 76 Hz (automatic)

Maximum preset resolution

1366 x 768 at 60 Hz 1600 x 900 at 60 Hz 1920 x 1080 at 60 Hz

E2016HV / E2016HL

E2216HV / E2216HVM

Electrical Specifications

Model number E1916HV / E1916HL / E2016HV / E2016HL / E2216HV /

E2216HVM

Video input signals Analog RGB: 0.7 Volts ± 5 %, 75 ohm input impedance

Synchronization input signals

AC input voltage / frequency / current Inrush current 120 V: 30 A (Max.)

Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG (Composite SYNC on green)

100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 1.0 A (typical)

240 V: 60 A (Max.)

Preset Display Modes

The following table lists the preset modes for which Dell guarantees image size and centering:

E1916HV / E1916HL：

Horizontal

Display Mode

Frequency

(kHz)

VESA, 720 x 400 31.5 70.1 28.3 -/+ VESA, 640 x 480 31.5 59.9 25.2 -/VESA, 640 x 480 37.5 75.0 31.5 -/VESA, 800 x 600 37.9 60.3 40.0 +/+ VESA, 800 x 600 46.9 75.0 49.5 +/+ VESA, 1024 x 768 48.4 60.0 65.0 -/VESA, 1024 x 768 60.0 75.0 78.8 +/+

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(Horizontal/

Vertical)

14 About Your Monitor

VESA, 1280 x 1024 80.0 75.0 135.0 +/+ VESA, 1366 x 768 47.7 59.8 85.5 +/+

E2016HV / E2016HL：

Horizontal

Display Mode

Frequency

(kHz)

VESA, 1280 x 1024 80.0 75.0 135.0 +/+ VESA, 1600 x 900 55.5 60.0 97.8 +/-

E2216HV / E2216HVM：

Horizontal

Display Mode

Frequency

(kHz)

VESA, 1280 x 1024 80.0 75.0 135.0 +/+ VESA, 1600 x 900 60.0 60.0 108.0 +/+ VESA, 1920 x 1080 67.5 60.0 148.5 +/+

Vertical

Frequency

(Hz)

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Pixel Clock

(MHz)

Sync Polarity

(Horizontal/

Vertical)

Sync Polarity

(Horizontal/

Vertical)

About Your Monitor 15

Physical Characteristics

The following table lists the monitor's physical characteristics:

Model Number E1916HV /

E1916HL

Connector type 15-pin D-subminiature (Black connector)

Signal cable type Analog: D-Sub, 15 pins

Dimensions: (with stand)

Height

Width

Depth

Dimensions: (without stand)

Height

Width

Depth

Stand dimensions:

359.0 mm (14.13 inches)

445.4 mm (17.54 inches)

167.0 mm (6.57 inches)

266.0 mm (10.47 inches)

445.4 mm (17.54 inches)

51.5 mm (2.03 inches)

E2016HV / E2016HL

368.9 mm (14.52 inches)

471.5 mm (18.56 inches)

167.0 mm (6.57 inches)

275.4 mm (10.84 inches)

471.5 mm (18.56 inches)

51.5 mm (2.03 inches)

E2216HV / E2216HVM

396.7 mm (15.62 inches)

512.2 mm (20.17 inches)

180.0 mm (7.09 inches)

303.7 mm (11.96 inches)

512.2 mm (20.17 inches)

50.5 mm (1.99 inches)

Height

Width

Depth

Weight: Weight with

packaging Weight with stand

assembly and cables Weight without

stand assembly (For wall mount or VESA mount considerations - no cables) Weight of stand assembly

156.0 mm (6.14 inches)

220.0 mm (8.66 inches)

167.0 mm (6.57 inches)

3.60 kg (7.94 lb)

3.0 kg (6.61 lb)

2.26 kg (4.98 lb)

0.46 kg (1.01 lb)

16 About Your Monitor

156.0 mm (6.14 inches)

220.0 mm (8.66 inches)

167.0 mm (6.57 inches)

3.65 kg (8.05 lb)

3.02 kg (6.66 lb)

2.26 kg (4.98 lb)

0.46 kg (1.01 lb)

177.0 mm (6.97 inches)

250.0 mm (9.84 inches)

180.0 mm (7.09 inches)

4.30 kg (9.48 lb)

3.63 kg (8.0 lb)

2.83 kg (6.24 lb)

0.52 kg (1.15 lb)

Environmental Characteristics

The following table lists the environmental conditions for your monitor:

Model Number E1916HV /

E1916HL / E2016HV

Temperature

• Operating

• Non-operating

Humidity

• Operating

• Non-operating

Altitude

• Operating

• Non-operating

Thermal dissipation 58.0 BTU/hour

0 °C to 40 °C (32 °F to 104 °F)

Storage: -20 °C to 60 °C (-4 °F to 140 °F) Shipping: -20 °C to 60 °C (-4 °F to 140 °F)

10 % to 80 % (non-condensing)

Storage: 5 % to 90 % (non-condensing) Shipping: 5 % to 90 % (non-condensing)

5,000 m (16,404 ft) max

12,191 m (40,000 ft) max

(maximum)

47.8 BTU/hour (typical)

E2016HL E2216HV /

E2216HVM

64.8 BTU/hour (maximum)

51.2 BTU/hour (typical)

81.9 BTU/hour (maximum)

68.3 BTU/hour (typical)

About Your Monitor 17

LCD Monitor Quality & Pixel Policy

During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state. The visible result is a fixed pixel that appears as an extremely tiny dark or bright discolored spot. When the pixel remains permanently lit, it is known as a “bright dot.” When the pixel remains black, it is known as a “dark dot.”

In almost every case, these fixed pixels are hard to see and do not detract from display quality or usability. A display with 1 to 5 fixed pixels is considered normal and within competitive standards. For more information, see Dell Support site at:

http://www.dell.com/support/monitors.

Maintenance Guidelines

Caring for Your Monitor

CAUTION: Read and follow the safety instructions before cleaning the monitor.

CAUTION: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:

• To clean your antistatic screen, slightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the antistatic coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.

• Use a slightly dampened, warm cloth to clean the plastics. Avoid using detergent of any kind as some detergents leave a milky film on the plastics.

• If you notice a white powder when you unpack your monitor, wipe it off with a cloth. This white powder occurs during the shipping of the monitor.

• Handle your monitor with care as a darker-colored monitor may scratch and show white scuff marks more than a lighter-colored monitor.

• To help maintain the best image quality on your monitor, use a dynamically changing screen saver and power off your monitor when not in use.

18 About Your Monitor

+ 42 hidden pages
