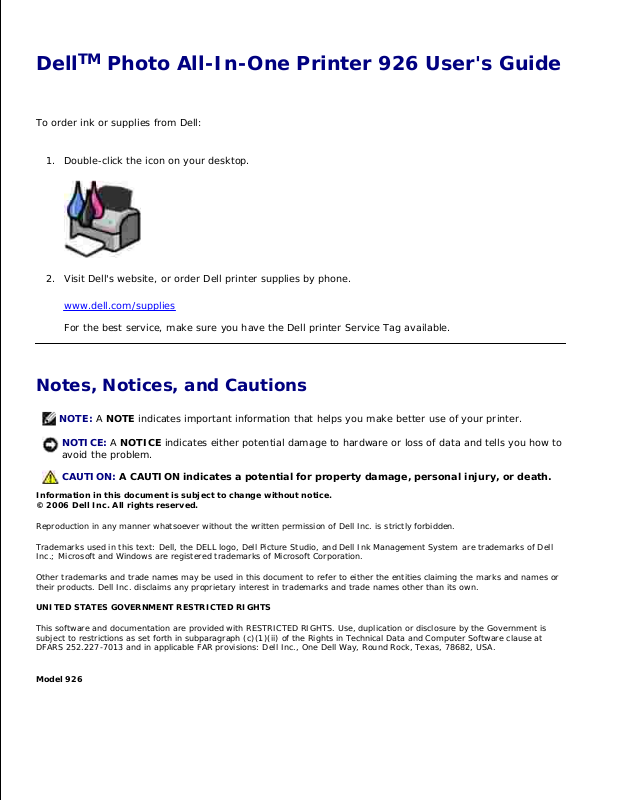

Photo All-In-One Printer 926 User's Guide

To order ink or supplies from Dell:

Double-click the icon on your desktop.1.

Visit Dell's website, or order Dell printer supplies by phone.

www.dell.com/supplies

For the best service, make sure you have the Dell printer Service Tag available.

2.

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your printer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to

avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice.
© 2006 Dell Inc. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, Dell Picture Studio, and Dell Ink Management System are trademarks of Dell
Inc.; Microsoft and Windows are registered trademarks of Microsoft Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or
their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is
subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at
DFARS 252.227-7013 and in applicable FAR provisions: Dell Inc., One Dell Way, Round Rock, Texas, 78682, USA.

Model 926

July 2006 SRV NJ119 Rev. A00

Finding Information

What are you
looking for?

Find it here

Drivers for my
printer

My User's Guide

Drivers and Utilities CD

If you purchased your Dell computer and printer at the same time, documentation
and drivers for your printer are already installed on your computer. You can use
the CD to uninstall/reinstall drivers or access your documentation. Readme files
may be included on your CD to provide last-minute updates about technical
changes to your printer or advanced technical reference material for experienced
users or technicians.

How to set up my
printer

Setting Up Your Printer poster

Safety
information

How to set up
and use my
printer

Warranty
information

Owner's Manual

Express Service Code
and Service Tag

Express Service Code and Service Tag number

What are you
looking for?

Find it here

and Service Tag
number

This label is located on the printer (see below).

Latest drivers
for my printer

Answers to
technical service
and support
questions

Documentation
for my printer

Dell Support Website: www.support.dell.com
The Dell Support website provides several online tools, including:

Solutions-Troubleshooting hints and tips, articles from technicians, and
online courses

Upgrades-Upgrade information for components, such as memory
Customer Care-Contact information, order status, warranty, and repair

information
Downloads-Drivers
Reference-Printer documentation and product specifications

How to use

Windows XP

Documentation
for my printer

Windows XP Help and Support Center

Click Start Help and Support.1.
Type a word or phrase that best describes your problem, and then click the

arrow icon.

2.

Click the topic that describes your problem.3.
Follow the instructions shown on the screen.4.

About Your Printer

Understanding the Printer Parts
Understanding the Operator Panel

Understanding the Printer Parts

Number:

Part:

Description:

1

Paper
support

Part that supports loaded paper.
2

Paper guide

Guide that helps the paper feed into the printer properly.

3

Top cover

Top of printer that holds your document or photo flat while you scan it.

Number:

Part:

Description:

4

Paper exit
tray

Tray that holds the paper as it exits the printer.
5

Printer unit

Unit you lift to gain access to the ink cartridges.

6

Ink cartridge
carrier

Carrier that holds two ink cartridges, one color and the other black or photo. For
more information, see Replacing Ink Cartridges.

7

Scanner
support

Part under printer unit that keeps the printer open while you change ink
cartridges.

NOTE: To close the printer for normal operation, lift the printer unit, push the

scanner support back towards the rear of the printer, and then lower the printer
unit until it rests on the main body of the printer.

8

Memory card
slots

Slots into which you insert a memory card containing digital photos.

9

USB
connector

Slot into which you plug the USB cable (sold separately). The other end of the
USB cable plugs into your computer.

10

Power
connector

Slot into which you plug the power cable.

CAUTION: Insert the power cable into the printer before connecting the

power cable into the wall outlet.

11

PictBridge
port

The port into which you attach the connector of a PictBridge-enabled digital
camera.

12

Operator
panel

Panel on the printer you use to control copying, scanning, faxing and printing.
For more information, see Understanding the Operator Panel.

13

Scanner
glass

Surface on which you place your document or photo face down to copy, fax, or
scan it.

Understanding the Operator Panel

Number

Use the:

To:

1

Display

View scanning, copying, faxing, and printing options as well as
status and error messages.

2

Back
button

Return to the previous menu.

3

Arrow
buttons

Scroll through modes, menus, and menu items.
Increase or decrease a numeric value option.
Scroll through photos and Microsoft Office files on a memory

card or digital camera.

4

Cancel
button

Cancel a scan, print, or copy job in progress.
Exit a menu without saving changes to the menu settings.

5

Power
button

Turn your printer on or off.

NOTE: Pressing the power button does not turn off your printer if

a PictBridge camera with an active session is inserted into the
PictBridge port.

6

Error LED

Check if there is an error.

7

Select
button

Access the currently displayed menu.
Select a menu option.
Initiate a paper feed or paper eject by holding the button for

three seconds.

8

Start
button

Initiate a copy, scan, or fax.

9

Ink drop
icons

View the characters under the icons to check:

The ink levels in the ink cartridges.
For missing or invalid ink cartridges.

Operator Panel Menus

Copy Mode
Scan Mode
Fax Mode
Photo Mode
PictBridge Mode
Office File Mode
Bluetooth Mode
Maintenance Mode

When you press the Arrow buttons , the following modes appear. When the mode you want to use is
displayed, press the Start button to access its menus.

Copy Mode

Copy menu
item

Settings

Copy Color

Color
Black

# of Copies

1–99

Quality

Automatic
Draft
Normal

Dark

Press the Select button , and then use the Arrow buttons to adjust the
brightness setting.

Paper Size

Letter
Legal
4 x 6 in.
A4
B5
A5
A6
L

Copy menu
item

Settings

2L
Hagaki
3 x 5 in.

3.5 x 5 in.
10x15 cm
5 x 7 in.
13x18 cm

Paper Type

Automatic
Plain
Coated
Transparency

Zoom

100%
125%
150%
175%
200%
4 x 6 in.
5 x 7 in.
Letter
A4
B5
L
2L
Hagaki
25%
50%
75%

Skew Correction

Off
On

Scan Mode

The Scan Menu is only available if the printer is connected to a computer or a network adapter.

Scan
menu
item

Settings

Scan
menu
item

Settings

Scan Color

Color
Black

Scan To

Use the Arrow buttons to select the application in which you want your scanned
document to open.

If your printer is connected to a network, use the Arrow buttons to scroll through
the available computers, and then press the Select button to access the list of
applications available on that computer.

Fax Mode

Fax menu item

Settings

* Default factory setting

Fax Color

*Black
Color

Fax Now

Press the Start button to start faxing.

Photo Mode

Photo mode is only available when a memory card is inserted into the printer, or if a USB key or a

PictBridge-enabled digital camera is connected to the PictBridge port.

Photo menu item

Setting

* Default factory setting

Proof Sheet

From the Print Proof submenu, use the
Arrow buttons to choose from the
following settings:

All
Last 25

Date Range
From the Scan Proof submenu, press the
Start button to begin scanning the

proof sheet. For more information, see

Printing Photos Using a Proof Sheet.

Print DPOF

NOTE: This menu item is only available when a memory

card with Digital Print Order Format (DPOF) images is

Press the Start button to print all DPOF
images on a memory card. For more
information, see Printing Photos From a

Photo menu item

Setting

card with Digital Print Order Format (DPOF) images is
inserted into the printer or when a PictBridge-enabled
digital camera with DPOF images is connected to the
PictBridge port.

information, see Printing Photos From a

PictBridge-Enabled Camera.

Photo Color

*Color
Black & White
Sepia
Antique

Photo Options

Red Eye
Auto Enhance

Save to PC

Press the Select button to launch the
Memory Card Manager. For more information,
see Using Memory Card Manager.

Print Images

Press the Select button to print all images
stored on a memory card, USB key, or a
PictBridge-enabled digital camera.

Photo Size

*4 x 6 in.
5 x 7 in.
8 x 10 in.
L
2L
6 x 8 cm
10 x 15 cm
13 x 18 cm

8.5 x 11 in.
A4
A5
B5
A6
Hagaki
Wallet

3.5 x 5 in.

Paper Size

*8.5 x 11 in.

8.5 x 14 in.
4 x 6 in.
A4
B5
A5
A6
L
2L
Hagaki
3 x 5 in.

3.5 x 5 in.
10 x 15 cm
5 x 7 in.
13 x 18 cm

Photo menu item

Setting

Quality

*Automatic
Draft
Normal

Paper Type

*Automatic
Plain
Coated
Transparency

PictBridge Mode

NOTE: The PictBridge mode is only available when a PictBridge-enabled digital camera is connected

to the PictBridge port of your printer.

PictBridge menu item

Settings

* Factory default setting

Quality

*Automatic
Draft
Normal

Photo Size

*4 x 6 in.
5 x 7 in.
8 x 10 in.
L
2L
6 x 8 cm
10 x 15 cm
13 x 18 cm

8.5 x 11 in.
A4
A5
B5
A6
Hagaki
Wallet

3.5 x 5 in.

Paper Size

*8.5 x 11 in.

8.5 x 14 in.
4 x 6 in.
A4
B5

PictBridge menu item

Settings

A5
A6
L
2L
Hagaki
3 x 5 in.

3.5 x 5 in.
10 x 15 cm
5 x 7 in.
13 x 18 cm

Paper Type

*Automatic
Plain
Coated
Transparency

Photo Color

*Color
Black and White
Sepia
Antique

Photo Options

Red Eye
Auto Enhance

Office File Mode

Use the Office File mode to print Microsoft® Office files stored on USB keys or memory cards.

Office File
menu item

Settings

Select File

Use the Arrow buttons to scroll through the folders and MicrosoftTM Office files stored
on your USB key or memory card. Press the Select button to access the contents of the
folders or to choose the file that you want to print.

Bluetooth Mode

Setup
menu item

Settings

Enable

Off
On

Setup
menu item

Settings

Discovery

Off
On

Printer
Name

The name of your printer appears on the display in this format:Dell926-service tag #.

NOTE: The name appears on the printer list of devices that connect to your computer using

the Bluetooth wireless specification.

Security
Level

High
Low

NOTE: The Enter Passcode submenu is displayed if you choose High. Use the Arrow

buttons to scroll through the numbers 0–9 for each digit of the passcode. Press the
Select button to select a number for each digit.

Device List

Clear
Save

Maintenance Mode

Maintenance menu item

Settings

Align Cartridges

Press the Select button.

Clean Cartridges

Press the Select button.

Print Test Page

Press the Select button.

Clear Settings

After 2 min
Never

Set Defaults

Use Factory
Use Current
Date Format
Language

Loading Paper and Originals

Loading Paper into the Paper Support
Understanding the Automatic Paper Type Sensor
Loading Original Documents on the Scanner Glass

Loading Paper into the Paper Support

Fan the paper.1.

Center the paper on the paper support.2.

Adjust the paper guides so they rest against the edges of the paper.

NOTE: Do not pull on both paper guides simultaneously. When one paper guide is moved, the

other adjusts accordingly.

NOTE: Do not force paper into the printer. The paper should be flat against the paper support

surface, and the edges should be flush against both paper guides.

3.

Print Media Guidelines

Load up to:

Make sure:

100 sheets of plain paper

The paper guides rest against the edges of the paper.
You load letterhead paper with the print side facing up and the

top of the letterhead going into the printer first.

100 sheets of coated paper

The print side of the paper faces up.
The paper guides rest against the edges of the paper.
You select Automatic, Normal, or Photo print quality.

20 sheets of banner paper

You remove all paper from the paper support before inserting
banner paper.

You use banner paper designed for inkjet printers.
You place a stack of banner paper on or behind the printer, and

feed in the first sheet.
The paper guides rest against the edges of the paper.
You select A4 Banner or Letter Banner paper size.

10 envelopes

The print side of the envelope faces up.
The paper guides rest against the edges of the envelope.
You print the envelopes with Landscape orientation.

NOTE: If you are mailing within Japan, the envelope can be

printed in Portrait orientation with the stamp in the lower right
corner or in Landscape orientation with the stamp in the lower
left corner. If you are mailing internationally, print in
Landscape orientation with the stamp in the upper left corner.

You select the correct envelope size. Select the next biggest
size if the exact envelope size is not listed, and set the left and
right margins so your envelope is correctly positioned.

25 sheets of labels

The print side of the label faces up.
The paper guides rest against the edges of the paper.
You select Automatic, Normal, or Photo print quality.

Load up to:

Make sure:

25 greeting cards, index cards,
postcards, or photo cards

The print side of the cards faces up.
The paper guides rest against the edges of the cards.
You select Automatic, Normal, or Photo print quality.

25 sheets of photo/glossy or coated
paper

The print side of the paper faces up.
The paper guides rest against the edges of the paper.
You select Automatic, Normal, or Photo print quality.

1 iron-on transfer

You follow the loading instructions on the iron-on transfer
packaging.

The print side of the transfer faces up.
The paper guides rest against the edges of the transfer.
You select Automatic, Normal, or Photo print quality.

50 transparencies

The rough side of the transparency faces up.
The paper guides rest against the edges of the transparencies.

Understanding the Automatic Paper Type Sensor

Your printer has an automatic paper type sensor that detects the following paper types:

Plain/coated

Transparency

Photo/glossy

If you load one of these paper types, the printer detects the paper type and automatically adjusts the
Quality/Speed settings.

Paper type

Quality/Speed settings

Black and Color Cartridges Installed

Photo and Color Cartridges Installed

Plain/coated

Normal


Transparency

Normal


Photo/glossy



NOTE: Your printer cannot detect paper size.

To choose paper size:

With your document open, click File Print.

The Print dialog box opens.

1.

Click Preferences, Properties, Options, or Setup (depending on the program or operating system).

The Printing Preferences dialog box opens.

2.

On the Print Setup tab, select the paper size.3.

Click OK.4.

Unless you turn off the automatic paper type sensor, it always remains on. To turn off the automatic paper
type sensor for a specific print job:

With your document open, click File Print.

The Print dialog box opens.

1.

Click Preferences, Properties, Options, or Setup (depending on the program or operating system).

The Printing Preferences dialog box opens.

2.

On the Print Setup tab, select the paper type.3.

Click OK.4.

To turn off the automatic paper type sensor for all print jobs:

In Windows XP, click Start Control Panel Printers and Other Hardware Printers and Faxes.

In Windows 2000, click Start Settings Printers.

1.

Right-click the printer icon.2.

Click Printing Preferences.3.

On the Print Setup tab, select the paper type.4.

Click OK.5.

5.

Loading Original Documents on the Scanner Glass

You can copy, scan, and print photos, text documents, magazine articles, newspapers, and other
publications. You can also scan a document for faxing.

Make sure the printer is on.1.

Open the top cover.2.

Place the original document face down on the scanner glass in the lower right corner.3.

Close the top cover to avoid dark edges on the scanned image.4.

Printing

Printing Documents
Printing Photos
Printing Envelopes
Printing Photos From a PictBridge-Enabled Camera
Printing Photos From a Memory Card or USB Key
Printing From a Bluetooth-enabled Device

NOTE: DellTM recommends you use a color cartridge and a photo cartridge for printing photos.

Printing Documents

Turn on your computer and printer, and make sure they are connected.1.

Load the paper. For more information, see Loading Paper into the Paper Support.2.

With your document open, click File Print.

The Print dialog box opens.

3.

Click Preferences, Properties, Options, or Setup (depending on the program or operating system).

The Printing Preferences dialog box opens.

4.

On the Print Setup and Advanced tabs, make any necessary changes to your document.5.

When you finish customizing your settings, click OK.

The Printing Preferences dialog box closes.

6.

Click OK or Print.7.

7.

Printing Photos

NOTE: Dell recommends you use a color cartridge and a photo cartridge for printing photos.

Turn on your computer and printer, and make sure they are connected.1.

Load photo/glossy paper with the print side facing up.

NOTE: Photo/glossy paper is recommended for printing photos.

2.

With your document open, click File Print.

The Print dialog box opens.

3.

Click Preferences, Properties, Options, or Setup (depending on the program or operating system).

The Printing Preferences dialog box opens.

NOTE: If you are using Dell Picture StudioTM, select Printer Settings to view Printing

Preferences.

4.

On the Print Setup tab, select Photo, and then select the dpi settings for the photo from the drop­down menu.

NOTE: To print borderless photos, select the Borderless check box on the Print Setup tab, and

then select the borderless paper size from the drop-down menu on the Advanced tab. Borderless
printing is only performed if you are using photo/glossy paper. The printout on non-photo paper
contains a 2mm margin on all sides.

5.

On the Print Setup and Advanced tabs, make any necessary changes for your document.6.

When you finish customizing your settings, click OK.

The Printing Preferences dialog box closes.

7.

Click OK or Print.8.

Remove each photo after it exits the printer to prevent your photos from sticking together or
smudging.

9.

9.

NOTE: Before placing your prints in a nonadhesive photo album or frame, allow sufficient time for the

prints to dry thoroughly (12 to 24 hours, depending on ambient conditions). This maximizes the life of
your prints.

Printing Envelopes

Turn on your computer and printer, and make sure they are connected.1.

Load the envelope with the print side facing up.2.

With your document open, click File Print.

The Print dialog box opens.

3.

Click Preferences, Properties, Options, or Setup (depending on the program or operating system).

The Printing Preferences dialog box opens.

4.

On the Print Setup tab, select Landscape orientation.

NOTE: If you are mailing within Japan, the envelope can be printed in portrait orientation with

the stamp in the lower right corner or in landscape orientation with the stamp in the lower left
corner. If you are mailing internationally, print landscape orientation with the stamp in the upper
left corner.

5.

On the Print Setup and Advanced tabs, make any necessary changes for your document.6.

When you finish customizing your settings, click OK.

The Printing Preferences dialog box closes.

7.

Click OK or Print.8.

Printing Photos From a PictBridge-Enabled Camera

Insert one end of the USB cable into the camera.1.

Insert the other end of the USB cable into the PictBridge port on the front of the printer.

Refer to the instructions included with your camera for selection of the appropriate camera USB
settings and PictBridge connection and usage information.

2.

Turn on your digital camera.

The printer automatically enters the PictBridge mode.

NOTE: When your printer is not connected to a computer, and a PictBridge camera is connected

to your printer, some of the functions of your printer operator panel buttons may be unavailable.
These functions become available after you disconnect the PictBridge camera from your printer.

3.

Press the left or right Arrow button to scroll through the print settings, and then press the Select
button . For more information, see PictBridge Mode.

NOTE: If you choose to change the print settings from the printer, some print settings made on

the digital camera may be changed.

4.

Refer to the instructions included with your camera to begin printing photos.

NOTE: For many digital cameras, there are two USB mode selections: computer and printer (or

PTP). For PictBridge printing, the printer (or PTP) USB selection should be used. For more
information, refer to the documentation included with your camera.

5.

NOTICE: Do not unplug the USB cable or touch the printer in the area of the PictBridge port while the

light is blinking.

Printing Photos From a Memory Card or USB Key

Most digital cameras use a memory card to store photos. The printer supports the following digital media:

CompactFlash Type I and II

Memory Stick

Memory Stick PRO

Memory Stick Duo

Microdrive

Secure Digital

MultiMediaCard

xD-Picture Card

Memory cards should be inserted with the label facing up. The card reader has four slots to accommodate
these media and a small light that blinks indicating the card is being read or is transmitting data.

NOTICE: Do not remove the memory card or touch the printer in the area of the memory card while

the light is blinking.

The connector that is used for PictBridge may also be used for accessing information that is stored on USB
Flash Drive devices. The USB Flash Drive devices that have been certified for operation with this printer are
as shown:

DELL-256 MB High Speed USB 2.0 Memory Key

DELL-128 MB High Speed USB 2.0 Memory Key

DELL-64 MB High Speed USB 2.0 Memory Key

When you insert a memory card or USB key, the printer automatically switches to Photo mode.

NOTE: Do not insert more than one memory card or USB key at a time.

NOTE: The printer supports FAT32 data format. Files stored in NTFS should be converted to FAT32 data

format.

Printing All Photos on a Memory Card or USB Key

Insert the memory card or USB key.

The printer automatically switches to Photo mode.

1.

Press the Select button to access the Photo Menu.2.

Use the Arrow buttons to scroll to Print Images, and then press the Select button on the
operator panel twice.

The printer prints all the photos on the memory card or USB key.

3.

NOTE: If you want to print only some photos on a memory card or USB key, use a proof sheet to select

which photos are to be printed. For more information, see Printing Photos Using a Proof Sheet.

NOTE: Only images in JPG and a limited set of TIFF formats can be printed directly from the memory

card or USB key. If you want to print photos stored on the memory card or USB key in a different file
format, the photos must be transferred to your computer before printing.

Printing Photos Using a Proof Sheet

Load Letter or A4 size plain paper.1.

Insert a memory card or USB key.

Proof Sheet appears on the display.

2.

NOTE: Only images in JPG and TIFF formats can be printed directly from the memory card or USB

key. If you want to print photos stored on the memory card or USB key in a different file format,
the photos must be transferred to your computer before printing. For more information, see

Saving Photos on a Memory Card or USB Key to Your Computer.

2.

Press the Select button to access the Proof Sheet menu.3.

Press the left or right Arrow button to scroll to Print Proof, and then press the Select button

.

4.

Press the left or right Arrow button to specify which photos on the memory card or USB key to
print on the proof sheet.

You can choose
from

To
All

Print all photos on the memory card or USB key on the proof sheet.

Last 25

Print the 25 most recent photos on the proof sheet.

Date Range

Print only photos created in a certain date range.

NOTE: Multiple date ranges can be selected. An * appears on the left of all the

selected date ranges.

5.

Press the Start button .

The proof sheet prints.

6.

Follow the instructions on the proof sheet to select which photos to print, and to choose a layout and
paper type to use.

Fill in the circle with the red-eye icon below a photo to reduce the red-eye effect on the printout.

NOTE: Make sure you completely fill in the circles when making selections.

7.

Load the proof sheet facedown on the scanner glass. For more information, see Loading Original

Documents on the Scanner Glass.

8.

Load the paper.

NOTE: Make sure the size of the paper you loaded in the printer matches the paper size you

selected in section 1 of the proof sheet.

NOTE: Photo/glossy paper is recommended for printing photos.

9.

Use the Arrow buttons to scroll to Scan Proof, and then press the Start button .10.

NOTICE: Do not remove the memory card or turn off the printer until the photos you selected in the

photo proof sheet have been printed. The proof sheet becomes invalid when the memory card is
removed from the printer or anytime the printer is turned off.

Printing photos from a digital camera using DPOF

Digital Print Order Format (DPOF) is a feature available on some digital cameras which allows you to store
print setting information on a memory card together with the photos that you want to print. Using a DPOF­enabled digital camera, you can specify which photos on the memory card are to be printed, the number of
copies to print, and other print settings. The printer recognizes these settings when you insert the memory
card into the printer memory card slots.

Load photo or glossy paper with the print side facing up.

NOTE: Make sure the size of the paper loaded is not smaller than the size you specified in the

DPOF selection.

1.

Insert the memory card. The printer automatically switches to PHOTO mode.

NOTE: Do not insert more than one memory card or USB key at a time.

2.

Press the left or right Arrow button to scroll to Print DPOF.3.

Press the Start button .4.

Saving Photos on a Memory Card or USB Key to Your
Computer

Insert the memory card or USB key.

The printer automatically switches to the PHOTO menu.

1.

Use the Arrow buttons to scroll to Save to PC, and then press the Select button .2.

Press the Start button .

The Memory Card Manager is launched on your computer.

3.

Follow the instructions on the Memory Card Manager dialog box on how to transfer the photos to
your computer.

4.

Altering Photos Before Printing

Changing the Photo Color Settings

Insert a memory card or USB key into the printer.

The printer automatically displays the Photo Menu.

1.

Use the Arrow buttons to scroll to Photo Color, and then press the Select button .2.

Use the Arrow buttons to scroll through the photo color settings.3.

Press the Select button to select a photo color setting.4.

Changing the Photo Options Settings

Insert a memory card or USB key into the printer.

The printer automatically displays the Photo Menu.

1.

Use the Arrow buttons to scroll to Photo Options, and then press the Select button .2.

Use the Arrow buttons to scroll through the photo options settings.3.

Press the Select button to select a photo options setting.4.

Changing the Size of the Photos

Insert a memory card or USB key into the printer.

The printer automatically displays the Photo Menu.

1.

Use the Arrow buttons to scroll to Photo Size, and then press the Select button .2.

2.

Use the Arrow buttons to scroll through the photo size settings.3.

Press the Select button to select a photo size.4.

Printing Microsoft Office Files From a Memory Card or USB
Key

Turn on your printer and computer, and make sure they are connected.1.

Make sure that the Microsoft Office application that supports the Microsoft Office file that you want to
print is installed on the computer.

2.

Insert a memory card or USB key which contains the Microsoft Office file that you want to print.

The printer switches to OFFICE FILE mode.

NOTE: If the memory card or USB key contains photos, the printer switches to PHOTO mode

instead of OFFICE FILE mode. Press the Back button to exit the PHOTO mode, and then press
the left or right Arrow button to scroll to OFFICE FILE.

3.

From the OFFICE FILE menu, press the Select button to access the Select File menu.4.

Use the left or right Arrow buttons to scroll through the folders and Microsoft Office files on the
memory card or USB key.

NOTE: Only the first 8 characters of a file name or folder name appear on the printer display.

NOTE: The file names are followed by a dot (.) and a file name extension. The folder names are

preceded by a backslash (\).

NOTE: If the first 8 characters of more than one file name or folder name are similar, those file

names and folder names will be followed by a tilde (~) and numeric characters. The numeric
characters will be different for each file name or folder name.

5.

Press the Select button to select the file that you want to print, or to access the files in a folder.6.

Press the Start button .7.

Printing From a Bluetooth-enabled Device

Setting up a Connection Between Your Printer and a
Bluetooth-enabled Device

You need to set up a connection between a Bluetooth-enabled device and your printer if you are sending a
print job from the Bluetooth device for the first time. You will need to repeat the setup if:

You reset the printer to its factory default settings. For more information, see Restoring Factory Default

Settings.

You changed the Bluetooth security level or the Bluetooth passcode. For more information, see Setting

the Bluetooth Security Level.

The Bluetooth-enabled device you are using requires users to set up a Bluetooth connection on every
print job. Refer to the instructions included with the device for Bluetooth printing information.

You cleared the contents of the Bluetooth device list. For more information, see Bluetooth Mode.

The name of the Bluetooth device you are using is automatically deleted from the Bluetooth device list.

When the Bluetooth security level is set to High, the printer saves a list of up to 8 Bluetooth devices
that have previously set up a connection with the printer. If there are already 8 devices on the list, and
then you need to set up a connection for another Bluetooth device, the first device is automatically
deleted from list so that the new device can be stored. You need to repeat the setup of the deleted
device to be able to send a print job to the printer.

NOTE: You need to set up a connection for each Bluetooth device that you will use to send a print job

to the printer.

To set up a connection between the printer and a Bluetooth-enabled device:

Turn on the printer.1.

Insert a USB Bluetooth adapter into the USB port located on the front of the printer.2.

NOTE: An adapter is not included with the printer.

2.

Press the left or right Arrow button to scroll to BLUETOOTH, and then press the Select button .3.

Press the left or right Arrow button to scroll to Discovery, and then press the Select button .4.

Press the left or right Arrow button to scroll to On, and then press the Select button .

The printer is now ready to accept a connection from a Bluetooth-enabled device.

5.

Configure the Bluetooth-enabled device to set up a connection to the printer. Refer to the instructions
included with the device for Bluetooth connection information.

NOTE: You will need to enter a passcode if the Bluetooth security level is set to High on the

printer. For more information, see Setting the Bluetooth Security Level.

6.

Setting the Bluetooth Security Level

Turn on the printer.1.

Insert a Bluetooth USB adapter into the USB port.

NOTE: An adapter is not included with the printer.

2.

Press the left or right Arrow button to scroll to BLUETOOTH, and then press the Select button .3.

Press the left or right Arrow button to scroll to Security Level, and then press the Select
button .

4.

Press the left or right Arrow button to choose a security level, and then press the Select button

.

Choose Low to allow Bluetooth devices to connect and send print jobs to your printer without
requiring users to enter a passcode.

Choose High to require users to enter a four-digit numeric passcode on the Bluetooth device
before connecting and sending print jobs to the printer.

5.

The Enter Passcode menu opens on the operator panel display if you set the security level to High.
Press the left or right Arrow button to scroll through the numbers for the first digit of the
passcode, and then press the Select button to choose the number.

The passcode will be saved after you choose the number for the last digit.

NOTE: To change the passcode, press the Back button and the Select button at the same

time.

6.

Printing from a Bluetooth-enabled Device

Turn on the printer.1.

Insert a USB Bluetooth adapter into the USB port.

NOTE: An adapter is not included with the printer.

2.

Make sure the Bluetooth mode is turned on. For more information, see Bluetooth Mode.3.

Make sure the printer is set up to receive Bluetooth connections. For more information, see Setting up

a Connection Between Your Printer and a Bluetooth-enabled Device.

4.

Set up the Bluetooth device to print to the printer. Refer to the instructions included with the device for
Bluetooth printing setup information.

5.

Refer to the instructions included with the Bluetooth device to begin printing.

NOTE: You will be required to enter a four-digit passcode from the Bluetooth device if you set the

Bluetooth security level to High. For more information, see Setting the Bluetooth Security Level.

6.

Copying

Copying Documents
Copying Photos
Changing Copy Settings

Copying Documents

Using the Operator Panel

Turn on the printer.1.

Load the paper. For more information, see Loading Paper into the Paper Support.2.

Load your original document.3.

Use the Arrow buttons to scroll to the COPY mode, and then press the Select button .4.

Use the Arrow buttons to scroll through the copy submenus and change the copy settings. For
more information, see Copy Mode.

5.

Press the Start button .

NOTE: If you press the Start button without changing the copy settings from the copy

submenus, the copy is printed in the current default settings.

6.

Using Your Computer

Turn on your computer and printer, and make sure they are connected.1.

Load paper. For more information, see Loading Paper into the Paper Support.2.

Load your original document.3.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.4.

Select Dell All-In-One Center.

The Dell All-In-One Center opens.

5.

Select the number of copies (1–99), and then specify the color setting from the Copy drop-down
menu.

6.

Click See More Copy Settings to customize your copy.7.

When you finish customizing your settings, click Copy Now.8.

Copying Photos

Using the Operator Panel

Turn on the printer.1.

Load the paper.2.

Load your original document.3.

From the Copy Quality submenu, select Photo.4.

Press the Start button .5.

Using Your Computer

Turn on your computer and printer, and make sure they are connected.1.

Load photo/glossy paper with the print side facing up.2.

Load your original photo.3.

3.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.4.

Select Dell All-In-One Center.

The Dell All-In-One Center opens.

5.

Click Preview Now.6.

Adjust the dotted lines to fit around the portion of the image you want to print.7.

Select the number of copies (1–99), and then specify the color settings from the Copy drop-down
menu.

8.

Click See More Copy Settings to customize your copy.9.

When you finish customizing your settings, click Copy Now.10.

Changing Copy Settings

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.1.

Select Dell All-In-One Center.

The Dell All-In-One Center opens.

2.

Select the number of copies (1–99) and color setting from the Copy drop-down menus.3.

3.

Click See More Copy Settings to:

Choose a copy quality.

Select the paper size.

Select the original document size.

Lighten or darken your document.

Reduce or enlarge your document.

4.

Click the Advanced button to change options such as paper size and quality.5.

To make any changes, click the following tabs:

Click this tab:

To:

Print

Select the paper size and type.
Select borderless printing options.
Select the print quality.

Scan

Select the color depth and scan resolution.
Auto-crop the scanned image.

Image Enhancements

Straighten images after scan (deskew).
Sharpen your blurry images.
Adjust the brightness of your image.
Adjust the color correction curve (gamma) of your image.

Image Patterns

Smooth the conversion of a gray image to a black and white dot
pattern.

Remove image patterns from magazines or newspapers (descreen).
Reduce the background noise on your color document.

6.

Click OK.7.

When you are finished customizing your settings, click Copy Now.8.

Scanning

Scanning Single-page Documents or Photos
Scanning Multiple Photos or Multiple-Page Documents
Scanning a Document or Photo Across a Network
Editing Scanned Text Using Optical Character Recognition (OCR)
Editing Scanned Images
Saving an Image on Your Computer
E-Mailing a Scanned Image or Document

Scanning Single-page Documents or Photos

Turn on your computer and printer, and make sure they are connected.1.

Load your original document or photo.2.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.3.

Select Dell All-In-One Center.

The Dell All-In-One Center opens.

4.

From the Send scanned image to: drop-down menu, select the program you want to use.

NOTE: If the program you want to use is not listed, select Search for more... in the drop-down

menu. On the next screen, click Add to locate and add the program to the list.

5.

Click See More Scan Settings to customize your scan.6.

When you finish customizing your settings, click Scan Now.7.

Scanning Multiple Photos or Multiple-Page Documents

NOTE: Some programs do not support multiple-page scanning.

Turn on your computer and printer, and make sure they are connected.1.

Load your original document. For more information, see Loading Original Documents on the Scanner

Glass.

2.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.3.

Select Dell All-In-One Center.

The Dell All-In-One Center opens.

NOTE: You can also open the Dell All-In-One Center from the operator panel on your printer. For

more information, see Using the Dell All-In-One Center.

4.

From the Send scanned image to: drop-down menu, select the program you want to use.5.

NOTE: If the program you want to use is not listed, select Search for more... in the drop-down

menu. On the next screen, click Add to locate and add your program to the list.

5.

Click See More Scan Settings to customize your scan.6.

Click the Advanced button.

The Advanced Scan Settings dialog box opens.

7.

On the Scan tab, select the Scan multiple items before output check box.8.

Click OK.9.

When you finish customizing your settings, click Scan Now.

After you scan the first page, a prompt appears requesting the next page.

10.

Place the next sheet on the scanner glass, and click Yes. Repeat until you finish scanning all pages.11.

Click No when asked for another page.

The program opens with the multiple pages scanned.

12.

Scanning a Document or Photo Across a Network

Make sure the printer is connected to a network adapter, or to a computer that is attached to the
network.

NOTE: Dell printers can only be attached to a network using a Dell Wireless Network Adapter

(sold separately).

1.

Turn on your computer and printer.2.

Load your original document or photo.3.

3.

Press the left or right Arrow button to scroll to SCAN mode, and then press the Select button .4.

Press the left or right Arrow button to scroll to Scan To, and then press the Select button .5.

Press the left or right Arrow button to choose the computer where you want to send the
document or photo, and then press the Select button .

The printer scans the computer for a list of applications where the scan can be opened.

NOTE: The computer must have the printer software installed. Use the Drivers and Utilities CD to

install the printer software.

NOTE: If only one computer is configured to receive scans from the printer, the printer

automatically displays the available applications on the computer where the scan can be opened.

6.

Press the left or right Arrow button to choose the application where you want to open the
document or photo, and then press the Select button .

7.

Press the Start button .

The scan opens on the computer and application you selected.

8.

Editing Scanned Text Using Optical Character
Recognition (OCR)

OCR software converts a scanned image to editable text within a word-processing program.

NOTE: For customers using Japanese or Simplified Chinese: Ensure you have OCR software installed on

your computer. A copy of the OCR software was provided with your printer and should have installed at
the same time as your printer software.

Turn on your computer and printer, and make sure they are connected.1.

Load your original document.2.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.3.

Select Dell All-In-One Center.

The Dell All-In-One Center opens.

NOTE: You can also open the Dell All-In-One Center from the printer operator panel. When

your printer is in Scan mode, press the Start button . The Dell All-In-One Center opens on
your computer.

4.

From the Send scanned image to: drop-down menu, select the text-editing program you want to
use.

NOTE: If the program you want to use is not listed, select Search for more in the drop-down

menu. On the next screen, click Add to locate and add your program to the list.

5.

Click See More Scan Settings to customize your scan.6.

Click the Advanced button.

The Advanced Scan Settings dialog box opens.

7.

On the Scan tab, ensure the Convert scanned item to text (OCR) check box is selected.8.

Click OK.9.

When you finish customizing your settings, click Scan Now.10.

The scanned text opens in the program you selected.

10.

Editing Scanned Images

Turn on your computer and printer, and make sure they are connected.1.

Load your original document.2.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.3.

Select Dell All-In-One Center.

The Dell All-In-One Center opens.

NOTE: You can also open the Dell All-In-One Center from the operator panel on your printer. For

more information, see Using the Dell All-In-One Center.

4.

From the Send scanned image to: drop-down menu, select the program you want to use.

NOTE: If the program you want to use is not listed, select Search for more... in the drop-down

menu. On the next screen, click Add to locate and add your program to the list.

5.

Click See More Scan Settings to customize your scan.6.

When you finish customizing your settings, click Scan Now.

When the image has finished processing, it opens in the program you selected.

7.

Edit the image using the tools available in your program. You may be able to:8.

Remove red eye

Crop your image

Add text to your image

Adjust the brightness and contrast of your image

For more information, refer to the documentation that came with your graphics program.

8.

Saving an Image on Your Computer

Turn on your computer and printer, and make sure they are connected.1.

Load your original document.2.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.3.

Select Dell All-In-One Center.

The Dell All-In-One Center opens.

4.

From the Productivity Tools section, click Save an image on my computer.5.

5.

Follow the instructions on your screen to save an image on your computer.6.

E-Mailing a Scanned Image or Document

Turn on your computer and printer, and make sure they are connected.1.

Load your original document.2.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.3.

Select Dell All-In-One Center.

The Dell All-In-One Center opens.

NOTE: You can also open the Dell All-In-One Center from the operator panel on your printer.

When your printer is in Scan mode, press the Start button . The Dell All-In-One Center
opens.

4.

From the Productivity Tools section, click E-mail an image or document.5.

From the What is being scanned? menu, make a selection.6.

Follow the instructions on the screen to prepare the document for e-mail.7.

Click Next.8.

8.

Open your e-mail program, write a note to accompany the attached document, and then send it.

NOTE: If you have questions about attaching documents to e-mail, consult the Help for your e-

mail program.

9.

Faxing

Sending a Fax
Receiving a Fax
Monitoring Fax Activity
Blocking Junk Faxes

Sending a Fax

Sending a Paper Fax

Turn on your printer and computer, and make sure they are connected. Make sure your computer
modem is connected to an active analog telephone line. If you have DSL broadband service on the
same phone line that you are using to fax, you must also have a DSL filter installed. Contact your
Internet Service Provider for information.

1.

Load your original document.2.

Press the left or right Arrow button to scroll to FAX, and then press the Select button .3.

Press the left or right Arrow button to scroll to Fax Now, and then press the Start button .

The Dell Fax Solutions Software opens.

4.

4.

Click Send a new fax.5.

Enter the contact information of the recipient, or you can choose an existing contact from your
phonebook.

6.

Click Next.7.

Select a cover page, and then click Next.8.

Click Next.9.

Click Send.10.

Faxing Electronic Documents

With the file open, click File Print.

The Print dialog box opens.

1.

In the printer list, select DellFax.2.

Click OK, and then follow the instructions on the screen.3.

Creating a Fax Cover Page

With the Dell Fax Solutions open, select Select Settings.1.

Click the Sending Faxes tab.2.

From the Cover Page area, click User Information.3.

Enter information about the sender.4.

NOTE: You may have already specified this information when you used the Dell Fax Solutions for

the first time.

4.

Click OK.5.

From the Cover Page area, click Configure Cover Page.6.

Click Next or Preview to choose a template for your cover page.7.

Add a company logo, if necessary.

Click Change.a.

Click Browse.b.

Browse for an image of your company logo, and click Open.c.

Adjust your logo, if necessary.d.

Click OK.e.

8.

Click OK.9.

When sending a fax, make sure you select Use cover page template to use the cover page you have just
created. For more information, see Sending a Fax.

Sending a Scheduled Fax

Turn on your printer and computer, and make sure they are connected. Make sure your computer
modem is connected to an active analog telephone line. If you have DSL broadband service on the
same phone line that you are using to fax, you must have a DSL filter installed.

1.

Load your original document.2.

2.

Press the left or right Arrow button to scroll to FAX, and then press the Select button .3.

Press the left or right Arrow button to scroll to Fax Now, and then press the Start button .

The Dell Fax Solutions Software opens.

4.

Click Send a new fax.5.

Enter the contact information of the recipient, or you can choose an existing contact from your
phonebook.

6.

Click Next.7.

Select a cover page, and then click Next.8.

Click Next.9.

Select Delay sending until:, and then set the date and time when you want to send the fax.10.

Click Send.11.

Sending a Fax With Attachments

You can also send multiple files or scanned documents as a single fax.

Turn on your printer and computer, and make sure they are connected. Make sure your computer1.

modem is connected to an active analog telephone line. If you have DSL broadband service on the
same phone line that you are using to fax, you must have a DSL filter installed.

1.

Load your original document.2.

Press the left or right Arrow button to scroll to FAX, and then press the Select button .3.

Press the left or right Arrow button to scroll to Fax Now, and then press the Start button .

The Dell Fax Solutions Software opens.

4.

Click Send a new fax.5.

Enter the contact information of the recipient, or you can choose an existing contact from your
phonebook.

6.

Click Next.7.

Select a cover page, and then click Next.8.

Click Add a document... to attach additional files, or click Add a scan... to scan documents with the
fax.

9.

Click Next.10.

Click Send.11.

Forwarding a Received Fax

Turn on your printer and computer, and make sure they are connected. Make sure your computer
modem is connected to an active analog telephone line. If you have DSL broadband service on the
same phone line that you are using to fax, you must have a DSL filter installed.

1.

Click Start Programs or All Programs Fax Solutions Fax Solutions.

The Dell Fax Solutions Software opens.

2.

From the Recently received faxes section, select the document you want to forward.3.

From the Fax drop-down menu, click Forward Fax.4.

Enter the contact information of your recipient, and then click Next.5.

Select a cover page, and then click Next.6.

You can attach additional files or scan documents with the fax.7.

Click Next.8.

Modify the sending options as necessary.9.

Click Send.10.

Receiving a Fax

Receiving a Fax Automatically

Click Start All Programs Fax Solutions Fax Solutions.1.

1.

From the Receiving Faxes area, select Automatically.2.

Receiving a Fax Manually

Click Start Programs or Start All Programs Fax Solutions Fax Solutions.

The Dell Fax Solutions Software opens.

1.

From the Receiving Faxes area, select Manually.2.

Printing a Received Fax

Click Start Programs or All Programs Fax Solutions Fax Solutions.

The Dell Fax Solutions Software opens.

1.

From the Recently received faxes section, select the document you want to print.2.

From the Fax drop-down menu, click Print Fax.

The Print dialog box opens.

3.

In the printer list, select the name of the printer you want to use.4.

Click OK to print the selected fax document.5.

Deleting a Received Fax

Click Start Programs or All Programs Fax Solutions Fax Solutions.

The Dell Fax Solutions Software opens.

1.

From the Recently received faxes section, select the document you want to delete.2.

From the Fax drop-down menu, click Delete Fax.3.

3.

Click Yes to delete the selected fax.4.

Monitoring Fax Activity

Viewing the Fax Status

Click Start All Programs Fax Solutions Fax Solutions.1.

You can see the status of your fax in the Sending Faxes or Receiving Faxes area.2.

Creating a Fax Report

Click Start All Programs Fax Solutions Fax Solutions.1.

From the Sending Faxes area or the Receiving Faxes area, click Create Report.2.

Blocking Junk Faxes

With the Dell Fax Solutions open, select Receiving Settings.1.

Click the Receiving Faxes tab.2.

Select Enable fax blocking.3.

To add an entry to the Block List:

From the Block Junk Faxes area, click Manage Block List.1.

1.

Click New.2.

Specify the fax identifier you want to block.3.

Click OK.4.

To edit an entry on the Block List:

From the Block Junk Faxes area, click Manage Block List.1.

From the list, select the entry you want to modify.2.

Click Edit.3.

Change the information of the entry you want to block.4.

Click OK.5.

To delete an entry from the Block List:

From the Block Junk Faxes area, click Manage Block List.1.

From the list, select the entry you want to delete.2.

Click Delete.3.

Click Yes.4.

Understanding the Software

Using the Dell All-In-One Center
Using Printing Preferences
Using Memory Card Manager
Using the Dell Fax Solutions Software
Dell Ink Management System
Removing and Reinstalling Software

The printer software includes:

Dell All-In-One Center-Allows you to perform various scan, copy, fax, and print operations with
newly scanned and previously saved documents and images.

Printing Preferences-Allows you to adjust printer settings.

Dell Ink Management SystemTM-Warns you when your printer is running low on ink.

Memory Card Manager-Allows you to display, manage, edit, print, and save photos to your

computer.

Using the Dell All-In-One Center

The Dell All-In-One Center allows you to:

Scan, copy, fax, and use productivity tools.

Select where you want to send the scanned image.

Select the quantity and color of your copies.

Access troubleshooting and maintenance information.

Preview images you want to print or copy.

Manage photos (copy them to folders, print them, perform creative copying).

To access the Dell All-In-One Center using your computer:

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.1.

Select Dell All-In-One Center.2.

To access the Dell All-In-One Center using the operator panel:

Press the left or right Arrow button to scroll to the SCAN mode, and then press the Select button

.

1.

Press the left or right Arrow button to scroll to Scan To, and then press the Select button .2.

Press the left or right Arrow button to scroll to the Preview, and then press the Select button
.

3.

Press the Start button .4.

The Dell All-In-One Center includes four main sections:

In this section:

You can:

Preview Now

Select a portion of the preview image to scan or copy.
View an image of what will be printed or copied.

Scan and Fax

Select the program where you want to send the scanned image.
Select the type of image being scanned.
Select a quality setting for your scan.
Select Scan Now.
Select Fax Now.

NOTE: Click See More Scan Settings to view all settings.

Copy

Select the quality and color of your copies.
Select a quality setting for your copies.
Specify the blank paper size.
Specify the size of the original document being copied.
Lighten or darken your copies (this can also be accomplished using the operator

panel).
Enlarge or reduce your copies.

NOTE: Click See More Copy Settings to view all settings.

Productivity
Tools

Fax using PC modem.
E-mail an image or document.
Repeat an image several times on one page.
Enlarge or reduce an image.
Print an image as a multi-page poster.
Save an image on your computer.
Save multiple photos.
Edit text found in a scanned document (Optical Character Recognition).
Modify an image with a photo editor.

For more information, click Help in the Dell All-In-One Center.

Using Printing Preferences

You can change your printer settings in Printing Preferences depending on the type of project you want to
create.

To access Printing Preferences when a document is open:

Click File Print.

The Print dialog box opens.

1.

Click Preferences, Properties, Options, or Setup (depending on the program or operating system).

The Printing Preferences dialog box opens.

2.

To access Printing Preferences when a document is not open:

In Windows XP, click Start Settings Control Panel Printers and Other Hardware Printers
and Faxes.

In Windows 2000, click Start Settings Printers.

1.

Right-click the printer icon, and then select Printing Preferences.

NOTE: Changes made to the printer settings from the Printers folder become the default

settings for most programs.

2.

Printing Preferences Tabs

Tab

Options

Print Setup

Quality/Speed - Select Automatic, Draft, Normal, or Photo depending on your desired
output quality. Draft is the fastest option but should not be selected if you have a photo
cartridge installed.

Media Type - Allows you to set the paper type manually, or have the printer detect the
paper type automatically.

Paper Size - Select the size of your paper.

Print in black and white - Print your color images in black and white to save the ink in your
color cartridge.

NOTE: You cannot select this setting if you have selected Use Color Cartridge for all

Black Printing.

Borderless - Select the check box if you want to print borderless photos.

Orientation - Select how the document is arranged on the printed page. You can print using
portrait or landscape orientation.

Envelope - Select the check box if you want to print an envelope. The Paper Size area lists
the envelope sizes available for printing.

Copies - Customize how the printer prints several copies of a single print job: Collated,
Normal, or Print Last Page First.

Advanced

2-sided printing - Select this to print on both sides of the paper.

Layout - Select Normal, Banner, Mirror, N-up, Poster, Booklet, or Borderless.

Automatic Image Sharpening - Automatically select the best image-sharpening level based
on image content.

Dell Customer Experience Improvement Program - Allows you to access information about,
and change your status in, the Dell Customer Experience Improvement Program.

More Options - Allows you to specify Appearance Mode and Complete-A-Print settings.
You can also view the paper type that the printer detects.

Maintenance

Install Ink Cartridges

Clean Ink Cartridges

Align Ink Cartridges

Print a Test Page

Network Support

Using Memory Card Manager

Memory Card Manager allows you to display, manage, edit, print, and save photos from your memory card
or USB key to your computer.

To launch Memory Card Manager:

Insert a memory card into the memory card slot or a USB memory key into the PictBridge port on the
front of the printer.

1.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.2.

Select Memory Card Manager.3.

To specify which memory card or USB key is monitored by the Memory Card Manager:

Insert a memory card into the memory card slot or a USB memory key into the PictBridge port on the
front of the printer.

1.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.2.

Select Memory Card Manager.3.

Click Options, and then select the Other Devices tab.4.

4.

Click the box beside the memory card or USB key that you want to monitor, and then click OK.

The Memory Card Manager is launched when the selected memory card containing a photo is inserted
into the memory card slot, or when the selected USB key containing a photo is inserted into the
PictBridge port.

NOTE: Do not remove the memory card or USB key, or touch the printer near the area of the

memory card or USB key when the light is blinking.

5.

Using the Dell Fax Solutions Software

The Dell Fax Solutions Software allows you to:

Send and receive faxes.

Manage your phonebook.

Create a cover page.

View fax history.

Create a fax report.

Adjust other fax settings.

To access the Dell Fax Solutions Software:

Click Start Programs or All Programs Fax Solutions.1.

Select Fax Solutions.2.

The Dell Fax Solutions Software has two main sections. When you save the settings, they apply to every fax
you send or receive.

In this
section:

You can:

Sending Faxes

Send a new fax.
Manage your phonebook.
Set a template for your cover page.
Specify information for the cover page.
View a list of sent and outgoing faxes.
Create a report on sent and outgoing faxes.
Specify if you want to use a fax header.
Specify the number of times the printer attempts to send the fax when a

transmission fails.
Specify the driver you want to use in scanning the document you want to fax.

Receiving Faxes

Specify how you want incoming calls to be answered.
Choose to print incoming faxes.
View a list of received and incoming faxes.
Create a report of received and incoming faxes.
Set the number of rings before a call is answered.
Block junk faxes.

You can view more options when you click Sending Settings or Received Settings. Click on each tab, and
change the settings as necessary.

Dell Ink Management System

Each time you print a job, a printing progress screen appears, which shows the progress of the print job as
well as the amount of ink remaining and the approximate number of pages remaining in the cartridge. The
page counter is hidden during the first 50 pages of cartridge use, until printing habits are learned and a
more accurate count can be given. The number of pages remaining changes as a result of the type of print
jobs the printer completes.

When your ink cartridge levels are low, a Low Ink Warning appears on your screen when you try to print.
This warning is displayed every time you print until you install a new ink cartridge. For more information, see

Replacing Ink Cartridges.

When one or both of your ink cartridges are empty, the Reserve Tank window appears on your screen when
you try to print. If you continue printing, the print job may not print as you expect.

If your black ink cartridge is out of ink, you can choose to print black from the color ink cartridge (Process
Black) by selecting Complete-A-Print before clicking the Continue Printing button. If you select
Complete-A-Print and click Continue Printing, Process Black is used for all black printing until the black
cartridge is replaced, or the option is cleared from More Options, located on the Advanced tab of the
Printing Preferences. The Reserve Tank dialog does not display again until after the low ink cartridge has
been replaced. The Complete-A-Print check box is automatically reset when a new or different cartridge is
installed.

If your color ink cartridge is out of ink, you can choose to print color documents in grayscale by selecting

Complete-A-Print before clicking the Continue Printing button. If you select Complete-A-Print, and click
Continue Printing, all color documents will print in black and white until the color cartridge is replaced or
the option is cleared from More Options, located on the Advanced tab of the Printing Preferences. The
Reserve Tank dialog does not display again until after the low ink cartridge has been replaced. The
Complete-A-Print check box is automatically reset when a new or different cartridge is installed.

Removing and Reinstalling Software

If your printer does not function properly, or communication error messages appear when using your printer,
you can remove and reinstall the printer software.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.1.

Click Uninstall Dell Photo AIO Printer 926.2.

Follow the instructions on the screen.3.

3.

Restart your computer.4.

Insert the Drivers and Utilities CD, and then follow the instructions on the screen.

If the installation screen does not appear:

In Windows XP, click Start My Computer.

In Windows 2000, double-click My Computer from your desktop.

a.

Double-click the CD-ROM drive icon, and then double-click setup.exe.b.

When the printer software installation screen appears, click Personal Installation or Network
Installation.

c.

Follow the instructions on your screen to complete the installation.d.

5.

Maintenance

Replacing Ink Cartridges
Aligning Ink Cartridges
Cleaning the Ink Cartridge Nozzles
Changing the Default Operator Panel Settings
Restoring Factory Default Settings

CAUTION: Before performing any of the procedures listed in this section, read and follow the

safety information in your Owner's Manual.

Dell ink cartridges are available only through Dell. You can order more ink online at www.dell.com/supplies
or by phone.

Dell recommends Dell ink cartridges for your printer. Dell does not provide warranty coverage for problems
caused by using accessories, parts, or components not supplied by Dell.

Replacing Ink Cartridges

Turn on your printer.1.

Lift the printer unit, and then position the scanner support between the tabs to hold it open.

The ink cartridge carrier moves and stops at the loading position unless the printer is busy.

2.

3.

Press down on the ink cartridge lever to raise each ink cartridge lid.3.

Remove the old ink cartridges.4.

Store the cartridges in an air-tight container, such as the storage unit you received with your photo
cartridge, or dispose of them properly.

5.

If you are installing new ink cartridges, remove the sticker and transparent tape from the back and
bottom of each ink cartridge.

NOTE: The following illustration shows a black cartridge and a color cartridge (used for normal

printing). For photo printing, use a photo cartridge and a color cartridge.

6.

Insert the new ink cartridges. Make sure the black or photo ink cartridge is secure in the left ink
cartridge carrier, and the color ink cartridge is secure in the right ink cartridge carrier.

7.

Snap each lid closed.8.

Hold the printer unit up, push the scanner support back to unlock it, and then lower the printer unit
until it is completely closed.

9.

9.

Aligning Ink Cartridges

Your printer automatically prompts you to align the ink cartridges when they are installed or replaced. You
may also need to align ink cartridges when characters are not properly formed or are not aligned at the left
margin, or when vertical or straight lines appear wavy.

To align the ink cartridges from the operator panel:

Load plain paper. For more information, see Loading Paper into the Paper Support.1.

Use the Arrow buttons to scroll to MAINTENANCE, and then press the Select button .2.

Use the Arrow buttons to scroll to Align Cartridges, and then press the Select button .

A blue and black alignment page prints. The ink cartridges align when the page prints. You may discard
the alignment page when the alignment is complete.

3.

To align the ink cartridges from the printer software:

Load plain paper.1.

In Windows XP, click Start Control Panel Printers and Other Hardware Printers and Faxes.

In Windows 2000, click Start Settings Printers.

2.

Right-click the printer icon.3.

Click Printing Preferences.4.

The Printing Preferences dialog box opens.

4.

Click the Maintenance tab.5.

Click Align Ink Cartridges.6.

Click Print.

A blue and black alignment page prints. The ink cartridges align when the page prints. You may discard
the alignment page when the alignment is complete.

7.

Cleaning the Ink Cartridge Nozzles

You may need to clean the nozzles when:

White lines appear in graphics or solid black areas.

Print appears smudged or too dark.

Colors fade, do not print, or do not print correctly.

Vertical lines appear jagged, or edges appear rough.

To clean the nozzles from the operator panel:

Load plain paper. For more information, see Loading Paper into the Paper Support.1.

Use the Arrow buttons to scroll to MAINTENANCE, and then press the Select button .2.

Use the Arrow buttons to scroll to Clean Cartridges, and then press the Select button .3.

To clean the nozzles from the printer software:

Load plain paper.1.

1.

In Windows XP, click Start Control Panel Printers and Other Hardware Printers and Faxes.

In Windows 2000, click Start Settings Printers.

2.

Right-click the printer icon.3.

Click Printing Preferences.

The Printing Preferences dialog box opens.

4.

Click the Maintenance tab.5.

Click Clean Ink Cartridges.

The cleaning page begins printing.

6.

If the print quality has not improved, click Clean Again.7.

Print your document again to verify the improved print quality.8.

If you are still not satisfied with the print quality, wipe the nozzles with a clean, dry cloth, and then print
your document again.

Changing the Default Operator Panel Settings

You can change the default settings of the following options on the operator panel.

Operator panel menu

Menu options

COPY MENU

Copy Color

# of Copies

Quality

Dark

Paper Type

Zoom

Skew Correction

PHOTO MENU

Photo Color

Photo Options

Quality

Operator panel menu

Menu options

Paper Type

PICTBRIDGE MENU

Quality

Paper Type

Photo Options

SCAN MENU

Scan Color

FAX MENU

Fax Color

MAINTENANCE MENU

Clear Settings

BLUETOOTH MENU

Enable

Discovery

Security Level

Security Code

Device List

To change the default settings on the operator panel:

Turn on the printer.1.

Change the operator panel settings.2.

Use the Arrow buttons to scroll to the MAINTENANCE, and then press the Select button .3.

Use the Arrow buttons to scroll to the Set Defaults, and then press the Select button .4.

Use the Arrow buttons to scroll to the Use Current, and then press the Select button .

The current settings on the operator panel are saved as the new default settings.

5.

Restoring Factory Default Settings

Menu settings marked with an asterisk (*) indicate the active settings. You can restore the original printer
settings, often referred to as the factory default settings.

Make sure the printer is on.1.

1.

From the control panel, use the Arrow buttons to scroll to MAINTENANCE, and then press the
Select button .

2.

Use the Arrow buttons to scroll to Set Defaults, and then press the Select button .3.

Use the Arrow buttons to scroll to Use Factory, and then press the Select button .

Settings are reset to factory defaults.

4.

Troubleshooting

Setup Problems
General Problems
Error Messages
Error Codes
Improving Print Quality

Setup Problems

Computer Problems

Verify your printer is compatible with your computer.

The printer supports Windows XP Professional x64, Windows XP, and Windows 2000.

Make sure you turned on both your printer and your computer.

Check the USB cable.

Ensure the USB cable is firmly connected to your printer and your computer.

Shut down the computer, reconnect the USB cable as shown on the Setting Up Your Printer poster,
and then restart the computer.

If the software installation screen does not appear automatically, install the software
manually.

Insert the Drivers and Utilities CD.1.

1.

In Windows XP, click Start My Computer.

In Windows 2000, double-click My Computer from your desktop.

2.

Double-click the CD-ROM drive icon, and then double-click setup.exe.3.

When the printer software installation screen appears, click Personal Installation or Network
Installation.

4.

Follow the instructions on your screen to complete the installation.5.

Determine if the printer software is installed.

Click Start Programs or All Programs Dell Printers.
If the printer does not appear in the list of printers, the printer software is not installed. Install the printer

software. For more information, see Removing and Reinstalling Software.

Correct communication problems between the printer and the computer.

Remove the USB cable from your printer and your computer. Reconnect the USB cable to your
printer and your computer.

Turn off the printer. Unplug the printer power cable from the electrical outlet. Reconnect the printer
power cable into the electrical outlet, and turn on the printer.

Restart your computer.

Set your printer as the default printer.

In Windows XP, click Start Control Panel Printers and Other Hardware Printers and
Faxes.

In Windows 2000, click Start Settings Printers.

1.

Right-click the printer icon, and select Set as Default Printer.2.

Printer won't print and print jobs are stuck in the print queue.

Check for multiple instances of the printer installed on your computer.

In Windows XP, click Start Control Panel Printers and Other Hardware Printers and
Faxes.

In Windows 2000, click Start Settings Printers.

1.

Check for multiple objects for your printer.2.

Print a job to each of these print objects to see which printer is active.3.

Set that print object as the default printer by right-clicking the printer icon and selecting Set as
Default Printer.

4.

Delete the other copies of the print object by right-clicking the printer name and selecting Delete.

To prevent multiple instances of the printer in your Printers folder, make sure you always plug the
USB cable back into the same USB port that was originally used for the printer. Also, do not install
printer drivers multiple times from the Drivers and Utilities CD.

5.

Printer Problems

Ensure the printer power cable is firmly connected to the printer and the electrical
outlet.

Determine if the printer has been held or paused.

In Windows XP, click Start Control Panel Printers and Other Hardware Printers and
Faxes.

In Windows 2000, click Start Settings Printers.

1.

Right-click the printer icon.2.

Make sure Pause Printing is not selected. If Pause Printing is selected, click it to clear the option.3.

Check for blinking lights on the printer.

For more information, see Error Messages.

Ensure you installed the ink cartridges correctly and removed the sticker and tape from
each cartridge.

Make sure you loaded the paper correctly.

For more information, see Loading Paper into the Paper Support.

Ensure the printer is not connected to a PictBridge-enabled camera.

For more information, see Printing Photos From a PictBridge-Enabled Camera.

General Problems

Printing Problems

Check the ink levels, and install new print cartridges if necessary.

For more information, see:

Dell Ink Management System.

Replacing Ink Cartridges.

Make sure you remove individual sheets from the paper exit tray.

To avoid ink smudging when you are using the following media, remove each sheet as it exits, and allow it
to dry:

Photo/glossy paper

Transparency

Labels

Envelopes

Iron-on transfers

Free up memory resources on your computer when print speed is slow.

Close all applications not in use.

Try minimizing the number and size of graphics and images in your document.

Consider purchasing more Random Access Memory (RAM) for your computer.

Remove as many unused fonts as possible from your system.

Uninstall the printer software, and then reinstall it. For more information, see Removing and

Reinstalling Software.

Select a lower print quality. For more information, see Using Printing Preferences.

Make sure you loaded the paper correctly.

For more information, see Loading Paper into the Paper Support.

Copying Problems

Check for blinking lights on the printer.

For more information, see Error Messages.

Make sure the scanner glass is clean.

If the scanner glass is dirty, gently wipe it with a clean, lint-free cloth dampened with water.

Use the Remove Patterns option to remove image patterns from magazines or
newspapers.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.1.

Select Dell All-In-One Center.

The Dell All-In-One Center opens.

2.

Click See More Copy Settings, and then click Advanced.

The Advanced Copy Settings dialog box opens.

3.

From the Image Patterns tab, select Remove image patterns from magazine/newspaper
(descreen), and then click OK.

4.

Click Copy Now.5.

Make sure the document or photo is loaded correctly on the scanner glass.

For more information, see Loading Original Documents on the Scanner Glass.

Check paper sizes.

Make sure the paper size being used matches the size you selected on the operator panel or the Dell All­In-One Center.

For more information, see:

Copy Mode.

Using the Dell All-In-One Center.

Scanning Problems

Check for blinking lights and error messages on the printer.

For more information, see Error Messages.

Check the USB cable.

Ensure the USB cable is firmly connected to your printer and your computer.

Shut down the computer, reconnect the USB cable as shown on the Setting Up Your Printer poster,
and then restart the computer.

Determine if the printer software is installed.

Click Start Programs or All Programs Dell Printers.
If the printer does not appear in the list of printers, the printer software is not installed. Install the printer

software. For more information, see Removing and Reinstalling Software.

Correct communication problems between the printer and the computer.

Remove the USB cable from your printer and your computer. Reconnect the USB cable to your
printer and your computer.

Turn off the printer. Unplug the printer power cable from the electrical outlet. Reconnect the printer
power cable into the electrical outlet, and turn on the printer.

Restart your computer.

Change the scan resolution to a lower value if scanning takes too long or freezes the
computer.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.1.

Select Dell All-In-One Center.

The Dell All-In-One Center opens.

2.

Click See More Scan Settings.3.

Select a lower scan resolution from the Select Scan Quality menu.4.

Click Scan Now.5.

5.

Change the scan resolution to a higher value if the scanned image quality is poor.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.1.

Select Dell All-In-One Center.

The Dell All-In-One Center opens.

2.

Click See More Scan Settings.3.

Select a higher scan resolution from the Select Scan Quality menu.4.

Click Scan Now.5.

Use the Remove Patterns option to remove image patterns from magazines or
newspapers.

Click Start Programs or All Programs Dell Printers Dell Photo AIO Printer 926.1.

Select Dell All-In-One Center.

The Dell All-In-One Center opens.

2.

Click See More Scan Settings, and then click Advanced.

The Advanced Scan Settings dialog box opens.

3.

From the Image Patterns tab, select Remove image patterns from magazine/newspaper
(descreen), and then click OK.

4.

Click Scan Now.5.

Choose another application if scanning to an application fails.

For more information, see:

Using the Dell All-In-One Center.

Scan Mode.

Make sure the document or photo is loaded correctly on the scanner glass.

For more information, see Loading Original Documents on the Scanner Glass.

Make sure the scanner glass is clean.

If the scanner glass is dirty, gently wipe it with a clean, lint-free cloth dampened with water.

Faxing Problems

Make sure you turned on both your printer and your computer and the USB cable is
properly inserted.

Ensure the computer is connected to an active analog telephone line.

Using the fax function requires a phone connection to the fax modem in your computer.

When using DSL broadband service, make sure you have a DSL filter installed on your phone cord.
Contact your Internet Service Provider for more information.

Make sure your computer is not connected to the Internet by dial-up modem when trying to fax.

When using an external modem, make sure it is turned on and it is correctly connected
to your computer.

Send the original document one page at a time when the printer memory is full.

Images of the original document are temporarily stored in the printer memory when you scan them for
faxing. More printer memory is used when faxing multiple-page documents or when sending a fax with
attachments. Faxing may become slow or freeze if the printer memory becomes full.

Check the ink levels, and install new cartridges if necessary when the printer receives a
blank fax.

For more information, see:

Dell Ink Management System.

Replacing Ink Cartridges.

Disconnect other equipment temporarily.

To ensure the printer and modem are working correctly, disconnect any answering machines or telephone
line splitters from the telephone line.

Paper Problems

Make sure you loaded the paper correctly.

For more information, see Loading Paper into the Paper Support.

Use only paper recommended for your printer.

For more information, see Print Media Guidelines.

Use a smaller amount of paper when printing multiple pages.

For more information, see Print Media Guidelines.

Make sure the paper is not wrinkled, torn, or damaged.

Check for a paper jam.

If the paper jam is located in the paper support:

Turn off the printer.1.

Firmly grasp the paper, and gently pull it from the printer.2.

Turn on the printer, and print the document again.3.

If the paper jam is not visible:

Turn off the printer.1.

Lift the printer unit, and position the scanner support between the tabs to keep it open.2.

Firmly grasp the paper, and gently pull it from the printer.3.

Close the printer unit.4.

Turn on the printer, and print the document again.5.

Networking Problems

Check the cable connections.

If the printer is attached to a network adapter:

Check the Ethernet cable and USB cable for any obvious damage.

Firmly plug one end of the USB cable into the printer, and the other end into the network adapter.

Firmly plug one end of the Ethernet cable into the network adapter, and the other end into the
network hub or wall connection.

If the printer is attached to a computer that is connected to the network:

Check the USB cable for any obvious damage.

Firmly plug one end of the USB cable into the printer, and the other end into the computer.

Check your network connection.

Make sure the printer is connected to a working network connection.

Check the network adapter documentation for setup and usage information.

Memory Card Problems

Make sure that the type of memory card you are using can be used in the printer.

For more information, see Printing Photos From a Memory Card or USB Key.

Insert only one memory card at a time.

Do not remove the memory card or touch the printer in the area of the memory card
while the light is blinking.

The blinking light indicates the printer is communicating with the memory card. Communication errors
might occur if you remove the memory card or touch the area near the memory card while the light is
blinking.

Do not insert more than one memory card or USB key at the same time.

Make sure the memory card is properly inserted.

Insert the memory card until it stops. The printer will not read the contents of the memory card if it is not
properly inserted into the memory card slot.

When printing images from a memory card, make sure the file format of the images is
supported by the printer.

Only images in JPG and a limited set of TIFF formats can be printed directly from the memory card. If you
want to print photos stored on the memory card in a different file format, the photos must be transferred
to your computer before printing.

Ensure the printer is not connected to a PictBridge-enabled camera.

For more information, see Printing Photos From a PictBridge-Enabled Camera.

Error Messages

Error Message:

What it indicates:

Solution:

Alignment Problem. Remove
tape from cartridges or
check troubleshooting. Press

to retry.

The tape was not removed from the
ink cartridges before the cartridges
were installed.

Remove the tape from the ink
cartridges. For more information, see

Replacing Ink Cartridges.

The device formatting is not
supported.

The file system format of the
memory card inserted is not
supported by the printer. The
printer supports FAT32 file system
format.

Reformat the memory card to FAT32.
Refer to the documentation that came
with your memory card for more
information.

Clear Carrier Jam then press

.

A printhead carrier jam occurred.

Remove obstructions from the carrier
path or close the cartridge carrier
lids, and then press the Select
button .

Install a black or photo
print cartridge on the
left side.

Install a color print
cartridge on the right
side.

Install both cartridges.

An ink cartridge is missing.

NOTE: The characters below the ink

drop icons show a ? symbol for
every missing cartridge while the
messages above appear.

Insert a black or photo cartridge in
the left cartridge carrier and a color
cartridge in the right carrier. For
more information, see Replacing Ink

Cartridges.

Left cartridge error.
Replace Cartridge.

Right cartridge error.
Replace Cartridge.

Install both cartridges.

An ink cartridge is invalid.

NOTE: The characters below the ink

drop icons show an X symbol for
every invalid cartridge while the
messages above appear.

Replace the invalid ink cartridge. For
more information, see Replacing Ink

Cartridges.

Computer Not Connected

The Start button was pressed
when the printer was in Scan or
Fax mode, but the printer is not
connected to a computer.

Make sure your printer is connected
to your computer.

Clear paper jam then press

.

A paper jam exists in the printer.

Clear the paper jam. For more
information, see Check for a paper

jam..

Load Paper then press .

The printer is out of paper.

Load paper into the printer, and then
press the Select button to
continue printing. For more
information, see Loading Paper into

the Paper Support.

No supported files found.

The memory card or USB key that is
inserted in the printer does not
contain any supported image
formats.

Remove the memory card or USB
key.

Error Message:

What it indicates:

Solution:

The attached camera or
device does not support
PictBridge.

Disconnect the device.

The attached device is not
supported, or the PictBridge­enabled digital camera is not set to
the correct USB mode.

Disconnect the device, or check the
USB mode setup. Refer to the
documentation that came with your
digital camera for more information.

Size Warning
Photo size is larger than

paper size. Press to pick
a new paper size.

The paper in the printer is smaller
than the selected Blank Paper Size.

Change the Blank Paper Size to
match the paper in the printer, or
press the Select button to
continue printing.

Low Ink Warning

The ink cartridge is running low on
ink. The Low Ink Warning occurs
when your ink cartridges reach
levels of 25 percent, 15 percent,
and 10 percent remaining.

Replace the ink cartridge. For more
information, see Replacing Ink

Cartridges.

Only one device or media
card is allowed. Please
remove all device(s) and
card(s).

More than one memory card or
device is inserted in the printer.

Remove all memory cards and
devices.

This function is not
supported over a network.

Printing Microsoft Office files from a
memory card or USB key is not
supported if the printer is connected
to a network adapter.

Connect the printer directly to a
computer.

Paper Types
Insert Plain Paper Press;

Press .
Appears during cartridge

alignment.

A paper type other than plain paper
is loaded into the paper support
when cartridge alignment is
initiated.

Load plain paper, and then press the
Select button .

Paper Types
Insert Plain Paper Press;

Press .
Appears during proof sheet

printing.

A paper type other than plain paper
is loaded into the paper support
when proof sheet printing is
initiated.

Load plain paper, and then press the
Select button .

Could not detect a proof
sheet.

The printer could not scan the proof
sheet.

Reprint the proof sheet, and try
again.

Error Codes

An advanced error has occurred if any of the following error codes is displayed on the printer display.

Error
code:

Error name:

What it indicates:

Solution:

Error
0000

NVRAM R/W

Error detected in reading from
or writing to the NVRAM

Press the Power button to reset
the printer.

Error
0001

Memory failure

The printer is unable to initialize
memory.

Press the Power button to reset
the printer.

Error
0002

Hardware failure

A general hardware failure has
occurred, and the printer is
unable to detect what part of the
hardware system failed.

Press the Power button to reset
the printer.

Error
0003

ROM checksum error

A checksum error on the Read­only memory has occurred.

Press the Power button to reset
the printer.

Error
1003

Paper Calibrate Fail

The printer failed to initialize or
calibrate the paper feed system.

Disconnect the printer power cable,
check for paper jams, and then
reconnect the power cable.

Error
0200

Flash Programming - out
of memory

The printer is unable to program
flash memory.

Press the Power button to reset
the printer.

Error
1201

Print Incomplete (Bad
data to print head or
more data expected for
swath)

The printer carrier stopped
before a print job was
completed.

Press the Power button to reset
the printer.

Error
1202

Data Error

Incorrect data has been sent
from the computer to the
printer.

Press the Power button to reset
the printer.

Error
1203

Print Head Short

A short circuit in the print head
has occurred.

Disconnect and then reconnect the
printer power cable. Reinstall the
ink cartridges. For more
information, see Replacing Ink

Cartridges.

Error
1205

Mono TSR Error

The printer cannot determine
the temperature of the print
head due to a problem in the
mono TSR circuit.

Reinstall the black ink cartridge. For
more information, see Replacing Ink

Cartridges.

Error
1206

Color TSR Error

The printer cannot determine
the temperature of the print
head due to a problem in the
color TSR circuit.

Reinstall the color ink cartridge. For
more information, see Replacing Ink

Cartridges.

Error
1207

Paper system Error

The paper system control failed.

Press the Power button to reset
the printer.

Error
2200

Scan Carrier Stall

The scan carrier stalled during a
scan job.

Turn off the printer, wait a few
seconds, and then turn on the
printer.

NOTE: Contact Customer Support at www.support.dell.com if the errors are not resolved.

Improving Print Quality

If you are not satisfied with the print quality of your documents, there are several different ways to improve
the print quality.

Use the appropriate paper. For example, use Dell Premium Photo Paper if you are printing photos with
a photo ink cartridge.

Use paper that is a heavier weight, bright white, or coated. Use Dell Premium Photo Paper if you are
printing photos.

NOTE: Dell Premium Photo Paper may not be available in all areas.

Select a higher print quality.

To select a higher print quality:

With your document open, click File Print.

The Print dialog box opens.

1.

Click Preferences, Properties, Options, or Setup (depending on the program or operating system).

The Printing Preferences dialog box opens.

2.

On the Print Setup tab, select a higher quality setting.3.

Print your document again.4.

If the print quality does not improve, try aligning or cleaning the ink cartridges. For more information,
see Aligning Ink Cartridges and Cleaning the Ink Cartridge Nozzles.

For additional solutions, go to support.dell.com.

5.

Specifications

Overview
Environmental Specifications
Power Consumption and Requirements
Print and Scan Mode Capabilities
Operating System Support
Memory Specifications and Requirements
Print Media Guidelines
Cables

Overview

Memory

32 MB SDRAM
4 MB FLASH

Connectivity

USB 2.0 high-speed

Duty cycle (average)

3,000 pages per month

Printer life

Printer: 18,000 pages
Scanner: 18,000 scans
ADF: 18,000 scans

Environmental Specifications

Temperature/Relative Humidity

Condition

Temperature

Relative humidity (non-condensing)

Operation

61° to 90° F

8 to 80%

Storage

34° to 140° F

5 to 80%

Shipping

-14° to 140° F

5 to 100%

Power Consumption and Requirements

Rated AC input

110 V

Rated frequency

60 Hz

Minimum AC input

90 VAC

Maximum AC input

255 VAC

Maximum input current

0.31 A

Average power consumption

Standby mode
Operational mode

6.01 W

12.2 W

Print and Scan Mode Capabilities

Your printer can scan from 72 to 19,200 dpi. Although your printer has this capability, Dell recommends
using the preset resolutions.

Print and scan
resolution

Scan resolution

Print resolution

Photo/Glossy
paper

All other
media

Draft

150 x 150 dpi

600 x 600 dpi

300 x 600 dpi

Normal

300 x 300 dpi

1200 x 1200 dpi

600 x 600 dpi


600 x 600 dpi (photo and mono
scan)

300 x 300 dpi (color scan)

4800 x 1200 dpi

1200 x 1200 dpi

Operating System Support

The printer supports:

Windows XP Professional x64

Windows XP

Windows 2000

NOTE: For Vista compatible drivers, consult www.support.dell.com.

Memory Specifications and Requirements

Your operating system must meet the minimum system requirements.

Operating
System

Processor speed (MHz)

RAM

Free hard
disk space

Windows 2000

Pentium II 233

128 MB

286 MB

Windows XP

Pentium II 300

128 MB

500 MB

Windows XP 64 bit

AMD Athlon 64, AMD Opteron, Intel Xeon with Intel EM64T
support, Intel Pentium 4 with Intel EM64T support

256 MB

1.5 GB

Print Media Guidelines

Media type:

Sizes supported:

Load up to:

Plain paper or coated paper

Letter: 8.5 x 11 inches
(216 x 279 mm)

A4: 8.27 x 11.69 inches
(210 x 297 mm)

Legal: 8.5 x 14 inches
(216 x 355.6 mm)

100 sheets

Banner paper

A4 Banner
Letter Banner

20 sheets

Envelopes

9 Envelopes: 3 7/8 x 8 7/8 inches
10 Envelopes: 4 1/8 x 9 1/2 inches
Baronial 5 1/2 Envelopes:

4 3/8 x 5 3/4 inches
6 3/4 Envelopes:

3 1/4 x 6 1/2 inches
7 3/4 Envelopes:

3 7/8 x 7 1/2 inches
A2 Baronial Envelopes:

111 x 146 mm
B5 Envelopes: 176 x 250 mm
C5 Envelopes: 162 x 229 mm
C6 Envelopes: 114 x 162 mm
DL Envelopes: 110 x 220 mm
Chokei 3 Envelopes: 120 x 235 mm
Chokei 4 Envelopes: 90 x 205 mm
Chokei 40 Envelopes: 90 x 225 mm

10 envelopes

Media type:

Sizes supported:

Load up to:

Kakugata 3 Envelopes:
216 x 277 mm

Kakugata 4 Envelopes:
197 x 267 mm

Kakugata 5 Envelopes:
190 x 240 mm

Kakugata 6 Envelopes:
162 x 229 mm

Greeting cards, index cards, postcards, or
photo cards

Photo/Post card: 4 x 6 inches
Index card: 3 x 5 inches

25 cards

Photo/glossy

8.5 x 11 inches (216 x 279 mm)
4 x 6 inches (101.6 x 152.4 mm)

25 sheets

Iron-on transfers

8.5 x 11 inches (216 x 279 mm)

1 iron-on
transfer

Transparencies

8.5 x 11 inches (216 x 279 mm)

50
transparencies

Cables

Your printer uses a Universal Serial Bus (USB) cable (sold separately).

Appendix

Dell Technical Support Policy
Contacting Dell
Warranty and Return Policy

Dell Technical Support Policy

Technician-assisted technical support requires the cooperation and participation of the customer in the
troubleshooting process and provides for restoration of the Operating System, application software and
hardware drivers to the original default configuration as shipped from Dell, as well as the verification of
appropriate functionality of the printer and all Dell-installed hardware. In addition to this technician assisted
technical support, online technical support is available at Dell Support. Additional technical support options
may be available for purchase.

Dell provides limited technical support for the printer and any Dell-installed software and peripherals.
Support for third-party software and peripherals is provided by the original manufacturer, including those
purchased and/or installed through Software & Peripherals (DellWare), ReadyWare, and Custom Factory
Integration (CFI/DellPlus).

Contacting Dell

You can access Dell Support at support.dell.com. Select your region on the WELCOME TO DELL SUPPORT
page, and fill in the requested details to access help tools and information.

You can contact Dell electronically using the following addresses:

World Wide Web

www.dell.com/
www.dell.com/ap/ (for Asian/Pacific countries only)
www.dell.com/jp/ (for Japan only)
www.euro.dell.com (for Europe only)
www.dell.com/la/ (for Latin American countries)

Anonymous file transfer protocol (FTP)

ftp.dell.com

Log in as user: anonymous, and use your email address as your password.

Electronic Support Service

[e-mail]
[e-mail]
[e-mail] (for Asian/Pacific countries only)

support.jp.dell.com/jp/jp/tech/email/ (for Japan only)
support.euro.dell.com (for Europe only)

Electronic Quote Service

[e-mail] (for Asian/Pacific countries only)

Warranty and Return Policy

Dell Inc. (“Dell”) manufactures its hardware products from parts and components that are new or equivalent
to new in accordance with industry-standard practices. For information about the Dell warranty for your
printer, refer to the Owner's Manual.

Licensing Notice

BSD License and Warranty statements
GNU License

The printer resident software contains:

Software developed and copyrighted by Dell and/or third parties.

Dell modified software licensed under the provisions of the GNU General Public License version 2 and
the GNU Lesser General Public License version 2.1.

Software licensed under the BSD license and warranty statements.

Software based in part on the work of the Independent JPEG Group.

The Dell modified GNU licensed software is free software; you can redistribute it to and/or modify it under
the terms of the licenses referenced above. These licenses do not provide you any rights to the Dell- or
third-party-copyrighted software in this printer.

Since the GNU licensed software that the Dell modifications are based upon is supplied explicitly without
warranty, use of the Dell modified version is similarly provided without warranty. See the warranty
disclaimers in the referenced licenses for additional details.

To obtain source code files for the Dell modified GNU licensed software, launch the Drivers and Utilities CD
that shipped with your printer and click Contact Dell, or refer to the “Contacting Dell” section of your
Owner's Manual.

BSD License and Warranty statements

Copyright (c) 1991 The Regents of the University of California. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that

the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.

1.

1.

Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.

2.

The name of the author may not be used to endorse or promote products derived from this software
without specific prior written permission.

3.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY
OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

GNU License

GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not

allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast,

the GNU General Public License is intended to guarantee your freedom to share and change free software--to
make sure the software is free for all its users. This General Public License applies to most of the Free
Software Foundation's software and to any other program whose authors commit to using it. (Some other
Free Software Foundation software is covered by the GNU Library General Public License instead.) You can
apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are
designed to make sure that you have the freedom to distribute copies of free software (and charge for this
service if you wish), that you receive source code or can get it if you want it, that you can change the
software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask
you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute
copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the
recipients all the rights that you have. You must make sure that they, too, receive or can get the source
code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives

you legal permission to copy, distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain that everyone understands that there is

no warranty for this free software. If the software is modified by someone else and passed on, we want its
recipients to know that what they have is not the original, so that any problems introduced by others will not
reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that
redistributors of a free program will individually obtain patent licenses, in effect making the program
proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use
or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.
GNU GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder
saying it may be distributed under the terms of this General Public License. The "Program", below, refers to
any such program or work, and a "work based on the Program" means either the Program or any derivative
work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or
with modifications and/or translated into another language. (Hereinafter, translation is included without
limitation in the term "modification".) Each licensee is addressed as "you". Activities other than copying,
distribution and modification are not covered by this License; they are outside its scope. The act of running
the Program is not restricted, and the output from the Program is covered only if its contents constitute a
work based on the Program (independent of having been made by running the Program). Whether that is
true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any
medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright
notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of
any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty
protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the
Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided
that you also meet all of these conditions:

a. You must cause the modified files to carry prominent notices stating that you changed the files and the
date of any change.

b. You must cause any work that you distribute or publish, that in whole or in part contains or is derived
from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the
terms of this License.

c. If the modified program normally reads commands interactively when run, you must cause it, when
started running for such interactive use in the most ordinary way, to print or display an announcement
including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you
provide a warranty) and that users may redistribute the program under these conditions, and telling the user
how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print
such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not
derived from the Program, and can be reasonably considered independent and separate works in
themselves, then this License, and its terms, do not apply to those sections when you distribute them as
separate works. But when you distribute the same sections as part of a whole which is a work based on the

Program, the distribution of the whole must be on the terms of this License, whose permissions for other
licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you;
rather, the intent is to exercise the right to control the distribution of derivative or collective works based on
the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work
based on the Program) on a volume of a storage or distribution medium does not bring the other work under
the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or
executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a. Accompany it with the complete corresponding machine-readable source code, which must be distributed
under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b. Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no
more than your cost of physically performing source distribution, a complete machine-readable copy of the
corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,

c. Accompany it with the information you received as to the offer to distribute corresponding source code.
(This alternative is allowed only for noncommercial distribution and only if you received the program in
object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an
executable work, complete source code means all the source code for all modules it contains, plus any
associated interface definition files, plus the scripts used to control compilation and installation of the
executable. However, as a special exception, the source code distributed need not include anything that is
normally distributed (in either source or binary form) with the major components (compiler, kernel, and so
on) of the operating system on which the executable runs, unless that component itself accompanies the
executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then
offering equivalent access to copy the source code from the same place counts as distribution of the source
code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this
License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will
automatically terminate your rights under this License. However, parties who have received copies, or rights,
from you under this License will not have their licenses terminated so long as such parties remain in full
compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants
you permission to modify or distribute the Program or its derivative works. These actions are prohibited by
law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based
on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for
copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically
receives a license from the original licensor to copy, distribute or modify the Program subject to these terms
and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted
herein. You are not responsible for enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not
limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise)
that contradict the conditions of this License, they do not excuse you from the conditions of this License. If
you cannot distribute so as to satisfy simultaneously your obligations under this License and any other
