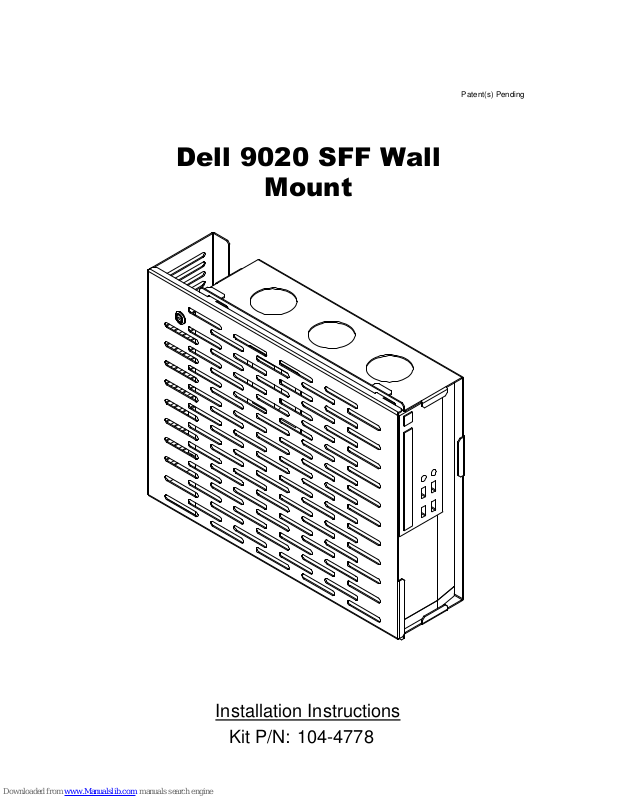

Dell 9020 SFF Installation Instructions Manual

Dell 9020 SFF Wall

Mount

Patent(s) Pending

104-4778Kit P/N:

Installation Instructions

Kit Contents

Page 2

Mounting Hardware:

(4) Pan Head Screw

(4) Anchors

Kit Contents:

(1) Main Bracket

(1) Cover

PC Wall Mount Installation Instructions

Step 1

Determine Location: Select an appropriate location on the wall. Consider cable
routing and length.

Step 2

Mark Hole Postion: Hold the base in position and mark 4 hole positions with a pencil.

Step 3

Install Drywall Anchor: Install one drywall anchor at each hole mark. Using a #2
Phillips head screw driver press the anchor into the drywall while turning clockwise
until it si seated flush with the wall.
