Page 1

COLOR MONITOR

CKB5237L CKB7227L

Manual

SERVICE

COLOR MONITOR CONTENTS

– +

EXIT

1. Precautions

2. Product Specifications

3. Operating Instructions

4. Disassembly & Reassembly

5. Alignment & Adjustments

6. Troubleshooting

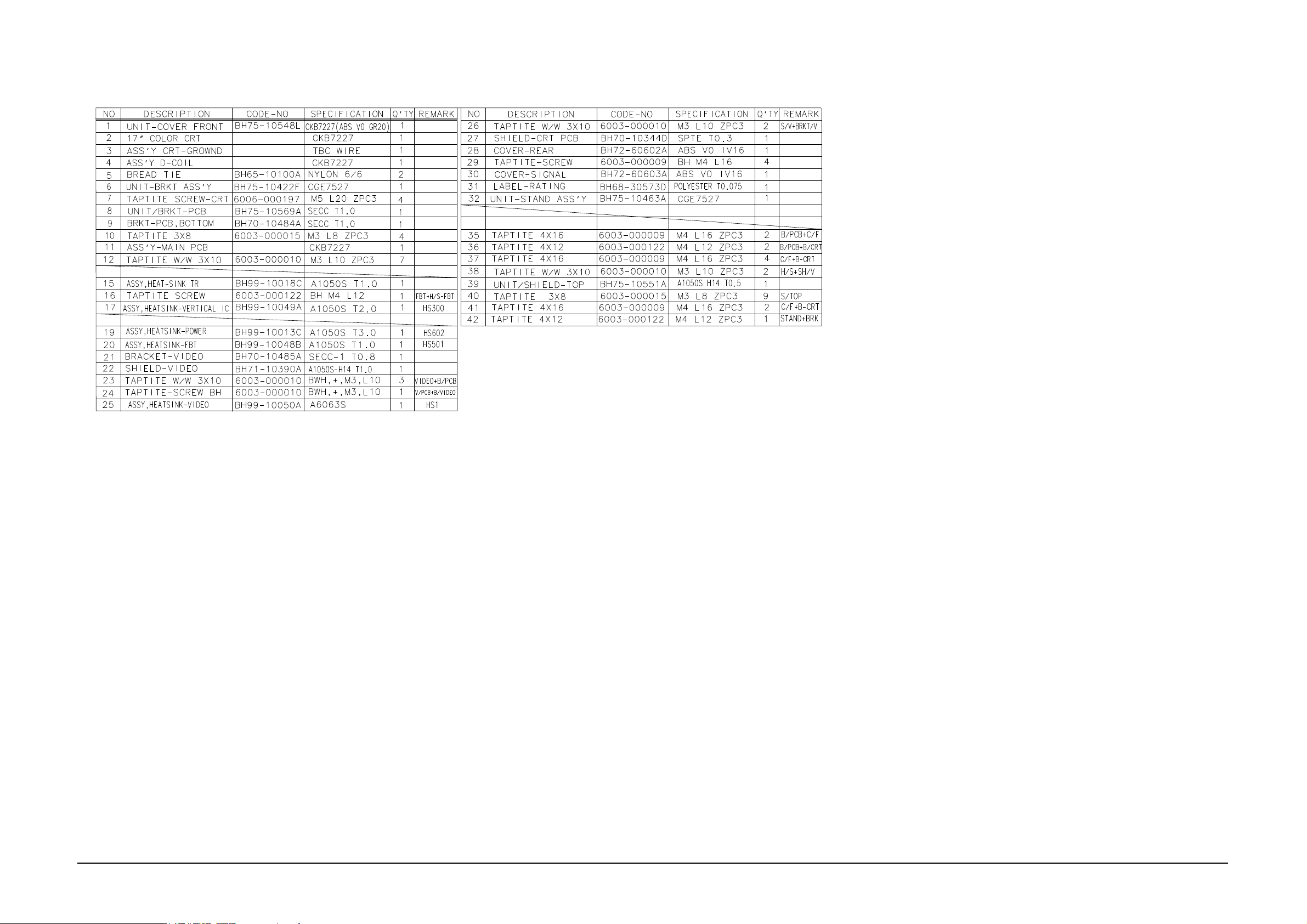

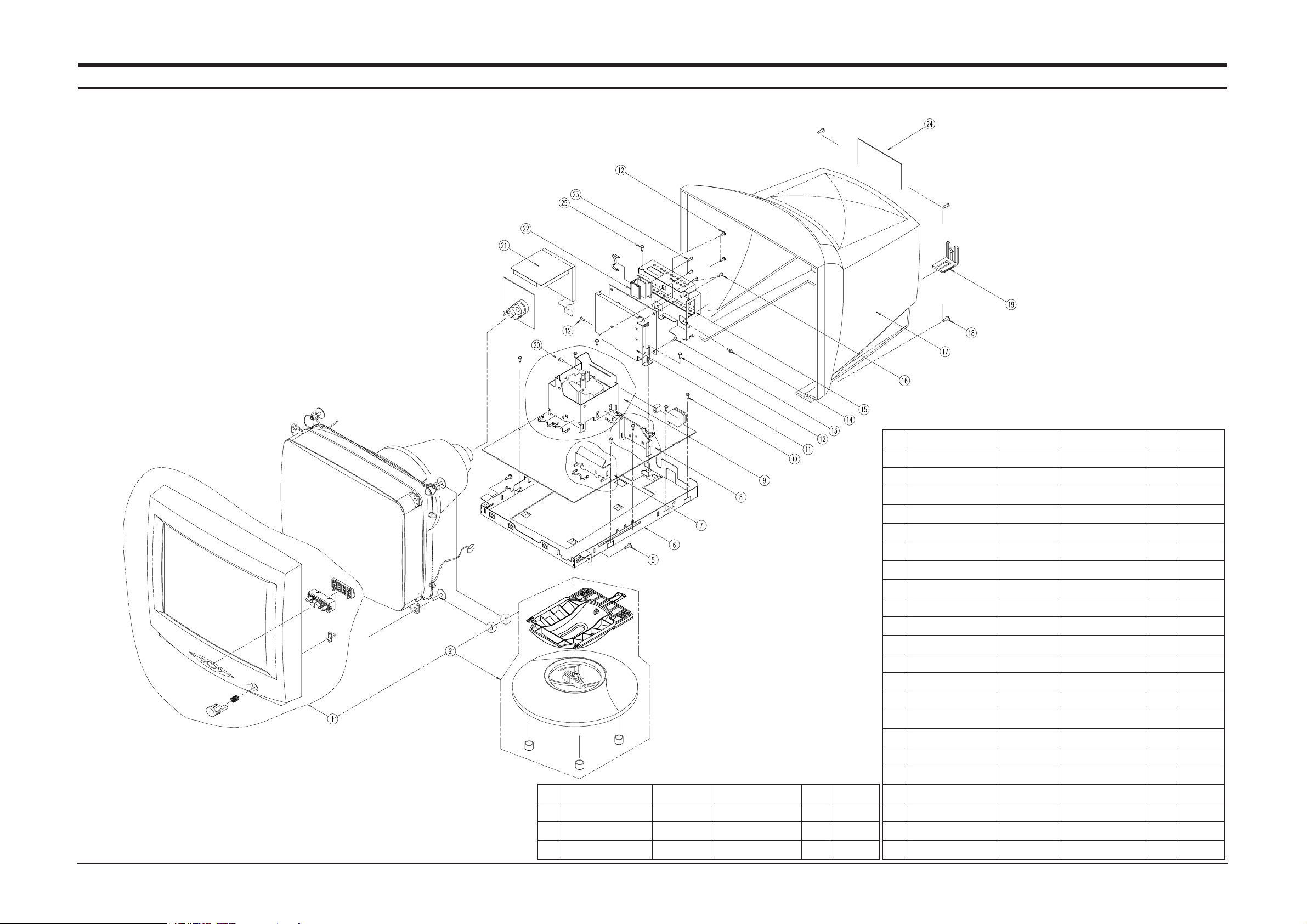

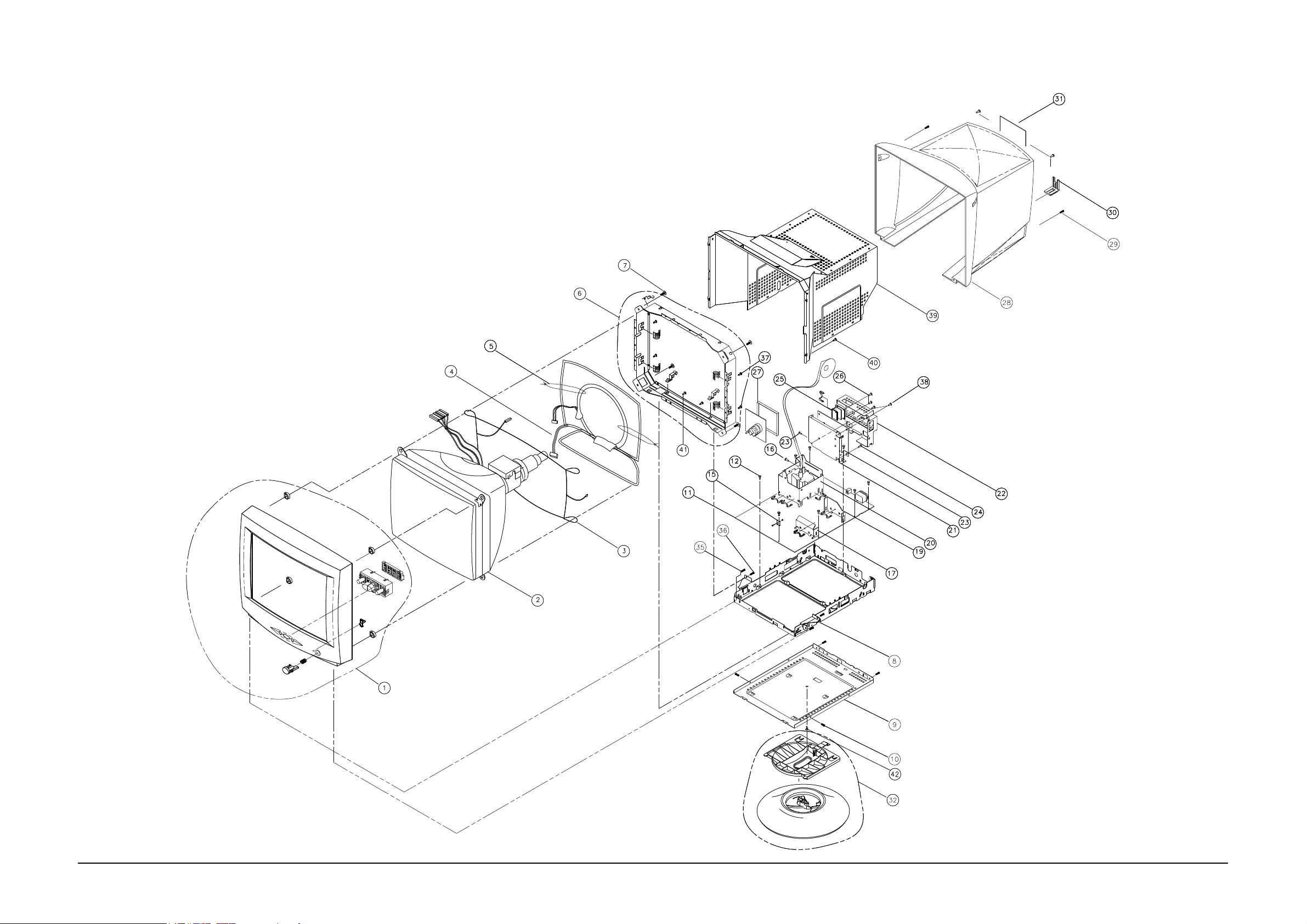

7. Exploded View & Parts List

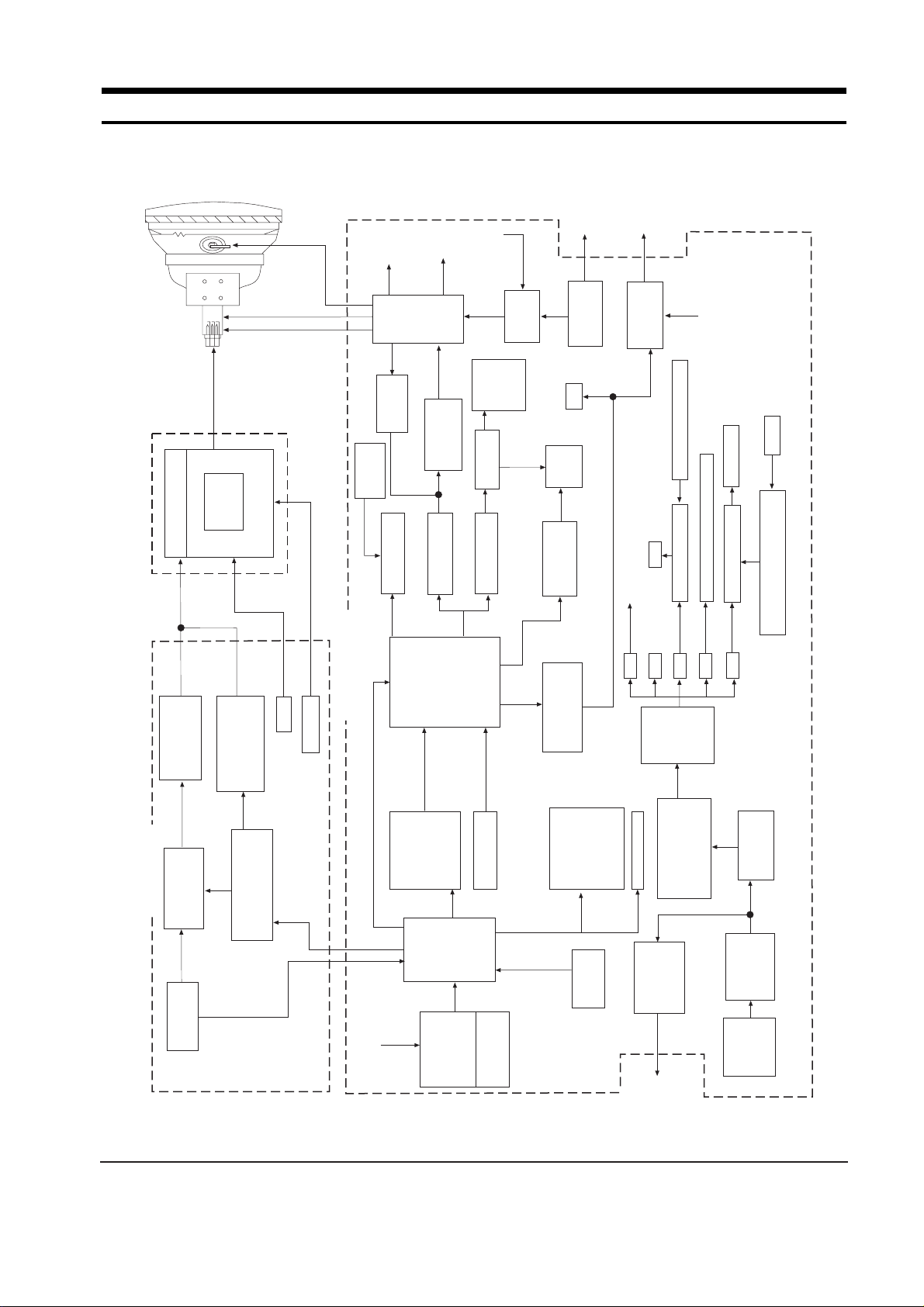

8. Block Diagram

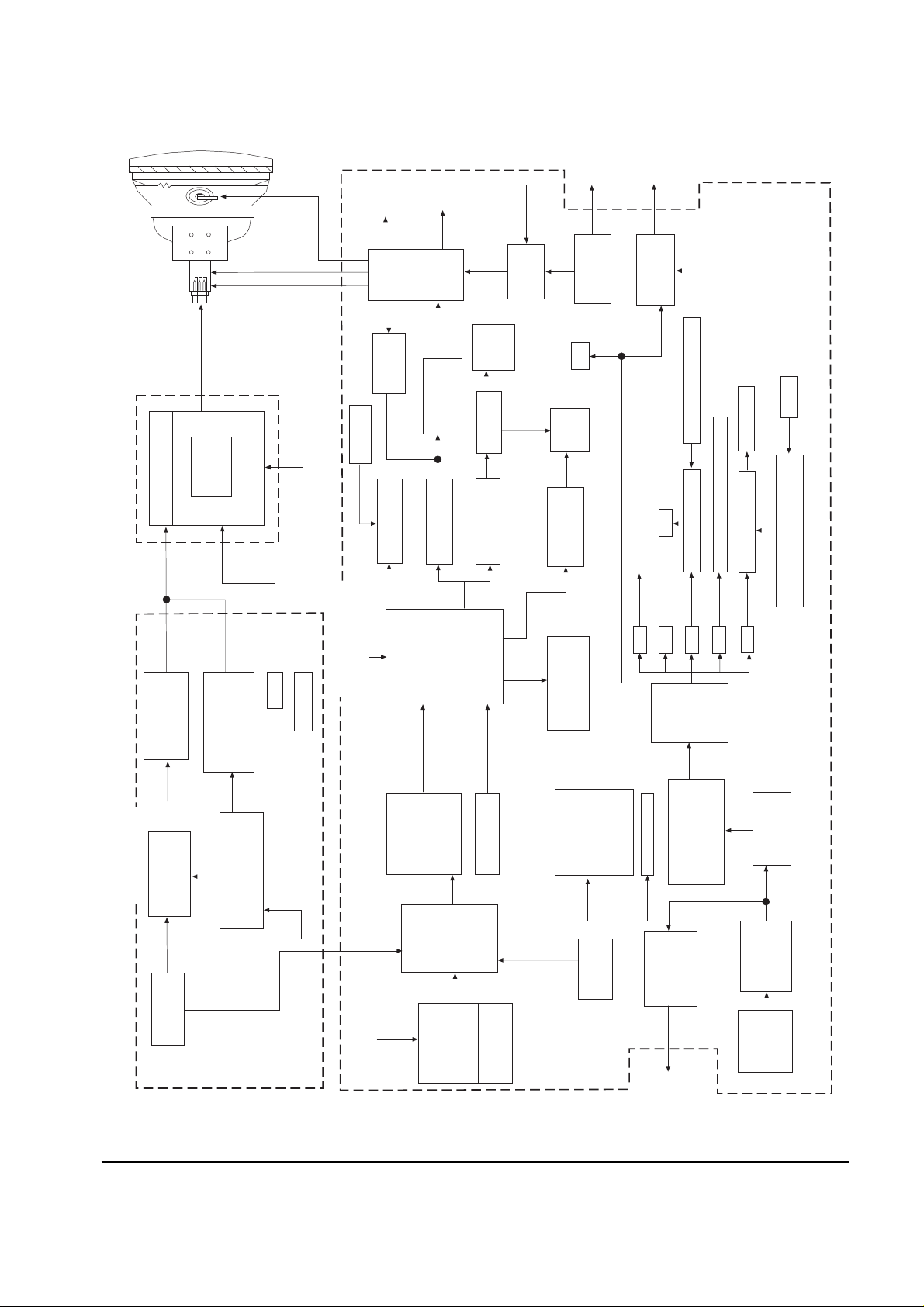

9. Wiring Diagram

10. PCB Diagrams & Electrical Parts List

11. Schematic Diagrams

Page 2

CKB5237L/7227L 6-1

6 Troubleshooting

Notes: 1. If a picture does not appear, fully rotate the brightness and contrast controls clockwise and reinspect.

2. Check the following circuits.

• No raster appears: Power circuit,Horizontal output circuit, H/V control circuit, and H/V output circuit.

• High voltage develops but no raster appears: Video output circuits.

• High voltage does not develop: Horizontal output circuits.

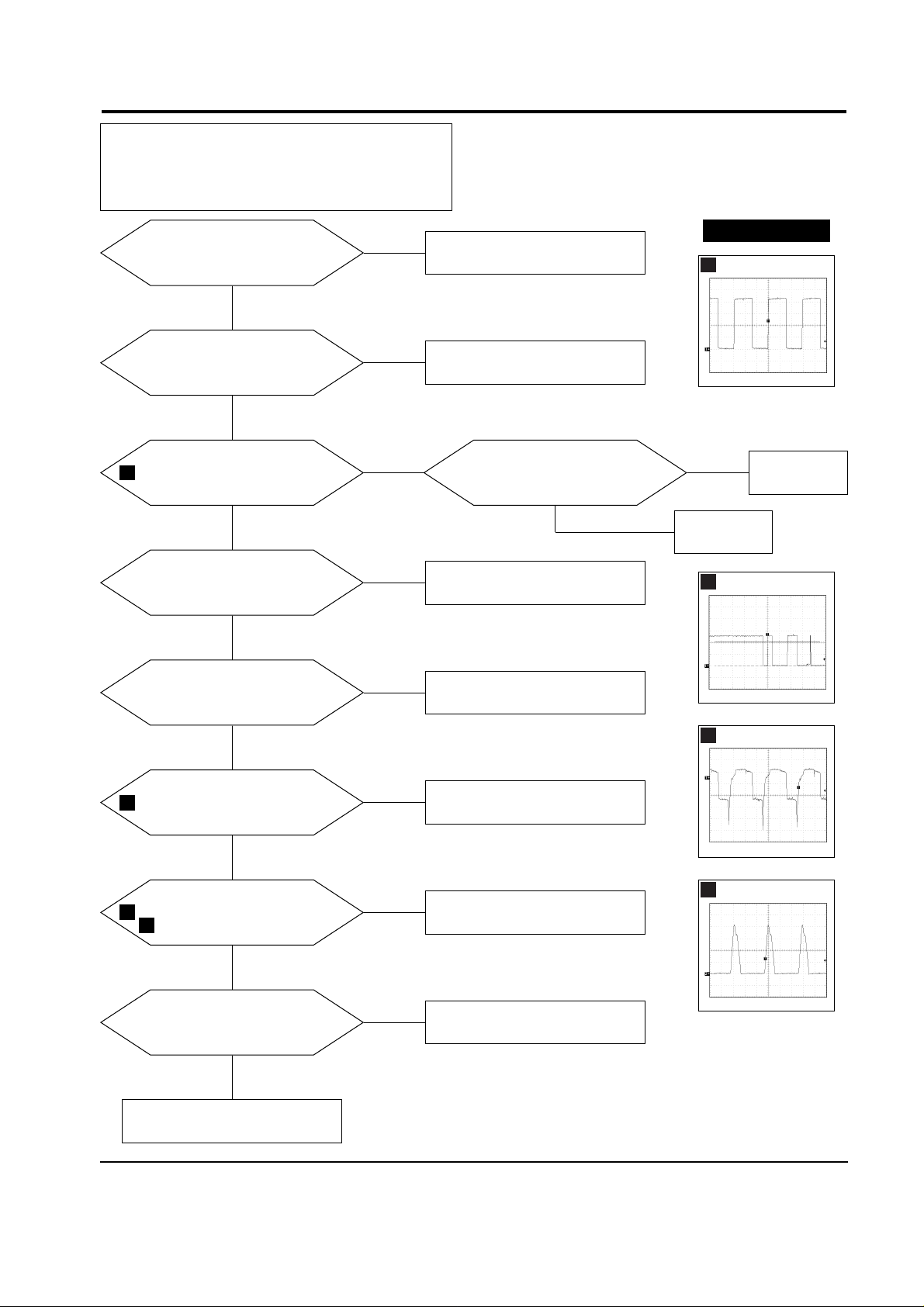

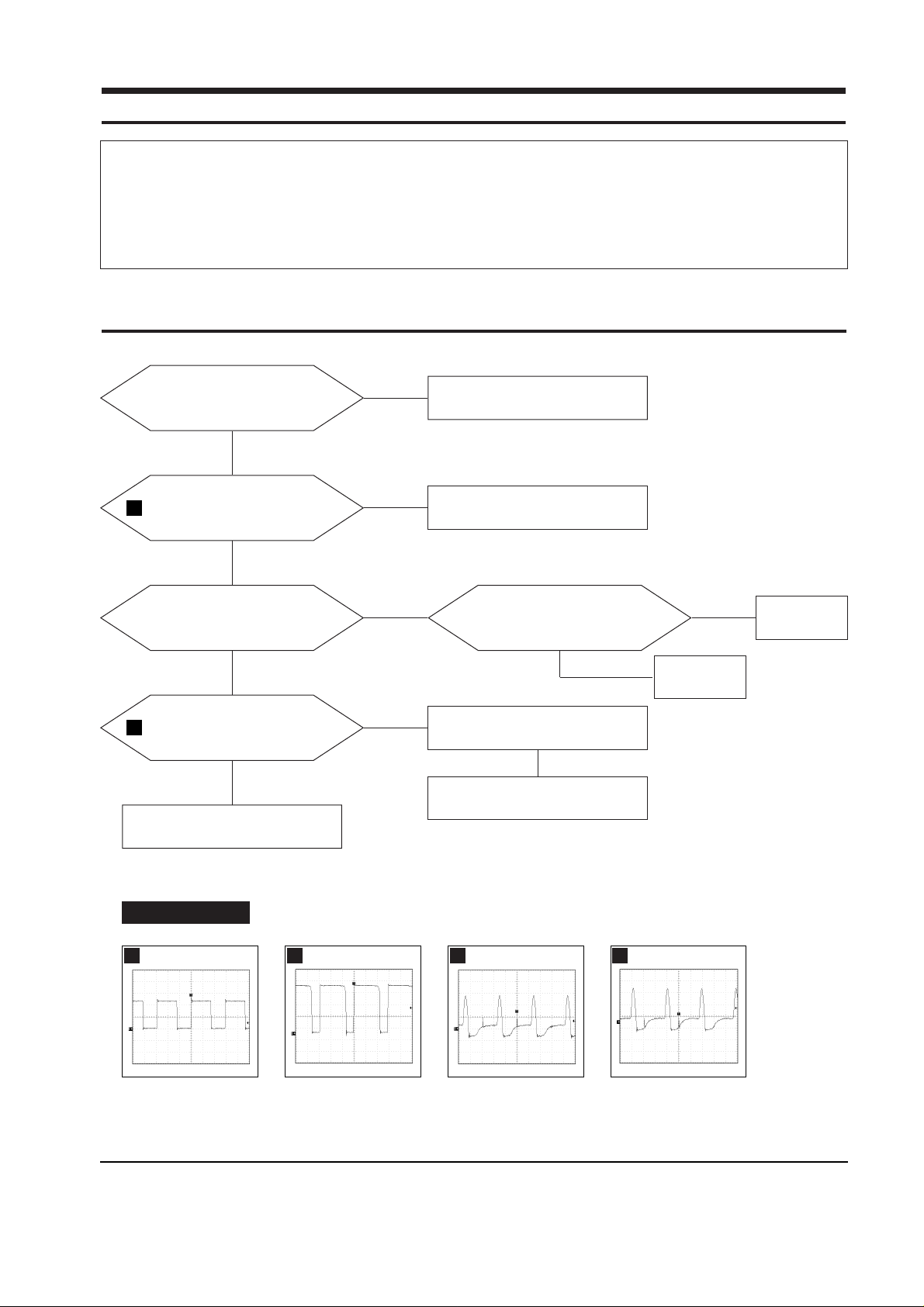

6-1 No Power

Check Fuse, D600, D602, D603

and D604.

Does proper AC 90-264 Volts

appear between the positive and

negative poles of C606?

Yes

Check D605, D606, D608, D611,

D614 and T601.

PWM output appear at Pin 1

of IC602?

Yes

Check T602 and D614.

Check Power protection.

Check IC602.

AFC Signal appear at negative

pole of C612?

Yes

Check D609.

Check IC602.

H-Sync Pulse appear at Pin

5 of IC602?

Yes

VCC appear at Pin 3 of IC602?

Yes

WAVEFORMS

292 V (T601 #5), 110V

CH1 P-P = 292 V CH1 RMS = 181.6 V

444 V (T601, #5), 220V

CH1 P-P = 444 V CH1 RMS = 354.2 V

3.68 V (C612, –), 110V

CH1 P-P = 3.68 V CH1 RMS = 840 mV

3.80 V (C612, –), 220V

CH1 P-P = 3.80V CH1 RMS = 902 mV

Page 3

6 Troubleshooting

6-2 CKB5237L/7227L

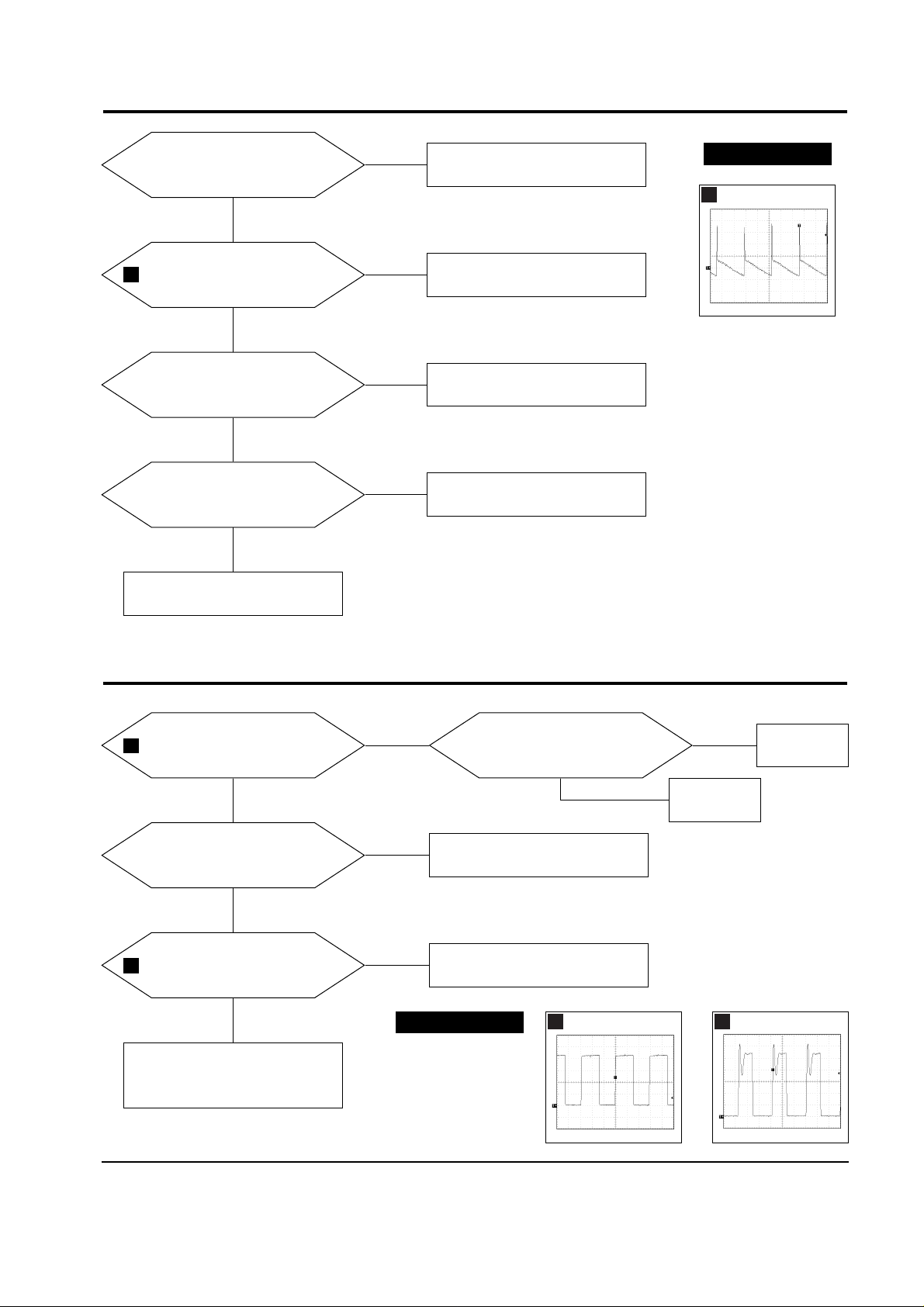

6-3 Vertical Line on CRT (Root Cause : Horizontal Deflection Parts Fail)

Check 5V,

12V Line.

Check IC302.

Does PWM output signal appear

at Pin 26 (H-out) of IC302?

Yes

Does DC 5 V appear at Pin 32

of IC302?

Yes

Check Q412 and Q414.

Check Q403.

Does 12Vp-p signal appear at

Emitters of Q412 and Q414?

Yes

Check CN400, D403 and Q406.

Does 120Vp-p signal appear at

Pin 1 of T401?

Yes

Check swap IC300.

Check connector CN300A.

Check CN300A.

Check DC 13 V Line.

6-2 Horizontal Line on CRT (Root Cause : Vertical Deflection Parts Fail)

Does output pulse of 50Vp-p

appear at Pin 5 of IC301?

Does rectangular signal output

at Pin 5 of IC300?

Yes

Does DC 13 V appear at Pin 2

of IC300?

Yes

Check DC 12 V Line.

Does DC -12 V appear at Pin 4 of

IC300?

Yes

WAVEFORMS

46.0 V (IC300 #5)

CH1 P-P = 46.0 V CH1 RMS = 6.38 V

8.80 V (IC302, #26)

CH1 P-P = 8.80 V CH1 RMS = 6.176 V

124.8 V (T401, #1)

CH1 P-P = 124.8 V CH1 RMS = 66.16 V

WAVEFORMS

Page 4

6 Troubleshooting

CKB5237L/7227L 6-3

Check Q504, D508 and FBT.

Check Power parts.

Check protection case.

Check Q412 and Q414.

Does secondary voltage appear at D605, D606, D608, D611 and

D614?

Does DC 5 V appear at Pin 12 of

IC202?

Check IC600

and IC603.

Check IC302.

Does H-out signal appear at Pin

26 of IC302?

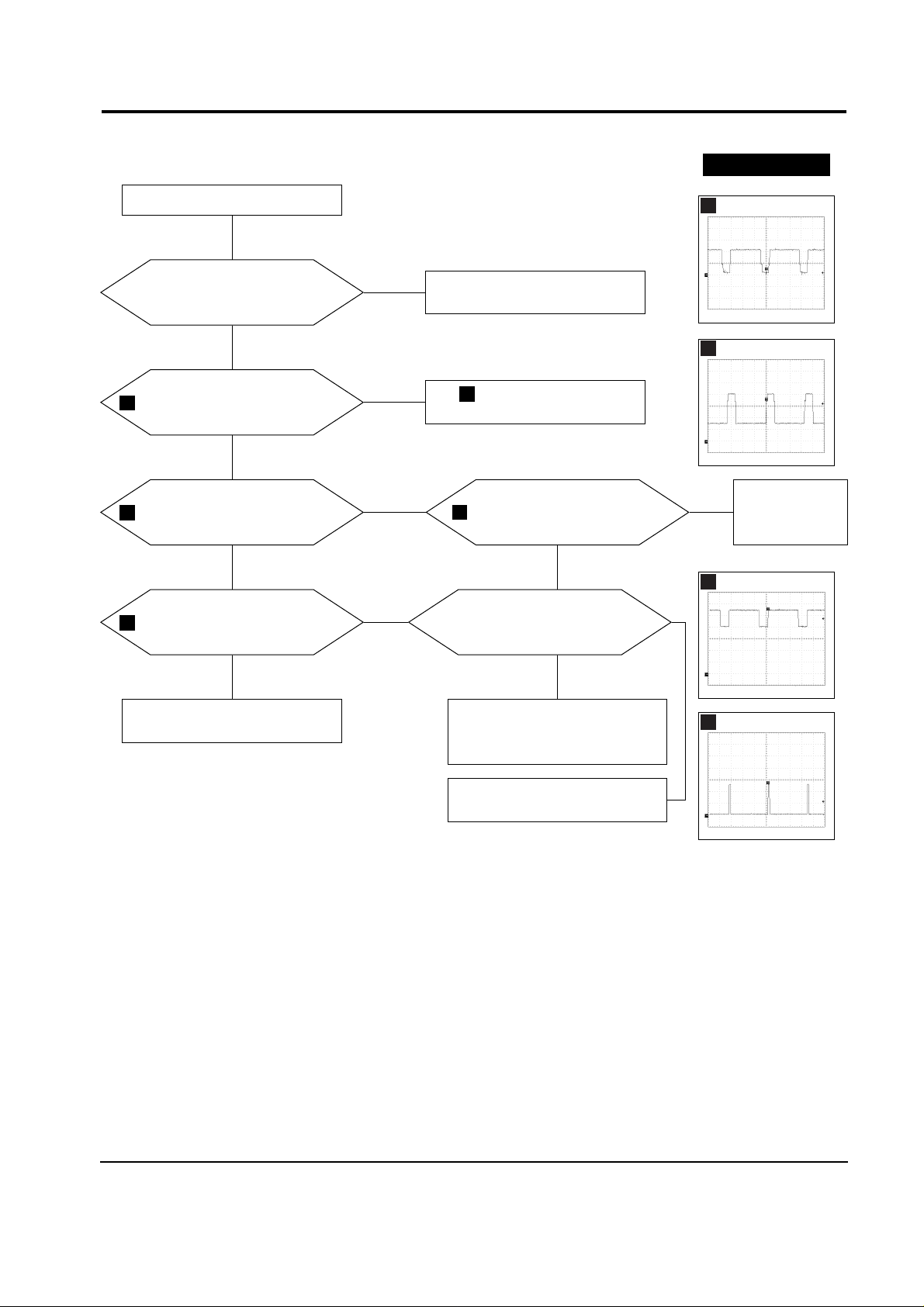

6-4 No Raster (1)

Yes

Does DC +5 V, DC +12 V appear

at Pins 29, and 32 of IC302?

Yes

Does signal appear at base

of Q403?

Yes

Check Q403.

Does signal appear at collector

of Q403?

Yes

Check Q406.

Does flyback signal appear at

collector of Q406?

Yes

Check Q503, Q510, Q512 and Q513.

Does switching pulse appear at

base and collector of Q503?

Yes

Check IC501 and FBT.

Does signal appear at gate

of Q504 ?

Yes

WAVEFORMS

If in a protection case, you must check these case

• Check CN401

• Check Screen VR

• Check VR501

8.80 V (IC302, #26)

CH1 P-P = 8.80 V CH1 RMS = 6.176 V

1.016 kV (Q406, Collector)

CH1 P-P = 1.016 kV CH1 RMS = 316.0 V

5.28 V (Q503, Base)

CH1 P-P = 5.28 V CH1 RMS = 1.290 V

848 V (Q503, Collector)

CH1 P-P = 848 V CH1 RMS = 305.2 V

Page 5

6 Troubleshooting

6-4 CKB5237L/7227L

Check IC401

6-5 No Raster (2)

Check signal cable connection

and the signal sources.

Check IC105.

Power indicator is toggle

Check Micom and IC202.

Does H/V sync pulse

appear at Pins 4

and 10 of IC105?

Does H/V sync output

appear at Pins 20

and 21 of IC202?

Yes

Page 6

6 Troubleshooting

CKB5237L/7227L 6-5

Replace the IC102

Check DC 12 V line D614 and IC603.

Power indicator is green

Check signal cable

and signal source

Does DC 12 V appear at

Pin 6 of IC101?

Does the video pulses

appear at Pins 5, 7 and 9

of IC101 on the Video Board?

Check contrast circuit

on the main Board

(Q507 and Q511).

Check DC 75 V at Pin 6 of IC102.

Check IC202 (pin #16) on the main

Board.

Does the video pulse

appear at Pins 14, 16 and

19 of IC101?

Does the clamp signal

appear at Pin 12 of IC101?

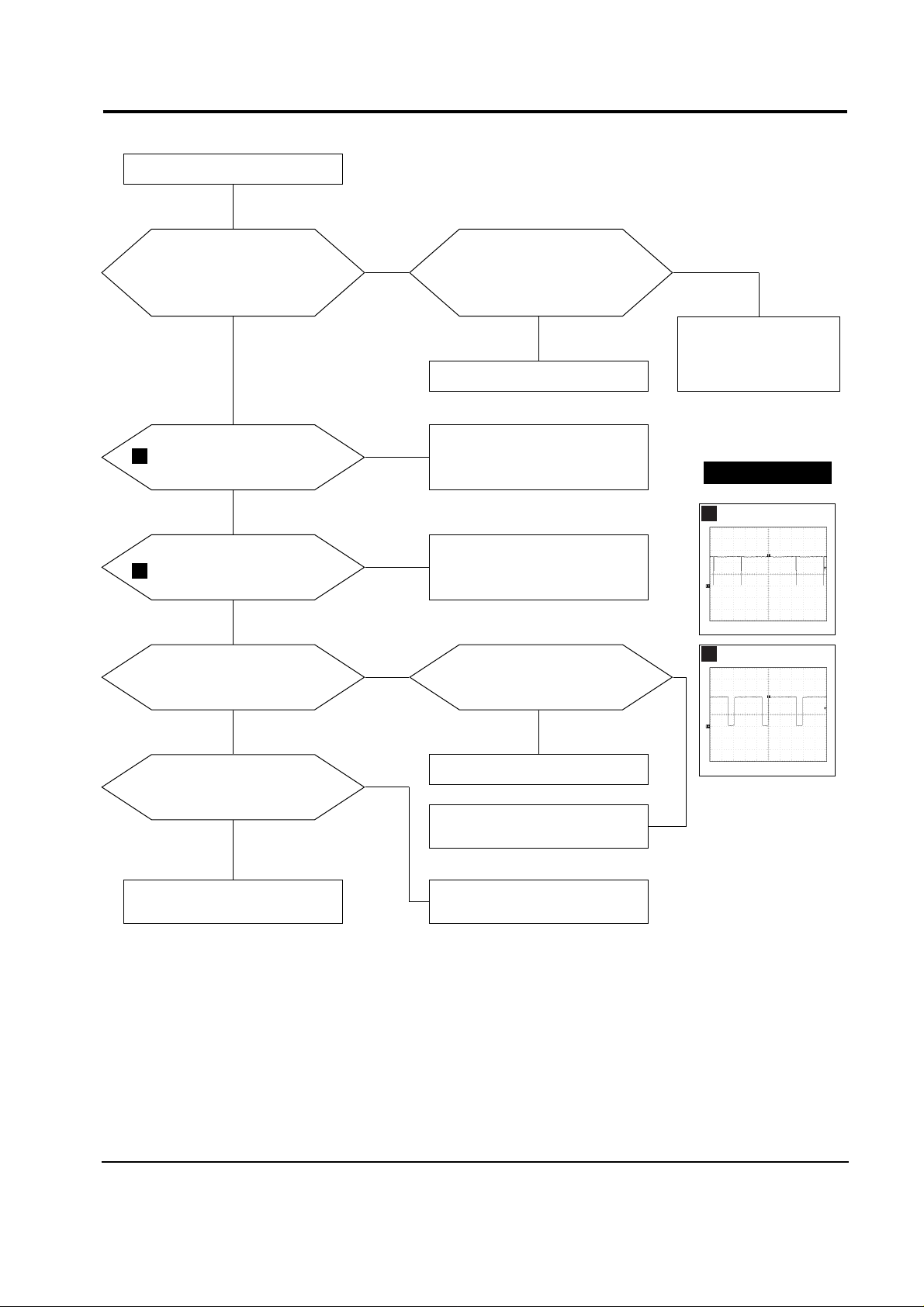

6-6 No Video

Yes

Yes Yes

Does the video amplified

pulse appear at

Pins 1, 3 and 5 of IC102?

Yes Yes

Does the H-BLK

appear at Pin 13 of IC101?

WAVEFORMS

CH1 P-P = 4.56 V CH1 RMS = 3.804 V

4.56 V (IC101 #15,19,22)

CH1 P-P = 52.0 V CH1 RMS = 46.16 V

52.0 V (IC102 #1,3,5)

CH1 P-P = 720m V CH1 RMS = 2.602 V

720 mV (IC101 Pin #2,4,6)

CH1 P-P = 5.5 V CH1 RMS = 1.084 V

5.5 V (IC101 Pin #23)

Page 7

6 Troubleshooting

6-6 CKB5237L/7227L

OSD Gain (IC101 Pin 11) Check IC102

When you push a button

on the front control panel

does the voltage vary at Pins

18 and 19 of IC202?

Check horizontal flyback pulse

generation circuit.

(T402 Pin 10, and Q102)

While pushing a front

control button does any pulse

appear at Pins 18 and 19 of

IC202?

Does the horizontal

flyback pulse appear

at Pin 5 of IC104?

Check vertical blanking pulse

generation circuit.

(Q301 and Q103)

Check the push buttons

main board SW1 ~ SW4

and CN102(A).

Check the pins of IC600

and the related circuit.

Does the vertical

blanking pulse appear at

Pin 18 of IC104?

6-7 No OSD Displays

Yes

No No

Yes

Does the OSD video

signal appear at Pins

7 and 8 of IC104?

Yes

Does DC 5 V appear at

Pin 4 of IC104?

Yes

No No

Does the OSD output

signal appear at Pins

21, 22 and 23 of IC104?

Yes

There is video but no OSD.

Check IC202.

Check IC102

WAVEFORMS

4.96 V (Q102, Collector)

CH1 P-P = 4.96 V CH1 RMS = 4.472 V

5.04 V (Q103, Collector)

CH1 P-P = 5.04 V CH1 RMS = 4.952 V

Page 8

6 Troubleshooting

CKB5237L/7227L 6-7

The raster color is

light red or cyan

Check the red video circuits.

(IC104 and IC103)

The raster color is

light green or magenta

Check the green video circuits.

(IC104 and IC103)

The raster color is

light blue or yellow

Check the blue video circuits.

(IC104 and IC103)

6-8 No Specific Color Appears

6-9 Degauss Operation Failure

Replace IC202

Replace Q600

Check and replace if necessary

RL601.

When you push the manual

degauss button,

does 5 V appear

at Pin 3 of IC202?

When pushing the manual

degauss button, does the Q600

operate well?

Yes

Note: Removing the signal cable displays a self raster screen. This screen displays the message

“check signal cable” along with red, green and blue boxes. Use these boxes to check whether each individual color (R, G, B) is operating or not.

Page 9

6 Troubleshooting

6-8 CKB5237L/7227L

LED ColorVideoMode

Sync

H V

Normal Active Active Active Green Stand-By Inactive Active Blank Green blinking (0.5sec) Suspend Active Inactive Blank Green blinking (1sec)

Off Inactive Inactive Blank blinking (1sec)

6-10 Power Save Management System Failure

Does +5 V appear at

Pins 1 and 2 of IC202?

Yes

1.Check H & V Sync input (inactive)

2.Check IC202

Does 0 (zero) V appear at

the collector of Q604?

Yes

Check IC601, Q604 and Q602

6-10-3 Off Mode

Table 6-1. DPMS Logic Table

Note: If the signal cable is removed, DPMS function does not operate and a self raster displays.

Does +5 V appear at

Pin 1 of IC202?

Yes

1.Check H-sync input (inactive)

2.Check IC202 and its related circuits

Does 0 (zero) V appear at

Pin 2 of IC603?

Yes

Check IC603.

6-10-2 Suspend Mode

Does DC +5 V appear at

Pin 7 of IC202?

Yes

1.Check V-Sync input (inactive)

2.Check IC201

6-10-1 Stand-By Mode

Page 10

6 Troubleshooting

CKB5237L/7227L 6-9

6-11 User Controls Don’t Work

Check the button

(SW201 ~ SW203)

Check IC201, IC202 and

RESET circuit.

Does the DC level change at Pins

13 and 14 of IC201 when you push

the Main PCB?

Yes

Page 11

Memo

6 Troubleshooting

6-10 CKB5237L/7227L

Page 12

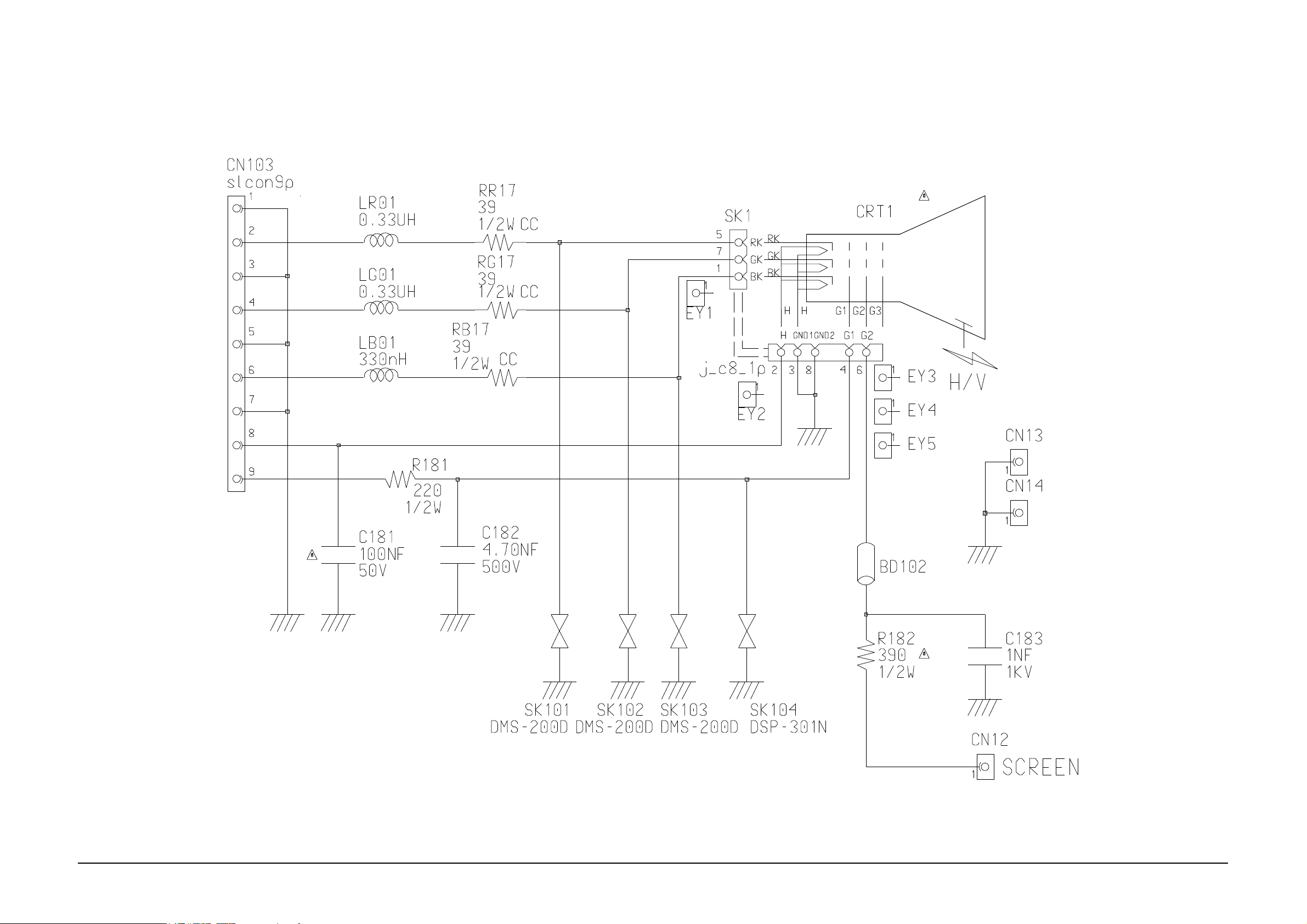

CKB5237L/7227L 11-1

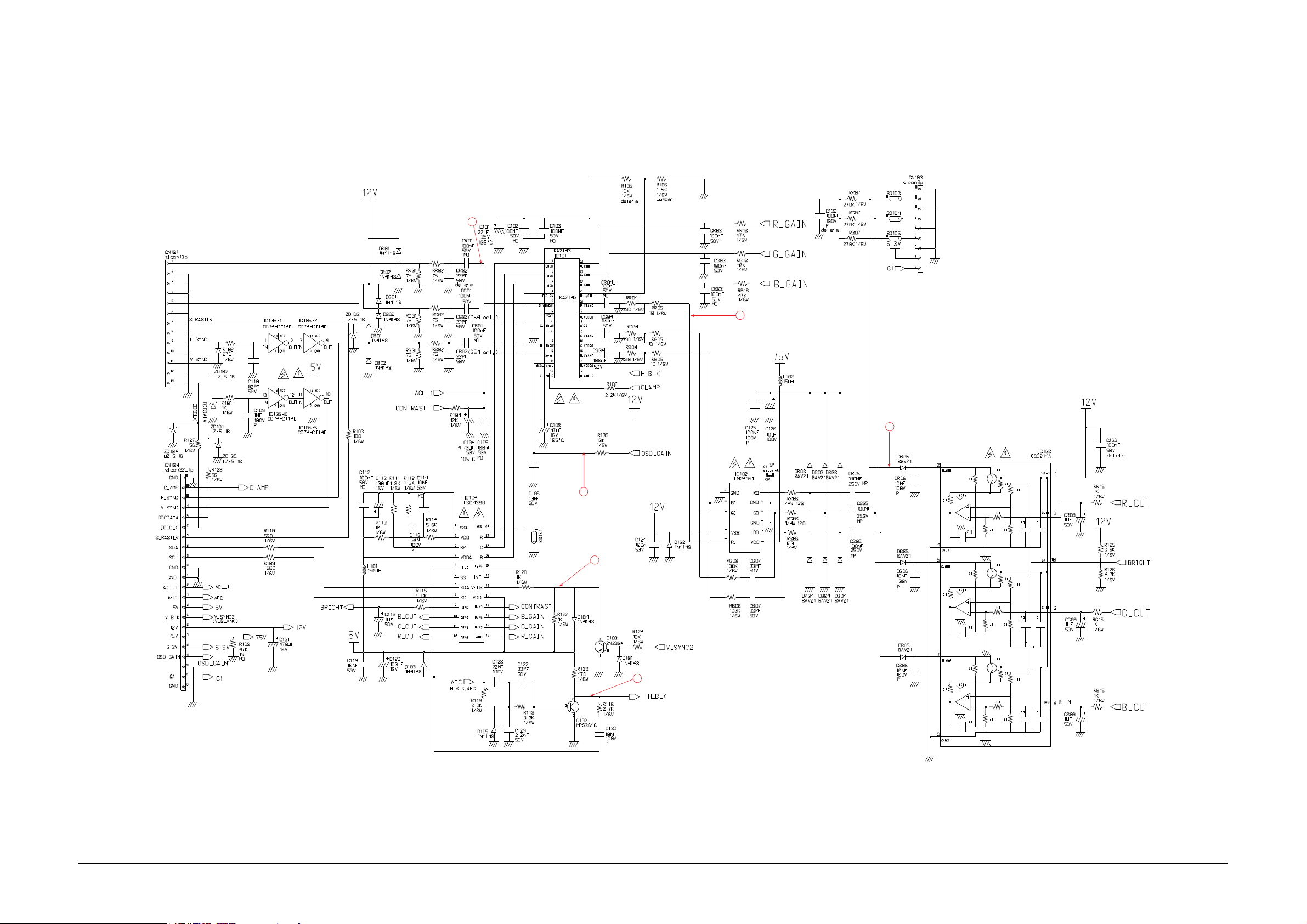

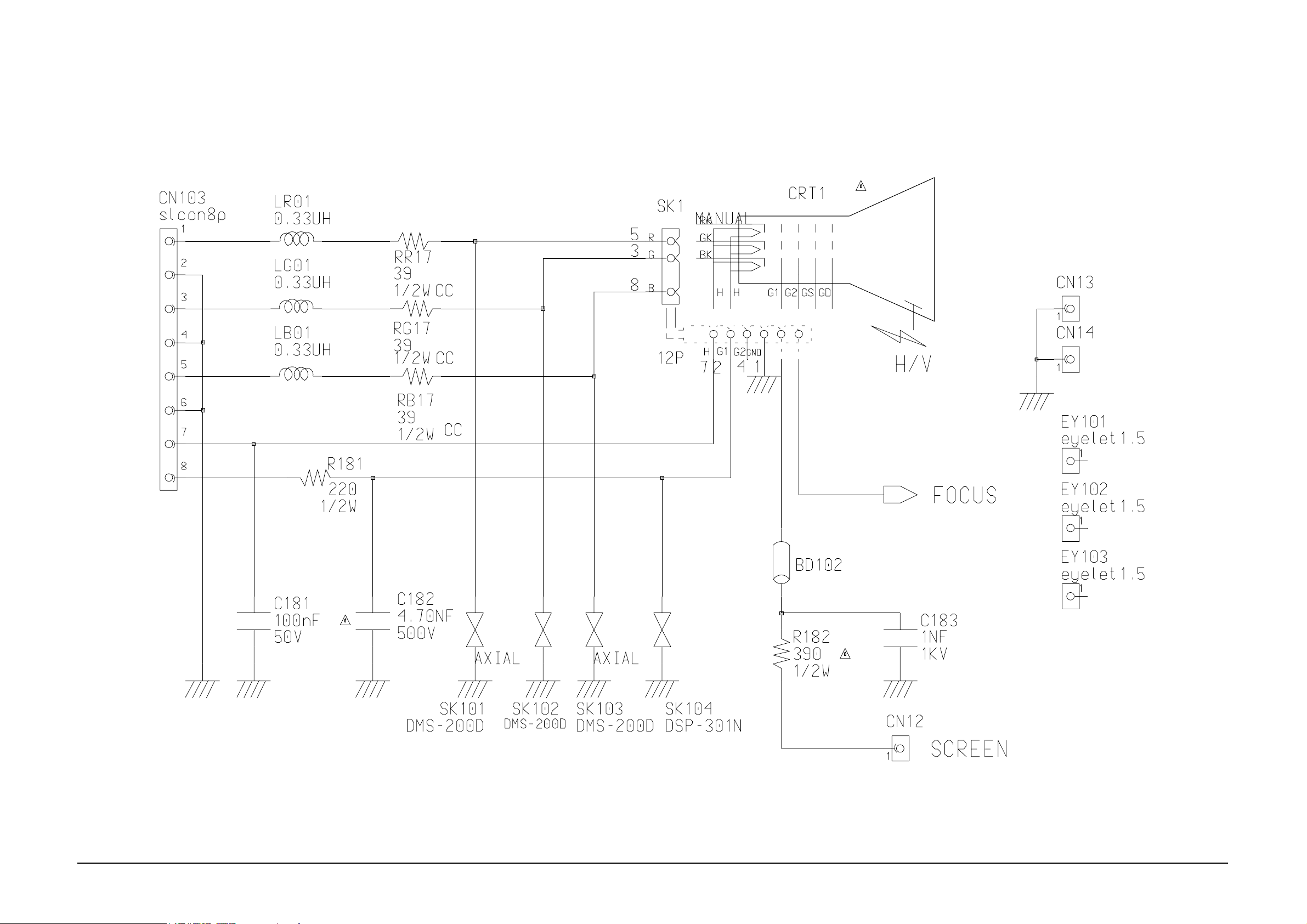

11 Schematic Diagrams

11-1 Cautions

1. The areas marked with a , or on the schematic diagram designate components which have special characteristics important for safety. Replace these parts only with parts identical to those in the original circuit and those specified in the parts list. Before replacing any of these components, carefully read the ÒProduct Safety Notice.Ó

2. Areas marked with a on the schematic diagram designate controls which have been sealed for safety during manufacturing. If these controls need adjustment, they must be replaced with new controls and then sealed after their adjustment.

3. When taking measurements, pay special attention to the following:

1) Do not use your instrument between primary ground (symbol ) and secondary circuit.

2) Do not use your instrument between secondary ground (symbol ) and primary circuit.

11-2 Notes

1. Resistance is shown in OHM. K = 1,000, M = 1,000,000 and the rated power of resistors not noted in the schematic diagram is 1/4W.

2. Capacitance is shown in µF. Capacitances not otherwise noted are shown in pF (1µF = 1,000,000 pF). Rated voltage of condensers not otherwise noted in the schematic diagram is 50 V.

11-3 Abbreviations and Symbols

MO R-Metal Oxide WW R-Wire Wound FU Fusible C R-Composition CM R-Cement MPP Metal Polypropylene MP C-Metalized Polyester T C-Tantalum P C-Polyester Can emit X-radiation

Hot Ground Cold Ground

Electrostatically Sensitive Device Provides special safety (ESD) considerations

1. The secondary voltage is read with an SSVM from the indicated point to a cold ground ( ). The primary voltage is read with an SSVM from the indicated point to a hot ground ( ).

2. This schematic diagram is subject to change without notice.

Page 13

11 Schematic Diagrams

11-2 CKB5237L/7227L

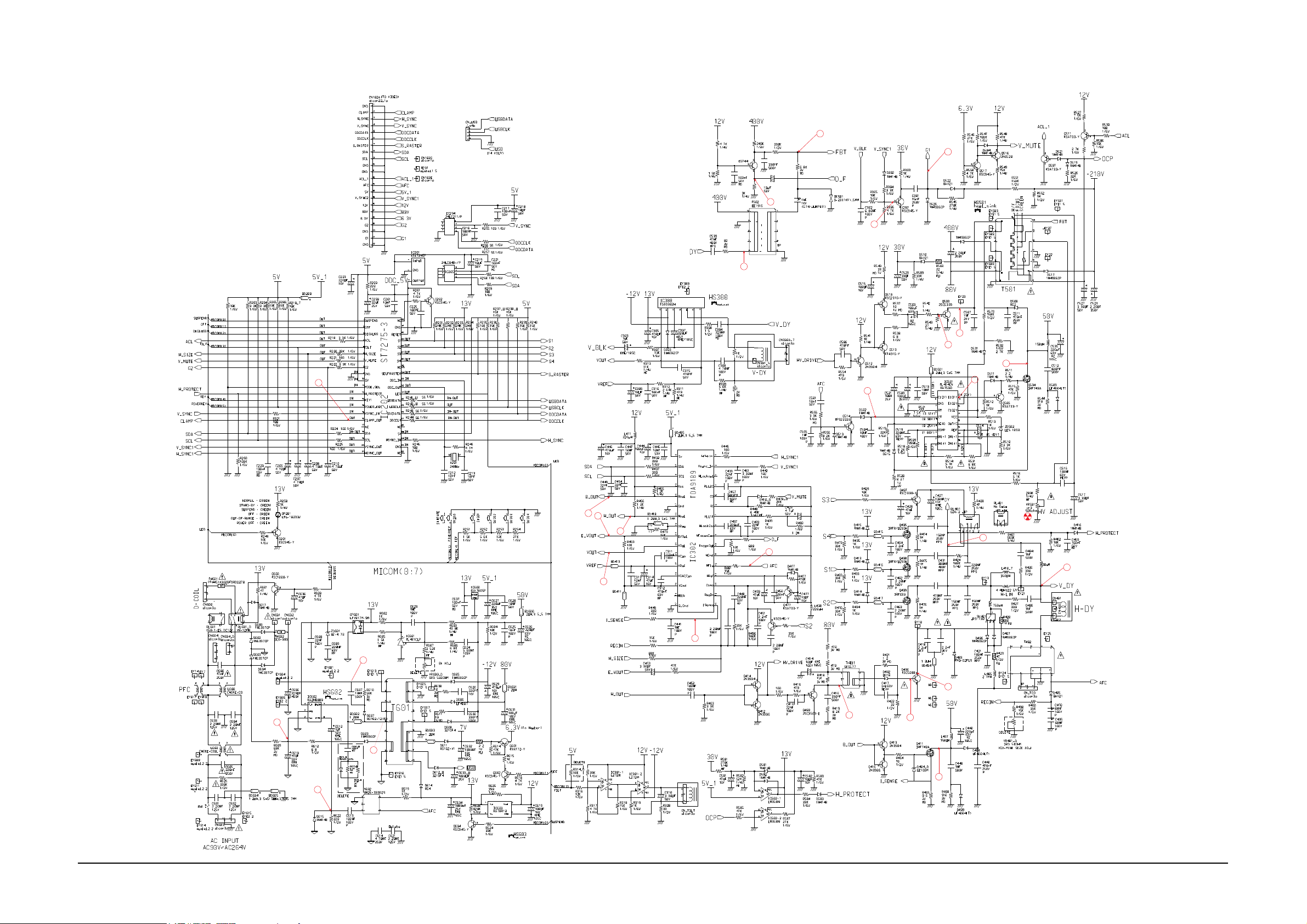

11-4 Main Schematic Diagram

15" ONLY

17" ONLY

R501

C455_5

C465_7

Q417_7

R467_7

Q500_7

C543_7

C540_7

C538

R502_7

R506

R443

R425

C522_7

C537_7

R302

R451

R450

R310

R414

R409

R417

L406

C456

R535

C434 C458

C432

L402

C422

L401

R517

C419

L501

D524_7

R201_7

R613

R503_7

R504_7

R505_7

R500_7

R444_7

R441_7

R315

Page 14

11 Schematic Diagrams

CKB5237L/7227L 11-3

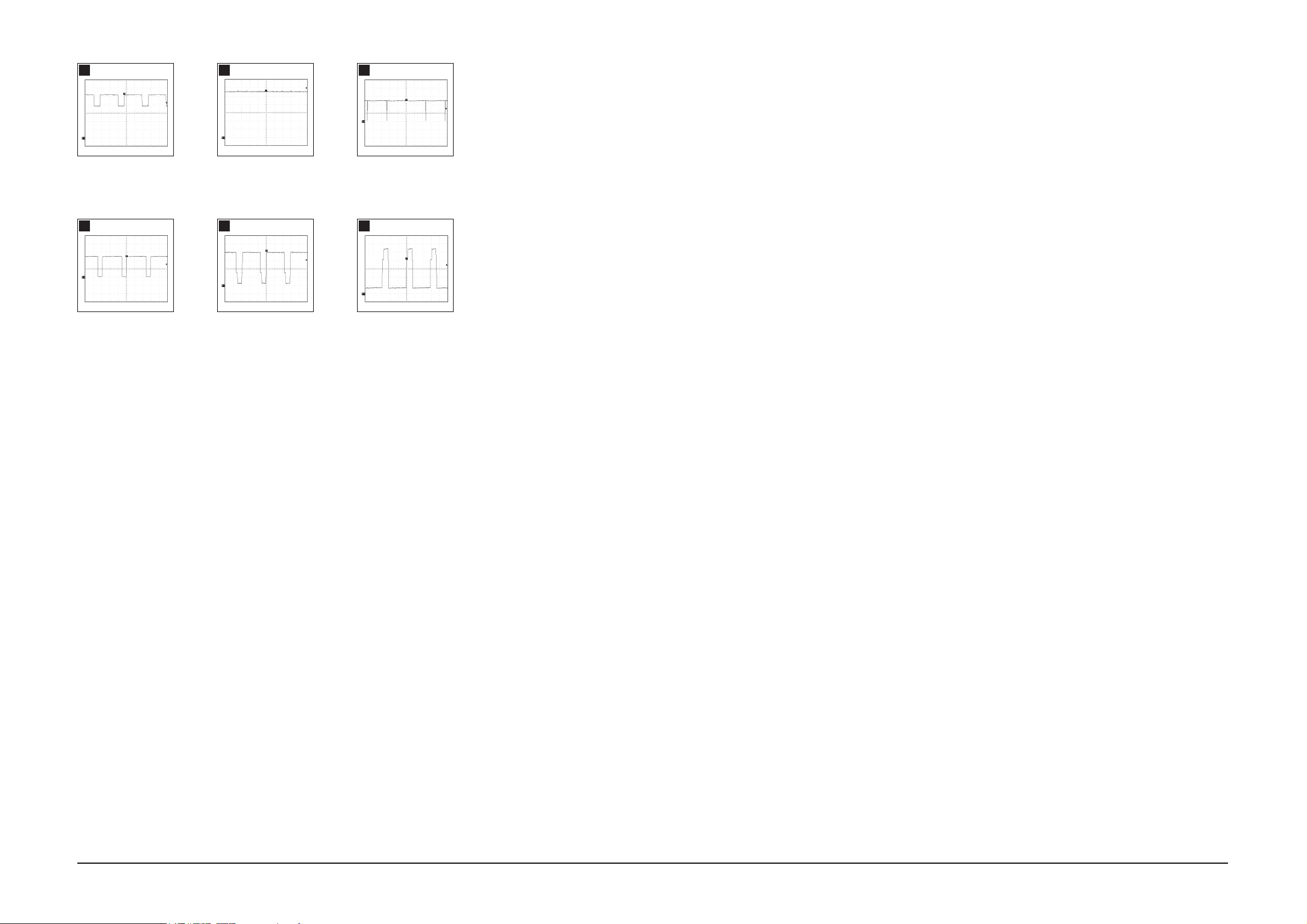

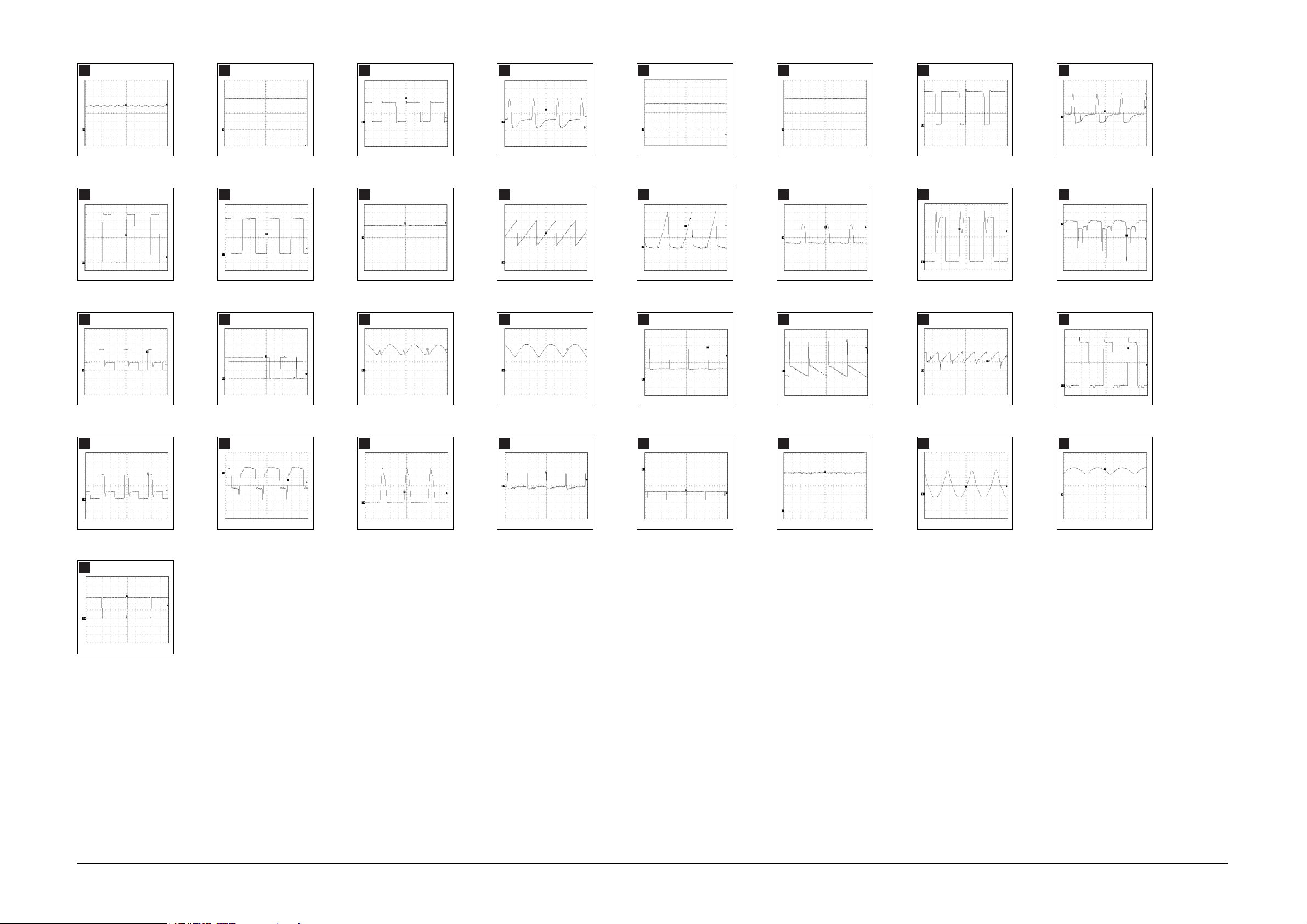

14 V (T601, #1), 110V

CH1 P-P = 14 V CH1 RMS = 142.6 V

12.0 V (IC302, #28)

CH1 P-P = 12.0 V CH1 RMS = 6.912 V

928 mV (IC302, #16)

CH1 P-P = 928 mV CH1 RMS = 320.8 mV

128 V (Q411, Drain)

CH1 P-P = 128 V CH1 RMS = 63.3 V

DC V (IC602, #3)

CH1 P-P = DC V CH1 RMS = DC V

8.80 V (IC302, #26)

CH1 P-P = 8.80 V CH1 RMS = 6.176 V

2.56 V (IC302, #12)

CH1 P-P = 2.56 V CH1 RMS = 820 mV

1.016 kV (Q406, Collector)

CH1 P-P = 1.016 kV CH1 RMS = 316.0 V

292 V (T601 #5), 110V

CH1 P-P = 292 V CH1 RMS = 181.6 V

3.68 V (C612, –), 110V

CH1 P-P = 3.68 V CH1 RMS = 840 mV

DC V (T601, #2), 220V

CH1 P-P = DC V CH1 RMS = DC V

DC V (IC602, #3), 220V

CH1 P-P = DC V CH1 RMS = DC V

444 V (T601, #5), 220V

CH1 P-P = 444 V CH1 RMS = 354.2 V

3.80 V (C612, –), 220V

CH1 P-P = 3.80V CH1 RMS = 902 mV

640 mV (IC302, #24)

CH1 P-P = 640 mV CH1 RMS = 2.908 V

124.8 V (T401, #1)

CH1 P-P = 124.8 V CH1 RMS = 66.16 V

64 V (L402_7, S)

CH1 P-P = 64 V CH1 RMS = 126.0 V

3.12 V (IC302, #23)

CH1 P-P = 3.12 V CH1 RMS = 3.620 V

10.0 V (Q406, Base)

CH1 P-P = 10.0 V CH1 RMS = 1.672 V

76 V (L402_7, F)

CH1 P-P = 76 V CH1 RMS = 127.2 V

148 V (Q504, Drain)

CH1 P-P = 148 V CH1 RMS = 68.4 V

22.4 V (G1)

CH1 P-P = 22.4 V CH1 RMS = 54.24 V

5.20 V (IC202, #16)

CH1 P-P = 5.20 V CH1 RMS = 4.912 V

5.28 V (Q503, Base)

CH1 P-P = 5.28 V CH1 RMS = 1.290 V

260 mV (Q500_7, Emitter)

CH1 P-P = 260 mV CH1 RMS = 2.286 V

848 V (Q503, Collector)

CH1 P-P = 848 V CH1 RMS = 305.2 V

332 V (R502_7)

CH1 P-P = 332 V CH1 RMS = 138.0 V

1.00 V (Q301, Base)

CH1 P-P = 1.00 V CH1 RMS = 163 mV

88 V (T502_7, #6)

CH1 P-P = 88 V CH1 RMS = 288.2 V

26.0 V (IC300, #6)

CH1 P-P = 26.0 V CH1 RMS = 13.30 V

46.0 V (IC300 #5)

CH1 P-P = 46.0 V CH1 RMS = 6.38 V

1.16 V (IC501 #5)

CH1 P-P = 1.16 V CH1 RMS = 823 mV

12.48 V (IC501, #9, 10)

CH1 P-P = 12.48 V CH1 RMS = 6.672 V

Page 15

11 Schematic Diagrams

11-4 CKB5237L/7227L

11-5 Video Schematic Diagram

Page 16

11 Schematic Diagrams

CKB5237L/7227L 11-5

760 mV (IC101, #5)

CH1 P-P = 760 mV CH1 RMS = 2.452 V

140 mV (IC101, #11)

CH1 P-P = 140 mV CH1 RMS = 2.770 V

4.96 V (Q102, Collector)

CH1 P-P = 4.96 V CH1 RMS = 4.472 V

3.88 V (IC102, #11)

CH1 P-P = 3.88 V CH1 RMS = 3.464 V

48.4 V (DR05, Anode)

CH1 P-P = 48.4 V CH1 RMS = 26.62 V

5.04 V (Q103, Collector)

CH1 P-P = 5.04 V CH1 RMS = 4.952 V

Page 17

11 Schematic Diagrams

11-6 CKB5237L/7227L

11-6 CRT Schematic Diagram (CKB5237L)

Page 18

11 Schematic Diagrams

CKB5237L/7227L 11-7

11-7 CRT Schematic Diagram (CKB7227L)

Page 19

Memo

11 Schematic Diagrams

11-8 CKB5237L/7227L

Page 20

13-1 CKB5237L/7227L

8 Exploded View and Parts List

8-1 CKB5237L

22 ASS’Y H/SINK VODEO BH99-10050A A6063S 1 EA 21 ASS’Y SHIELD-SOCKET BH75-10571A SPTE T=0.3 1 EA 20 TAPTITE SCREW 6003-000122 BH,M4,L12 1 EA 19 COVER-SIGNAL BH72-60603A ABS V0 IV16 1 EA 18 TAPTITE SCREW 6003-000009 BH,M4,L16 4 EA 17 COVER-REAR BH72-60600A ABS V0 IV16 1 EA 16 TAPTITE-SCREW BH 6003-000010 BWH,+,M3,L10 2 EA 15 SHIELD-VIDEO BH71-10390B A1050S T=1.0 1 EA 14 TAPTITE-SCREW BH 6003-000010 BWH,+,M3,L10 1 EA S/CABLE 13 TAPTITE-SCREW BH 6003-000010 BWH,+,M3,L10 1 EA VIDEO+S/V 12 TAPTITE-SCREW BH 6003-000010 BWH,+,M3,L10 4 EA VIDEO+C/F 11 BRACKET-VIDEO BH70-10485A SECC-1 T=0.8 1 EA 10 TAPTITE-SCREW BH 6003-000010 BWH,+,M3,L10 7 EA CH/FRAME 9 ASS’Y HEATSINK-FBT BH99-10048A A1050S T=1.0 1 EA D403,Q406 8 ASS’Y H/SINK-POWER BH99-10013C A1050S T=3.0 1 EA IC602 7 ASS’Y H/SINK-VERT.IC BH99-10049A A1050S T=2.0 1 EA IC300 6 CHASSIS FRAME BH75-10572A SECC-1 T=1.0 1 EA 5 TAPTITE SCREW 6003-000009 BH,M4,L16 2 EA 4 CRT SCREW 6006-000002 D5, L30 2 EA 3 CRT SCREW 6006-000201 D5, L30 2 EA 2 STAND-ASS’Y BH75-10442B ABS HB IV16 1 EA 1 ASS’Y, COVER-FRONT BH75-10552A ABS V0 IV16 1 EA

NO DESCRIPTION CODE NO SPECIFICATION Q’TY REMARK

23 TAPTITE-SCREW BH 6003-000015 BH,+,D3,L8 2 EA 24 LABEL-RATING POLYESTER T=0.075 1 EA 25 TAPTITE-SCREW BH 6003-000010 BWH,+,M3,L10 1 EA

NO DESCRIPTION CODE NO SPECIFICATION Q’TY REMARK

Page 21

8 Exploded View and Parts List

CKB5237L/7227L 13-2

8-2 CKB7227L

Page 22

8 Exploded View and Parts List

13-3 CKB5237L/7227L

Page 23

Memo

8 Exploded View and Parts List

CKB5237L/7227L 13-4

Page 24

BD404 172.4 242.7 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM BD405 75.3 137.5 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM BD406 71.7 122 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM BD411 24.4 141.2 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM BD413 39.2 123.6 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM BD415 16.9 206.3 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM BD416 23 206.2 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM BD417 41.9 198.2 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM BD501 158.7 135.6 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM BD600 187.5 108.7 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM BD601 139.5 62.5 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM BD602 197.3 46.9 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM BD603 152.1 67.1 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM BD604 308 55.7 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM BD605 294 55.7 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM C200 74.8 24.2 2401-000030 C-AL 22uF,20%,25V,GP,5x11mm,5mm,TP C201 74 17.7 2202-002008 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,50V,Y5V,2.3X3.0 C206 64.2 70.1 2401-000027 CAP-AL.ELEC,475M,1H (T)50V 4.7M C207 64.2 57.4 2401-000027 CAP-AL.ELEC,475M,1H (T)50V 4.7M C208 53.3 81.6 2401-000027 CAP-AL.ELEC,475M,1H (T)50V 4.7M C210 64.2 64 2401-000027 CAP-AL.ELEC,475M,1H (T)50V 4.7M C211 21.4 25.7 2201-000138 C-CERAMIC,DISC 100pF,10%,50V,Y5P,4.0X4.0,2.5 C212 42.1 31.9 2201-000197 C-CERAMIC,DISC 10pF,0.5pF,50V,NPO,4x3.5,5,TP C213 47.6 31.9 2201-000197 C-CERAMIC,DISC 10pF,0.5pF,50V,NPO,4x3.5,5,TP C216 61.7 98.1 2201-000138 C-CERAMIC,DISC 100pF,10%,50V,Y5P,4.0X4.0,2.5 C217 60.4 101.6 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 C218 60.5 105.2 2401-000028 C-AL 10uF,20%,50V,GP,5x11mm,5mm,TP C219 44.2 75 2401-000028 C-AL 10uF,20%,50V,GP,5x11mm,5mm,TP C220 31.4 64.2 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 C221 42.5 78.8 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 C222 19.6 81.8 2202-002008 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,50V,Y5V,2.3X3.0 C223 22.4 18.7 2401-000809 C-AL 220uF,20%,16V,GP,8x12,5mm,TP C301 262.2 238.8 2301-001027 C-FILM,PEF 15nF,10%,250V,9.5x12x4.5,5mm,T C302 217.5 226.8 2301-000014 C-FILM,PEF 6.8nF,5%,100V,5.8x12.5mm,5mm,T C303 120 103.8 2401-000023 CAP-AL.ELEC,105M,1H (T)50V 1M C304 114.4 56.3 2305-000004 C-FILM,MPEF 220nF,10%,100V,12.7x16,5mm,TP C305 92.3 69.9 2401-000037 CAP-AL.ELEC,477M,1C (T)470UF,16V,20%,R-RADIAL,8x11.5 C307 114 43.2 2401-000849 CAP-AL.ELEC,227M,1V (T)35V 220M C308 111.1 73 2301-000257 C-FILM,PEF 4.7nF,10%,100V,5.8x12.5mm,5mm C309 81.3 67.8 2401-000028 C-AL 10uF,20%,50V,GP,5x11mm,5mm,TP C310 124.4 27.5 2401-001016 C-AL 3.3uF,20%,50V,BP,6x11mm,5mm,TP C311 42.8 139.5 2301-000168 C-FILM,PEF 150nF,5%,100V,11.5x19mm,7.5mm C312 33.3 140.8 2305-000001 C-FILM,MPEF 470nF,10%,63V,6.0X15.5X7.5,5mm C313 34.1 131 2202-002008 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,50V,Y5V,2.3X3.0 C314 24.2 135.1 2401-000031 CAP-AL.ELEC,476M,1C (T)16V 47M C315 99 61.3 2201-000013 CAP-CERAMIC,471K,1H,Y5P 470PF,50V,10%,10%,Y5P,DISCC316 81.3 63.1 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0

10 PCB Diagrams and Electrical Parts List

CKB5237L/7227L 10-3

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

10-1-3 Main PCB Parts

Page 25

C413 100.2 163.4 2301-000016 C-FILM,PEF 22nF,5%,100V,7.2x4.5x9.0mm,5mm C414 128.4 167.2 2401-000029 CAP-AL.ELEC,106M,2A (T)100V 10M C416 108.8 168.2 2201-000469 C-CERAMIC,DISC 330pF,10%,500V,Y5P,6x3.5,5,TP C417 168.5 172.5 2305-000231 CAP-MPETP,105K,1J,5P (T)63V 105K C418 178.4 227.5 2303-001023 C-FILM,PPF 2.2nF,5%,2.5KV,23x13x19,7.5mm C419 165.8 227.5 2303-001023 C-FILM,PPF 2.2nF,5%,2.5KV,23x13x19,7.5mm C421 108.6 237.2 2306-000137 CAP-MPPF,184J,2E,7.5P 180NF,250V 5%,RE-RADIAL C422 58.3 226.1 2306-000171 CAP-MPPF,274J,2E,7.5P (T)250V 274J C424 80.2 210 2201-000291 CAP-CERAMIC,102K,2H,Y5P 1NF,500V,20%,10%,Y5P,DISC-R C426 90.2 213 2201-000291 CAP-CERAMIC,102K,2H,Y5P 1NF,500V,20%,10%,Y5P,DISC-R C427 97.6 204 2401-000037 CAP-AL.ELEC,477M,1C,8x11.5 (T)470UF,16V,20%,R-RADIAL C428 74.1 190.1 2401-000031 CAP-AL.ELEC,476M,1C (T)16V 47M C429 52.7 172.3 2401-000027 CAP-AL.ELEC,475M,1H (T)50V 4.7M C430 43.2 170.6 2401-000031 CAP-AL.ELEC,476M,1C (T)16V 47M C431 39.3 218.7 2306-000180 CAP-MPPF,304J,2G 400V 304J C432 49.8 218.8 2306-000007 CAP-MPPF,474J,2E 250V 474J C433 53.6 168.3 2301-000016 C-FILM,PEF 22nF,5%,100V,7.2x4.5x9.0mm,5mm C434 28.8 235.1 2306-000125 C-FILM,MPPF 120nF,5%,250V,21.5x11mm,7.5mm C436 124.9 234.6 2301-000017 C-FILM,PEF 33nF,10%,100V,7.5x12.5mm,5mm,T C437 43.3 163.6 2305-000291 C-FILM,MPEF 220nF,5%,63V,7.5x13.5mm,5mm,TP C439 57.4 163.3 2301-000016 C-FILM,PEF 22nF,5%,100V,7.2x4.5x9.0mm,5mm C440 96.5 191.8 2401-000887 C-AL 220uF,20%,63V,GP,10x20mm,5mm,T C441 32.3 154.2 2301-000011 C-FILM,PEF 1nF,5%,100V,10.5x12.5x6.5,5mm C442 135.9 211.8 2305-000011 C-FILM,MPEF 470nF,5%,250V,21.5X13.0X7.9,17 C443 36 163.2 2305-000291 C-FILM,MPEF 220nF,5%,63V,7.5x13.5mm,5mm,TP C444 68.2 141.3 2401-000025 CAP-AL.ELEC,107M,1C (T)16V 100M C445 65.7 141.3 2202-002008 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,50V,Y5V,2.3X3.0 C446 66.4 136.7 2401-000025 CAP-AL.ELEC,107M,1C (T)16V 100M C447 58.3 140.4 2202-002008 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,50V,Y5V,2.3X3.0 C448 115.9 208 2201-000291 CAP-CERAMIC,102K,2H,Y5P 1NF,500V,20%,10%,Y5P,DISC-R C449 65.8 122.4 2201-000009 C-CERAMIC,DISC 22pF,5%,50V,NPO,4x3.5,5,TP C450 39.5 166.2 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 C451 37.4 157.8 2301-000012 C-FILM,PEF 2.2nF,5%,100V,10.5x12.5x6.5,5m C452 82.6 160.3 2301-000010 CAP-MYLAR,104J,2A,5P (T)100V 104J C453 18.3 159.2 2401-001016 C-AL 3.3uF,20%,50V,BP,6x11mm,5mm,TP C454 58.4 122.4 2201-000009 C-CERAMIC,DISC 22pF,5%,50V,NPO,4x3.5,5,TP C456 10.9 227.6 2306-000131 C-FILM,MPPF 150nF,5%,250V,21.5x11mm,7.5mm C457 49.1 159.6 2202-000003 C-CERAMIC,MLC-RADIAL 680pF,0.02,100V,NPO,5.1x5.1x3. C458 20.6 235 2306-000125 C-FILM,MPPF 120nF,5%,250V,21.5x11mm,7.5mm C459 130 198.8 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 C455_5 31.1 168 2301-000012 C-FILM,PEF 2.2nF,5%,100V,10.5x12.5x6.5,5m 15Inch only C461 65.2 159.7 2301-000231 C-FILM,PEF 3.3nF,5%,100V,5.8x12.5mm,5mm,T C462 27.4 212.3 2301-000012 C-FILM,PEF 2.2nF,5%,100V,10.5x12.5x6.5,5m C463 45.7 208 2301-000012 C-FILM,PEF 2.2nF,5%,100V,10.5x12.5x6.5,5m C464 9.4 212.5 2301-000012 C-FILM,PEF 2.2nF,5%,100V,10.5x12.5x6.5,5m C465_7 26.6 173.1 2301-000287 CAP-MYLAR,562J,2A,5P (T)100V 562J 17Inch only C477 45.6 176.5 2401-000050 C-AL 10uF,20%,16V,GP,5x11mm,2mm,TP

10 PCB Diagrams and Electrical Parts List

10-4 CKB5237L/7227L

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

Page 26

C501 172.4 166.6 2202-002008 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,50V,Y5V,2.3X3.0 C503 240.5 129.2 2401-000032 CAP-AL.ELEC,107M,1H (T)50V 100M C504 142.9 134.7 2301-000015 C-FILM,PEF 10nF,5%,100V,7x3.2x7mm,5mm,TP C505 161.1 148.1 2301-000011 C-FILM,PEF 1nF,5%,100V,10.5x12.5x6.5,5mm C506 276 123.8 2201-000013 CAP-CERAMIC,471K,1H,Y5P 470PF,50V,10%,10%,Y5P,DISCC507 281.3 141.9 2303-000145 C-FILM,PPF 1nF,10%,2KV,23x13mm,7.5mm,TP C509 155.7 140.7 2401-000331 C-AL 100uF,20%,35V,LZ,8x11.5mm,5mm C510 154.9 135.9 2202-002008 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,50V,Y5V,2.3X3.0 C511 233.7 145.5 2306-000007 CAP-MPPF,474J,2E 250V 474J C512 218.3 134.1 2201-000672 CAP-CERAMIC,821K,2H,Y5P 820PF,500V,10%,10%,Y5P,DISC C514 122.4 143.2 2401-000031 CAP-AL.ELEC,476M,1C (T)16V 47M C515 268.6 139.6 2401-000025 CAP-AL.ELEC,107M,1C (T)16V 100M C516 122.4 149.6 2305-000138 C-FILM,MPEF 100nF,10%,63V,7.5x12.5mm,5mm,T C517 115.4 153.9 2401-001016 C-AL 3.3uF,20%,50V,BP,6x11mm,5mm,TP C519 134.8 134.3 2305-000291 C-FILM,MPEF 220nF,5%,63V,7.5x13.5mm,5mm,TP C520 288.2 162.4 2401-001195 CAP-AL.ELEC,336M,1H (T)50V 33M C521 151.2 134.9 2401-000053 CAP-AL.ELEC,106M,1E (T)25V 10M C523 282.4 229.5 2401-000638 C-AL 2.2uF,20%,350V,WT,10x12.5mm,5m C527 282.8 172.2 2401-000026 CAP-AL.ELEC,335M,1H (T)50V 3.3M C522_7 283.7 187.1 2401-000638 C-AL 2.2uF,20%,350V,WT,10x12.5mm,5m 17Inch only C535 183.6 151 2401-000887 C-AL 220uF,20%,63V,GP,10x20mm,5mm,T C537_7 207.4 157.2 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 17Inch only C538_7 281 214 2201-000285 C-CERAMIC,DISC 1nF,10%,1KV,Y5P,8.0X4.0,5,TP 17Inch only C539_7 66.2 219.1 2306-000224 C-FILM,MPPF 47nF,5%,400V,16.5x12.5mm,7.5mm 17Inch only C540_7 61.9 178.3 2401-000471 C-AL 10uF,20%,50V,BP,6x11mm,5mm,TP 17Inch only C543_7 205.6 163.1 2201-000469 C-CERAMIC,DISC 330pF,10%,500V,Y5P,6x3.5,5,TP 17Inch only C581 97.8 131.2 2401-000031 CAP-AL.ELEC,476M,1C (T)16V 47M C582 113.9 138.3 2401-000050 C-AL 10uF,20%,16V,GP,5x11mm,2mm,TP C600 292.6 24 2301-001157 C-FILM,MPEF 47nF,10%,275V,BK,17.5x12x6,15m C601 302.8 26.5 2201-000023 C-CERAMIC,DISC 2.2nF,20%,125V,Y5U,11x7,5,TP C602 302.8 38.6 2201-000023 C-CERAMIC,DISC 2.2nF,20%,125V,Y5U,11x7,5,TP C603 258.5 46.9 2201-000024 CAP-CERAMIC,472M,2B 4.7NF,125VAC,20%,Y5V,RADIAL C604 272.9 46.9 2201-000024 CAP-CERAMIC,472M,2B 4.7NF,125VAC,20%,Y5V,RADIAL C605 292.6 24 2301-001156 C-FILM,MPEF 220nF,10%,275V,BK,26x18x8.5,22 C606 228.7 30.4 2401-000052 CAP-AL.ELE,227M,2G,30X35 (B)220UF,400V,20%,R-RADIAL C607 194.8 25.7 2201-000019 C-CERAMIC,DISC 10nF,+80-20%,500V,Y5V,10x4,5,T C608 188.2 18 2301-000016 C-FILM,PEF 22nF,5%,100V,7.2x4.5x9.0mm,5mm C609 228 41.9 2305-000291 C-FILM,MPEF 220nF,5%,63V,7.5x13.5mm,5mm,TP C610 202.7 78.4 2401-001576 C-AL 47uF,20%,50V,GP,8x11.5mm,5mm,T C612 205.8 59.7 2401-000023 CAP-AL.ELEC,105M,1H (T)50V 1M C613 193.7 75 2301-000010 CAP-MYLAR,104J,2A,5P (T)100V 104J C614 182.4 19.4 2201-000024 CAP-CERAMIC,472M,2B 4.7NF,125VAC,20%,Y5V,RADIAL C619 97.7 96.3 2401-000025 CAP-AL.ELEC,107M,1C (T)16V 100M C620 136.5 32 2201-000014 C-CERAMIC,DISC 330pF,10%,1KV,Y5P,6x3.5,5,TP C621 168.6 19.4 2201-000024 CAP-CERAMIC,472M,2B 4.7NF,125VAC,20%,Y5V,RADIAL C623 150.3 15.1 2301-000011 C-FILM,PEF 1nF,5%,100V,10.5x12.5x6.5,5mm C624 147.8 24.2 2301-000287 CAP-MYLAR,562J,2A,5P (T)100V 562J

10 PCB Diagrams and Electrical Parts List

CKB5237L/7227L 10-5

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

Page 27

C625 130.3 54.9 2301-000015 C-FILM,PEF 10nF,5%,100V,7x3.2x7mm,5mm,TP C626 125.8 40 2401-000540 CAP-AL.ELEC,157M.1J (T)150UF,63V,20%,R-RADIAL,10X20 C627 130.7 89.8 2401-000041 C-AL 220uF,20%,16V,GP,10x12.5mm,5mm C628 133.7 92.2 2202-002008 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,50V,Y5V,2.3X3.0 C629 115 30.3 2401-000037 CAP-AL.ELEC,477M (T)470UF,16V,20%,R-RADIAL,1C,8x11.5 C620_D 206.8 42.8 2201-000012 CAP-CERAMIC,221K,3A,Y5P 220PF,1KV,10%,10%,Y5P,DISC- Delete C630 128.4 46.7 2201-000469 C-CERAMIC,DISC 330pF,10%,500V,Y5P,6x3.5,5,TP C631 144.7 59.2 2401-001869 C-AL 100uF,20%,100V,GP,13x20mm,5mm C632 129.1 74.6 2401-000039 CAP-AL.ELEC,108M.1C,10x16 (T)1000UF,16V,20%,R-RADIAL C634 165.7 89 2401-000039 CAP-AL.ELEC,108M.1C,10x16 (T)1000UF,16V,20%,R-RADIAL C636 237.5 96.1 2401-000031 CAP-AL.ELEC,476M,1C (T)16V 47M C633_U 141.2 84.9 2401-000151 C-AL 1000uF,20%,25V,GP,12.5x20mm,5m USB only CN102A 315.3 171.6 3711-003568 CONNECTOR-HEADER NOWALL,22P,1R,2.54mm,STRAIGHT CN102C 323 155 BH71-40300A PIN-HINGE BRASS,D2.36,SN,HEAT/SINK CN102E 315.3 230.5 BH71-40300A PIN-HINGE BRASS,D2.36,SN,HEAT/SINK CN300A_7 119.4 54.4 3711-001483 CONNECTOR-HEADER NOWALL,3P,1R,5.0mm,STRAIGHT,SN 17Inch only CN301_5 176.1 218.1 BH71-40300A PIN-HINGE BRASS,D2.36,SN,HEAT/SINK 15Inch only CN400 176.1 202.1 BH71-40300A PIN-HINGE BRASS,D2.36,SN,HEAT/SINK CN401 176.1 210.1 BH71-40300A PIN-HINGE BRASS,D2.36,SN,HEAT/SINK CN402 176.1 192.1 BH71-40300A PIN-HINGE BRASS,D2.36,SN,HEAT/SINK CN600 305 87.8 3711-000217 CONNECTOR-HEADER 1WALL,3P,1R,3.96mm,STRAIGHT,SN CN601 229.8 67.4 BH71-40300A PIN-HINGE BRASS,D2.36,SN,HEAT/SINK CN602 229.8 60 BH71-40300A PIN-HINGE BRASS,D2.36,SN,HEAT/SINK CN603 314.2 28.9 3721-001006 PLUG-AC POWER 3P,10/24mm,SN CN_TCO 143.2 205.9 3711-000197 CONNECTOR-HEADER 1WALL,3P,1R,2.5mm,STRAIGHT,SN CN_TILT 129.5 18.7 3711-000197 CONNECTOR-HEADER 1WALL,3P,1R,2.5mm,STRAIGHT,SN CN_USB 321.5 74.4 3722-001100 JACK-DIN 4P/2C,6mm,AG,BLK,NO USB only D302 303.2 218.8 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D303 106.1 55.1 0402-000128 DIODE-REC,1N4002,DO-41 70V,1A,1.1V,1A,2000NS,0.5A D402 160.1 179.1 0402-001131 DIODE-RECTIFIER UG1B,100V,1A,DO-204AL,TP D403 191.7 217.1 0402-001046 DIODE-RECTIFIER 1500V,10A,TO220F,ST D405 132.7 226.7 0401-000006 DIODE-SWITCHING BAV21,200V,250mA,400mW,50nS,DO D406 80.1 236 0402-001114 DIODE-RECTIFIER 1N4936GP,400V,1A,DO-204AL,TP D407 91.1 232.4 0402-001114 DIODE-RECTIFIER 1N4936GP,400V,1A,DO-204AL,TP D408 110.6 212.1 0402-000274 DIODE-REC,UF4004,DO-41 400V,1A,1V,1A,50NS,0.5A D409 109.4 203.2 0402-000274 DIODE-REC,UF4004,DO-41 400V,1A,1V,1A,50NS,0.5A D404_D 57 199.8 0403-000006 DIODE-ZENER UZ16BM,16V,15.33-15.96V,500mW Delete D410 65.3 152 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D413 26.3 206.7 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D414 38.2 198.7 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D415 13.5 205.3 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D416 101 180 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D477 38.2 175.8 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D502 163.8 133.5 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D508 229.1 130.9 0402-001118 DIODE-RECTIFIER UF1G,400V,1.2A,DO-204AL,TP D509 223.4 138.7 0402-000274 DIODE-REC,UF4004,DO-41 400V,1A,1V,1A,50NS,0.5A D510 269 160.4 0401-000006 DIODE-SWITCHING BAV21,200V,250mA,400mW,50nS,DO

10 PCB Diagrams and Electrical Parts List

10-6 CKB5237L/7227L

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

Page 28

D511 138.5 148.4 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D513 155.9 145 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D515 187.2 130.7 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D517 272.9 216.4 0402-001114 DIODE-RECTIFIER 1N4936GP,400V,1A,DO-204AL,TP D519 282.9 174.6 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D521 285.9 167.2 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D522 270.2 239 0401-000006 DIODE-SWITCHING BAV21,200V,250mA,400mW,50nS,DO D526 264.8 238.4 0402-001114 DIODE-RECTIFIER 1N4936GP,400V,1A,DO-204AL,TP D524_7 266.8 166.2 0402-001114 DIODE-RECTIFIER 1N4936GP,400V,1A,DO-204AL,TP 17Inch only D581 103.8 139.1 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D582 92.8 151.2 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D583 87.3 152.3 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D600 249 68.7 0402-001111 DIODE-RECTIFIER 1N5397GP,600V,1.5A,DO-204AC,TP D602 235 72.1 0402-001111 DIODE-RECTIFIER 1N5397GP,600V,1.5A,DO-204AC,TP D603 235 59.9 0402-001111 DIODE-RECTIFIER 1N5397GP,600V,1.5A,DO-204AC,TP D604 249 63.5 0402-001111 DIODE-RECTIFIER 1N5397GP,600V,1.5A,DO-204AC,TP D605 134.4 26.9 0402-001114 DIODE-RECTIFIER 1N4936GP,400V,1A,DO-204AL,TP D606 152.5 37.8 0402-000012 DIODE-REC,UF4007,DO-41 ST 02169-218-100 D607 193.6 46.8 0402-000017 DIODE-RECTIFIER RGP02-12,1200V,0.5A,DO-204AL D608 152.2 42.3 0402-000005 DIODE-RECTIFIER 31DF4,400V,3A,DO-201AD D609 188.6 56.4 0402-001114 DIODE-RECTIFIER 1N4936GP,400V,1A,DO-204AL,TP D611 148.3 66.5 0402-001158 DIODE-RECTIFIER RG2Z,200V,1.2A,DO-204,BK D614 157.4 72.5 0402-000249 DIODE-RECTIFIER RG4,400V,1.5A D615 199.3 65.9 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D617 231.6 91.7 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D612_U 151.1 72.4 0402-000005 DIODE-RECTIFIER 31DF4,400V,3A,DO-201AD USB only D613_D 201.5 34.4 0402-000017 DIODE-RECTIFIER RGP02-12,1200V,0.5A,DO-204AL Delete EY7 284 20 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 EY13 145 234.1 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 EY14 251 39.6 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 EY18 189.9 170.2 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 EY21 156 234.1 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 EY22 234.7 190.2 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 EY23 256.7 144.6 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 EY24 167.7 196 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 EY25 150.2 210.9 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 EY27 200.5 12 6042-000001 EYELET EYELET 2.2 HOLE 3.0 PAD 5.0 EY300 289.2 235.8 6042-000001 EYELET EYELET 2.2 HOLE 3.0 PAD 5.0 EY600 260.5 177.4 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 EY601 115.3 11.5 6042-000001 EYELET EYELET 2.2 HOLE 3.0 PAD 5.0 EY603 234.8 161.2 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 EY604 228.7 30.3 6042-000001 EYELET EYELET 2.2 HOLE 3.0 PAD 5.0 EY605 158.5 26.8 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 EY606 228.7 20.4 6042-000001 EYELET EYELET 2.2 HOLE 3.0 PAD 5.0 EY607 158.5 46.7 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 EY608 199.7 149.1 6042-000001 EYELET EYELET 2.2 HOLE 3.0 PAD 5.0 EY610 183.5 61.7 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0

10 PCB Diagrams and Electrical Parts List

CKB5237L/7227L 10-7

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

Page 29

EY611 199.7 235.9 6042-000001 EYELET EYELET 2.2 HOLE 3.0 PAD 5.0 EY613 183.4 31.7 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 EY614 314.2 43 6042-000001 EYELET EYELET 2.2 HOLE 3.0 PAD 5.0 EY615 314.2 28.9 6042-000001 EYELET EYELET 2.2 HOLE 3.0 PAD 5.0 FG1 0 0 3601-000004 FUSE-FERRULE 250V,3.15A,SLOW BLOW,CERAMIC,5 FH1 310.8 17.6 3602-000001 FUSE-CLIP,5.2X20,30MOHM 800GF,400-800GF H3 200.5 85.8 6042-000001 EYELET EYELET 2.2 HOLE 3.0 PAD 5.0 H5 115.3 85.2 6042-000001 EYELET EYELET 2.2 HOLE 3.0 PAD 5.0 H6 289.2 149.1 6042-000001 EYELET EYELET 2.2 HOLE 3.0 PAD 5.0 HS300 124.3 85.3 BH62-30415A HEAT/SINK A1050S,T2.0,CKB5237 HS501 193.7 236 BH62-30416A HEAT/SINK-FBT A1050S,T1.0,CKB7227 HS602 212.5 48.9 BH62-30018B HEAT/SINK-TR A1050S,T3,CQA4147 HS603 108.6 97.4 BH62-30024A HEAT/SINK-TR SPC,T1,SN,CFX1577L IC201 73.3 9.4 1203-000495 IC-LIN,7045,REGULATOR TO-92,3,+4.5V IC202 60.7 59.5 0903-001063 IC-MICROCONTROLLER 72E75,8BIT,DIP,42P,600MIL,24MH IC204 50.4 100.6 1103-001009 IC-EEPROM 24LC21,128X8BIT,DIP,8P,300MIL IC205 42.8 83.8 1103-001020 IC-EEPROM 24LC04,4Kx8BIT,DIP,8P,300MIL IC300 96.5 51.8 1204-000013 IC-CONSUMER/CIRCUIT 9302,TO-220,7P,15V/30V,VERTIC IC301 96.3 16.6 1201-001034 IC-OP AMP 272,DIP,8P,150MIL,DUAL,PLAST IC302 61.6 154.3 1204-001231 IC-DEF. PROCESSOR TDA9109,DIP,32P,300MIL,PLASTIC IC501 133 138.1 1203-000182 IC-POSI.ADJUST REG. 494,DIP,16P,300MIL,PLASTIC IC502 95.9 151.2 1201-000420 IC-OP AMP 358,DIP,8P,300MIL,DUAL,100V/mV IC600 142.5 96.3 1203-000001 IC-POSI.ADJUST REG. 7805,TO-220,3P,PLASTIC,4.8/5 IC601 155 21 1203-000002 IC-LIN,431,REGULATOR TO-92,3,36V(T)-SIMPLE IC602 220.6 43.5 BH13-10334H IC-HYBRID G-PROJECT,KA2H0880,SIP,5P,FET+ IC603 106.1 100.9 1203-000165 IC-LIN,KA78R12,REGULATOR TO-220,4,5V L401 110.6 224.3 BH27-20343M COIL-PEAKING 750UH,10%,DR8*8,TAPING L405 121 229.4 BH27-20343H COIL-PEAKING 2.7MH,10%,DR8*8,TP L406 142 220.3 BH27-20344D COIL-CHOKE 50UH,10%,DR8*8,TAPING L407 119.7 193.7 BH27-20310H COIL-CHOKE 0.18OHM,16.7*27.8,B,USTC0. L408 60.3 164.9 2701-000154 INDUCTOR-AXIAL 220uH,10%,4.2x9.8mm L402_5 0 0 BH27-20026A COIL-H.LINEARITY 0.08OHM,0.2,DR1415,BULK,35MM 15Inch only L402_7 156 234.1 BH27-20003A COIL-LINEARITY 0.06OHM,0.15,DR-1415,IVORY,35M 17Inch only L501_5 0 0 BH27-20342V COIL-CHOKE 200UH,15%,DR14*20,BULK 15Inch only L501_7 192.4 133.4 BH27-20310H COIL-CHOKE 0.18OHM,16.7*27.8,B,USTC0. 17Inch only L600 279.1 61.1 BH27-20344G COIL-LINE FILTER 1.5MH,20%,SQ-2114,BULK L602 279 27.5 BH27-20310T CHOKE-COIL LSA07110P L601_D 0 0 BH27-20343N COIL-LINE FILTER 15mH,BK,39MM Delete OP201 15 31.8 0601-001147 LED ROUND,GRN,4.75mm,565nm OP601 167.7 14.2 0604-001018 PHOTO-COUPLE DAR-TR, 63-125%, 200mW, DIP-4, RST Q201 15.4 14.6 0501-000586 TR-NPN,KSC945,TO-92,EBC 0.25W,60V,50V,5V,0.15A Q301 226.1 227.1 0501-000586 TR-NPN,KSC945,TO-92,EBC 0.25W,60V,50V,5V,0.15A Q403 105.3 169.9 0502-000008 TR-POWER 2SC3503-E,NPN,300V,300V,100mA Q405 8.7 216.6 0505-001102 FET-SILICON IRFR/U230A,N,200V,7.5A,400mohm Q406 189.9 175.7 0502-001001 TR-POWER KSC5088,NPN,1500V,1500V,8A,50W Q407 81.5 185.3 0501-000010 TR-NPN,KSC1008,TO-92,ECB 0.8W,80V,60V,8V,0.7A Q408 26.1 216.6 0505-001102 FET-SILICON IRFR/U230A,N,200V,7.5A,400mohm

10 PCB Diagrams and Electrical Parts List

10-8 CKB5237L/7227L

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

Page 30

Q409 45 211.7 0505-001129 FET-SILICON IRF630A,N,200V,10uA,400mohm,72 Q411 78.7 203.1 0505-001130 FET-SILICON IRF740A,N,400V,10uA,550mohm,13 Q412 93 163.4 0501-000581 TR-PNP,2N3906,TO-92,EBC 0.625W,40V,40V,5V,0.2A Q413 66.9 195.7 0501-000122 TR-NPN,2N3904,TO-92,EBC 0.625W,60V,40V,6V,0.2A Q414 88.1 163.4 0501-000122 TR-NPN,2N3904,TO-92,EBC 0.625W,60V,40V,6V,0.2A Q416 61.9 195.7 0501-000581 TR-PNP,2N3906,TO-92,EBC 0.625W,40V,40V,5V,0.2A Q417_7 32 173.1 0501-000586 TR-NPN,KSC945,TO-92,EBC 0.25W,60V,50V,5V,0.15A 17Inch only Q477 40.4 173.3 0501-000303 TR-PNP,KSA733,TO-92,EBC 0.25W,-60V,-50V,-5V,-0.15A Q503 251.3 144.7 0502-001070 TR-POWER 2SC5339,NPN,50W,TO-3PF,ST,4-8 Q504 212.7 138.5 0505-001130 FET-SILICON IRF740A,N,400V,10uA,550mohm,13 Q506 141.3 154 0501-000303 TR-PNP,KSA733,TO-92,EBC 0.25W,-60V,-50V,-5V,-0.15A Q507 289.8 167 0501-000303 TR-PNP,KSA733,TO-92,EBC 0.25W,-60V,-50V,-5V,-0.15A Q500_7 198.9 157.7 0501-000413 TR-SMALL SIGNAL KSP44,NPN,625mW,TO-92,50-200 17Inch only Q510 259.5 125.7 0501-000361 TR-SMALL SIGNAL KSC2316-Y,NPN,900mW,TO-92L,BK,120-240 Q511 291.2 181.1 0501-000303 TR-PNP,KSA733,TO-92,EBC 0.25W,-60V,-50V,-5V,-0.15A Q512 270.8 132.8 0501-000122 TR-NPN,2N3904,TO-92,EBC 0.625W,60V,40V,6V,0.2A Q513 259.5 135.4 0501-000609 TR-SMALL, SIGNAL KTA916-Y, PNP,900mW,TO-92L,Bk,120-240 Q514 167.1 137.2 0501-000483 TR-NPN,MPS2222A,TO-92 0.625W,75V,40V,6V,0.6A Q516 284.1 219.8 0501-000143 TR-SMALL SIGNAL 2N6520,PNP,625mW,TO-92,30-20 Q517 292.6 221 0501-000586 TR-NPN,KSC945,TO-92,EBC 0.25W,60V,50V,5V,0.15A Q600 227.8 96.9 0501-000010 TR-NPN,KSC1008,TO-92,ECB 0.8W,80V,60V,8V,0.7A Q601 176.5 101.1 0502-000249 TR-PNP,KSB772,TO-126,ECB 1W,-40V,-30V,-5V,-3A Q602 166.2 97 0501-000586 TR-NPN,KSC945,TO-92,EBC 0.25W,60V,50V,5V,0.15A Q604 91.1 87 0501-000586 TR-NPN,KSC945,TO-92,EBC 0.25W,60V,50V,5V,0.15A R200 76.8 7.7 2001-000035 REF-CF,220,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R203 28.5 74.5 2001-000053 REF-CF,3.3K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R204 28.5 71.7 2001-000053 REF-CF,3.3K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R205 34 71.2 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R206 36.4 71.2 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R201_7 40 71.2 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A 17Inch only R218 59.5 70.4 2001-000053 REF-CF,3.3K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R210_7 61.7 81.8 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A 17Inch only R220 52.5 71.2 2001-000496 R-CARBON 20Kohm,5%,1/6W,AA,TP,1.8x3.2mm R221 50 71.2 2001-000029 REF-CF,100,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R222 47.6 71.2 2001-000053 REF-CF,3.3K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R224 20.8 68 2001-000652 R-CARBON 330ohm,5%,1/6W,AA,TP,1.8x3.2mm R225 20.8 65.3 2001-000652 R-CARBON 330ohm,5%,1/6W,AA,TP,1.8x3.2mm R231 7.7 66.6 2001-000538 R-CARBON 24Kohm,5%,1/6W,AA,TP,1.8x3.2mm R232 7.7 69.1 2001-000538 R-CARBON 24Kohm,5%,1/6W,AA,TP,1.8x3.2mm R233 70.7 100.9 2001-000538 R-CARBON 24Kohm,5%,1/6W,AA,TP,1.8x3.2mm R234 7.7 63.4 2001-000538 R-CARBON 24Kohm,5%,1/6W,AA,TP,1.8x3.2mm R235 52.4 29.8 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R236 36.7 30.4 2001-000367 R-CARBON 15Kohm,5%,1/6W,AA,TP,1.8x3.2mm R239 29.4 18.4 2001-000367 R-CARBON 15Kohm,5%,1/6W,AA,TP,1.8x3.2mm R237_U 34.3 18.4 2001-000367 R-CARBON 15Kohm,5%,1/6W,AA,TP,1.8x3.2mm USB only R238_U 31.9 18.4 2001-000367 R-CARBON 15Kohm,5%,1/6W,AA,TP,1.8x3.2mm USB only R240 27 18.4 2001-000367 R-CARBON 15Kohm,5%,1/6W,AA,TP,1.8x3.2mm

10 PCB Diagrams and Electrical Parts List

CKB5237L/7227L 10-9

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

Page 31

R243 29.4 36.9 2001-000868 R-CARBON 56ohm,5%,1/6W,AA,TP,1.8x3.2mm R244 27 36.9 2001-000868 R-CARBON 56ohm,5%,1/6W,AA,TP,1.8x3.2mm R245 22.1 36.9 2001-000029 REF-CF,100,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R246 41.5 38.9 2001-000738 R-CARBON 4.7Mohm,5%,1/6W,AA,TP,1.8x3.2m R249 18.5 40.8 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R241_U 34.3 36.9 2001-000868 R-CARBON 56ohm,5%,1/6W,AA,TP,1.8x3.2mm USB only R242_U 31.9 36.9 2001-000868 R-CARBON 56ohm,5%,1/6W,AA,TP,1.8x3.2mm USB only R250 9.8 59.8 2001-000042 REF-CF,1K,5%,1/4W 250V,-350 TO +350PPM/C,R-AX R251 6.9 49.7 2001-000106 R-CARBON 1.5Kohm,5%,1/6W,AA,TP,1.8x3.2m R252 13.1 138.6 2001-000059 R-CARBON 5.6Kohm,5%,1/6W,AA,TP,1.8x3.2m R253 13.3 128.9 2001-000069 R-CARBON 12Kohm,5%,1/6W,AA,TP,1.8x3.2mm R254 13 108.3 2001-000562 R-CARBON 27Kohm,5%,1/6W,AA,TP,1.8x3.2mm R255 65.6 86.2 2001-000029 REF-CF,100,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R256 65.6 91.8 2001-000868 R-CARBON 56ohm,5%,1/6W,AA,TP,1.8x3.2mm R257 65.6 89.3 2001-000868 R-CARBON 56ohm,5%,1/6W,AA,TP,1.8x3.2mm R258 32.3 88.9 2001-000029 REF-CF,100,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R259 32.3 91.4 2001-000029 REF-CF,100,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R303 244.6 232.6 2001-000042 REF-CF,1K,5%,1/4W 250V,-350 TO +350PPM/C,R-AX R304 244.6 227.6 2001-000053 REF-CF,3.3K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R305 221.8 236.1 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R306 229.6 224.9 2001-000056 REF-CF,4.7K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R307 119.9 43 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R308 110.1 46.3 2001-000245 REF-CF,1.5,5%,1/2W 350V,-350 TO +350PPM/C,R-AX R309 108.6 69.3 2004-001022 R-METAL 5.6Kohm,1%,1/4W,AA,TP,2.4x6.4m R302_5 0 0 2001-003102 R-CARBON(S) 360ohm,5%,1/2W,AA,TP,2.4x6.4mm 15Inch only R302_7 113.7 64.4 2001-001088 R-CARBON(S) 1Kohm,5%,1/2W,AA,TP,2.4x6.4mm 17Inch only R310 103 74.4 2305-000005 R-METAL OXIDE(S) 1ohm,5%,2W,AA,TP,4x12mm R311 93.5 44.2 2004-000970 R-METAL 470ohm,1%,1/4W,AA,TP,2.4x6.4mm R312 93.3 59.1 2004-004144 R-METAL 2.64Kohm,1%,1/4W,AA,TP,2.4x6.4 R313 79.9 78.2 2004-000252 R-METAL 11Kohm,1%,1/4W,AA,TP,2.4x6.4mm R316 70.9 20.4 2001-000069 R-CARBON 12Kohm,5%,1/6W,AA,TP,1.8x3.2mm R317 88.7 30.8 2001-000056 REF-CF,4.7K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R318 95.6 12.9 2001-000367 R-CARBON 15Kohm,5%,1/6W,AA,TP,1.8x3.2mm R319 85.1 24.1 2001-000043 REF-CF,1K,5%,1/6W 150V,-1300 TO +350PPM,R-AXI R314_D 70.5 6.9 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A Delete R315_5 0 0 2001-000678 R-CARBON 36Kohm,5%,1/6W,AA,TP,1.8x3.2mm 15Inch only R315_7 95.2 28.3 2001-000075 R-CARBON 39Kohm,5%,1/6W,AA,TP,1.8x3.2mm 17Inch only R320 126.5 19.4 2001-000022 R-CARBON(S) 33ohm,5%,1/2W,AA,TP,2.4x6.4mm R321 83.7 83.7 2001-000029 REF-CF,100,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R401 43.2 173.6 2001-000367 R-CARBON 15Kohm,5%,1/6W,AA,TP,1.8x3.2mm R409 120.8 181.2 2003-000703 R-METAL OXIDE(S) 470ohm,5%,3W,AA,TP,6x16mm R416 102.8 169.5 2001-000040 REF-CF,470,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R417 126.7 108.5 2003-000703 R-METAL OXIDE(S) 470ohm,5%,3W,AA,TP,6x16mm R418 135.5 169.4 2003-000512 REF-MO,15K,5%,3W(S 500V,-200 TO +200PPM/C,R-AX R419 112.5 161.8 2003-000793 REF-MO,8.2K,5%,2W(S 500V,-200 TO +200PPM/C,R-AX R414_5 0 0 2001-001005 R-CARBON 82ohm,5%,1/6W,AA,TP,1.8x3.2mm 15Inch only R414_7 92.4 160.4 2001-000029 REF-CF,100,5%,1/6W 150V,-1300 TO +350PPM/C,R-A 17Inch only

10 PCB Diagrams and Electrical Parts List

10-10 CKB5237L/7227L

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

Page 32

R420 75.6 234.4 2003-000767 REF-MO,680,5%,2W(S 350V,-350 TO +350PPM/C,R-AX R421 160.1 162.8 2003-000423 REF-MO,1.2,5%,3W(T -359 TO +350PPM/C,R-AXIAL R422 163.5 179.1 2001-000020 R-CARBON(S) 22ohm,5%,1/2W,AA,TP,2.4x6.4mm R423 105.4 233.8 2003-000710 R-METAL OXIDE(S) 47ohm,5%,2W,AA,TP,4x12mm R424 55.2 238.2 2001-000084 REF-CF,100K,5%,1/4W 250V,-600 TO -150PPM/C,R-AX R426 87.8 210.2 2001-000037 REF-CF,330,5%,1/2W(S 300V,-200 TO +200PPM/C,R-AX R427 76.7 212.9 2001-000037 REF-CF,330,5%,1/2W(S 300V,-200 TO +200PPM/C,R-AX R428 107.6 209.7 2001-000023 REF-CF,47,5%,1/4W 250V,-350 TO +350PPM/C,R-AX R429 70.4 176.6 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R425_5 0 0 2001-000056 REF-CF,4.7K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A 15Inch only R425_7 28.8 174.2 2001-000367 R-CARBON 15Kohm,5%,1/6W,AA,TP,1.8x3.2mm 17Inch only R430 127.7 228.9 2001-000367 R-CARBON 15Kohm,5%,1/6W,AA,TP,1.8x3.2mm R432 63.1 122.2 2001-000652 R-CARBON 330ohm,5%,1/6W,AA,TP,1.8x3.2mm R433 21.1 192.3 2001-000043 REF-CF,1K,5%,1/6W 150V,-1300 TO +350PPM,R-AXI R434 31.6 195.9 2001-000043 REF-CF,1K,5%,1/6W 150V,-1300 TO +350PPM,R-AXI R435 16.1 192.3 2001-000043 REF-CF,1K,5%,1/6W 150V,-1300 TO +350PPM,R-AXI R436 37.1 160.4 2001-000086 R-CARBON 100Kohm,5%,1/6W,AA,TP,1.8x3.2m R437 60.7 122.2 2001-000652 R-CARBON 330ohm,5%,1/6W,AA,TP,1.8x3.2mm R438 108.1 206.2 2003-000386 REF-MO,910,5%,2W 350V,-200 TO +200PPM/C,R-AX R439 51.4 163.4 2001-000043 REF-CF,1K,5%,1/6W 150V,-1300 TO +350PPM,R-AXI R442 83.2 157 2001-000029 REF-CF,100,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R446 83.2 154.5 2001-000029 REF-CF,100,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R448 42.9 156.8 2004-004090 R-METAL 6.49Kohm,1%,1/4W,AA,TP,2.5x6.5 R449 23.3 173.8 2001-000652 R-CARBON 330ohm,5%,1/6W,AA,TP,1.8x3.2mm R441_7 64.7 175.2 2001-000043 REF-CF,1K,5%,1/6W 150V,-1300 TO +350PPM,R-AXI 17Inch only R443_5 0 0 2001-000538 R-CARBON 24Kohm,5%,1/6W,AA,TP,1.8x3.2mm 15Inch only R443_7 32.3 165.6 2001-000075 R-CARBON 39Kohm,5%,1/6W,AA,TP,1.8x3.2mm 17Inch only R444_7 67.3 168.7 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A 17Inch only R450 18.1 162.3 2001-000077 REF-CF,47K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R455 53.8 130.5 2001-000044 R-CARBON 1.2Kohm,5%,1/4W,AA,TP,2.4x6.4m R456 51.2 130.5 2001-000044 R-CARBON 1.2Kohm,5%,1/4W,AA,TP,2.4x6.4m R459 31.3 124.1 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R451_5 0 0 2001-000632 R-CARBON 30Kohm,5%,1/6W,AA,TP,1.8x3.2mm 15Inch only R451_7 15.8 170.5 2001-000082 R-CARBON 68Kohm,5%,1/6W,AA,TP,1.8x3.2mm 17Inch only R460 130.2 234.7 2001-000075 R-CARBON 39Kohm,5%,1/6W,AA,TP,1.8x3.2mm R461 133.1 221.4 2001-000848 R-CARBON 560Kohm,5%,1/4W,AA,TP,2.4x6.4m R462 117.6 187.1 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R463 90.1 165.5 2001-000053 REF-CF,3.3K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R464 57 203.9 2001-000019 R-CARBON(S) 10ohm,5%,1/2W,AA,TP,2.4x6.4mm R465 86.9 197.8 2003-000407 R-METAL OXIDE(S) 0.6ohm,5%,2W,AA,TP,4x12mm R469 23.4 192.3 2001-000632 R-CARBON 30Kohm,5%,1/6W,AA,TP,1.8x3.2mm R467_7 35 178.4 2001-000074 REF-CF,33K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A 17Inch only R470 32.4 192.4 2001-000632 R-CARBON 30Kohm,5%,1/6W,AA,TP,1.8x3.2mm R473 18.4 192.3 2001-000632 R-CARBON 30Kohm,5%,1/6W,AA,TP,1.8x3.2mm R474 10.9 220.9 2001-000432 R-CARBON 1Mohm,5%,1/4W,AA,TP,2.4x6.4mm R475 34 215.5 2001-000432 R-CARBON 1Mohm,5%,1/4W,AA,TP,2.4x6.4mm R476 46.1 215.5 2001-000432 R-CARBON 1Mohm,5%,1/4W,AA,TP,2.4x6.4mm

10 PCB Diagrams and Electrical Parts List

CKB5237L/7227L 10-11

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

Page 33

R477 35.9 168.8 2001-000093 R-CARBON 470Kohm,5%,1/6W,AA,TP,1.8x3.2m R478 75.3 149.5 2001-000496 R-CARBON 20Kohm,5%,1/6W,AA,TP,1.8x3.2mm R479 47.4 134.6 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R509 137.6 135.2 2001-000688 REF-CF,390K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R500_7 216.6 166.4 2001-001110 R-CARBON(S) 240Kohm,5%,1/2W,AA,TP,2.4x6.4m 17Inch only R502_7 207.1 193.1 2001-001129 R-CARBON(S) 330Kohm,5%,1/2W,AA,TP,2.4x6.4m 17Inch only R503_7 167 166.8 2001-000055 R-CARBON 4.7Kohm,5%,1/4W,AA,TP,2.4x6.4m 17Inch only R504_7 218.7 159.7 2001-000105 R-CARBON 1.5Kohm,5%,1/4W,AA,TP,2.4x6.4m 17Inch only R505_7 62.2 181.3 2001-000713 R-CARBON 3Kohm,5%,1/4W,AA,TP,2.4x6.4mm 17Inch only R506_7 71.5 217.1 2003-000807 R-METAL OXIDE(S) 82ohm,5%,2W,AA,TP,4x12mm 17Inch only R510 131.3 148.4 2001-000053 REF-CF,3.3K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R511 174.3 144 2001-000456 REF-CF,2.2,5%,1/4W 250V,-350 TO +350PPM/C,R-AX R512 136.1 148.4 2001-000043 REF-CF,1K,5%,1/6W 150V,-1300 TO +350PPM,R-AXI R513 144.2 148.4 2001-000043 REF-CF,1K,5%,1/6W 150V,-1300 TO +350PPM,R-AXI R514 126 136.7 2001-000057 REF-CF,5.1K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R515 208.7 138.5 2001-000077 REF-CF,47K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R516 128.4 154.9 2001-000057 REF-CF,5.1K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R518 132.2 128.9 2001-000976 REF-CF,8.2K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R519 140.1 135.2 2001-000072 REF-CF,22K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R517_5 0 0 2004-001164 R-METAL 62Kohm,1%,1/4W,AA,TP,2.4x6.4mm 15Inch R517_7 209.2 224.4 2004-000515 R-METAL 200Kohm,1%,1/4W,AA,TP,2.4x6.4m 17Inch R520 187.2 133.7 2005-000002 REF-WW,0.27,5%,1W(NON -100 TO +100PPM/C,R-AXAIL R521 145.8 128.7 2001-000064 REF-CF,7.5K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R526 280.3 182.6 2001-000072 REF-CF,22K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R527 294.3 187.6 2001-000064 REF-CF,7.5K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R530 294.3 117.8 2001-000029 REF-CF,100,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R537 255.9 131.5 2001-000019 R-CARBON(S) 10ohm,5%,1/2W,AA,TP,2.4x6.4mm R538 252.9 135.7 2001-000892 R-CARBON 6.8ohm,5%,1/2W,AA,TP,3.3x9mm R535_5 0 0 2001-000722 R-CARBON 4.3Kohm,5%,1/6W,AA,TP,1.8x3.2m 15Inch only R535_7 288.4 175.1 2001-000051 R-CARBON 2.7Kohm,5%,1/6W,AA,TP,1.8x3.2m 17Inch only R540 267.3 120 2003-000659 REF-MO,33,5%,1W(S 350V,-350 TO +350PPM/C,R-AX R541 273.4 120 2001-000043 REF-CF,1K,5%,1/6W 150V,-1300 TO +350PPM,R-AXI R542 244.7 135.1 2001-000211 REF-CF,1,5%,1/4W 250V,-350 TO +350PPM/C,R-AX R543 247.8 146.1 2001-000021 REF-CF,27,5%,1/4W 250V,-350 TO +350PPM/C,R-AX R544 223.4 135.3 2003-000386 REF-MO,910,5%,2W 350V,-200 TO +200PPM/C,R-AX R545 267.8 239 2001-000546 R-CARBON 270Kohm,5%,1/4W,AA,TP,2.4x6.4m R546 306.4 214.6 2001-000562 R-CARBON 27Kohm,5%,1/6W,AA,TP,1.8x3.2mm R547 296.7 215.1 2001-000067 REF-CF,10K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R548 296.7 217.5 2001-000055 R-CARBON 4.7Kohm,5%,1/4W,AA,TP,2.4x6.4m R549_5 0 0 2001-000084 REF-CF,100K,5%,1/4W 250V,-600 TO -150PPM/C,R-AX 15Inch only R549_7 275.8 219.9 2001-000078 R-CARBON 56Kohm,5%,1/4W,AA,TP,2.4x6.4mm 17Inch only R550 289.1 223.8 2001-000056 REF-CF,4.7K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R551 272.9 232.9 2001-000107 REF-CF,150K,5%,1/2W(S 300V,-200 TO +200PPM/C,R-AX R552 276.8 201.4 2001-000431 R-CARBON 1Mohm,5%,1/2W,AA,TP,3.3x9mm R554 278.7 123.8 2001-000040 REF-CF,470,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R555 170.3 148.4 2001-000053 REF-CF,3.3K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R556 169.9 141.7 2001-000976 REF-CF,8.2K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A

!!!!!

10 PCB Diagrams and Electrical Parts List

10-12 CKB5237L/7227L

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

Page 34

R579 240 146.1 2001-000107 REF-CF,150K,5%,1/2W(S 300V,-200 TO +200PPM/C,R-AX R581 94.3 127.5 2004-000643 R-METAL 270Kohm,1%,1/4W,AA,TP,2.4x6.4m R583 106.2 139.1 2001-000077 REF-CF,47K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R584 93.1 155.9 2001-000074 REF-CF,33K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R585 108.5 124.9 2001-000077 REF-CF,47K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R586 293.4 132.7 2001-000367 R-CARBON 15Kohm,5%,1/6W,AA,TP,1.8x3.2mm R587 106.1 148.7 2001-000562 R-CARBON 27Kohm,5%,1/6W,AA,TP,1.8x3.2mm R589 284 157.8 2001-000073 R-CARBON 33Kohm,5%,1/4W,AA,TP,2.4x6.4mm R582_5 0 0 2004-001040 R-METAL 50Kohm,1%,1/4W,AA,TP,2.4x6.4mm 15Inch R582_7 101.3 129.4 2004-004145 R-METAL 52Kohm,1%,1/4W,AA,TP,2.4x6.4mm 17Inch R600 234.6 94.4 2001-000056 REF-CF,4.7K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R601 231.6 89 2001-000023 REF-CF,47,5%,1/4W 250V,-350 TO +350PPM/C,R-AX R602 164.9 16.8 2001-000043 REF-CF,1K,5%,1/6W 150V,-1300 TO +350PPM,R-AXI R603 143.6 10.6 2004-000947 R-METAL 43Kohm,1%,1/4W,AA,TP,2.4x6.4mm R604 187.7 105.4 2001-000495 R-CARBON 20Kohm,5%,1/4W,AA,TP,2.4x6.4mm R605 164.9 13.1 2004-000150 R-METAL 1.5Kohm,1%,1/4W,AA,TP,2.4x6.4m R606 146.5 10.6 2001-000060 REF-CF,6.8K,5%,1/4W 250V,-350 TO +350PPM/C,R-AX R607 140.8 21.6 2004-004096 R-METAL 2.52Kohm,1%,1/4W,AA,TP,2.4x6.4 R609 229.7 78.4 2003-000771 REF-MO,68K,5%,2W(S 500V,-200 TO +200PPM/C,R-AX R610 189.5 24.7 2003-000741 REF-MO,56K,5%,3W(S 500V,-200 TO +200PPM/C,RE-R R611 152.2 46.6 2003-000471 REF-MO,10,5%,2W(S 350V,-350 TO +350PPM/C,R-AX R612 197.4 80.2 2001-001079 R-CARBON(S) 15ohm,5%,1/2W,AA,TP,2.4x6.4mm R613 157.3 101.9 2008-001056 R-FUSIBLE(S) 2.2ohm,5%,1W,AA,TP,9.5x3.5mm R614 173.9 98.5 2001-000077 REF-CF,47K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R615 180.4 96.1 2001-000043 REF-CF,1K,5%,1/6W 150V,-1300 TO +350PPM,R-AXI R618 161.3 98.1 2001-000056 REF-CF,4.7K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R619 168.1 80.5 2001-000042 REF-CF,1K,5%,1/4W 250V,-350 TO +350PPM/C,R-AX R620 71.9 94.3 2001-000988 REF-CF,820K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R622 201.9 54.9 2001-001107 R-CARBON(S) 220ohm,5%,1/2W,AA,TP,2.4x6.4mm R624 81.2 54.2 2001-000074 REF-CF,33K,5%,1/6W 150V,-1300 TO +350PPM/C,R-A R625 299.1 27.5 2001-000642 R-CARBON 330Kohm,5%,1/2W,AA,TP,3.3x9mm R626 103.8 100.9 2001-001138 R-CARBON(S) 390ohm,5%,1/2W,AA,TP,2.4x6.4mm R630 152.5 35 2003-000468 R-METAL OXIDE(S) 10ohm,5%,1W,AA,TP,3.3x9mm RL401 90.4 221.4 3501-001064 RELAY-POWER 12Vdc,0.36W,2A,1FormC,10mS,5mS RL401_D 100.4 225.1 3501-000287 RELAY-MINIATURE,12V 2FORMC,5A,530mW,15mS,5mS Delete RL601 248.7 86.6 3501-000136 RELAY-MINIATURE 12V,360mW,5A,1FormA,10mS,10mS RL601_D 277.1 94 3501-000266 RELAY-POWER 12V,720mW,5A,2FormA,8mS,3mS Delete SK501_7 269.1 220.4 4715-000001 SURGE ABSORBER 1KV,+50-10% 17Inch only SW200 7 19 3404-000244 SWITCH-TACT 15V,20mA,90-170gf,7.5x7mm,SPST SW201 7 148.5 3404-000244 SWITCH-TACT 15V,20mA,90-170gf,7.5x7mm,SPST SW202 7 131.5 3404-000244 SWITCH-TACT 15V,20mA,90-170gf,7.5x7mm,SPST SW203 7 120.5 3404-000244 SWITCH-TACT 15V,20mA,90-170gf,7.5x7mm,SPST SW204 7 103.5 3404-000244 SWITCH-TACT 15V,20mA,90-170gf,7.5x7mm,SPST SW401 76.3 239.5 3406-000002 SWITCH-TOGGLE,SP3T ON-ON-ON,STRAIGHT T401 142 177.7 BH26-30303Y TRANS-HOR.DRIVE 6-4(50MH T402 167.6 190.9 BH26-30337K TRANS-HOR.DRIVE 1.5mH,10P,EER2828,EER282 T402 0 0 BH26-30336D TRANS-HOR.PULSE 1.5MH,10P,EER2828,PM-2,PL-3,1. TCO

!!!!!!!!!!!

10 PCB Diagrams and Electrical Parts List

CKB5237L/7227L 10-13

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

Page 35

T501_5 246 175.7 BH26-10335B TRANS-FBT 0.83mH,13PIN,FKD-15B00 15Inch only T501_7 246 175.7 BH26-10335C TRANS-FBT 0.8mH,15PIN,FERRITE,Y265 17Inch only T501_D 246 175.7 BH26-10334E TRANS-FBT 0.8mH,15P,HFL1327XD-RC Delete T502_7 294.1 194.9 BH26-30337J TRANS-FOCUS 630uH,10P,EE1916,PL-3,EE19 17Inch only T601 183.5 26.7 BH26-20335U TRANS-POWER 470UH/310UH,18P,EER3942,PL-3,7 T602 182.7 77 BH26-30302S TRANS-SYNC. 3-1(250UH TEST 254.2 227.6 6042-000002 EYELET EYELET 1.5 HOLE 2.2 PAD 4.0 TH601 285.3 87.4 1404-000002 THERMISTOR-NTC 9OHM,20% TH602 229.8 67.5 1404-001020 THERMISTOR-NTC 8ohm,15%,17mW/C,BK VR401_D 130.3 238.5 2103-000493 RES-VAR,SF-ROUND 30%,0.1W,SIDE,5KOHM Delete VR501 212 232.6 2103-000454 VR-SEMI 50Kohm,25%,0.3W,SIDE VR600_D 151.5 6.2 2103-000006 RES-VAR,SF-ROUND 30%,0.1W,TOP,220 ,500OHM Delete X201 42.5 35.4 2801-003413 CRYSTAL-UNIT 24MHz,30ppm,28-ABQ,18pF,20ohm ZD502 133.7 148.4 0403-000005 DIODE-ZEN,UZ-5.1B,DO-35 0.5W,10MA ZD601 225.7 40.8 0403-000351 DIODE-ZEN,UZ-4.7B,DO-35 ST 02169-403-420

10 PCB Diagrams and Electrical Parts List

10-14 CKB5237L/7227L

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

Page 36

10 PCB Diagrams and Electrical Parts List

CKB5237L/7227L 10-15

10-2 Video PCB

10-2-1 Top View

10-2-2 Bottom View

Page 37

BD101 18.8 45.1 3301-000011 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G BD102 0 0 3301-000011 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G BD103 64.5 83.2 3301-000011 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G BD104 66.9 87.1 3301-000011 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G BD105 70.1 91 3301-000011 CORE-FERRITE BEAD AA,3.5x1.0x5.7mm,1500,2375G C101 47.7 92.6 2401-000030 CAP-AL.ELEC,226M,1E (T)25V 22M C102 32.5 80.9 2202-000321 C-CERAMIC,MLC-RADIAL 100nF,10%,50V,X7R,5.1x6.6,5.1 C103 53.8 92.3 2202-000321 C-CERAMIC,MLC-RADIAL 100nF,10%,50V,X7R,5.1x6.6,5.1 C104 33.2 66.5 2401-000027 C-AL 4.7uF,20%,50V,GP,5x11mm,5mm,TP C105 25.2 70.1 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 C106 25.5 62.9 2202-002008 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,50V,Y5V,2.3X3.0 C108 32.6 85.3 2401-000031 C-AL 47uF,20%,16V,GP,6.3x11mm,5mm,T C109 16.5 36.7 2301-000011 C-FILM,PEF 1nF,5%,100V,10.5x12.5x6.5,5mm C110 10.5 23.1 2201-000680 C-CERAMIC,DISC 82pF,5%,50V,NPO,8x3.5,5,TP C112 31.4 31.8 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 C113 39.5 26.3 2401-000025 C-AL 100uF,20%,16V,GP,8x11.5mm,3.5m C114 25.6 24.1 2202-000321 C-CERAMIC,MLC-RADIAL 100nF,10%,50V,X7R,5.1x6.6,5.1 C115 21.6 29.5 2201-000234 C-CERAMIC,DISC 150pF,5%,50V,NPO,10x3.5,5,TP C116 31.8 18.7 2301-000021 CAP-MYLAR,683J,2A,5P (T)100V 683J C118 53.7 29.1 2401-000597 C-AL 1uF,20%,50V,GP,4x7mm,1.5mm,TP C119 50.7 13.5 2202-002008 C-CERAMIC,MLC-AXIAL 10nF,+80-20%,50V,Y5V,2.3X3.0 C120 54.6 20.3 2401-000042 CAP-AL.ELEC,107M,1C (T)16V 100M C121 0 0 2401-000050 C-AL 10uF,20%,16V,GP,5x11mm,2mm,TP C122 74.6 28.4 2201-000010 C-CERAMIC,DISC 33pF,5%,50V,NPO,5x3.5,5,TP C124 69.8 69.6 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 C125 109.1 60.8 2301-000010 CAP-MYLAR,104J,2A,5P (T)100V 104J C126 96 57.4 2401-000029 C-AL 10uF,20%,100V,GP,8x11.5mm,5mm C128 80.6 13.1 2301-000016 C-FILM,PEF 22nF,5%,100V,7.2x4.5x9.0mm,5mm C129 72.4 19.9 2301-000012 C-FILM,PEF 2.2nF,5%,100V,10.5x12.5x6.5,5m C130 49.4 28.4 2301-000015 CAP-MYLAR,103J,2A,5P (T)100V 103J C131 98.3 23.9 2401-000037 C-AL 470uF,20%,16V,GP,8x11.5mm,5mm CB01 25.2 72.9 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 CB03 50.7 58 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 CB04 60.2 63.8 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 CB05 104.3 77.6 2305-000009 CAP-MPETP,104J,2E,7.5P (T)250V 104J CB06 114.1 67.1 2301-000015 CAP-MYLAR,103J,2A,5P (T)100V 103J CB07 93 59.6 2201-000010 C-CERAMIC,DISC 33pF,5%,50V,NPO,5x3.5,5,TP CB09 96 44.4 2401-000023 C-AL 1uF,20%,50V,GP,5x11mm,5mm,TP CG01 24.7 78 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 CG03 51.3 89.5 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 CG04 53.2 71.2 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 CG05 99 79.3 2305-000009 CAP-MPETP,104J,2E,7.5P (T)250V 104J CG06 114.9 70.7 2301-000015 CAP-MYLAR,103J,2A,5P (T)100V 103J CG07 87.2 62.4 2201-000010 C-CERAMIC,DISC 33pF,5%,50V,NPO,5x3.5,5,TP CG09 102.5 44.4 2401-000023 C-AL 1uF,20%,50V,GP,5x11mm,5mm,TP CN101 11.2 75.8 3711-003614 CONNECTOR-HEADER BOX,13P,1R,2mm,ANGLE,SN CN103 57.3 93.3 3711-001147 CONNECTOR-HEADER BOX,9P,1R,2.50mm,ANGLE,SN

10 PCB Diagrams and Electrical Parts List

CKB5237L/7227L 10-16

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

10-2-3 Video PCB Parts

Page 38

CN104 50.4 10.5 3710-001180 CONNECTOR-SOCKET 22P,1R,2.54mm,ANGLE,AU CR01 25.2 90.5 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 CR03 44.7 96.3 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 CR04 49.2 78.6 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 CR05 92.4 82.3 2305-000009 CAP-MPETP,104J,2E,7.5P (T)250V 104J CR06 114.9 74.4 2301-000015 CAP-MYLAR,103J,2A,5P (T)100V 103J CR09 110.4 44.3 2401-000023 C-AL 1uF,20%,50V,GP,5x11mm,5mm,TP D101 88.1 18.8 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D102 73 77.5 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D103 48.2 24.1 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D104 65.7 40.4 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA D105 75.3 13.1 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA DB01 14.2 70.2 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA DB02 22.2 67.7 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA DB03 106.3 75.1 0401-000006 DIODE-SIG,BAV21,DO-35 250V,250MA,1V,100MA DB04 106.5 95.4 0401-000006 DIODE-SIG,BAV21,DO-35 250V,250MA,1V,100MA DB05 110.9 85.3 0401-000006 DIODE-SIG,BAV21,DO-35 250V,250MA,1V,100MA DG01 14 78.1 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA DG02 22 75.6 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA DG03 101.2 75.2 0401-000006 DIODE-SIG,BAV21,DO-35 250V,250MA,1V,100MA DG04 101.1 95.2 0401-000006 DIODE-SIG,BAV21,DO-35 250V,250MA,1V,100MA DG05 113.5 85.3 0401-000006 DIODE-SIG,BAV21,DO-35 250V,250MA,1V,100MA DR01 14 88.1 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA DR02 22 85.6 0401-000005 DIODE-SIG,1N4148,DO-35 75V,150MA,1V,10MA DR03 96.1 75.2 0401-000006 DIODE-SIG,BAV21,DO-35 250V,250MA,1V,100MA DR04 95.2 95.2 0401-000006 DIODE-SIG,BAV21,DO-35 250V,250MA,1V,100MA DR05 116.1 85.3 0401-000006 DIODE-SIG,BAV21,DO-35 250V,250MA,1V,100MA HS1 63.9 62.9 BH62-30410A HEAT/SINK A6063S,T2.5,CGH7609 IC101 36.9 90.9 1201-001163 IC-VIDEO AMP 2143,DIP,24P,300MIL,SINGLE,P IC102 84.5 54.3 BH13-10334K IC-HYBRID G17E,LM2405,SIP,11P,CRT/DRIVER IC103 115.5 47.9 BH13-10335D IC-HYBRID CKB7227,HIS0214A,SIP,10P,VIDEO IC104 23.1 33.7 BH09-10303Q IC-OSD PROCESSOR LSC4390,DIP,24P,300MIL,PLASTIC IC105 13.4 24.1 0801-000337 IC-CMOS LOGIC 74HCT14,SCHIMITT INVERTER,DIP J1 BH39-40361A CBF-HARNESS 40MM,BLK,UL1015,AWG22 J2 BH39-40057A CBF-HARNESS 1P,50MM,BLK,UL1015,#22 L101 44.9 24.8 2701-000125 INDUCTOR-AXIAL 150uH,10%,2.8x7mm L102 116.8 57.1 2701-000128 INDUCTOR-AXIAL 15uH,10%,4.2x9.8mm Q102 68.7 23.5 0501-000492 TR-NPN,MPS3646,TO-92,EBC 40V,15V,5V,0.3A Q103 81.7 24.3 0501-000122 TR-SMALL SIGNAL 2N3904,NPN,625mW,TO-92,100-3 R101 9.8 34.4 2001-000043 R-CARBON 1Kohm,5%,1/6W,AA,TP,1.8x3.2mm R102 7.4 29 2001-000553 R-CARBON 270ohm,5%,1/6W,AA,TP,1.8x3.2mm R103 5.7 41.6 2001-000029 R-CARBON 100ohm,5%,1/6W,AA,TP,1.8x3.2mm R104 39.5 51.1 2001-000069 R-CARBON 12Kohm,5%,1/6W,AA,TP,1.8x3.2mm R105 57.2 86.1 2001-000067 R-CARBON 10Kohm,5%,1/6W,AA,TP,1.8x3.2mm R106 49.2 83.6 2001-000106 REF-CF,1.5K,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL R107 22.4 48 2001-000048 R-CARBON 2.2Kohm,5%,1/6W,AA,TP,1.8x3.2m R108 108.4 16.6 2003-000704 R-METAL OXIDE(S) 47Kohm,5%,1W,AA,TP,3.3x9mm

10 PCB Diagrams and Electrical Parts List

10-17 CKB5237L/7227L

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

Page 39

R109 65.9 14.4 2001-000856 R-CARBON 560ohm,5%,1/6W,AA,TP,1.8x3.2mm R110 63.5 14.4 2001-000856 R-CARBON 560ohm,5%,1/6W,AA,TP,1.8x3.2mm R111 24.1 21.4 2001-000046 REF-CF,1.8K,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL R112 40.9 18.7 2001-000106 REF-CF,1.5K,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL R113 34.6 29.9 2001-000097 REF-CF,1M,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL R114 32.1 26.9 2001-000059 REF-CF,5.6K,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL R115 54.4 31.3 2001-000976 R-CARBON 8.2Kohm,5%,1/6W,AA,TP,1.8x3.2m R116 66.3 28.4 2001-000051 R-CARBON 2.7Kohm,5%,1/6W,AA,TP,1.8x3.2m R118 72.1 22.2 2001-000053 REF-CF,3.3K,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL R119 83.2 13.1 2001-000053 REF-CF,3.3K,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL R120 80.7 37.9 2001-000043 R-CARBON 1Kohm,5%,1/6W,AA,TP,1.8x3.2mm R122 63.1 40.4 2001-000043 R-CARBON 1Kohm,5%,1/6W,AA,TP,1.8x3.2mm R123 60.6 31.4 2001-000040 R-CARBON 470ohm,5%,1/6W,AA,TP,1.8x3.2mm R124 85.9 13.8 2001-000067 R-CARBON 10Kohm,5%,1/6W,AA,TP,1.8x3.2mm R125 87.5 36.1 2001-000604 R-CARBON 3.6Kohm,5%,1/6W,AA,TP,1.8x3.2m R126 90.1 43.3 2001-000056 R-CARBON 4.7Kohm,5%,1/6W,AA,TP,1.8x3.2m R127 35.4 11.8 2001-000868 R-CARBON 56ohm,5%,1/6W,AA,TP,1.8x3.2mm R128 9.7 20.4 2001-000868 R-CARBON 56ohm,5%,1/6W,AA,TP,1.8x3.2mm R129 12 26 2001-000067 R-CARBON 10Kohm,5%,1/6W,AA,TP,1.8x3.2mm R130 18.5 32 2001-000067 R-CARBON 10Kohm,5%,1/6W,AA,TP,1.8x3.2mm R135 31.5 58 2001-000067 R-CARBON 10Kohm,5%,1/6W,AA,TP,1.8x3.2mm RB01 14.2 65.2 2001-000026 REF-CF,75,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL RB02 14.2 72.9 2001-000026 REF-CF,75,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL RB04 63.2 59 2001-000039 R-CARBON 390ohm,5%,1/6W,AA,TP,1.8x3.2mm RB05 53.2 61.4 2001-000301 REF-CF,10,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL RB06 103.7 64.2 2001-000323 R-CARBON 120ohm,5%,1/4W,AA,TP,2.4x6.4mm RB07 83.9 80.9 2001-000547 REF-CF,270K,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL RB08 71.3 52.1 2001-000086 R-CARBON 100Kohm,5%,1/6W,AA,TP,1.8x3.2m RB15 92.7 43.8 2001-000043 R-CARBON 1Kohm,5%,1/6W,AA,TP,1.8x3.2mm RB18 42.7 55.6 2001-000077 REF-CF,47K,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL RG01 14 83.1 2001-000026 REF-CF,75,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL RG02 14 80.6 2001-000026 REF-CF,75,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL RG04 60.2 66.2 2001-000039 R-CARBON 390ohm,5%,1/6W,AA,TP,1.8x3.2mm RG05 53.2 68.7 2001-000301 REF-CF,10,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL RG06 98.7 60.2 2001-000323 R-CARBON 120ohm,5%,1/4W,AA,TP,2.4x6.4mm RG07 86.6 80.9 2001-000547 REF-CF,270K,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL RG08 87.1 71.7 2001-000086 R-CARBON 100Kohm,5%,1/6W,AA,TP,1.8x3.2m RG15 99.2 43.7 2001-000043 R-CARBON 1Kohm,5%,1/6W,AA,TP,1.8x3.2mm RG18 50.9 51.6 2001-000077 REF-CF,47K,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL RR01 14 93.1 2001-000026 REF-CF,75,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL RR02 14 90.5 2001-000026 REF-CF,75,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL RR04 59.2 76.1 2001-000039 R-CARBON 390ohm,5%,1/6W,AA,TP,1.8x3.2mm RR05 53.2 73.7 2001-000301 REF-CF,10,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL RR06 90.1 57.3 2001-000323 R-CARBON 120ohm,5%,1/4W,AA,TP,2.4x6.4mm RR07 89.3 80.9 2001-000547 REF-CF,270K,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL RR15 107.2 43.7 2001-000043 R-CARBON 1Kohm,5%,1/6W,AA,TP,1.8x3.2mm RR18 43 47 2001-000077 REF-CF,47K,5%,1/6W 150V,-1300 TO +350PPM/C,R-AXIAL

10 PCB Diagrams and Electrical Parts List

CKB5237L/7227L 10-18

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

Page 40

ZD101 21.9 56.1 0403-000005 DIODE-ZEN,UZ-5.1B,DO-35 0.5W,10MA ZD102 21.9 60.4 0403-000005 DIODE-ZEN,UZ-5.1B,DO-35 0.5W,10MA ZD103 15.7 45.1 0403-000005 DIODE-ZEN,UZ-5.1B,DO-35 0.5W,10MA ZD104 21.9 51.2 0403-000005 DIODE-ZEN,UZ-5.1B,DO-35 0.5W,10MA ZD105 21.9 53.7 0403-000005 DIODE-ZEN,UZ-5.1B,DO-35 0.5W,10MA

10 PCB Diagrams and Electrical Parts List

10-19 CKB5237L/7227L

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

Page 41

BD102 63.2 49.1 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM C181 46.1 43.4 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 C182 67.3 22.4 2201-000530 C-CERAMIC,DISC 4.7nF,10%,500V,Y5P,12.5x4,5,TP C183 65.7 50.2 2201-000285 C-CERAMIC,DISC 1nF,10%,1KV,Y5P,8.0X4.0,5,TP CN12 67.5 34.2 BH71-40300A PIN-HINGE BRASS,D2.36,SN,HEAT/SINK CN13 9.7 62.9 BH71-40300A PIN-HINGE BRASS,D2.36,SN,HEAT/SINK CN14 71.2 63.7 BH71-40300A PIN-HINGE BRASS,D2.36,SN,HEAT/SINK CN15 8.6 14.7 3711-003233 CONNECTOR-HEADER BOX,9P,1R,2mm,ANGLE,SN CRT1 0 0 BH03-10337W CRT-COLOR 15,0.28,M36KUK35X02(E/LP LB01 28.3 38.9 2701-000173 INDUCTOR-AXIAL 330nH,20%,4.2x9.8mm LG01 17.3 30.4 2701-000173 INDUCTOR-AXIAL 330nH,20%,4.2x9.8mm LR01 22.6 30.4 2701-000173 INDUCTOR-AXIAL 330nH,20%,4.2x9.8mm R181 63.9 65.9 2001-001107 R-CARBON(S) 220ohm,5%,1/2W,AA,TP,2.4x6.4mm R182 67.9 49.1 2001-001138 R-CARBON(S) 390ohm,5%,1/2W,AA,TP,2.4x6.4mm RB17 33.4 39 2002-000142 R-COMPOSITION 39ohm,10%,1/2W,AA,TP,3.5x9.5mm RG17 64.3 62.7 2002-000142 R-COMPOSITION 39ohm,10%,1/2W,AA,TP,3.5x9.5mm RR17 54.3 58.5 2002-000142 R-COMPOSITION 39ohm,10%,1/2W,AA,TP,3.5x9.5mm SK1 49.5 29.3 3704-001015 SOCKET-CRT 8P,15.24PI,25.6PI,SN SK101 57.6 43.5 4715-000102 SURGE ABSORBER 200V,20%,1000A,RADIAL SK102 70.8 25.9 4715-000102 SURGE ABSORBER 200V,20%,1000A,RADIAL SK103 36.8 39 4715-000102 SURGE ABSORBER 200V,20%,1000A,RADIAL SK104 63 22.4 4715-000106 SPARK-GAP DSP-301N

10 PCB Diagrams and Electrical Parts List

CKB5237L/7227L 10-20

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

10-3-3 CRT PCB Parts (CKB5237L)

Page 42

BD102 63.8 37.1 3301-000011 MAG-CORE,FERRITE,BEAD 1.2UH,3.5_5.7MM,10 OHM C181 36 44.3 2202-002009 C-CERAMIC,MLC-AXIAL 100nF,+80-20%,50V,Y5V,2.3X3.0 C182 63.2 19.8 2201-000530 C-CERAMIC,DISC 4.7nF,10%,500V,Y5P,12.5x4,5,TP C183 58.7 42 2201-000285 C-CERAMIC,DISC 1nF,10%,1KV,Y5P,8.0X4.0,5,TP CN103 8.1 21.5 3711-001111 CONNECTOR-HEADER BOX,8P,1R,2.50mm,ANGLE,SN CN12 65.9 42.8 BH71-40300A PIN-HINGE BRASS,D2.36,SN,HEAT/SINK CN13 9.7 62.9 BH71-40300A PIN-HINGE BRASS,D2.36,SN,HEAT/SINK CN14 72.1 63 BH71-40300A PIN-HINGE BRASS,D2.36,SN,HEAT/SINK CRT1 0 0 BH03-10337T CRT-COLOR 17 ,0.28,M41KUN36X03(E/L/LP LB01 23.8 34.6 2701-000173 INDUCTOR-AXIAL 330nH,20%,4.2x9.8mm LG01 14.5 30.8 2701-000173 INDUCTOR-AXIAL 330nH,20%,4.2x9.8mm LR01 19 30.9 2701-000173 INDUCTOR-AXIAL 330nH,20%,4.2x9.8mm R181 58.6 64.6 2001-001107 R-CARBON(S) 220ohm,5%,1/2W,AA,TP,2.4x6.4mm R182 57.1 33.8 2001-001138 R-CARBON(S) 390ohm,5%,1/2W,AA,TP,2.4x6.4mm RB17 28.1 40 2002-000142 R-COMPOSITION 39ohm,10%,1/2W,AA,TP,3.5x9.5mm RG17 58.4 61.4 2002-000142 R-COMPOSITION 39ohm,10%,1/2W,AA,TP,3.5x9.5mm RR17 48.6 57 2002-000142 R-COMPOSITION 39ohm,10%,1/2W,AA,TP,3.5x9.5mm SK1 39.5 29.4 3704-000108 PHI29_D/F,SMALL TYPE CON-JACK CRT SOCKET,12P SK101 45.1 43.6 4715-000102 SURGE ABSORBER 200V,20%,1000A,RADIAL SK102 67 24.5 4715-000106 SPARK-GAP DSP-301N SK103 31.6 42.9 4715-000102 SURGE ABSORBER 200V,20%,1000A,RADIAL SK104 58.7 19.8 4715-000106 SPARK-GAP DSP-301N

10 PCB Diagrams and Electrical Parts List

10-21 CKB5237L/7227L

Loc. No. Coordinates (X,Y) New Code No. Description Specification Remarks

10-3-4 CRT PCB Parts (CKB7227L)

Page 43

10 PCB Diagrams and Electrical Parts List

10-22 CKB5237L/7227L

CRT BH03-10337W CRT-COLOR M36KUK35X02(E/LP),MPR-II 15Inch SDD

BH03-10338V CRT-COLOR M36KUK35X02(A/LP),MPR-II “ BH03-10337X CRT-COLOR M36KUK35X02(T4/LP),MPR-II “ BH03-10338R CRT-COLOR M36KUK35X02(M/E/LP),MPR-II “ BH03-10338S CRT-COLOR M36KUK35X02(R/E/LP),MPR-II “ BH03-10301F CRT-COLOR M36EDR320X131,MPR-II 15Inch PHS BH03-10337T CRT-COLOR M41KUN36X03(/L/LP) 17Inch SDD BH03-10337U CRT-COLOR M41KUN36X03(A/L/LP) “ BH03-10337V CRT-COLOR M41KUN36X03(T4/L/LP) “ BH03-10339C CRT-COLOR M41KUN36X03(M/E/L/LP) “ BH03-10339D CRT-COLOR M41KUN36X03(R/E/L/LP) “ BH03-10336A CRT-COLOR M41KXH110X66 17Inch MEC

CRT GND BH39-40362C CBF-CRT GROUND 1P,320MM,BLK,UL1015,AWG18 17Inch

BH39-40362B CBF-CRT GROUND 1P,280MM,BLK,UL1015,AWG18 15Inch

D-COIL BH27-10335D DEGAUSSING COIL 305*325*1640,11.7mH 17Inch

BH27-10335K DEGAUSSING COIL 300*225*950,8.2mH 15Inch MAGNET RUBBER 3302-000006 MAG-RUBBER MAGNET AF,14G,1620-1980G PROCESS-PWA UNIT BH94-30007R ASS’Y PCB CKB7227 17Inch

BH94-30007S ASS’Y PCB CKB5237 15Inch P/CORD BH39-10005A CBF-POWER/CORD CAP,1VR,1220MM,220V IBM CAP TYPE

BH39-10002A CBF-POWER/CORD WALL,1VR,1850MM,110V SEA

BH39-10006A CBF-POWER/CORD WALL,1VR,1830MM,220V SEAU

BH39-10007A CBF-POWER/CORD WALL,1VR,1830MM,220V SEUK

BH39-10307A CBF-POWER/CORD WALL,1VR,1830MM,110V JAPAN

BH39-10339A CBF-POWER/CORD WALL,GRY,1830MM,220V(only S/M model) SEUK

BH39-10339N CBF-POWER/CORD WALL,1VR,1550MM,220V CHINA

BH39-10339E CBF-POWER/CORD WALL,IVR,1830MM,110V SIGNAL CABLE BH39-203336U CBF-SIGNAL ATT,2000MM,15P,IVORY,UL 17Inch

BH39-20336W CBF-SIGNAL ATT,1700MM,15P,IVORY,UL 15Inch

Loc. No. Code No. Description Specification Remarks

Others

Page 44

8 Block Diagrams

CKB5237L

CKB5237L/7227L 8-1

H/V

+210V

+30V

+12V

CONTRAST

CONTROL

BRIGHTNESS

CONTROL

CRT

VIDEO OUTPUT

R G B

CRT SOCKET BOARD

SOCKET

IC102(LM2405T)

SK1

R G B - CUTOFF

ICONTROL(IC103)

SCREEN

FOCUS1

MAIN BOARD

HEATER

High Voltage

CN301

CN300

VER. - DY

VER. OUTPUT

V-SYNC

FBT

CONTROL

IC501

IC300

HOR./VER. OSC

T501

High Voltage

CONTROL

OUTPUT

High Volt.-DRIVE

Q512

PROCESSOR

(TDA9109)

HOR.-DY

CN400

CN401

HOR.- OUT

Q406

HOR.-DRIVE

Q403

IC302

ACL

CIRCUIT

CN402

CONTRAST

CONTROL

H-DEF.

TRANS

T402

HOR.-DEF.

STEP-UP

VER.-BLANKING

GENERATOR

(Q301)

BRIGHTNESS

CONTROL

+12V

TO VIDEO

+75V

+45V

SWITCHING

-210V

( FROM FBT)

PS1,PS2 (FROM Micom)

+12V REGULATION

+13V

TRANS.

VER. OUTPUT & TILT CONTROL

-12V

T601

HEATER

CRT HEATER

POWER-OFF MODE CONTROL

+7V

PS-2

(Q601, Q602)

H-SYNC,

RECTIFIER

(D600,D602,

D603,D604)

L600/L602

LINE FILTER

AC-INLET

SOCKET

CN603

VIDEO BOARD

Video Pre-Amp

IC101(KA2143)

R G B

S/Cable INPUT

OSD DRIVE CONTROL

IC104(LSC4390)

H-SYNC, V-SYNC

FRONT CONTROL BOARD

H-SYNC1

V-SYNC1

SDA

SCL

H-SIZE

MICOM

IC202

MENU EXIT

BRIGHTNESS

CONTRAST

I-SENSE

ENTER

REGIN

LED

POWER

V-MUTE

S-CORRECTION

LED

PS-1 (SUSPEND)

PS-2

EPROM

(24LC04B)

IC205

TILT

(POWER-OFF)

DEGAUSSING

BLOCK

TO D - COIL

PWM CONTROL &

SWITCHING FET

IC602

RL601

ON THE CRT

Page 45

CKB7227L

8 Block Diagrams

8-2 CKB5237L/7227L

H/V

–210V

+30V

+12V

CONTRAST

CONTROL

BRIGHTNESS

CONTROL

CRT

R G B

CRT SOCKET BOARD

SOCKET

SK1

SCREEN

FOCUS1,2

MAIN BOARD

HEATER

High Voltage

CONTROL

VER. - DY

CN300A

VER. OUTPUT

FBT

T501

IC501

High Voltage

IC300

High Volt.-DRIVE

HOR./VER. OSC

PROCESSOR

CONTROL

OUTPUT

Q512

(TDA9109)

IC302

ACL

CN400

CN402

HOR.-DY

HOR.- OUT

Q406

HOR.-DRIVE

Q403

CIRCUIT

H-DEF.

TRANS

HOR.-DEF.

VER.-BLANKING

GENERATOR

CONTRAST

CONTROL

T402

STEP-UP

(Q301)

BRIGHTNESS

CONTROL

+12V

TO VIDEO

+75V

+45V

-210V

( FROM FBT)

PS-2

PS1,PS2 (FROM Micom)

+12V REGULATION

+13V

HEATER

CRT HEATER

VER. OUTPUT & TILT CONTROL

+7V

-12V

POWER-OFF MODE CONTROL

(Q601, Q602)

VIDEO OUTPUT

IC102(LM2405T)

R G B - CUTOFF

ICONTROL(IC103)

VIDEO BOARD

Video Pre-Amp

IC101(KA2143)

R G B

S/Cable INPUT

OSD DRIVE CONTROL

IC104(LSC4390)

H-SYNC, V-SYNC

V-SYNC

H-SYNC,

FRONT CONTROL BOARD

H-SYNC1

V-SYNC1

SDA

SCL

H-SIZE

MICOM

IC202

MENU EXIT

BRIGHTNESS

CONTRAST

I-SENSE

ENTER

REGIN

LED

POWER

V-MUTE

S-CORRECTION

LED

PS-1 (SUSPEND)

PS-2

EPROM

(24LC04B)

IC205

SWITCHING

TILT

(POWER-OFF)

DEGAUSSING

BLOCK

TO D - COIL

ON THE CRT

TRANS.

T601

PWM CONTROL &

SWITCHING FET

IC602

RL601

RECTIFIER

(D600, D601,

D603,D604)

L600/L602

LINE FILTER

AC-INLET

SOCKET

CN603

Page 46

Samsung Electronics Co., Ltd. October 1997 Printed in Korea Code No.: BH68-60934A
